Description:
The Professional Bench Top Multimeter is a unique multi-functional device that has 4 7/8 digits Dual Display with 80,000 counts and Analog Bar Graph with 23 segments. This precision LCR meter is a cost-effective solution for component and material measurement. Measure speed is about 3 per second and with more than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance ( Omega;), Capacitance, Frequency (Hz), Rotational Speed,Temperature (C/F), Duty Cycle, Diode and Continuity Check. Moreover, you can connect it to your computer through RS-232 Cable. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring. This multimeter is most suitable for use on production lines, laboratories, factories, radio-technology, R amp; D, maintenance and repairing work. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.
Features:
High contrast and Wide visual angle LCD display with backlight
Dual Display:
Main Display: 80000
Secondary Display: 80000
Analog Bar Graph: 23 segments, update 40 time/sec
More than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance ( Omega;), Capacitance, Frequency (Hz), Temperature ( deg;C/ deg;F), Duty Cycle, Diode amp; Continuity Check
Single Analyzed:
(AC+DC) measuring synchronous
(AC+Hz) measuring synchronous
(DC+dBm) measuring synchronous
(dBm+Hz) measuring synchronous
(Hz+Duty) measuring synchronous
( deg;C+ deg;F) displaying synchronous
Frequency measurement : 0.5Hz -1000.000000MHz
Basic DC Accuracy : 0.05 %
mV Impedance : gt;1000M Omega;
16 Frequency points, 1% to 99% duty selectable rectangular wave output
Analyzing component of current or voltage signal
Resistance Measuring : 0.1 Omega; to 80M Omega;,10M Omega; to 8000M Omega;
Capacitance Measuring : 1nF to 100 mu;F
Temperature Measuring : -50 deg;C to 1372 deg;C, -58 deg;F to 2502 deg;F
dBm 20 types of reference impedance
Auto data hold/ peak hold
Relative measuring : REL, Relative percent : REL%
36 hours dynamic recording : MAX / MIN / average/ MAX-MIN
Communication : 9-pin isolated optical RS232 cable
Measure speed is about 3 per second
Timer for measurement
Safety/Compliance : IEC 61010 CAT II 1000V ; CAT III 600V
Auto power off
0.1 ~ 99.9% pulse duty cycle measuring
Set upper and lower limit area measuring
Photoelectricity insulation RS-232 computer interface
Timing measuring function
AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measure the accuracy virtual value of AC by any wave
Specifications:
Maximum voltage between any terminal and earth ground: 1000V RMS
Continuity Beeper: 3kHz Approx.
Operating Temperature: 0 deg;C to +50 deg;C Storage Temperature : -20 deg;C to +60 deg;C
Operating Altitude: under 2000m
Storage Altitude : under 10,000m
Relative Humidity : le;75% at 0 deg;C to +40 deg;C
Electromagnetic Compatibility : in a RF field or 1 V/m on all ranges and function except Capacitance
Total Accuracy : specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified
PC Interface : RS-232
Compatible with Windows 2000 amp; XP only
AC Power : 110~220 V ( EU Power adapter plug)
Size : approx. 242 x 212 x 98 mm
Weight : approx.1388g (accessories not included)
Package Includes:
1 x Digital Bench Top Multimeter
1 x Pair of Test Leads
1 x Type K Thermocouple
1 x RS-232 Software CD
1 x 9-pin Cable Adapter
1 x AC Power Cord (EU Plug)
1 x English Instruction Manual
1 x Standard Packaging Box
Note:
We will send you a plug adapter according to your country.

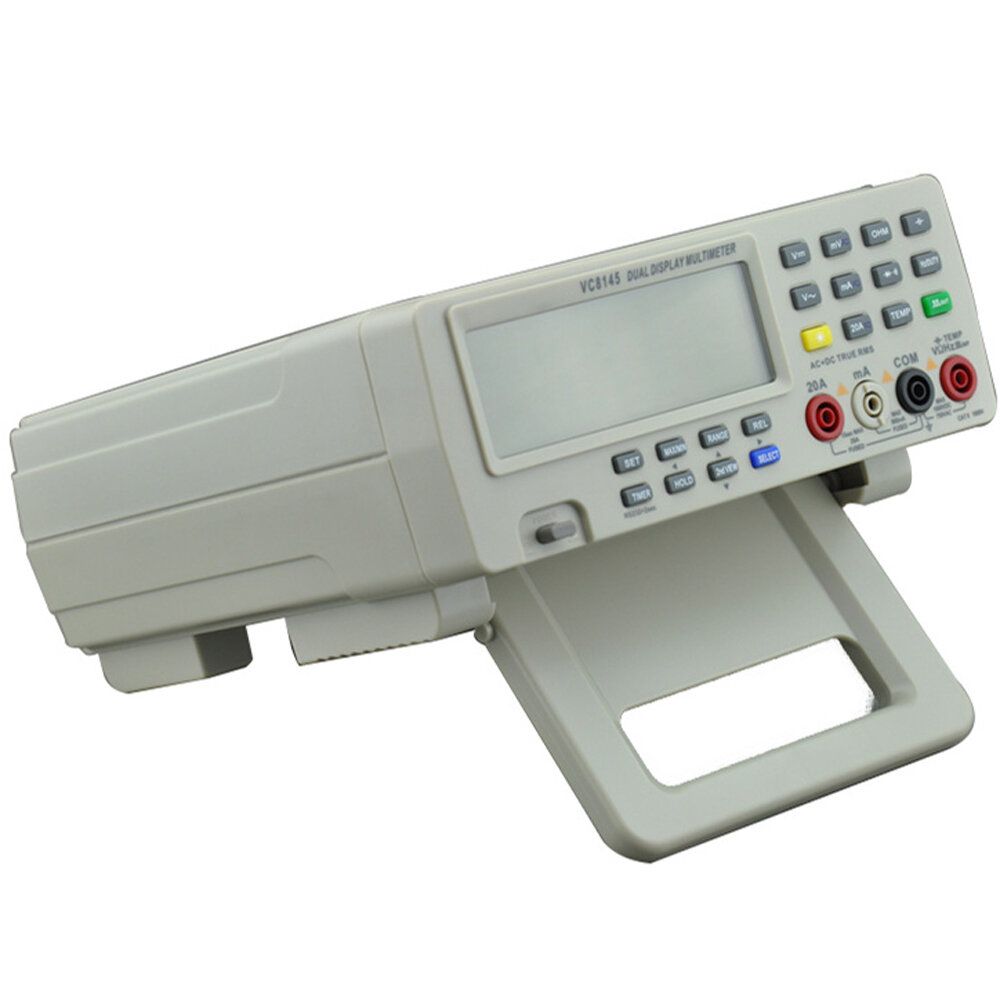

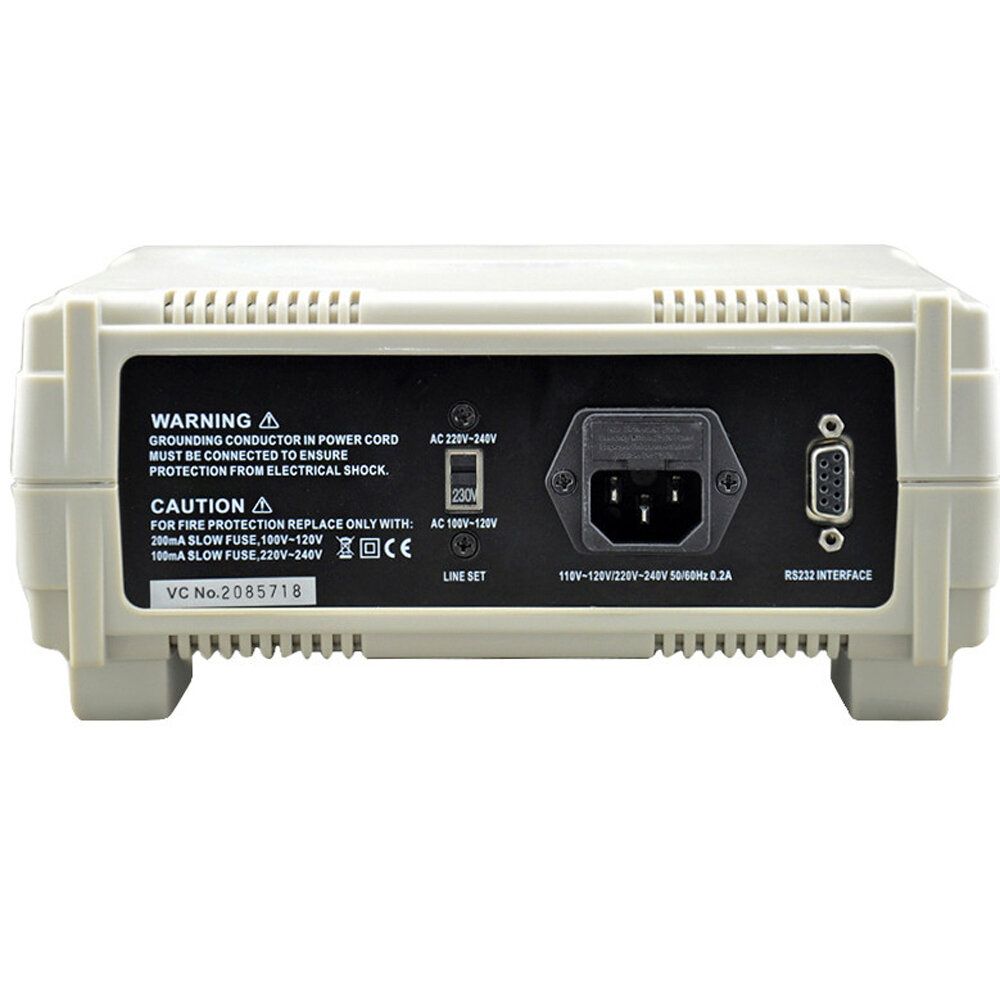

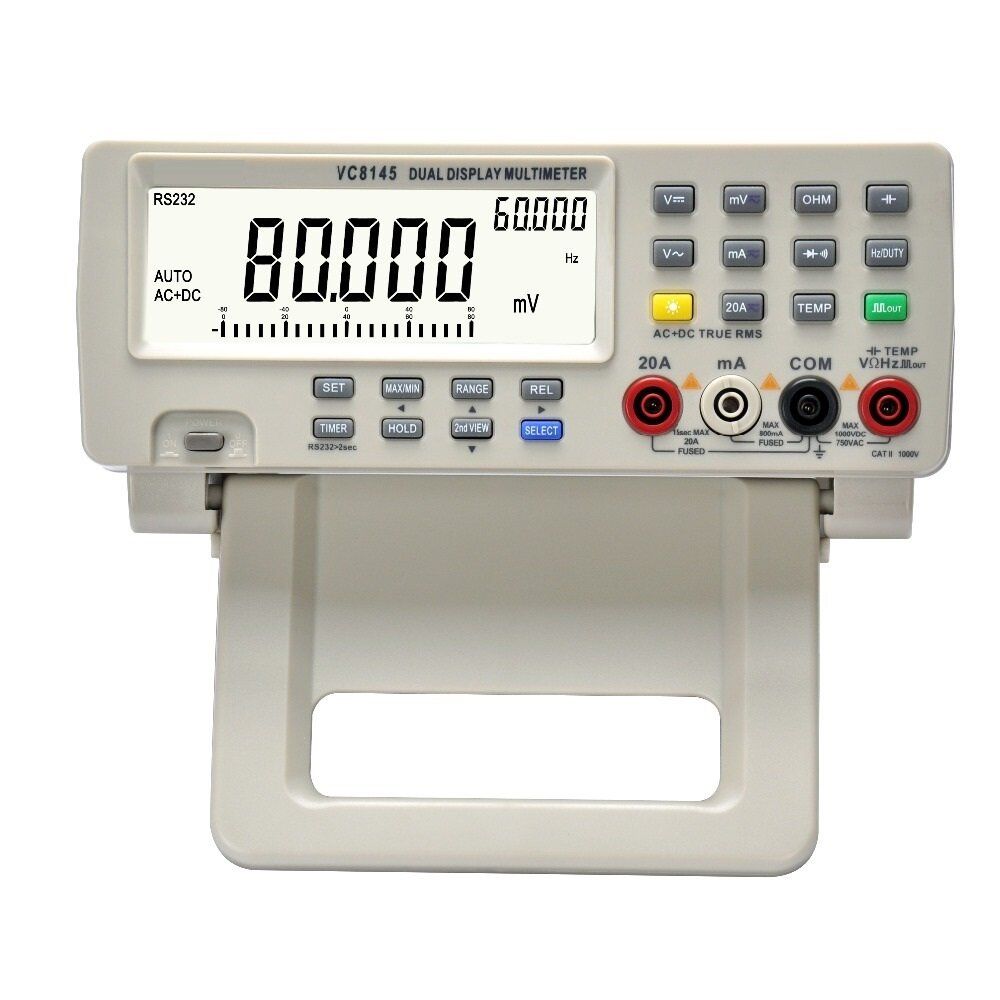

Details Pictures:
