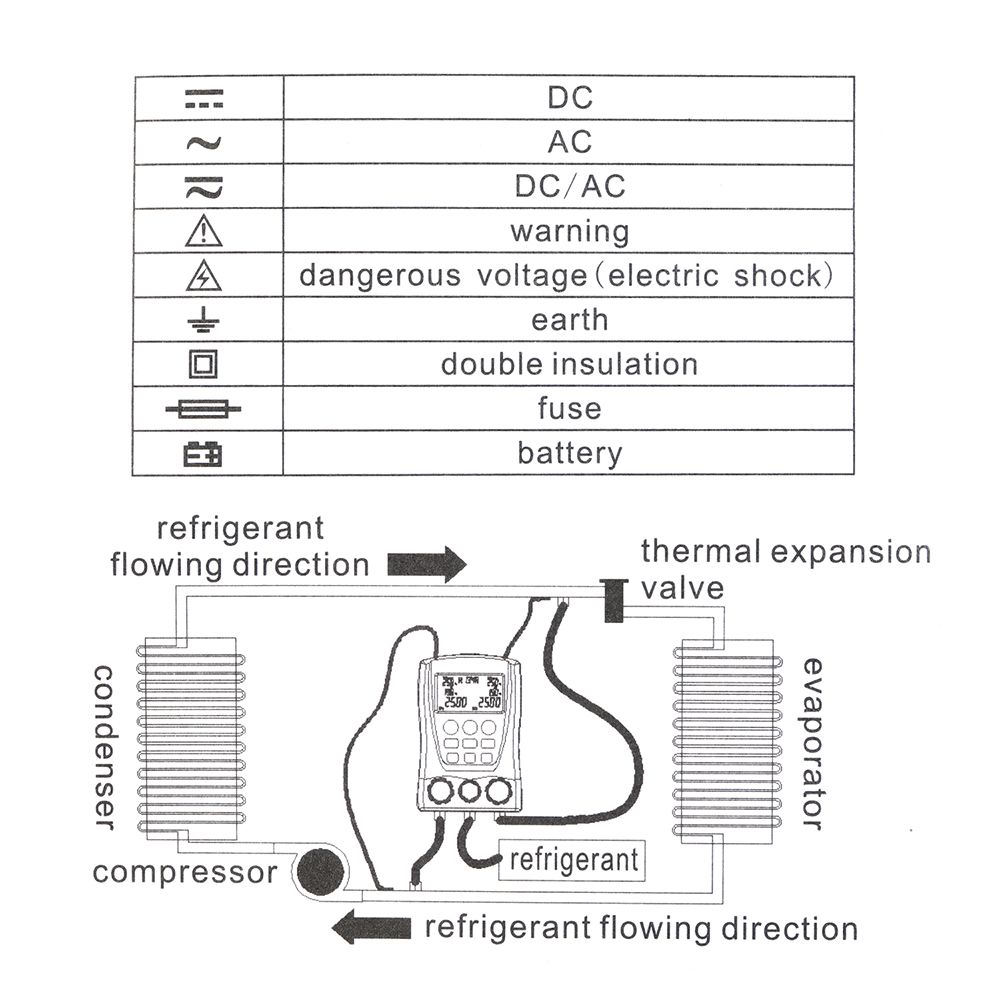

Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.
Features:
HVAC System Gauge Set has double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.
The guage can measure dual pressure and dual temperature at the same time, with automatic conversion of pressure and temperature units to facilitate different needs.
Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data.

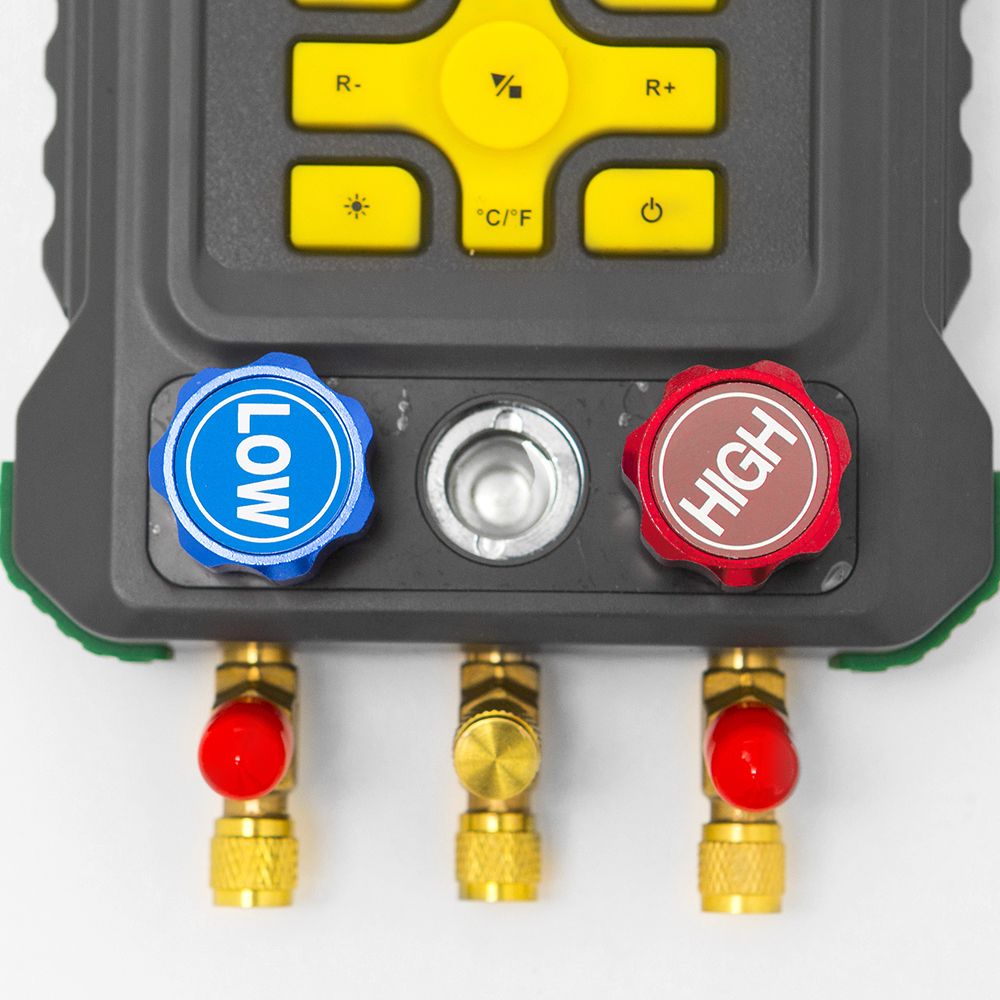

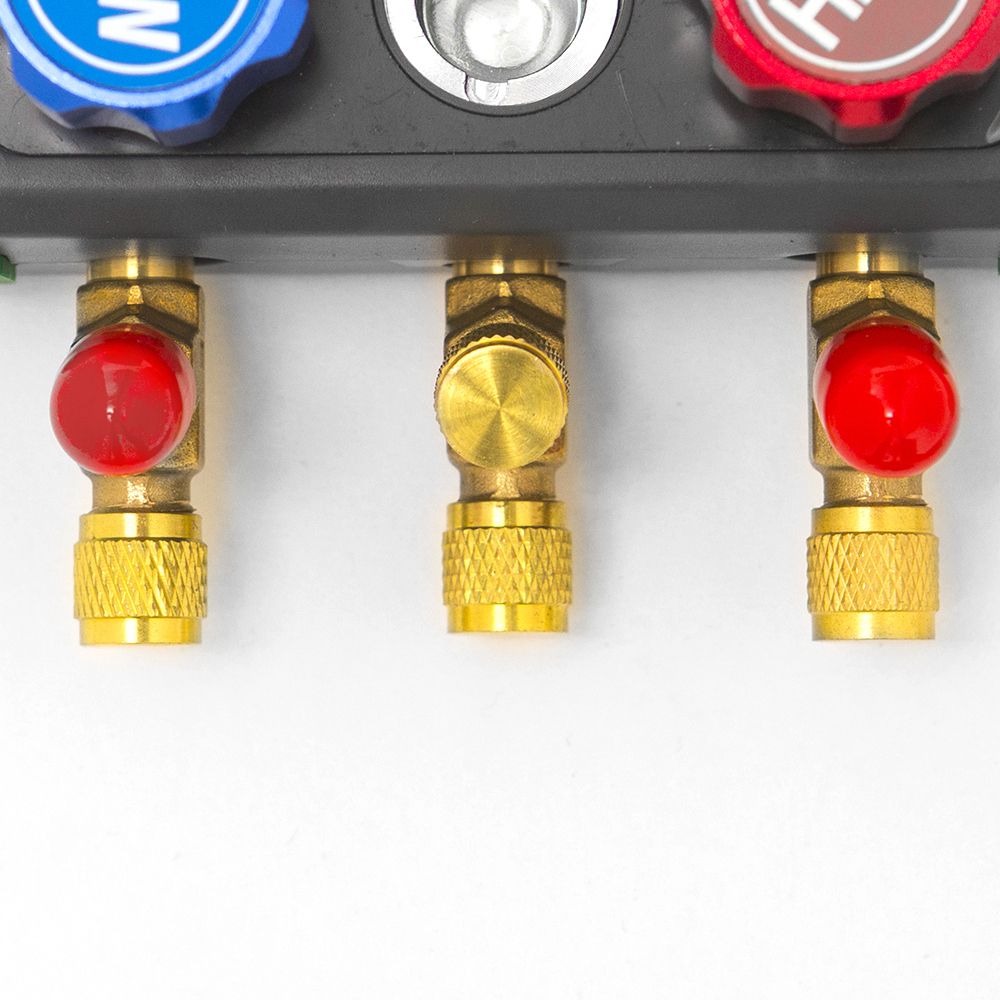

High clear backlit large screen, clear data, no need to worry about the dark environment. Long-lifespan valve switch, 1/4-inch standard interface design to ensure that the instrument\'s durability and versatility.
Adopts high-strength engineering plastics and flexible anti-slip silicone design, the machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-accuracy data acquisition unit, data has high stability.
Multifunctional, accurate and simple operated digital manifold also can test percentage of vacuum measurement, pressure leak measurement, leak time speed record, and let you do the job right.
Specifications:
Material: ABS
Pressure Test: Gauge Pressure
Pressure Test Unit: Kpa; Mpa, Bar, inHg, PSI
Pressure Test Range: 0Kpa-6000Kpa
Pressure Test Resolution: 1Kpa
Pressure Test Accuracy: plusmn;0.5%(FS)+5dgt
Pressure Overload Limit: 10000Kpa (10Mpa, 100bar)
Vacuum Test: Relative Vacuum
Vacuum Test Unit: Kpa, Mpa, bar, inHg, PSI
Vacuum Test Range: -101Kpa~0Kpa
Vacuum Test Resolution: 1Kpa
Temperature Test Unit: deg;C (Celsius), deg;F (Fahrenheit)
Temperature Test Range: -40 deg;C ndash;150 deg;C (-40 deg;F ndash;302 deg;F)
Temperature Test Resolution: 0.1 deg;C (-40 deg;C ndash;99.9 deg;C), 1 deg;C (100 deg;C ndash;150 deg;C)
0.1 deg;F (-40 deg;F ndash;99.9 deg;F), 1 deg;F (100 deg;F ndash;302 deg;F)
Temperature Test Accuracy: plusmn;0.5 deg;C+2dgt / plusmn;0.9 deg;F+2dgt
Built-in 89 Kinds of Refrigerant NIST: According to AmericanNIST Standard
Power: 4 * 1.5V AA/LR6 Battery(Not Included)
Size: 170 * 110 * 50mm / 6.7 * 4.3 * 2.0in
Package Size: 350 * 300 * 100mm / 13.8 * 11.8 * 3.9in
Package Weight: 3200g / 7.1lb
Packing List:
1 * Digital Manifold Gauge
1 * User Manual (English)
2 * Temperature Clip
3 * Test Tube
1 * Suitcase
