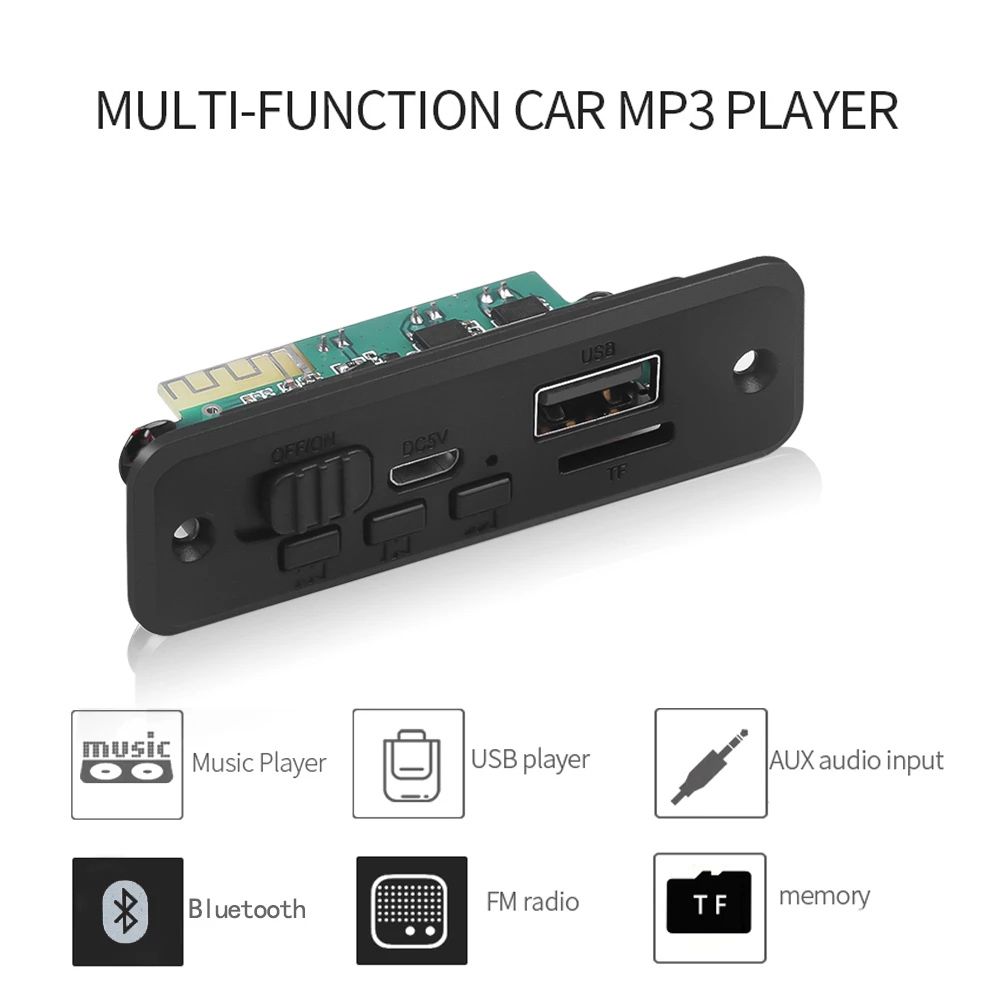

I. Features:
1. Dual decoding supports music in MP3/WMA/WAV/FLAC/APE format;
2. Support bluetooth-compatible call function;

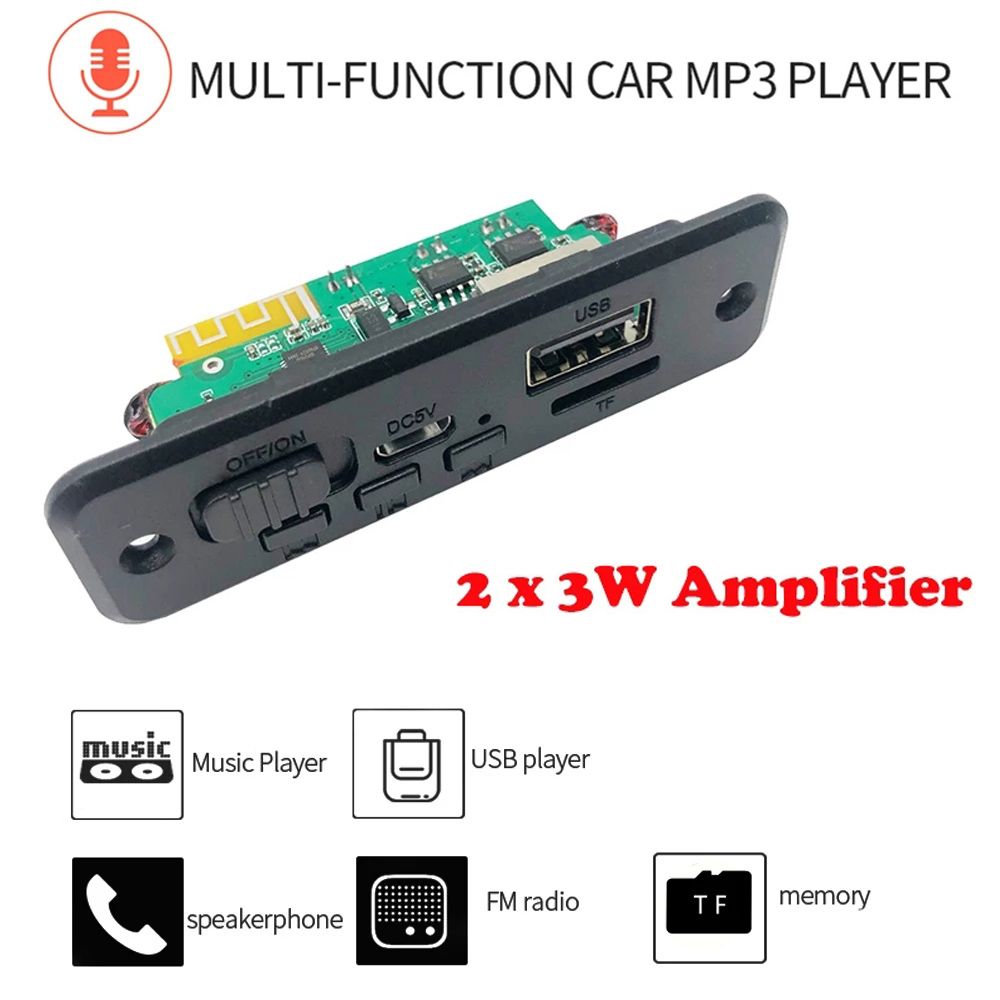

3. With power amplifier 2*3W, it can pull 2 3W speakers at the same time;
4. Support TF card interface, support USB interface (U disk);
5. Support external audio input LINE IN;
6. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);
7. Buttons: three-button multi-directional control, VOL-/AUTO/VOL+;
8. With charging function.
II. Operation Guide:
1. OFF/ON: When the switch is in the OFF position, it is turned off, and in the ON position, it is the power-on position;
2. VOL-button (previous song/volume down): in MP3 state, VOL-short press is the previous song, long press is the volume decrease; in FM state, short press is to increase a station number; in Bluetooth-compatible Under the function, a short press is the previous song on Bluetooth-compatible, and a long press is the volume down;
3. AUTO button (play/pause): in MP3 state, short press AUTO to play/pause; in FM state, short press to play/pause, short press to automatically close and save the station; short press to play in Bluetooth-compatible function /Pause; long press the AUTO button to switch between USB / TF / FM / audio input LINE IN / Bluetooth-compatible function in turn.
4. VOL+ button (next song/volume increase): in MP3 state, short press VOL+ for the next song, long press to increase the volume; in FM state, short press to decrease a station number; in the Bluetooth-compatible function Short press for the next bluetooth-compatible song, long press for volume down;
III. Specifications:
Main control IC: Jerry AC6826A
Bluetooth-compatible IC: Jerry AC6826A Bluetooth-compatible version is version 5.0
With Bluetooth-compatible call function, the power supply voltage is 5V, and the current requirement is more than 2A
Music format: MP3/WMA/WAV/FLAC/APE lossless format music
Power: 2*3W, connect 2 3W speakers
Radio FM frequency: 87.5 mdash;107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / Bluetooth-compatible / DC 5V

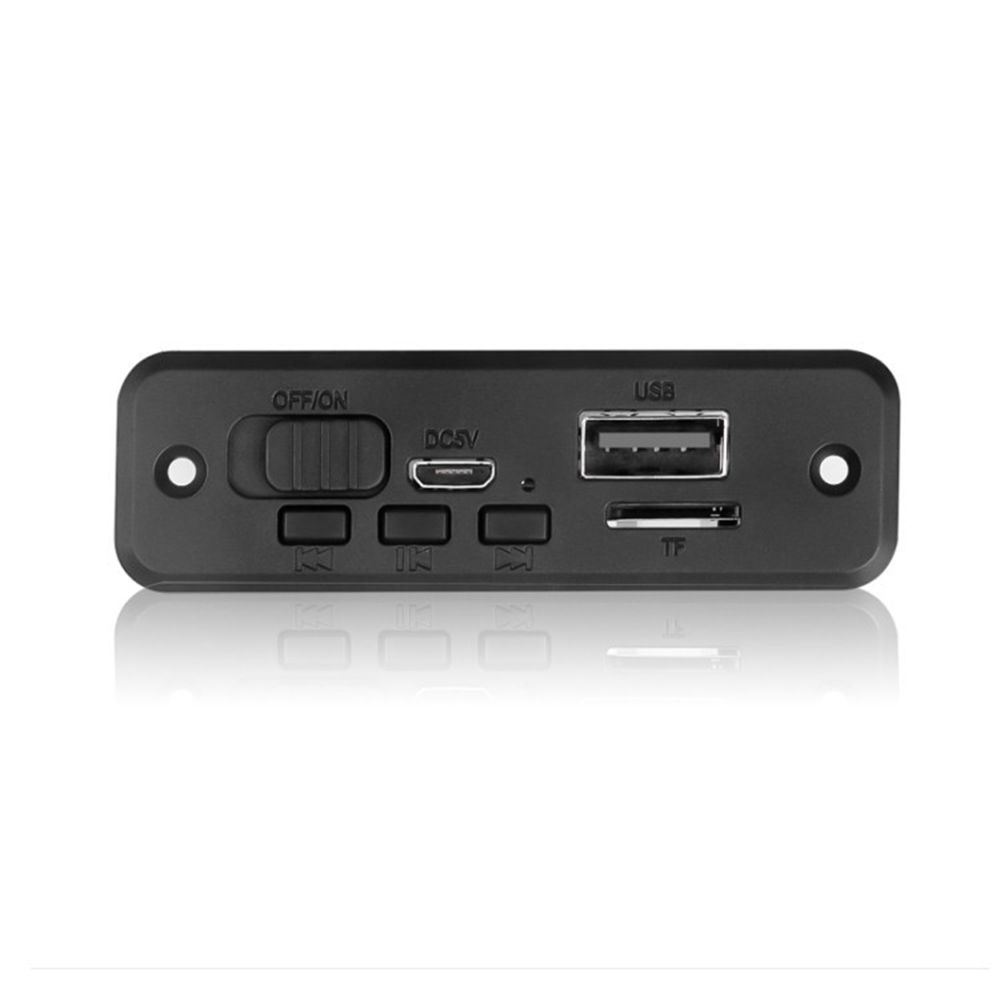

About the structure: Panel size: 71 * 22 MM, the depth of the board is 26 MM, the distance between the two screw positioning holes is 59MM
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
1. Dual decoding supports music in MP3/WMA/WAV/FLAC/APE format;
2. Support bluetooth-compatible call function;
3. With power amplifier 2*3W, it can pull 2 3W speakers at the same time;
4. Support TF card interface, support USB interface (U disk);
5. Support external audio input LINE IN;

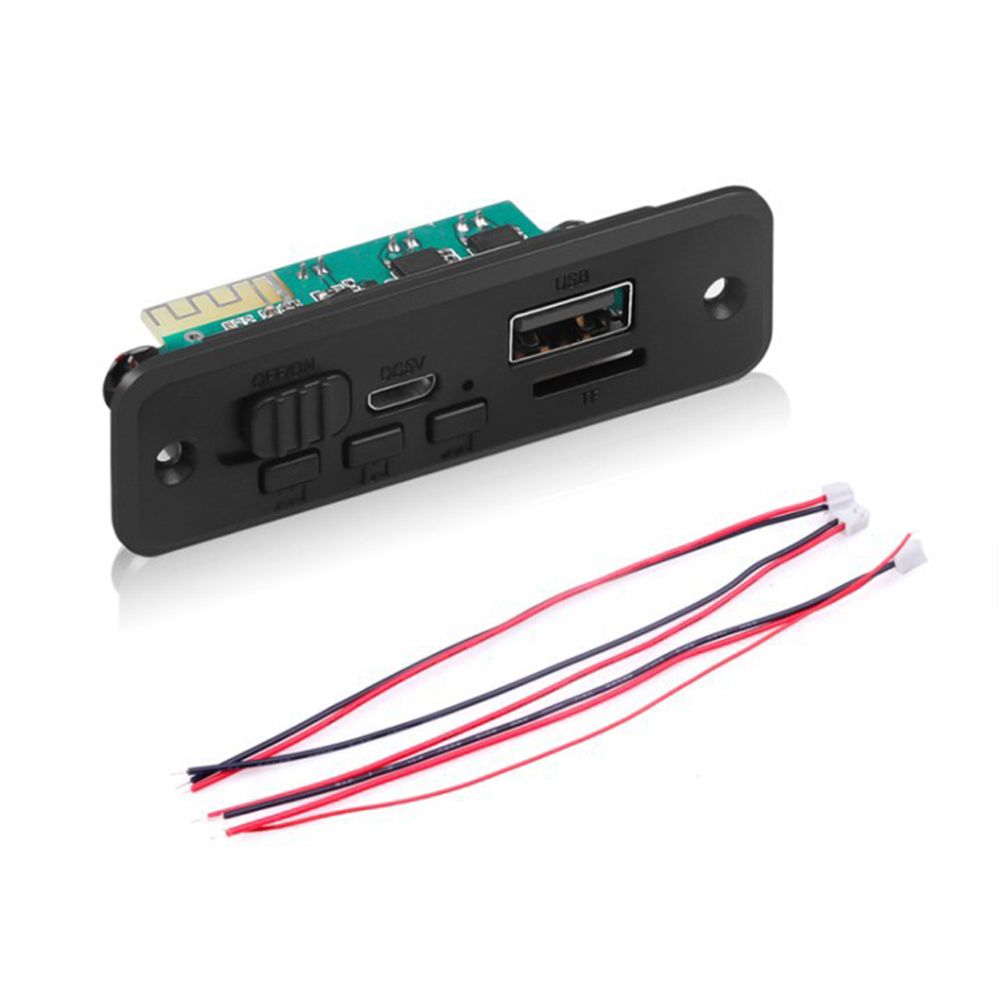

What's In the Box
1 * MP3 Decoder Board (Power Amplifier)
1 * Set of Link Wires
