Buy DC3.3-30V Working Voltage 1Hz-150KHz Frequency High Power

DC3.3-30V Working Voltage 1Hz-150KHz Frequency High Power

₦ 30,943.69 ₦ 32,572.31 -5%

0 No Reviews

Product SKU: RENG326185

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Weight (kg)	0.05
Color	N/A
From the Manufacturer	N/A
Care Label	N/A

Features:

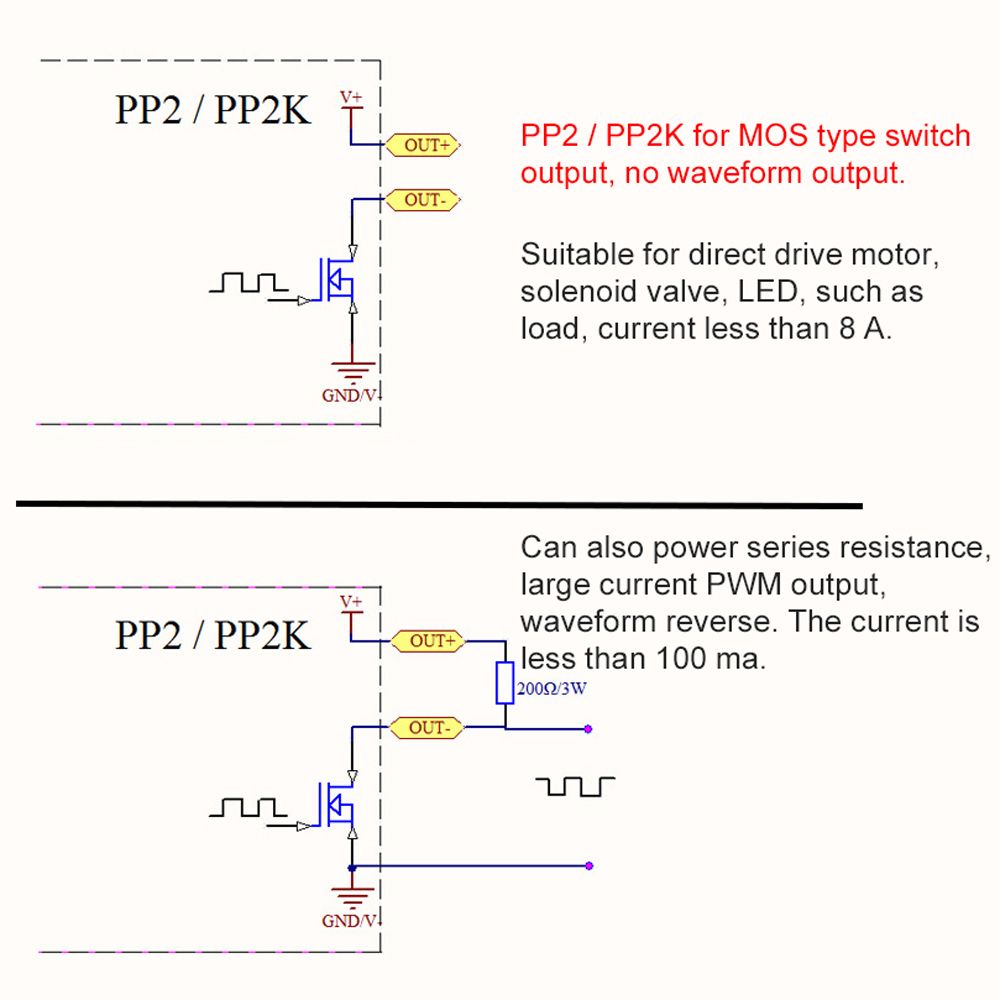

This high-power PWM driver is a MOS switch type output. When the load is not connected, there is no waveform, and the waveform appears only after the load is connected.

Suitable for direct drive motor, solenoid valves, LED and other loads, the current is less than 8A.

It can also be used in series with power resistors to achieve high current PWM output with reverse waveform and current less than 100mA.

Support LED brightness adjustment, motor speed adjustment, frequency, duty cycle can be adjusted.

Drive the solenoid valves to pull and release, automatic cycle, delay output, cycle number (or infinite loop) can be set.

Control equipment to turn on and off, do switch fatigue test, voltage sag and other tests to verify the reliability of customer equipment.

Delay starts load, delay time can be set, after the delay, it will be turned on or intermittently.

3.3-30V wide voltage input, with starts and stop button, and 5.08mm terminal wiring.

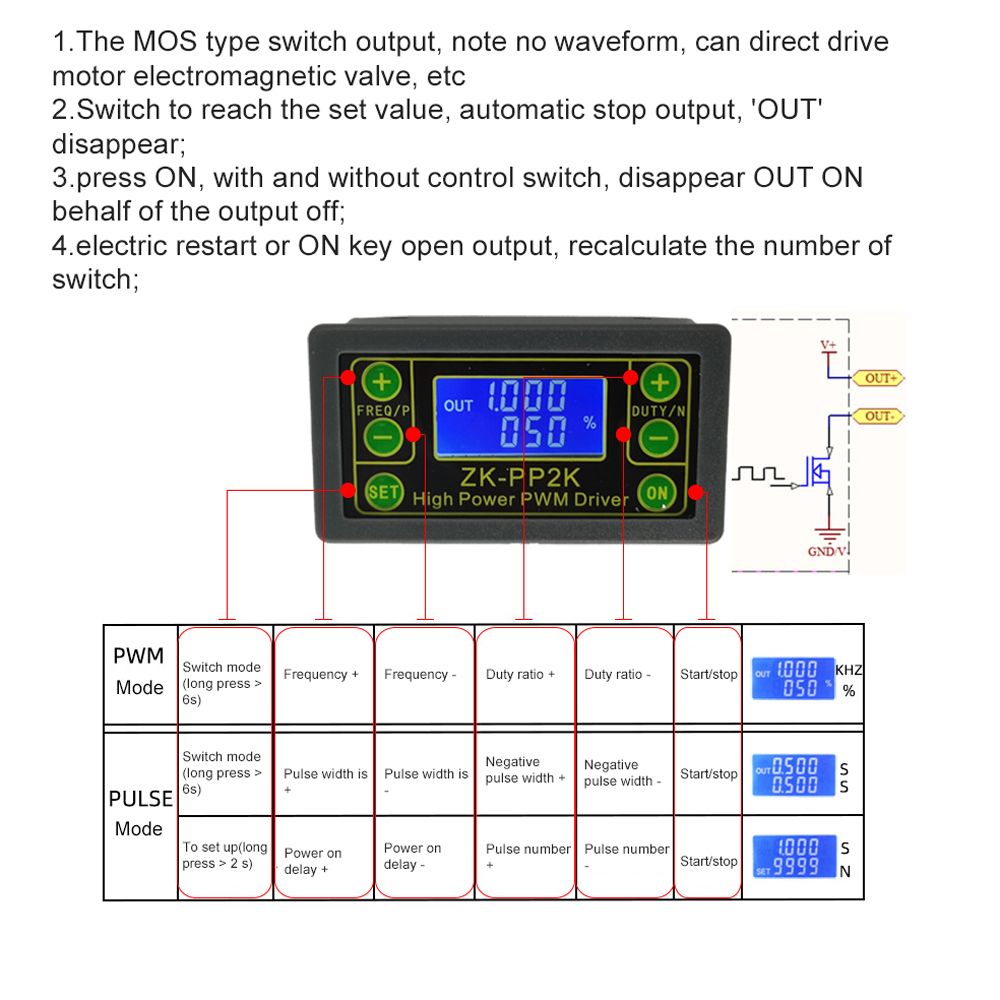

Two modes can be selected, PWM mode and pulse mode, you can choose depending on your demands.

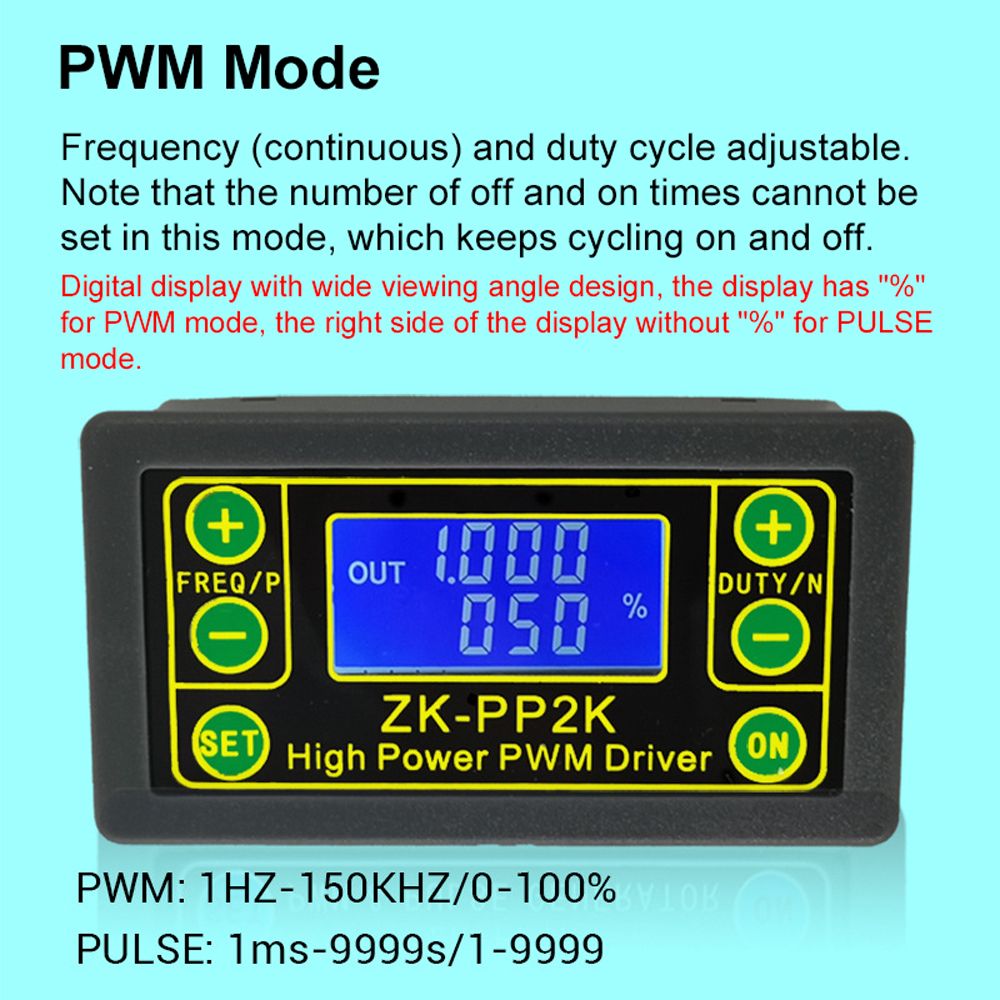

PWM Mode: Frequency (continuous) and duty cycle adjustable. Note that the number of off and on times cannot be set in this mode, which keeps cycling on and off.

Pulse Mode: Positive pulse width time, negative pulse width time, power-on delay starts time, and number of pulses are adjustable. All setting parameters are not lost on shutdown.

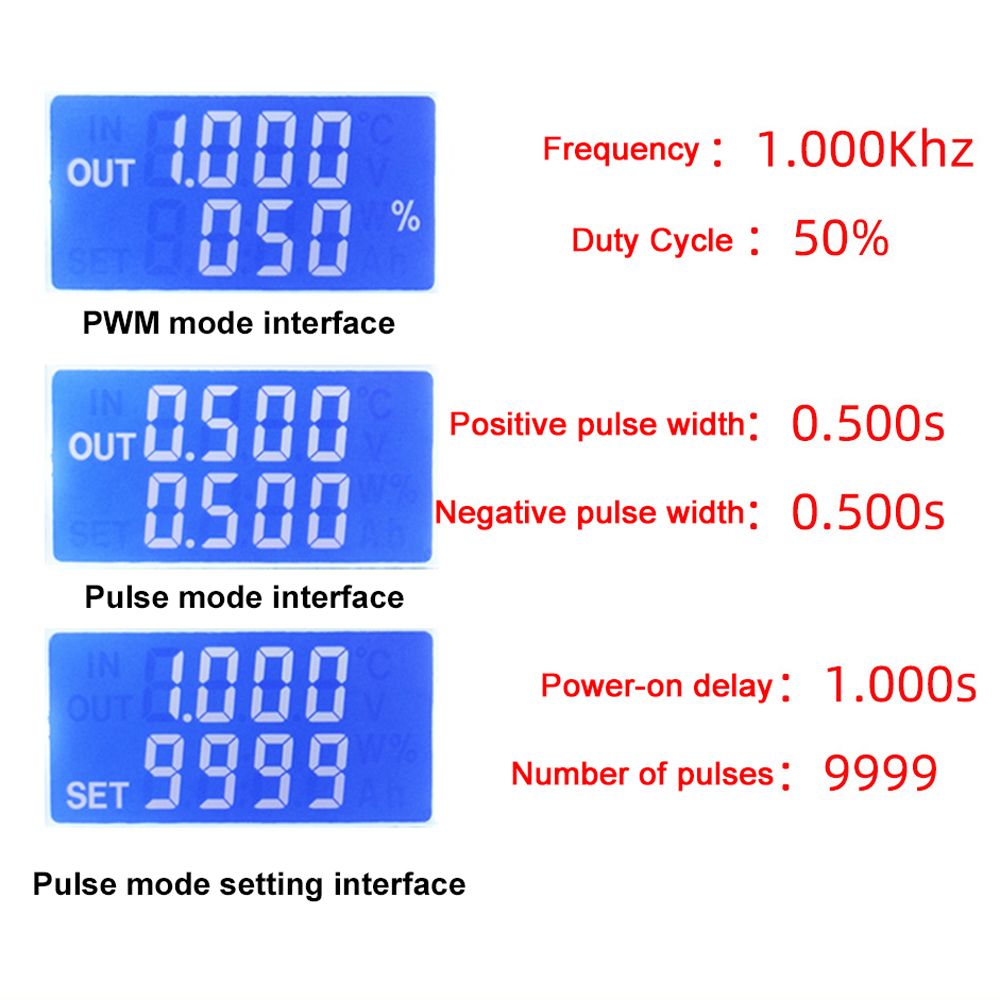

Digital display with wide viewing angle design, the display has quot;% quot; for PWM mode, the right side of the display without quot;% quot; for PULSE mode.

Specifications:

Name: PWM Driver

Material: plastics

Operating voltage: 3.3-30V (note that the positive and negative poles should not be reversed, otherwise it may burn-up)

Frequency ranges: 1Hz-150KHz, accuracy is about 2%. Motor speed control generally choose 20KHZ

Duty cycle ranges: 0-100 %, 1% step

Number of pulses: 1-9999, or infinities (display quot;---- quot; represents infinities)

Delay output time: 0.000s-9999s, minimum 1ms can be set

Positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms

Output load carrying capacity: less than 8A (MOS switching tube)

Output amplitude: amplitude equal to the supplying voltage (OUT+ and V+ module internal direct connection)

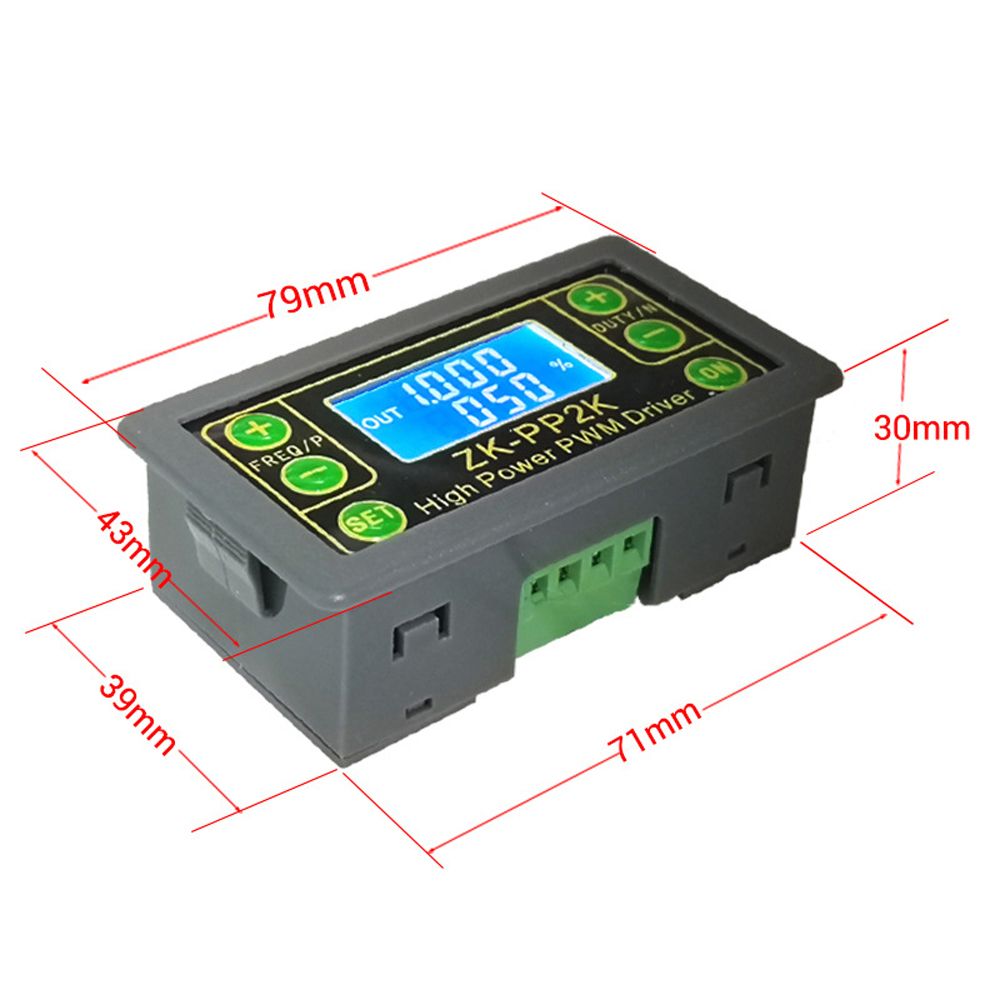

size: 79 * 43 * 30mm / 3.11 * 1.69 * 1.18in

weight: 42g / 1.48ounce

Package size: 80 * 30 * 45mm / 3.15 * 1.18 * 1.77in

Package weight: 45g / 1.59ounce
