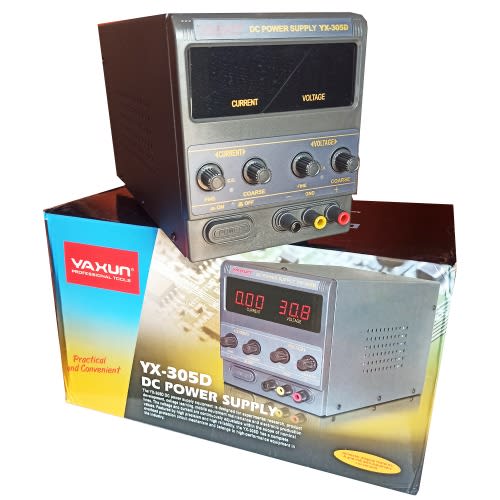

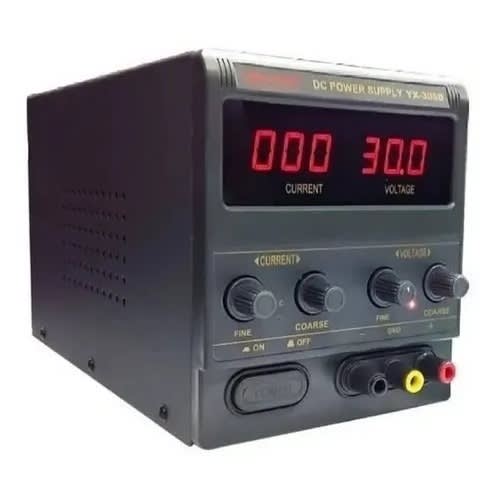

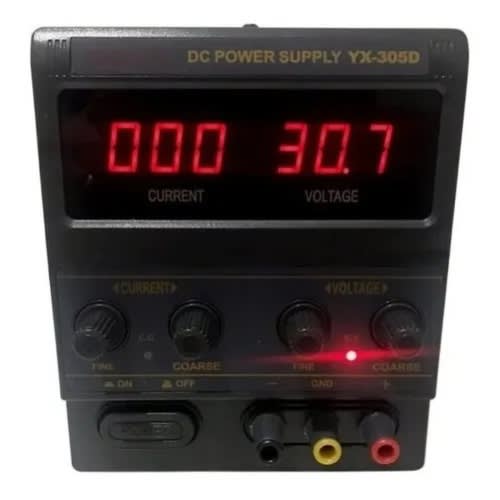

30V Series digital regulated DC power supply yaxun 305D
Ambient working condition and dimensions
- Power supply voltage: 110V/220V±10% 50/60Hz (switch transformation)
- Working condition: Temperature: 00C to 400C
- Relative humidity: <80%
- Storage condition: Temperature:-100C to 700C
- Relative humidity: <70%
Stabilized Voltage working position
- The output voltage is between 0 and nominal value continuously adjustable
- Power stability:<0.01%+3mV; Load stability :< 0.01%+3mV (Max. current<3A);
Load stability :< 0.01%+5mV (Max. current>3A) - Recovery time :< 100μS (load-variant50%, min. load current 0.5A)
- Ripple & noise :< 0.5mVrms (5Hz-1MHz) (Max. current <3A)<1.0mVrms (5Hz-1MHz) (Max. current >3A)
- Temperature coefficient < 300PPM/0C
Stabilized current working position
- The output current is between 0 and nominal value continuously adjustable
- Current stability
Power stability<0.2%+3mA
Load stability :< 0.2%+3mA - Ripple & noise :< 3mArms
