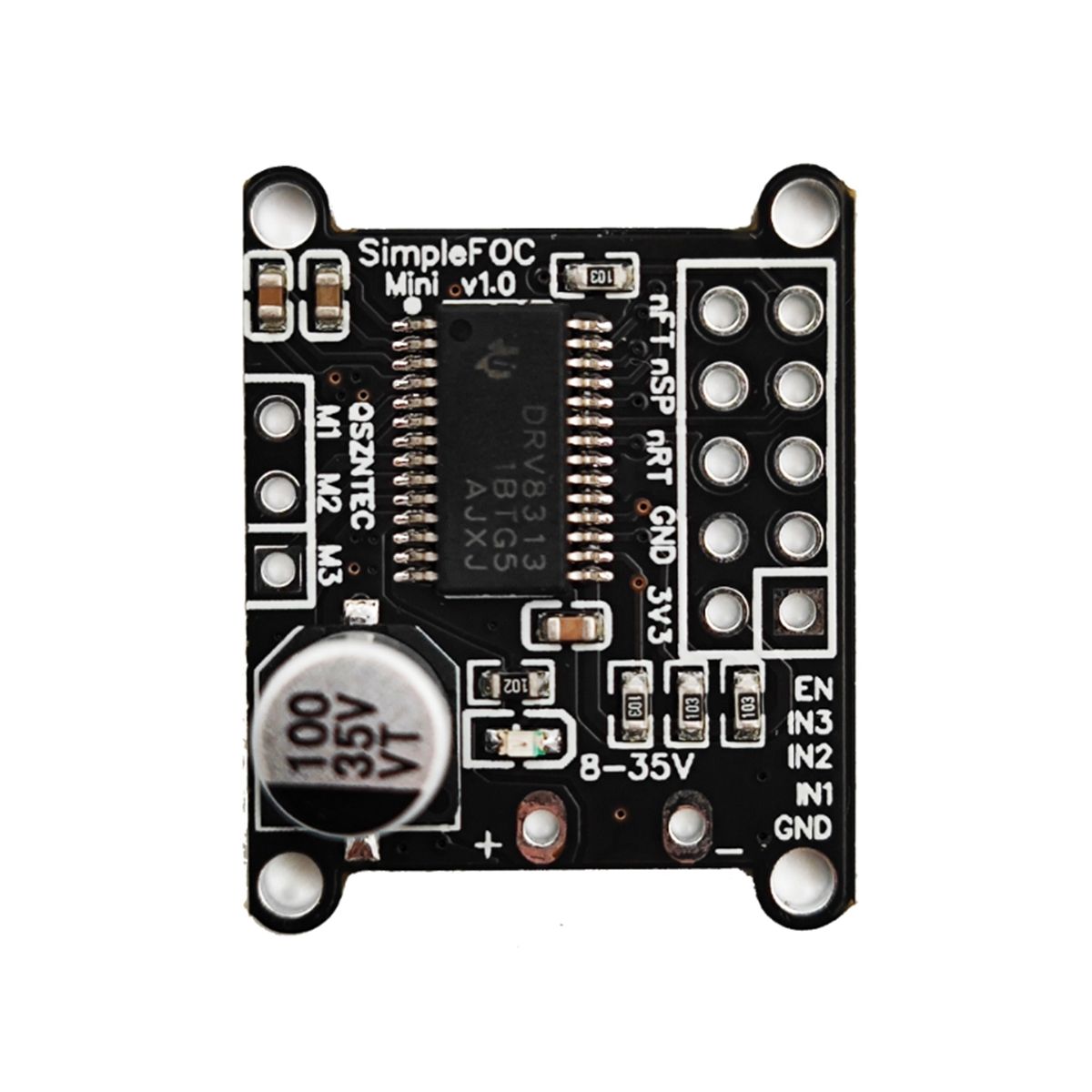

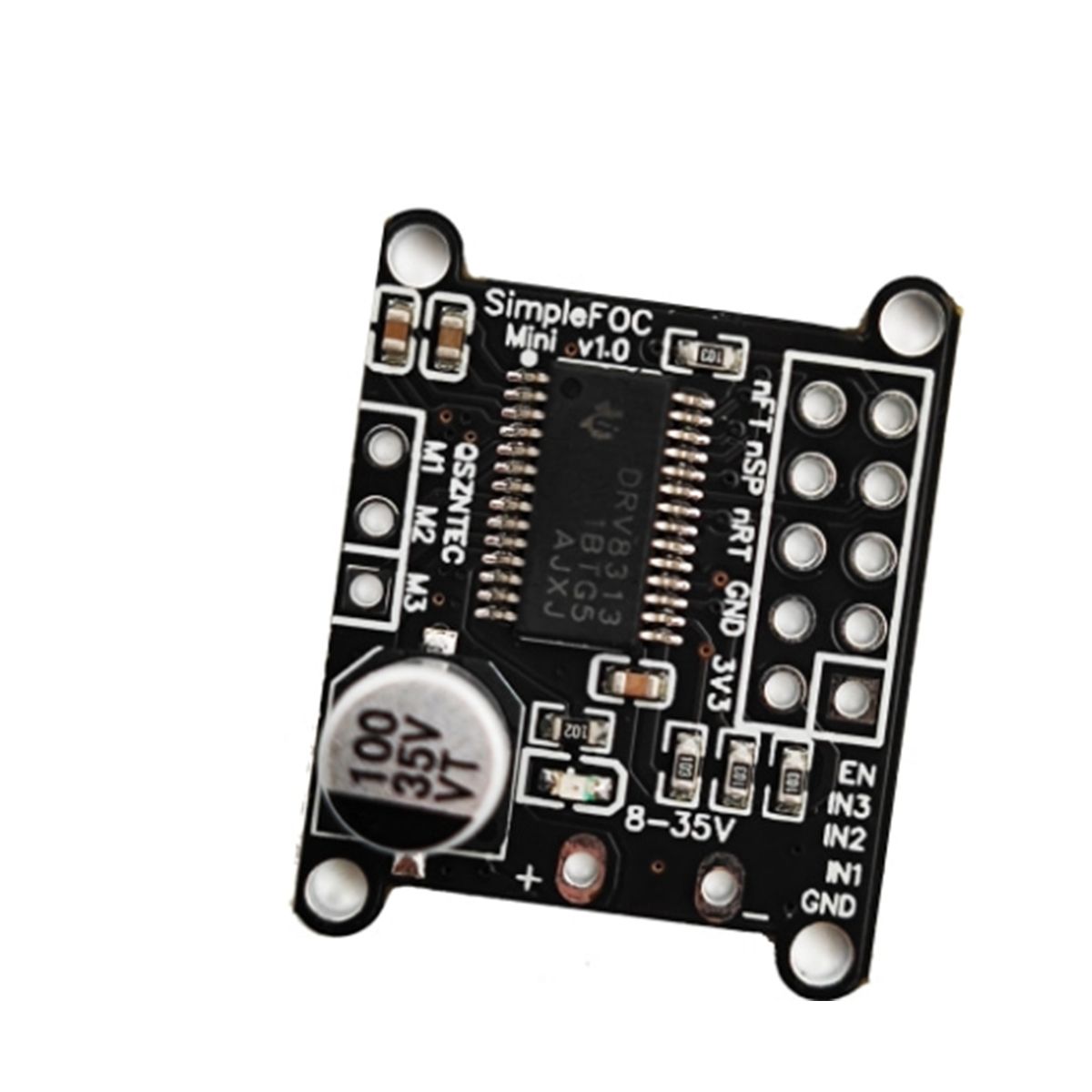

The SimpleFOCMini DC brushless motor driver board uses the DRV8313 chip
The DRV8313 provides three independently controllable half-H-bridge drivers mainly used to drive brushless DC motors
Only the control signal and the motor UVW three-phase line need to be connected to control the motor rotation
The SPWM and SPVMW control algorithms are supported the 6-step commutation control algorithm is not
The for simpleFOC can be used quickly and

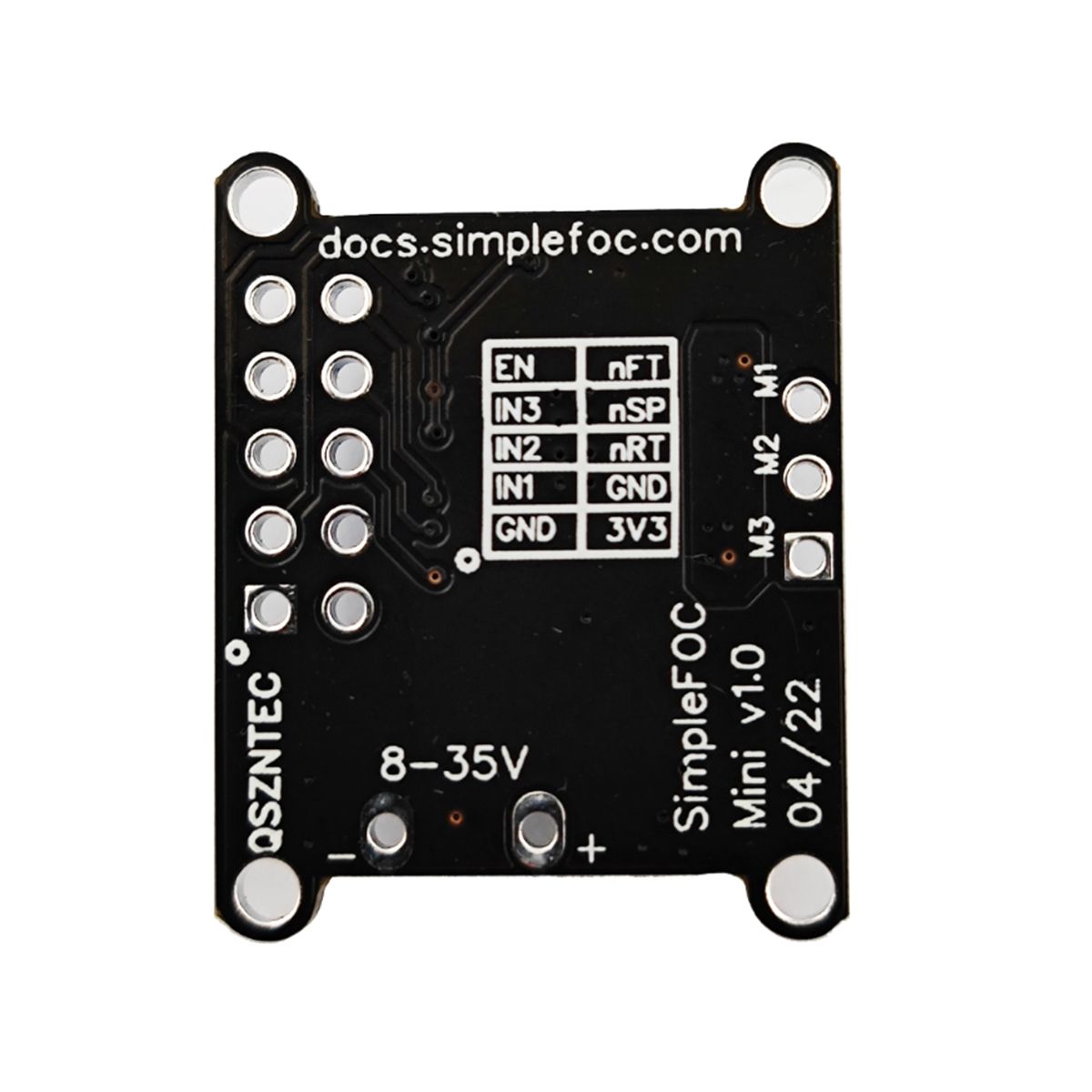

Pin description
The left terminal is the input signal of microcontroller and the right terminal is connected to the 3-phase brushless motor
Control mode
Here the for development board is used for control
Install the Slimple FOC library in the for IDE
Paste the following code into the IDE Driver test code
Note that the pin definition has been changed to the pinout of the simple foc mini driver board and the for development board
Click the upload on to compile and download the to the for development board
Turn on the serial monitor of the IDE and input T628 the brushless motor can be rotated
Product parameters
1 Input supply voltage 8~30V
2 Maximum output current per channel 25A
3 On-board 33V LDO output maximum current 10mA
4 Input control signal compatible with 33V and 5V
5 Support SPWM and SPVMW control algorithms
6 Powerful library quick to

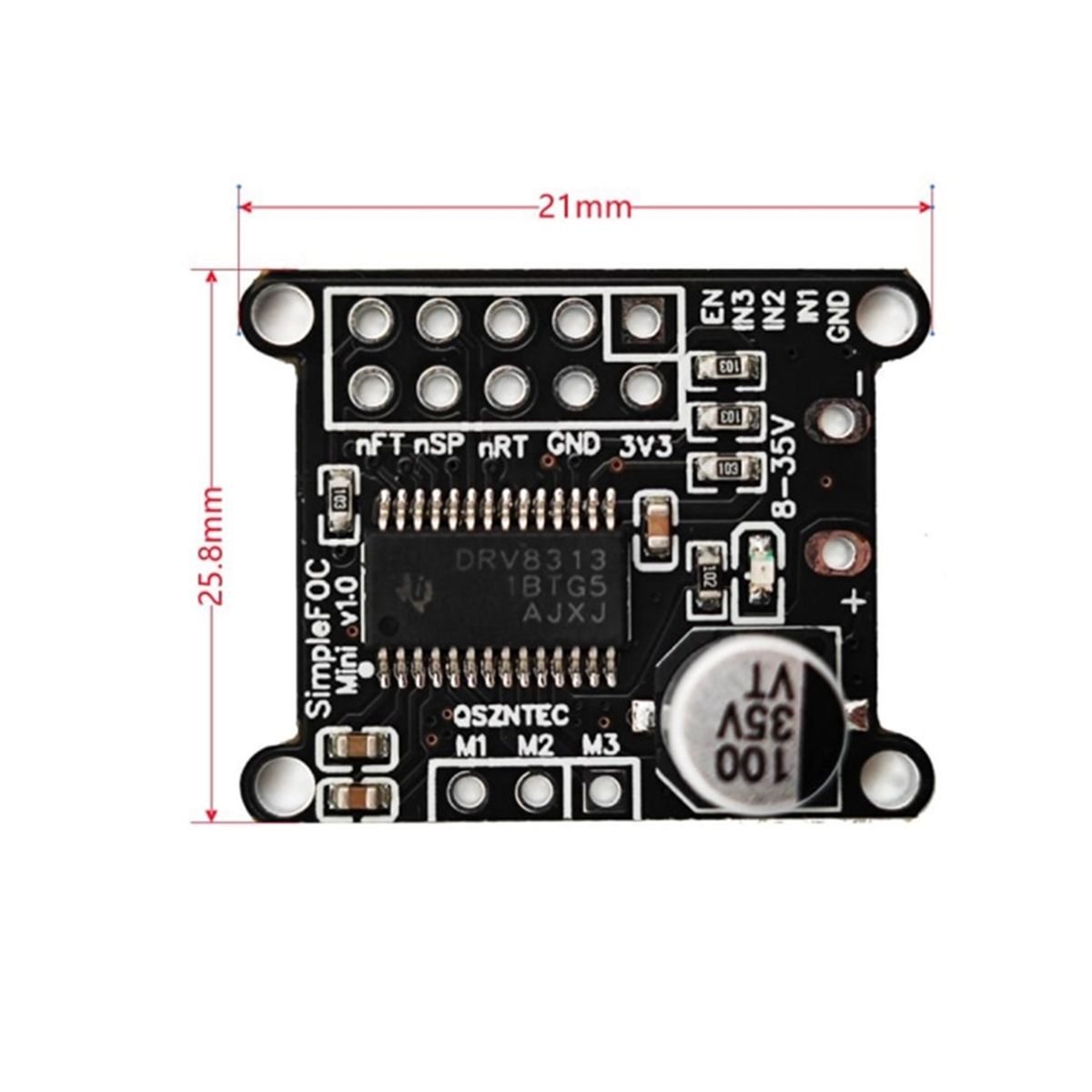

7 Board size 258 x 21mm
colorAs shown
MaterialPCmetal

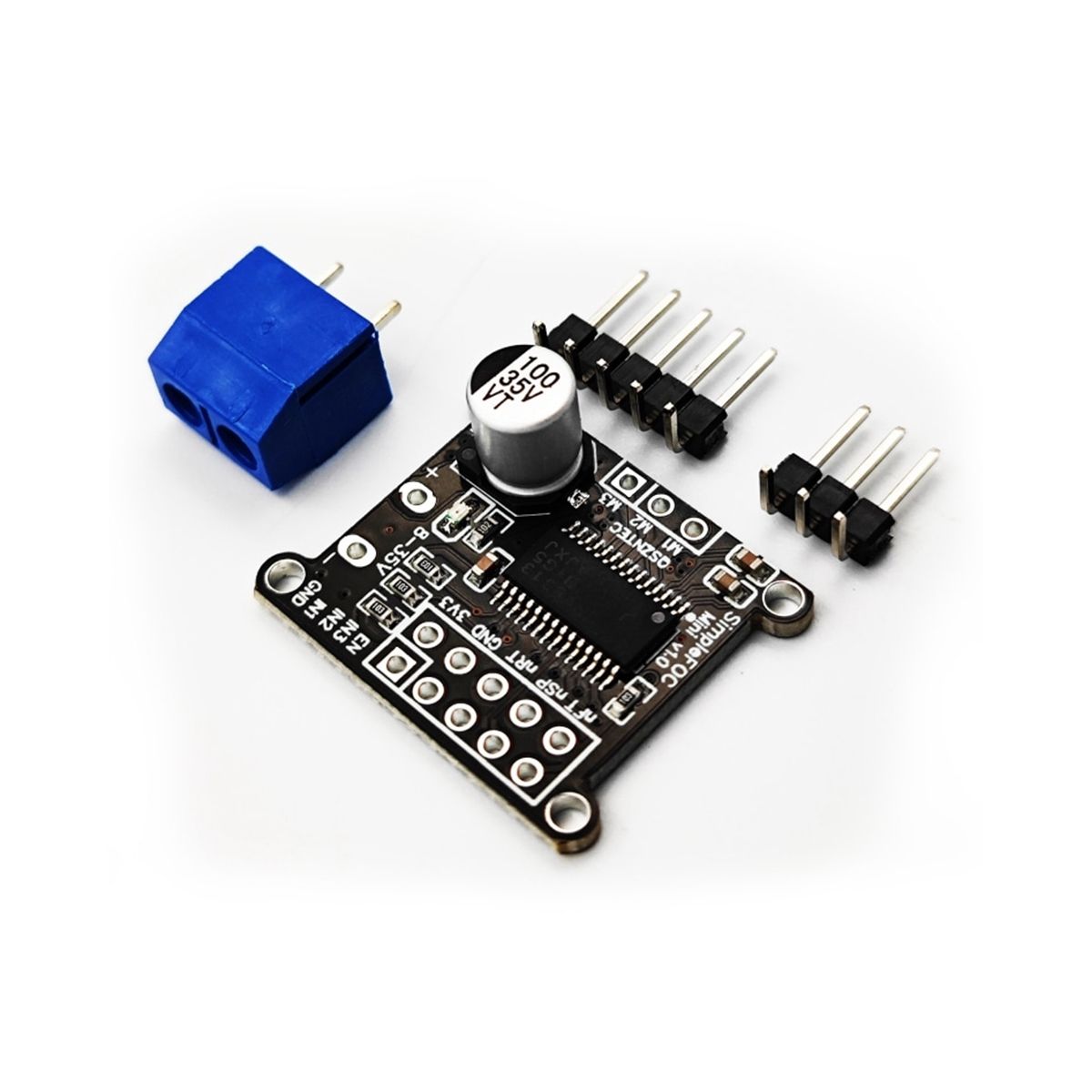

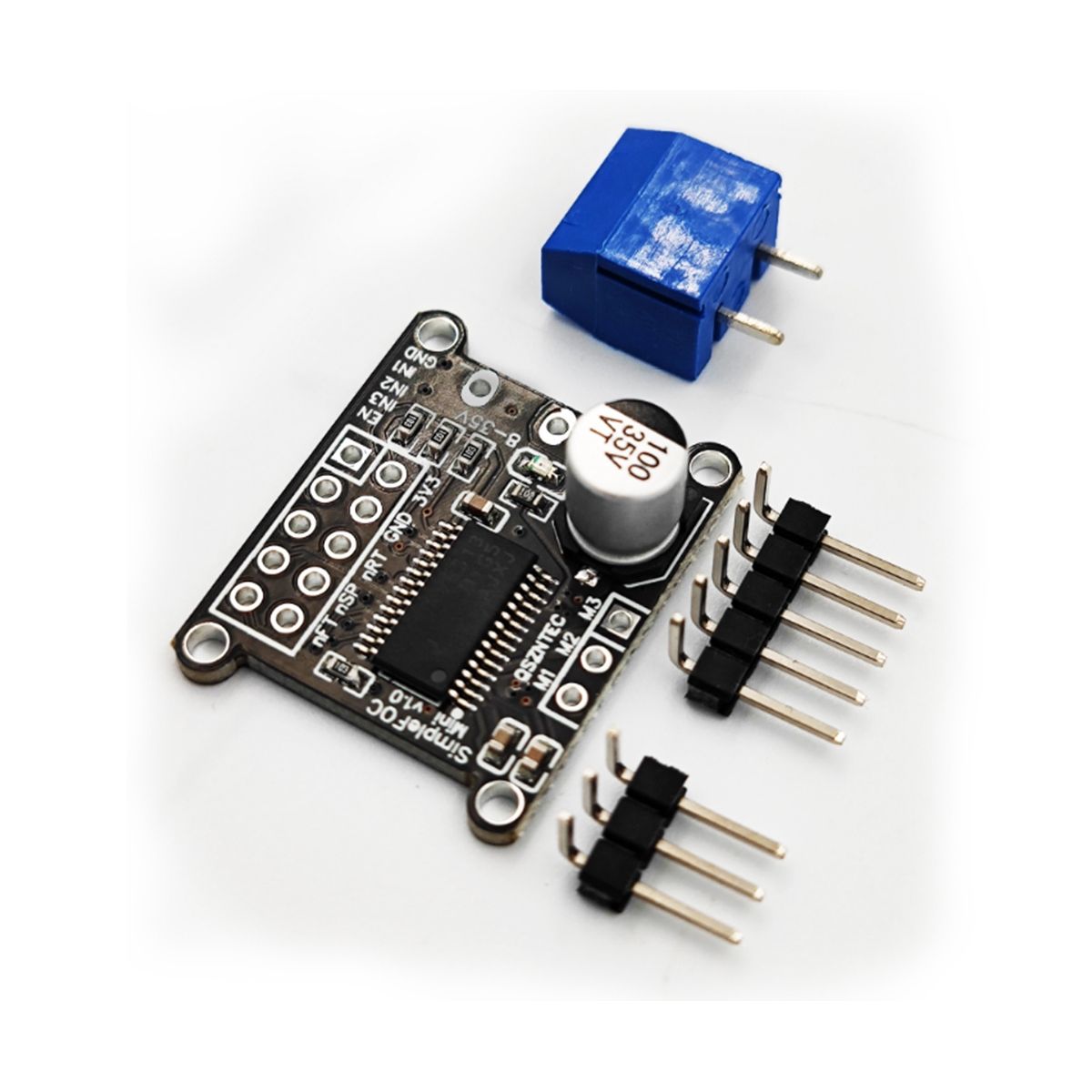

Package Contents
1 x DC Motor Driver Board
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x DC Motor Driver Board
