Model |
Power Module |
Production Country |
China |
Size (L x W x H cm) |
3.5x1.8x1 |
Weight (kg) |
0.0035 |
Color |
multicolor |
Main Material |
PC + metal |
Input voltage: 0.9V - 5V
Output voltage: 5.1 - 5 .2 V
Output Current: 500mA (single lithium input)

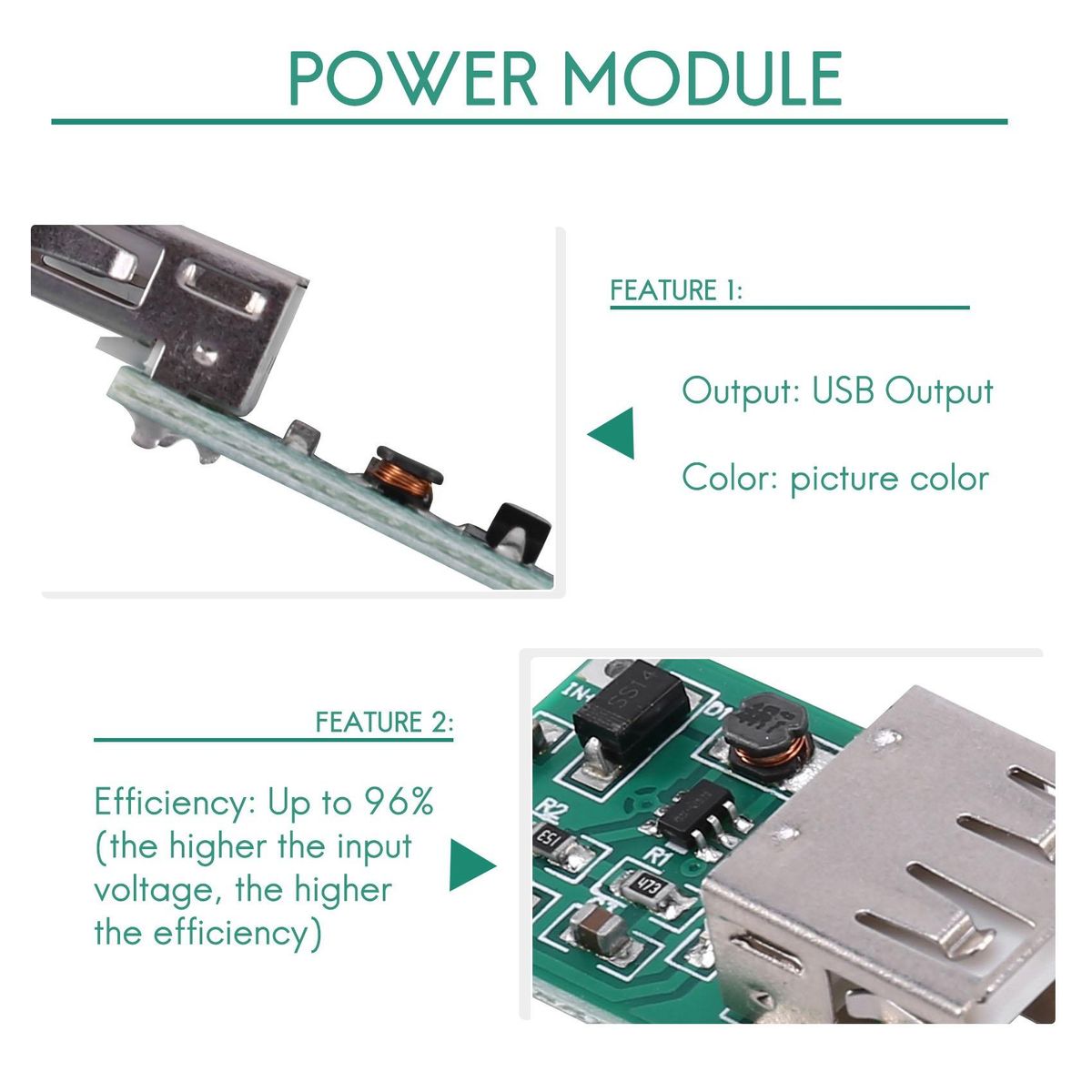

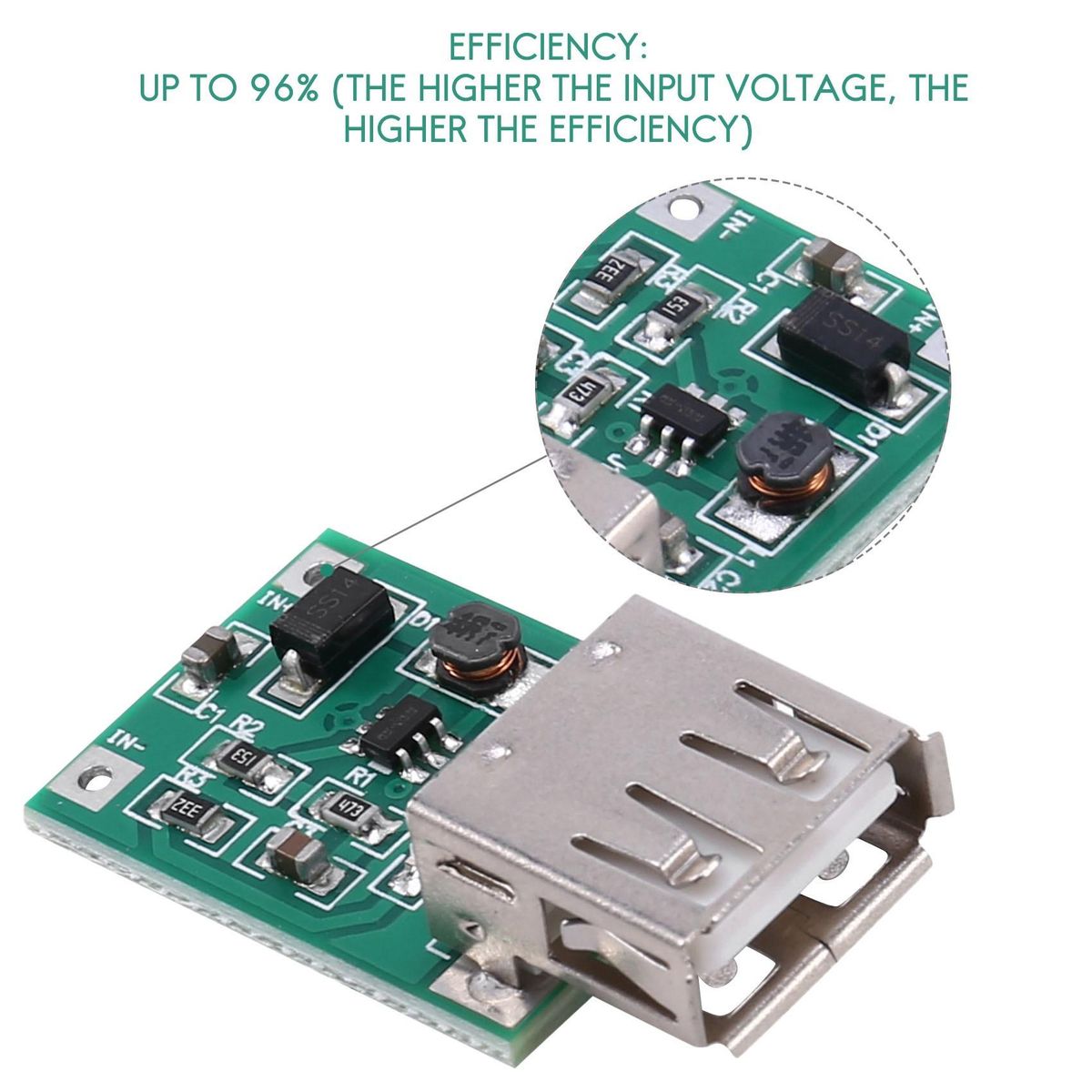

Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
Switching frequency: 500KHz
Output ripple: 30mV (MAX) 20M bandwidth (input 4V output 5.1V 1A)
Voltage indication: LED lights with load (input voltage less than 2.7V LED indicator off)
Operating Temperature: Industrial (-40 Celsius to + 85 Celsius )
Full load temperature rise: 30 Celsius
Quiescent Current: 130uA
Load regulation: +/- 1%
Voltage regulation: +/- 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None ( use the lithium battery with protection.)
Input Reverse Polarity Protection: None

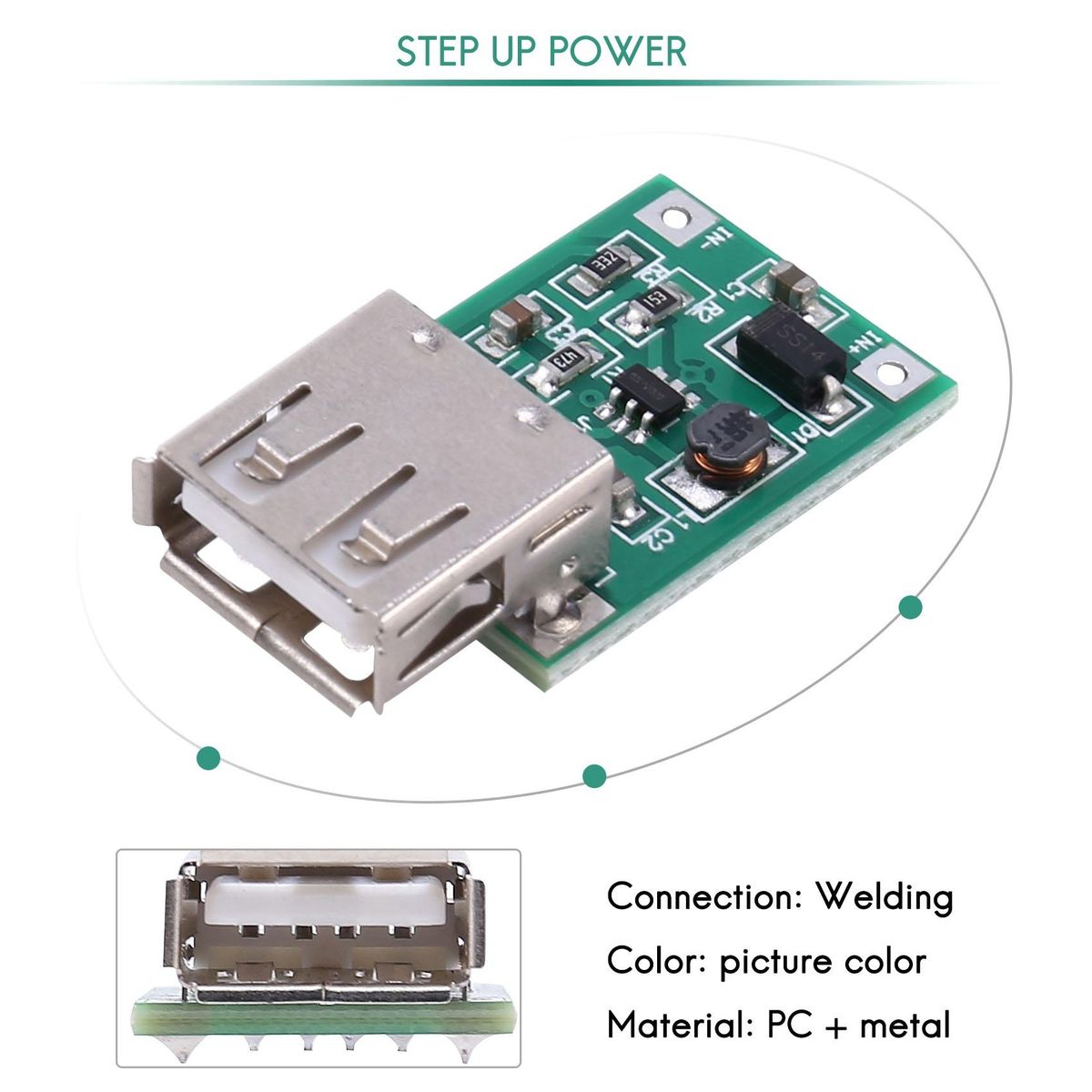

Connection: Welding
Input: IN + Postive, IN-Negative
Output: USB Output
Color: color
Material: PC + metal
Package Contents: 1 x DC-DC 0.9V-5V USB Output Charger Power Module
Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
Power Module
0.9V-5V to 5V
Power
USB Charger
Power Module
The details are as described above
What's In the Box
1 x DC-DC 0.9V-5V USB Output Charger Step Up Power Module
