Model |
150W boost converter |
Production Country |
China |
Size (L x W x H cm) |
65mm x 35mm x 23.5mm. |
Weight (kg) |
50 |
Certifications |
Eco Friendly |
Color |
Red and black |
Main Material |
PCB Board |
From the Manufacturer |
Make a sure your batteries and protection board are not kept in fire or very hot area. |
Care Label |
Avoid wrong connection with the wires. |

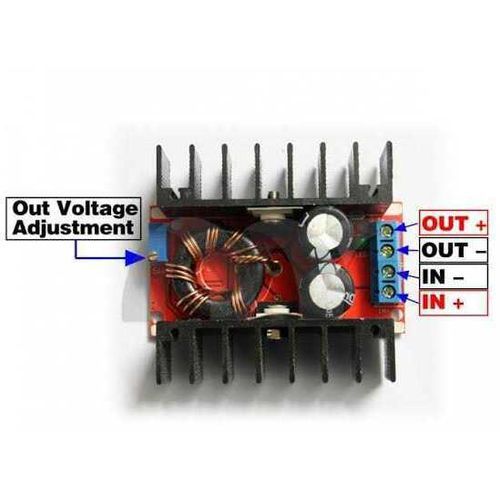

Ready to go product available to ship. Get your DC-DC Adjustable Step up Boost Converter Module rated at 5v-35V 150W to use for your battery converter and other Mobile applications like Laptops, Cars, etc.
Input voltage: DC 5V-35V.Output voltage: Adjustable cannot go below voltage Output current: 10A (MAX).Input current: 16A (MAX) (more than 10A please strengthen heatsink).Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.Conversion efficiency: 94% (when Output 19V 2.5A Input 16V, Reference).Output ripple: 2% (MAX).Working temperature: industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
Full-Load temperature: 45 degrees.No-load current: 25mA typical.Voltage regulation: ± 0.5%.Load regulation: ± 0.5%.Dynamic response speed: 200uS 5%.
- Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.).
What's In the Box
Only 1 Dc-Dc Adjustable Boost Converter Module 150W
