Buy DC 12V TO AC 220V 380V 500W 1000W Inverter Boost Board in

DC 12V TO AC 220V 380V 500W 1000W Inverter Boost Board

₦ 45,904.26 ₦ 48,320.27 -5%

0 No Reviews

Product SKU: RENG194949

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Transformer Power Module
Production Country	China
Size (L x W x H cm)	9x9x4
Weight (kg)	0.1825
Color	As shown
Main Material	PC+Metal

Detailed Information About The Product:

1. High energy efficiency, long life, low power consumption, convenient and safe to use, energy saving and durable, widely used in the field, night camps, night market vendors, driving and family power outage emergency helpers
2. It can be used as the front-stage boost inverter circuit of pure sine wave, modified sine wave, single-silicon machine, and four-silicon machine. For electronic enthusiasts DIY production, maintenance and repment, manufacturers control cabinet supporting products and so on.
3. You can use electrical appliances: lamps, non-inductive household appliances, small electric rice cookers, (note: support all ''electronic products'') such as: energy-saving lamps/solder/switching power supply/satellite TV receiver/bulb/ LED lamp/LED energy-saving lamp/fluorescent lamp/DVD player/VCD player/EVD player/LCD TV/color screen TV/flat screen TV/notebook/computer/various computer monitors/all electronic charger products/etc.
4. Notice: This board is a high-frequency square wave AC output, so general inductive appliances cannot be carried! ! (Such as: electric motors, electric fans, coil transformers, etc. cannot be used directly) Another: Simple resistance-capacitance step-down small electrical appliances, cheap resistance-capacitance step-down LED lamps, etc. may not be used
5. Many multimeters that output high-frequency square-wave AC voltage cannot measure or display low and high levels (it is incorrect, not the actual voltage) (can be measured by the multimeter in DC mode after rectification)

When in use, it is necessary to consider that the power supply should not be in a full-load working state for a long time. If you need to work continuously for a long time, it is recommended to operate at 80% efficiency. Leave room for use to ensure that the power supply can work for a long time, otherwise it may cause artificial early failure.
Special reminder: if the load is an electronic switching power supply product, it is necessary to output a high-frequency diode on our board, because the rectifier part of many switching power supplies uses ordinary rectifiers in order to save costs, so it is connected to the "high-frequency AC output" It will cause the rectifier diode of the electrical appliance to rapidly heat up and damage it, and the diode will break down the circuit. Eventually cause the inverter board to burn out.
Input: DC12V

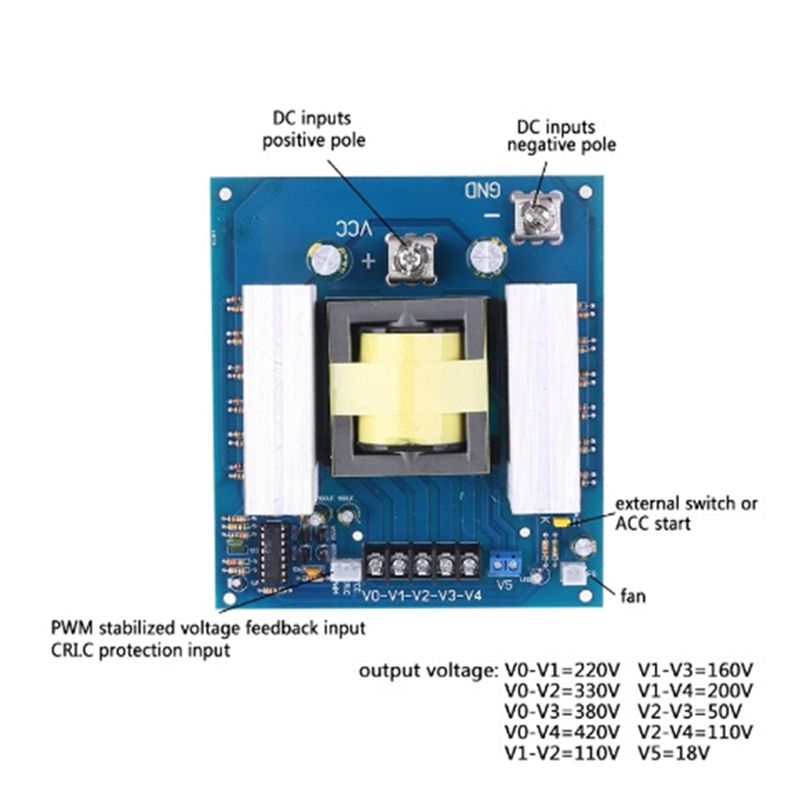

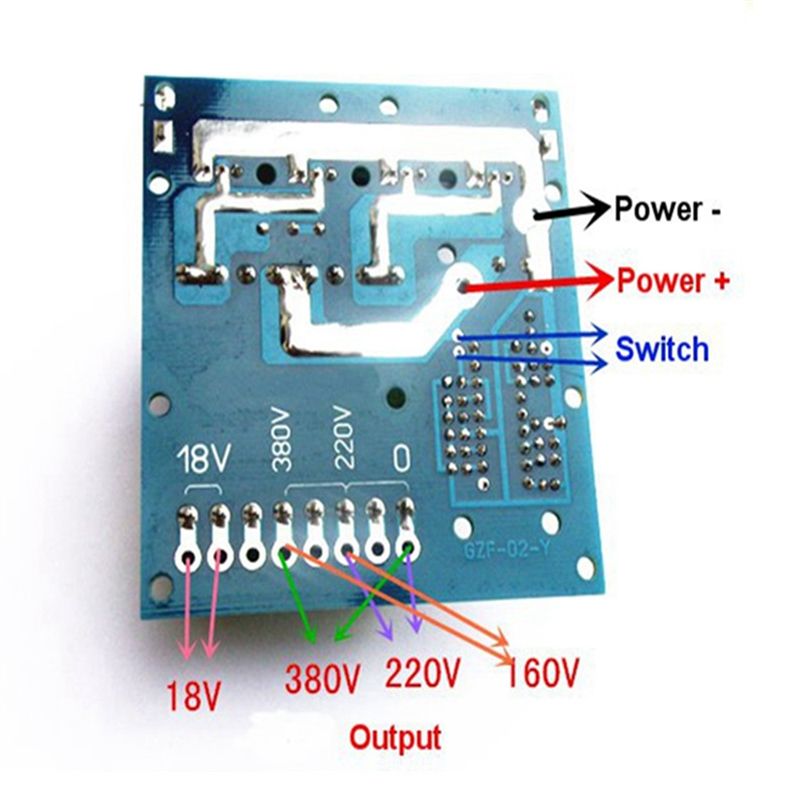

Output: AC 0-220V-330V-380V-420V and AC18V
Static no-load current: about 0.35A
Output frequency waveform: about 20KHZ high frequency square wave
Protection: no protection
Type: DC/AC Inverters
Output Frequency: Inverter Boost Board
Output Type: Single
color:As shown
Material:PC+Metal

Package Contents:
1 x Inverter Module(500W)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any

Key Features

Durable and good quality
DC 12V TO AC 220V
Inverter Boost Board
Car Converter Module
Transformer Power Module
Boost Board
The details are as described above

What's In the Box

1 x Inverter Module(500W)
