The following is the detailed introduction about our products: Working mode:
1. Inching mode: press the remote controltherelaywill connect, and thenrelease the remote controlto disconnect the relay.
2. Self-locking mode: press the remote controltherelaywill connect, and then press the remote controlagainto disconnect the relay.
3. Inteock mode: press the remote control key A toconnect the relay, and press the remote control key B to disconnect relay.
4. Delay mode: press the remote controltherelaywill connect, release the remote control and start timing. After 5S, 10S and 15S (3 gears), the relay will be automatically closed.
Input Voltage: 12 V, RF working mode: Superheterodyne
Receiver sensitivity: more than 97 dbm
Transmitting distance: more than 100 m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20
Support remote type: EV1527 learning code
Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

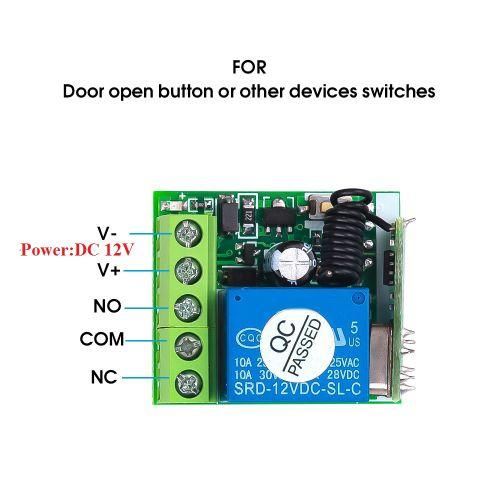

Output terminal: NO , NC , COM
Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 12 V
Remote programming
Colour: transparent color
Material: plastic
Package Contents:

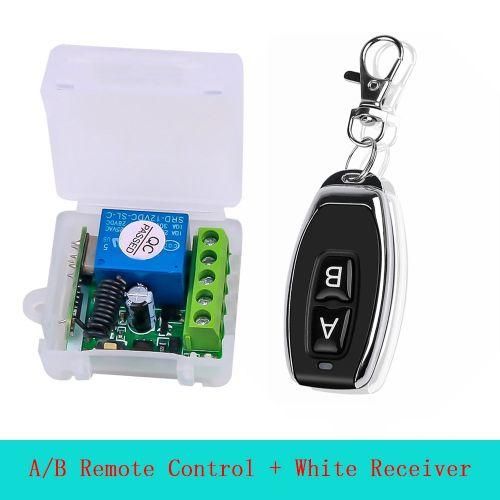

1 * Receiver module
1 * AB Type Remote Control (with battery)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !"
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
72159. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !
Key Features
The following is the detailed introduction about our products:
Working mode:
1. Inching mode: press the remote controltherelaywill connect, and thenrelease the remote controlto disconnect the relay.
2. Self-locking mode: press the remote controltherelaywill connect, and then press the remote controlagainto disconnect the relay.
3. Inteock mode: press the remote control key A toconnect the relay, and press the remote control key B to disconnect relay.
4. Delay mode: press the remote controltherelaywill connect, release the remote control and start timing. After 5S, 10S and 15S (3 gears), the relay will be automatically closed.
Input Voltage: 12 V, RF working mode: Superheterodyne
Receiver sensitivity: more than 97 dbm
Transmitting distance: more than 100 m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20
Support remote type: EV1527 learning code
Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )
Output terminal: NO , NC , COM
Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 12 V
Remote programming
Colour: transparent color
Material: plastic
Package Contents:
1 * Receiver module
1 * AB Type Remote Control (with battery)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !"
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
72159. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !
What's In the Box
1 * Receiver module
1 * AB Type Remote Control (with battery)
