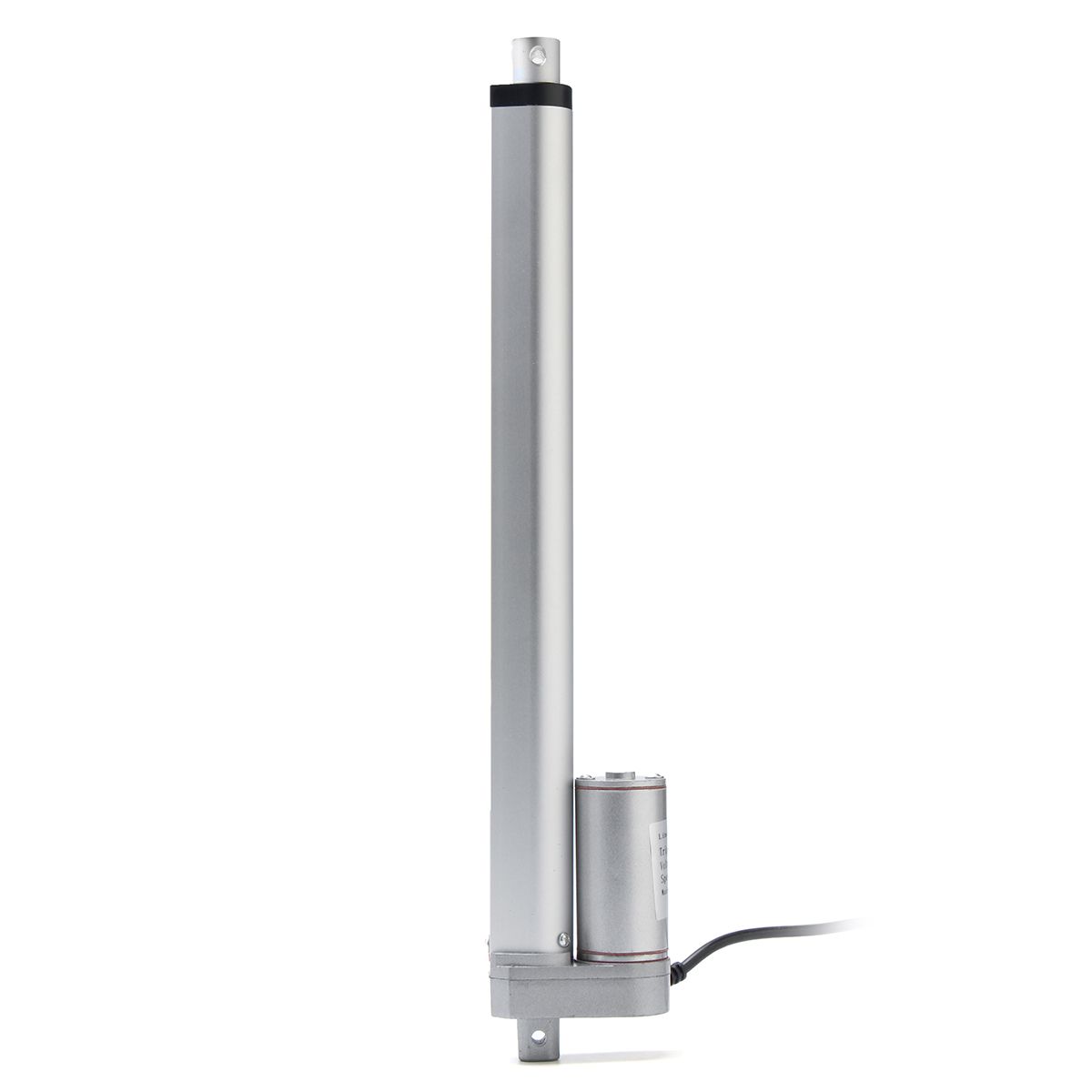

{infomodule} Features: This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, veels, cargo and many other applications. It can be replaced by , pneumatic products ideal for saving energy consumption.
Specifications: Material: Aluminum alloy Load capacity: 400N Speed: 25mm/s Input Voltage: 12V DC

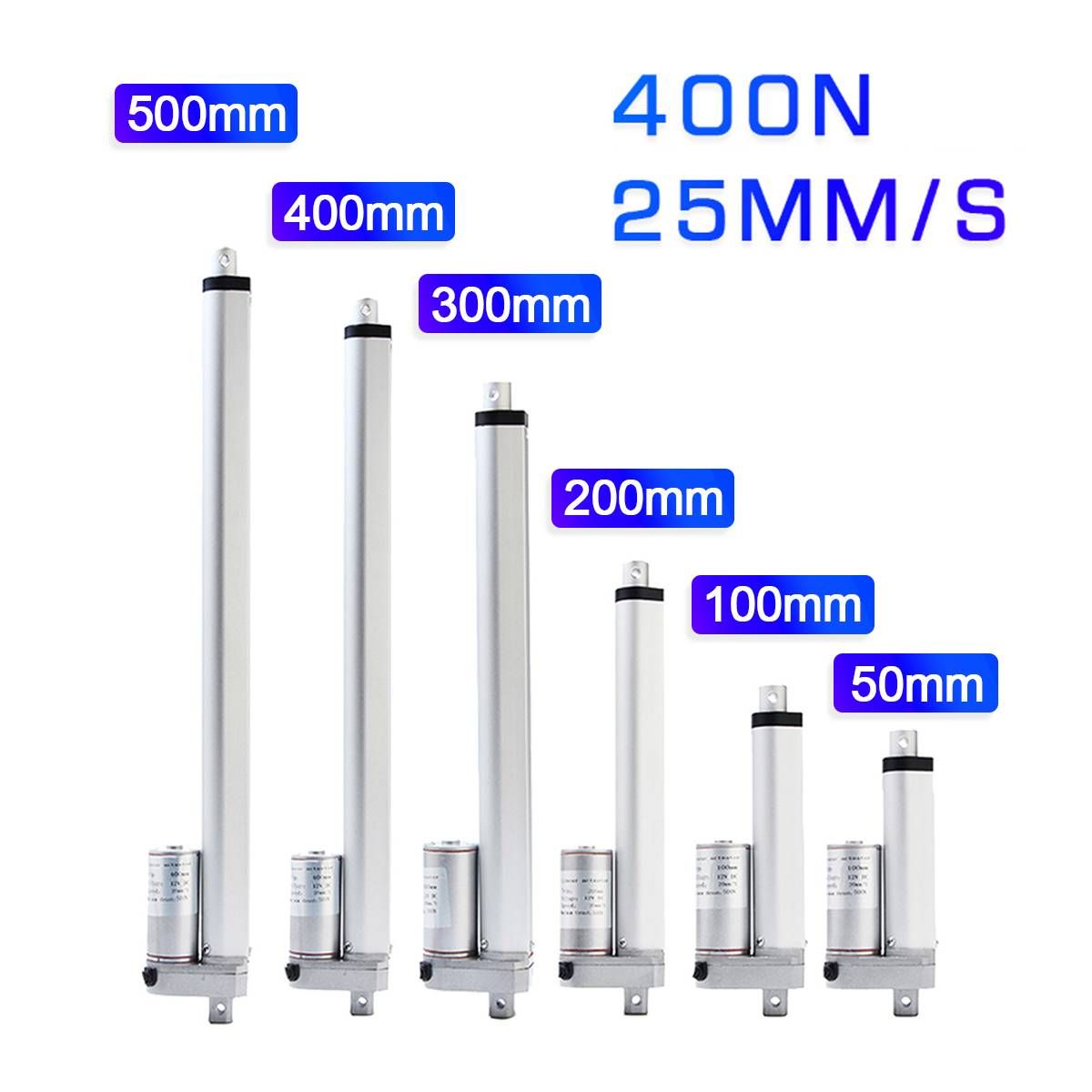

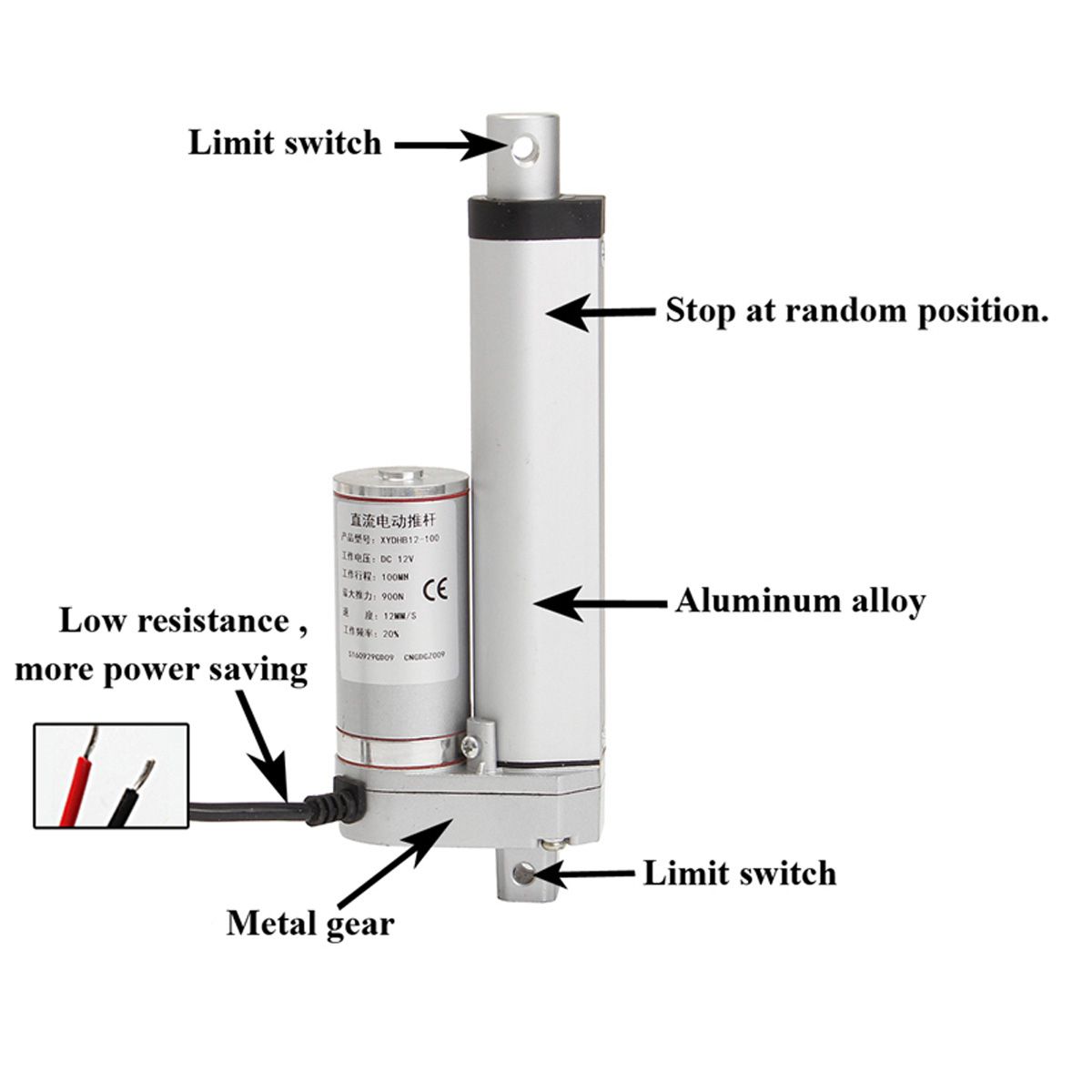

Stroke Length: 50mm/2 inch 100mm/4 inch 200mm/8 inch 300mm/12 inch 400mm/16 inch 500mm/20 inch Duty cycle: 10% Technical Parameters: Rated power: 20W, maximum 30W. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity. The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it. Ambient temperature -20°C to +75°C. Standard protection cla: IP54. Low noise design, noise level le than 42dB. Please do not disaemble the machine. Product features: drive other objects to push, pull, rise, drop. Product Applications: TV lift tables, maage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more. Installation size: (1): The center distance between the two mounting holes before and after the push rod is fully retracted, the mounting distance of the push rod (that is, the length of the push rod itself). Below 300mm stroke L (mounting dimensions) = 105mm + S (stroke) 300mm and 300mm above travel L (mounting dimensions)=155mm+S (travel) (2): Center distance between the two mounting holes before and after the push rod is fully extended. (Below 300mm stroke) = 105mm + S (stroke) + S (stroke) (300mm and 300mm strokes or more) = 155mm + S (stroke) + S (stroke).
Notice: Before use, first recognize whether the motor voltage is correct. If it is a DC motor, then also consider that the power supply current is sufficient. Do not store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency. When soldering is required on the positive and negative power supply's motor terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time. Do not deform the plastic. When installing the motor, pay attention to whether the screws are too long and the company must not over-pre the long screws to the parts inside the motor. Please note: Bracket and controllers need to be purchased separately, please search our products in our shop, and purchase the suitable kit. Package Included: 1×Linear Actuator Motor(With two brackets)
About shipping
Shipping and Packaging All items will be double checked and well packed before sending.Items will be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:
Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties or taxes. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very important to us
If the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:CN(Origin)
Certification:CCC
Certification:ce
Commutation:Brushless
Model Number:Linear Actuator Motor
Type:Gear Motor
Protect Feature:Totally Enclosed
Construction:Shunt Wound
Torque:25mm/s
Usage:BoAt
Usage:car
Usage:Electric Bicycle
Usage:Fan
Usage:Home Appliance
Usage:Other
Efficiency:IE 3
What's In the Box
1X DC 12V Electric Linear Actuator 25mm/s Waterproof IP54 Linear Motor Controller Stroke 50mm 100mm 200mm 300mm 400mm 500mm
