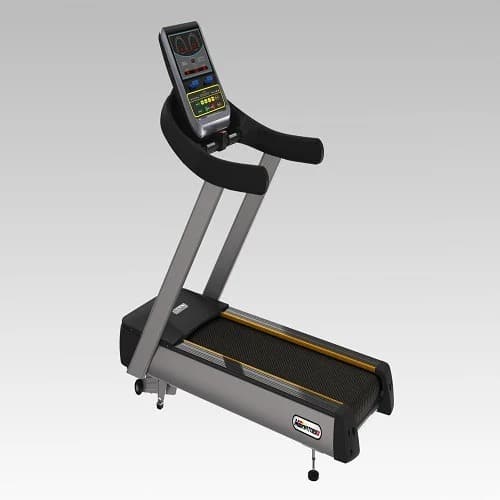

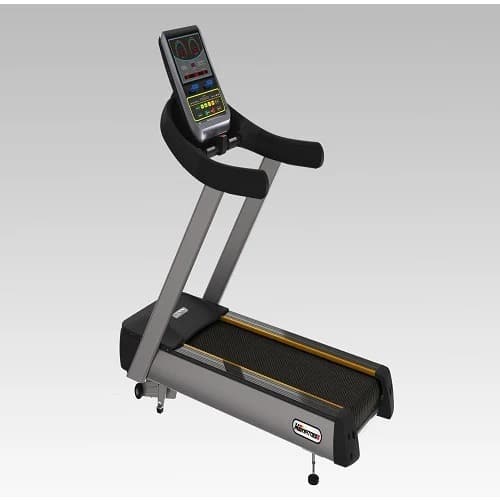

S9800 is a classic and best-selling treadmill, the overall unit creates an atmosphere of sports; dynamic and fashion styling, rich configuration and exquisite workmanship, makes it the first choice for customers when selecting cardio equipment.
SYSTEM FEATURES:
Operating system: Android 4.2.
System Control Software: Customer software for treadmills.
Dual Core 1.5G processor chip (made in America); 1G memory card; 4G NAND FLASH.
High-performance capacitive touch screen and lps all viewing angle LCD display screen.
Rooting procedure monitoring; prompt after completing rooting; image missing alert. New!
Unique battery management system ensures that the system can work normally in emergencies such as power failure and quick start/shutdown and further improve safety and stability.
Multiple-level isolation protection for control board completely prevents interference to touch screen from static electricity.
Built-in WiFi module allows the unit to connect effective wireless network and get high-speed internet access.
TECHNICAL PARAMETERS:
LCD capacitive touch screen (Samsung Wide viewing angle screen) reaches the resolution 1368x768.
Video Player: Supports 720P HD video (AVI, RMVB, MP4, WMV, MPG, MKV formats, etc.)
Audio Player: Supports audio formats MP3, WMA, etc.
Image Displayer: Supports images formats PNG, JPG, BMP, GIF etc.
App Installation: Various Android apps can be installed.
Online Video: Youku, Tudou, Sina, Sohu, Letv, etc.
Language: Built-in languages include Chinese and English
Hi-Fi Stereophonic Sound System: A 3.5mm Earphone Jack
Built-in USB HOST port supports USB disk and SD card.
Mobile phone charging is available.
DVD function: Supports external video, DVD files display and digital set-top box.
SPECIFICATIONS:
TFT Display Screen: 18.5"capacitive touch screen
LED display screen: 18.5"multi-window
Console Upright: Steep Pipe (50*150) Steel plate (5.0T)
Side bar: Hardened high-strength PVC, N/A for standard configuration.
Sliding rail, Pedal: Hardened high-strength PVC
Handrail: Once-forming PU foam
Touch-type key: PMMA-touch screen panel
Heart rate sensor chip: Integrally formed heart rate sensor chip never slips
Running Belt: 3.2T
Running board: Highest strength; 25T, static load capacity - 600kg
Inverter: Made in Taiwan (Standard configuration) / Korea (top configuration)
Water Bottle holder: Personal belongings can be placed here.
Oil Kettle: Manual lubrication (standard configuration), PLC control self lubrication system (top configuration).
Elevator motor: Voltage: 220V-240V, Speed: 1475r/min, Frequency: 50Hz, Output Power: 60W, Insulation: grade B
Main Motor: Rated power - 3.0HP (2.2KW), Max Power: 7.0HP (5.1KW)
Transport wheel: Yes
CONSOLE:
Console: 18.5" TFT/LED
Display type: When a key is pressed, it produces the sound along with a lick.
Touch control: 3 Heart rate modes | Distance mode| Calories mode | Time mode | Manual mode
User-defined program (TFT): P1 (Manual) | P2 (Rolling) | P3 Climb | P4 (Intervals) | P5 (Weight Loss) | P6 (Mountain) | P7 (Fat burn)
Preset program (TFT): Calories count down mode | Distance count down mode | Time count down mode
Language: LED screen (English) | TFT screen (Chinese and English)
WiFi: Yes (TFT)
iPad: No
Media Player (TFT): Available for and compatible with Android system | Support MP3, MP4, AVI and MPG formats.
Built-in HDTV (TFT): Digital television signal, high definition television signal and cable television signal can be received.
USB port: Yes (TFT)
Readouts: Time, Distance, Calories, Power, Heart rate, Speed.
Heart rate monitoring: Heart rate sensor is inside fixed handle; it increases precision and makes it suitable for all users of all body shapes.
Heart rate display: Heart rate is displayed in real time. After age and weight are input, it effectively helps user to have cardiorespiratory exercise and lose weight when programs like "Fat burn", "Cardio exercise" or "Target" are running.
Heart rate range: 50-256 (times/min)
Calories range: 0-999 (kcal)
Distance range: 0.00-99.9 (km)
Time range: 0:00-99:59
Speed range: 1.0 - 20.0 (km/h)
Incline range: 0-20%
Max user Weight: 150kg
DIMENSION:
Length: 2360mm
Width: 945mm
Height: 1520mm
Running surface: 1650x560mm
Running belt: 560mm
N.W. (Whole unit): 230kg
G.W. (Console): 34kg
G.W. (Console excluded) 269kg
POWER SOURCE:
Power source: External power supply: AC 220V +/- 10% (50Hz/60Hz)
Power cord: 16A AC 250V
Overload protector: 13A
Working temperature: 0 - 40C degrees
EN957-6 approved
