I. Main Functions
1. Dual decoding supports MP3/WMA/WAV/FLAC/APE lossless format music;
2. Support Bluetooth-compatible function, Bluetooth-compatible version 5.0;
3. With color screen digital tube display;
4. Support MMC/SD/MMA and other cards, support USB interface (U disk);
5. Power-off memory function;

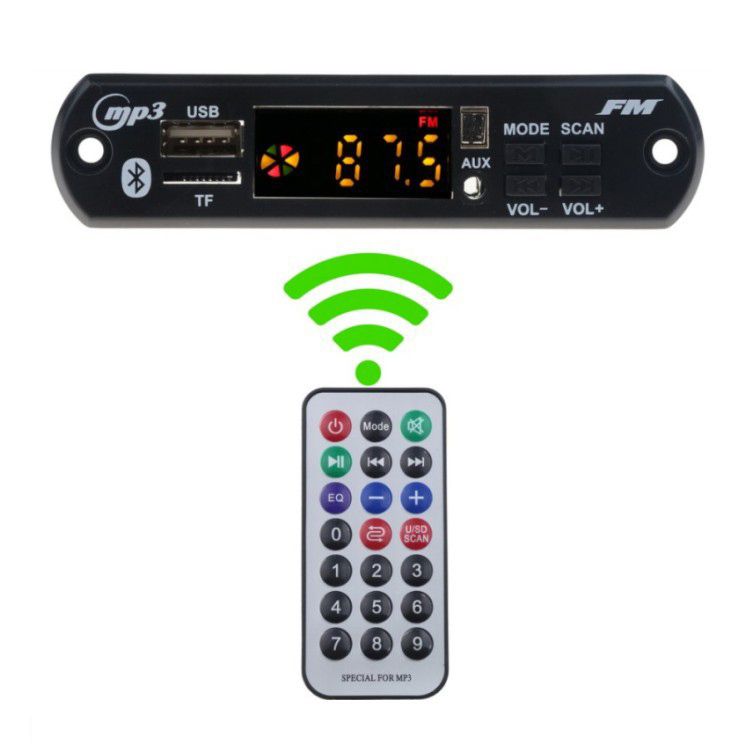

6. Support infrared remote control operation at a distance of 5-10 meters;
7. Support external audio input LINE IN;
8. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);
9. Buttons: four-button multi-directional control, VOL-/AUTO/VOL+/MODE;
II. Key Operation
1. VOL-button (previous song/volume down): in MP3 state, VOL-short press is the previous song, long press is the volume decrease; in FM state, short press is to increase a station number; in Bluetooth-compatible Under the function, a short press is the previous song on Bluetooth-compatible, and a long press is the volume down.
2. AUTO button (play/pause): in MP3 state, short press AUTO to play/pause; in FM state, short press to automatically close and save the station, long press has no function; short press to play/pause in Bluetooth-compatible function .
3. VOL+ button (next song/volume up): in MP3 state, short press VOL+ for the next song, long press to increase the volume; in FM state, short press to decrease a station number; in the Bluetooth-compatible function Short press for the next Bluetooth-compatible song, long press for volume down.
4. MODE button: switch between USB / TF / FM / audio input / Bluetooth-compatible function in turn.
5. SCAN: Short press is to switch between pause and play; in the radio FM state, short press is automatic station;
III. Specifications
Model: JQ-D091BT Bluetooth-compatible Version 5.0
USB: connect U disk (maximum support 32GB);
LED: digital screen display, color screen, display red;
Infrared receiving module;
TF: Connect TF memory card (maximum support 32GB);
AUX: audio input interface;
Main control IC: Jerry AC6926
Bluetooth-compatible IC: AC6926 Bluetooth-compatible version is version 5.0
Music format: MP3/WMA/WAV/APE lossless format
Radio FM frequency: 87.5 mdash;107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / Bluetooth-compatible / remote control connection / DC 12V

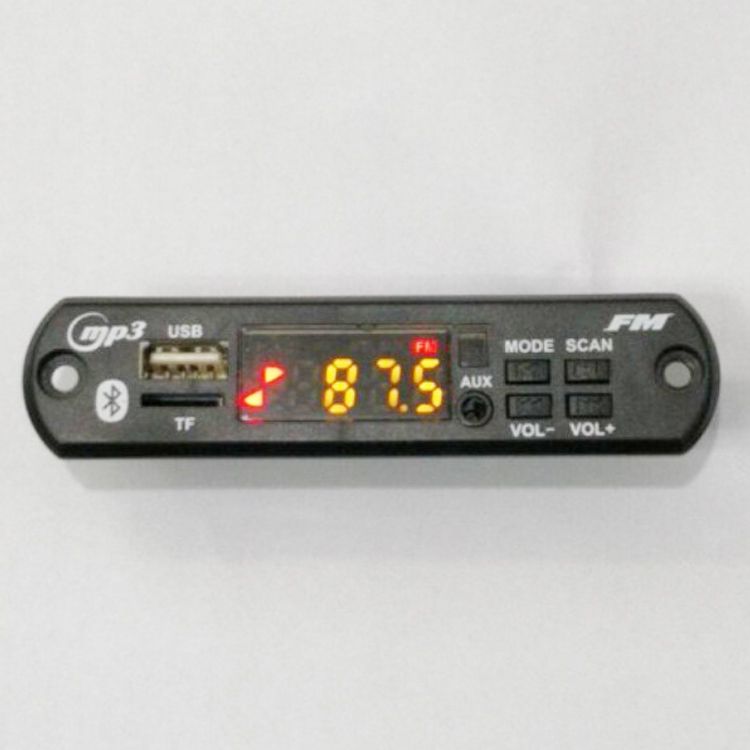

About the structure: Panel size: 107*25 MM, the two corners of the panel and the screw hole positions, then the cover cover the surface, the depth of the board is 23 MM
IV. Description of Recording Function
1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording function and play the recorded file;
2. When recording, it is necessary to connect a storage device, such as: U disk or TF card;
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
I. Main Functions
1. Dual decoding supports MP3/WMA/WAV/FLAC/APE lossless format music;
2. Support Bluetooth-compatible function, Bluetooth-compatible version 5.0;
3. With color screen digital tube display;
4. Support MMC/SD/MMA and other cards, support USB interface (U disk);
What's In the Box

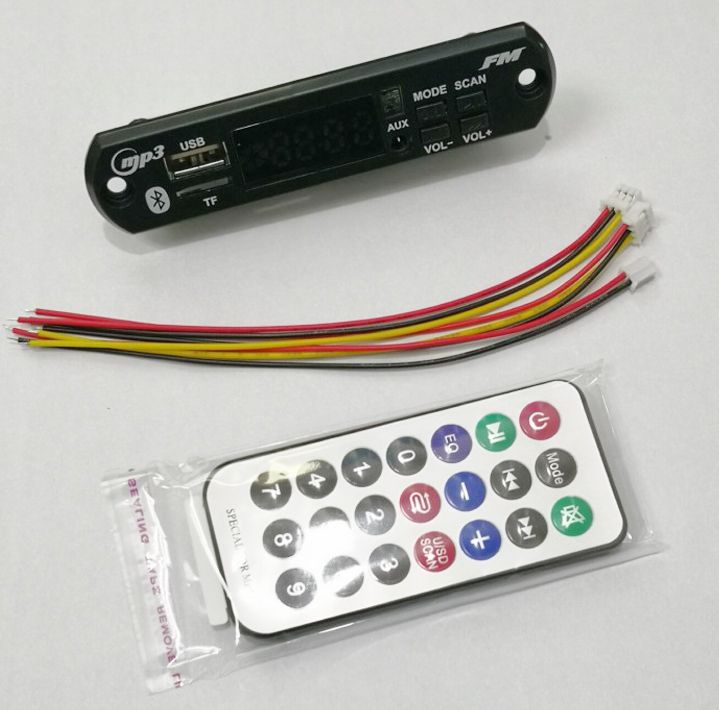

1 * Decoder Board
1 * Remote Control (without battery)
3 * Cables
