Model |
Flywheel removal |
Production Country |
China |
Size (L x W x H cm) |
18x11.5x4.5 |
Weight (kg) |
0.3075 |
Color |
multicolor |
Main Material |
Aluminum alloy |
Model NumberChainsaw Clutch Tool
TypeGarden Tool Parts
Brand new
Size
Stop Plug Lenght 60mm
Stop Plug Tread Diameter 14mm
Stop Plug Hole Dia 8mm
Clutch Expander Dia 45mm
Clutch Expander Height 35mm
Fits for B-aumr- SX38 38cc SX45 45cc SX62 62cc and SX66 66cc Chainsaws
Usage
Step 1 To use remove the sprocket cover from your saw
Then remove the plug and fit the stop plug in it's p
Step 3 spin the clutch to rotate the engine so the is touching the stop

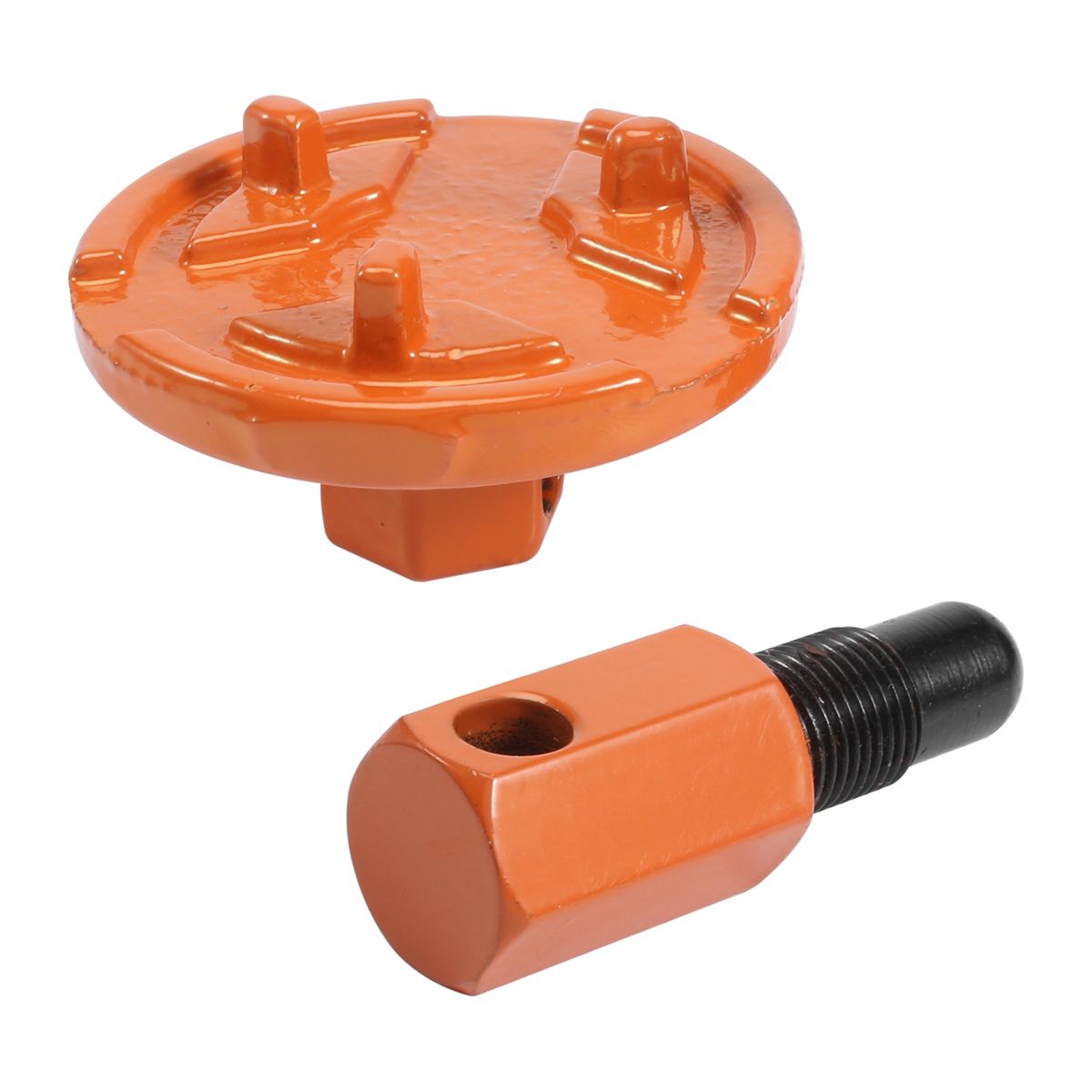

Step 4 Then p the demount tool on top of the clutch so the three prongs on the clutch demount tool slot in the corresponding holes of the clutch and the bottom of the demount tool fit and evenly flat on the top of the clutch
Step 5 Finally using a 19mm wrench and socket or spanner spin the tool and clutch counter-clockwise to remove the clutch
colourOrange
Materialmetal

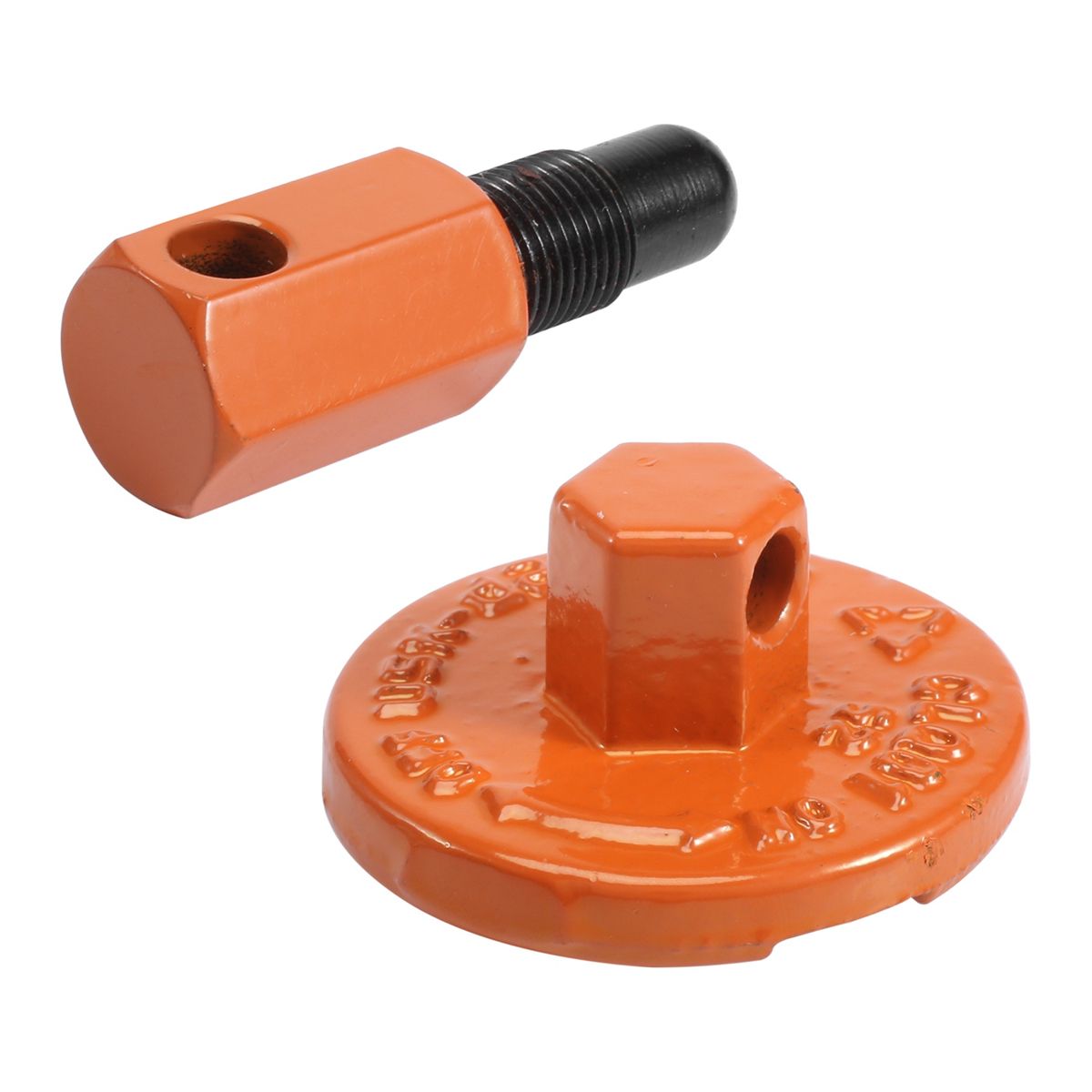

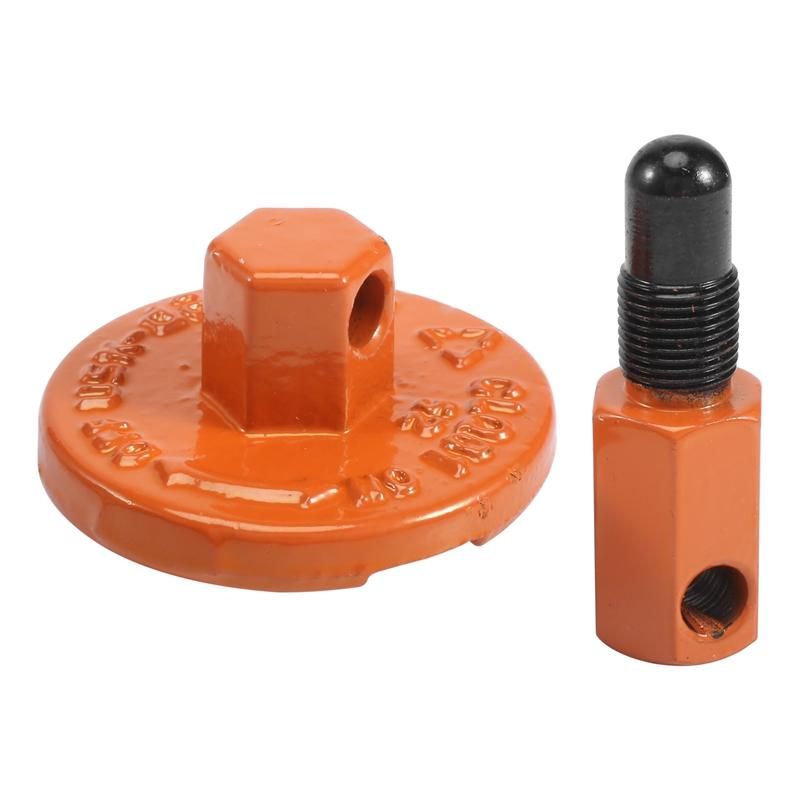

Package Contents
1 * Stop Plug
1 * Clutch Expander
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 * Piston Stop Plug
1 * Clutch Expander
