Our Cat6 cable utp and bulk cables are used by data centers around the world.
SPECIFICATIONS
- Cable Type: CAT6 4-Pair UTP
- Cable Length: 305 m/1000 ft
- Outside Diameter: 6.0 ± 0.2 mm (0.24 ± 0.01 inch)
- Conductor Material: 100% Bare Copper
- Cable Jacket Material: PVC
- Conductor Gauge: 23 AWG
- Cable Performance: Up to 550 MHz
- Cable Structure: Solid
- Cable In-Wall Rating: CM
- UL Listed, TIA/EIA 568-C.2 Verified, RoHS Compliant
PACKAGE CONTENTS
305m Cat 6 UTP Solid CM Rated Bulk Cable in grey in an Easy-to-use Pull Box
INTENDED FOR WIRED HOME AND OFFICE NETWORKS
The Cable Matters Color-Coded Cat6 Ethernet Bulk Cable is perfect for your next cabling project. Installation is faster with a sturdy, easy-pull, dispenser box with backwards sequential cable lengths marked at two foot intervals. Customize and organize your home or office network with our highly rated bulk cables available in 2 different colors.
BUILT FOR FUTURE-PROOF SPEED AND RELIABLE CONNECTIVITY
Featuring a center spine that eliminates crosstalk, this cable provides exceptional transmission performance and low signal losses. It supports up to 550 MHz and is suitable for Fast Ethernet, Gigabit Ethernet, and 10-Gigabit Ethernet. All Cable Matters Cat6 cables are made of 100% bare copper wire as opposed to copper clad aluminum (CCA) wire, therefore fully compliant with UL Code 444, which requires pure bare copper wire in communications cables. Our Cat6 patch and bulk cables are used by data centers around the world.
PACKAGE CONTENTS
305m Cat 6 UTP Solid CM Rated Bulk Cable in grey in an Easy-to-use Pull Box

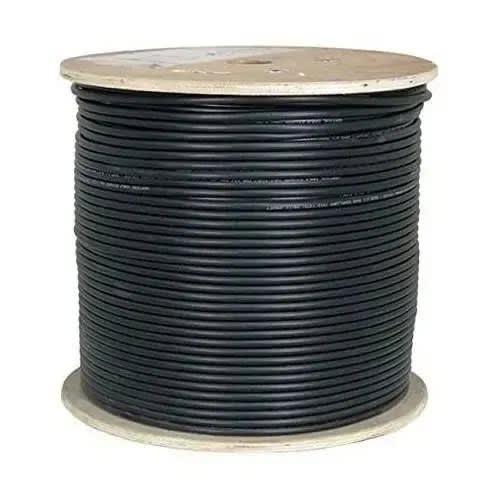

This Cat 6A unshielded twisted pair cable is a high performance data communication cable suitable for 10Gbit high speed applications. It has excellent attenuation and crosstalk characteristics and exceeds TIA/EIA-568-C.2-10 specification.This ethernet cable is designed for indoor and riser network installations and is approved by ETL to be type CMR (riser rated communication cable). The wires are 23 awg in size and are made of solid bare copper conductors. All 4 pairs are easily identified by color stripes. The insulation material is PE and the jacket is made of PVC. This cat6A bulk cable is supplied in 1000 ft wooden spool and sequential length markings are printed on the jacket.
- Cat6A (Augmented) 10G utp 1000 feet gray
- Unshielded Twisted Pair (UTP) Cable
- 23 awg wires made of solid bare copper conductors
- ETL type CMR for indoor and riser network installations
- Exceeds TIA/EIA 568-C.2 specifications
