Power Solution for Car Jump Starting, Notebook/Laptop, Tablets Phones and more. This is an all in one solution to for an uninterruptible power supply for your gargets and devices. This also saves you from the risks associated with battery running down in your car
Operation Guidance:
Indicator Light – Press the switch button to check the capacity of the jump starter.
When charging, indicator light will flash one by one. The number of solid indicator light indicates the battery capacity of the jump starter. Full indicator lights are solid when charging is pause or complete.
Charging for Jump Starter Itself:
1) Plug the home adaptor into the universal socket
2) Connect 12V 1A input port of jump starter to the other end of home adaptor
OR
1) Plug the car adaptor into the socket of cigarette lighter
2) Connect 12V 1A input port of jump starter to the other end of car adaptor
For jump start of 12volts Vehicle:
1) Make sure that the number of indicator light is not less than three
2) Connect the red battery clamp of the jumper cable to the vehicle positive battery terminal and connect the black battery clamp of the jumper cable to the vehicle negative battery terminal
3) Plug the cord of the jumper cable into the jump start socket
4) Start the vehicle
5) When the vehicle starts, remove jumper cable from the jump starter and disconnect red and black clamp to the vehicle battery terminal within 30 seconds.
6) Leave the vehicle engine running
For charging Mobile Phones or Tablets
1) Plug the switch cable B to USB 5volts 2A output port
2) Select the appropriate Connector for your mobile phone or tablet and connect it to the switch cable B and your Mobile Phone or Tablet
3) Press the switch button to charge
For Charging/Power Supply to Notebooks:
1) Plug the switch cable A to USB 19V 3.5A output port
2) Select appropriate connector for your Notebook and connect it to the switch cable A and your notebook
3) Press the switch button to charge/power supply
For Power Supply to 12 Volts Vehicle Products or 12 Volts Electronics:
1) Plug the optional switch cable to 12V 2A output port
2) Connect the optional switch cable and 12V Vehicle product or 12V Electronics
3) Press the switch button to power supply

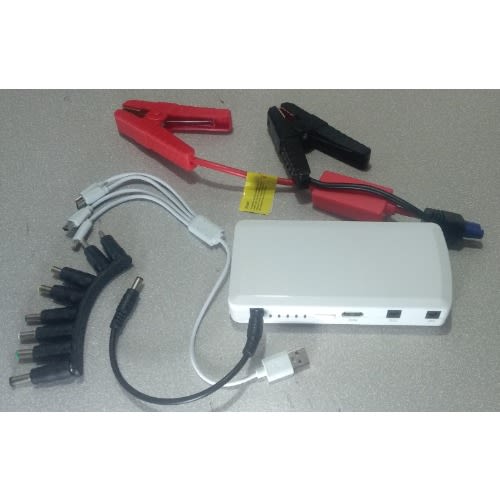

Part List:
- Main Product 1
S/N | Parts | |
1 | Main product | 1 |
2 | Switch Cable A | 1 |
3 | Switch Cable B | 1 |
4 | Mobile Phone Connector | 4 |
5 | Notebook Connector | 8 |
6 | Home Adaptor | 1 |
7 | Car Adaptor | 1 |
8 | Jumper Cable with Battery Clamps | 1 |
9 | User Manual | 1 |
Technical Specification
Size | 160 x 75 x 28mm |
Weight | 430g |
Battery Capacity | 12000mAh |
Output | 5V – 2A: 12V-2A: 19V-3.5A: |
Input | 12V – 1A |
Full Charging Time | 4 Hours |
Starting Current | 200A |
Peak Current | 400A |
Operating Temperature | 0 Degree Celsius to -60 Degree Celsius |
