Overview:The thermostat will provide uniform and comfortable temperature control throughout every room in your property. We bring together technology, craftsmanship and the highest quality materials to provide you with a safe, reliable product combined with , contemporary design. The BHT-3000L serial has been developed to control electric underfloor, water heating or water/gas boiler systems. These units are designed for heating control in commercial, industrial, civil and domestic properties.
Features:Designed to control heating system, easy to operate and program.
Large display screen with backlight, easy to read and touch buttons make simple operation.

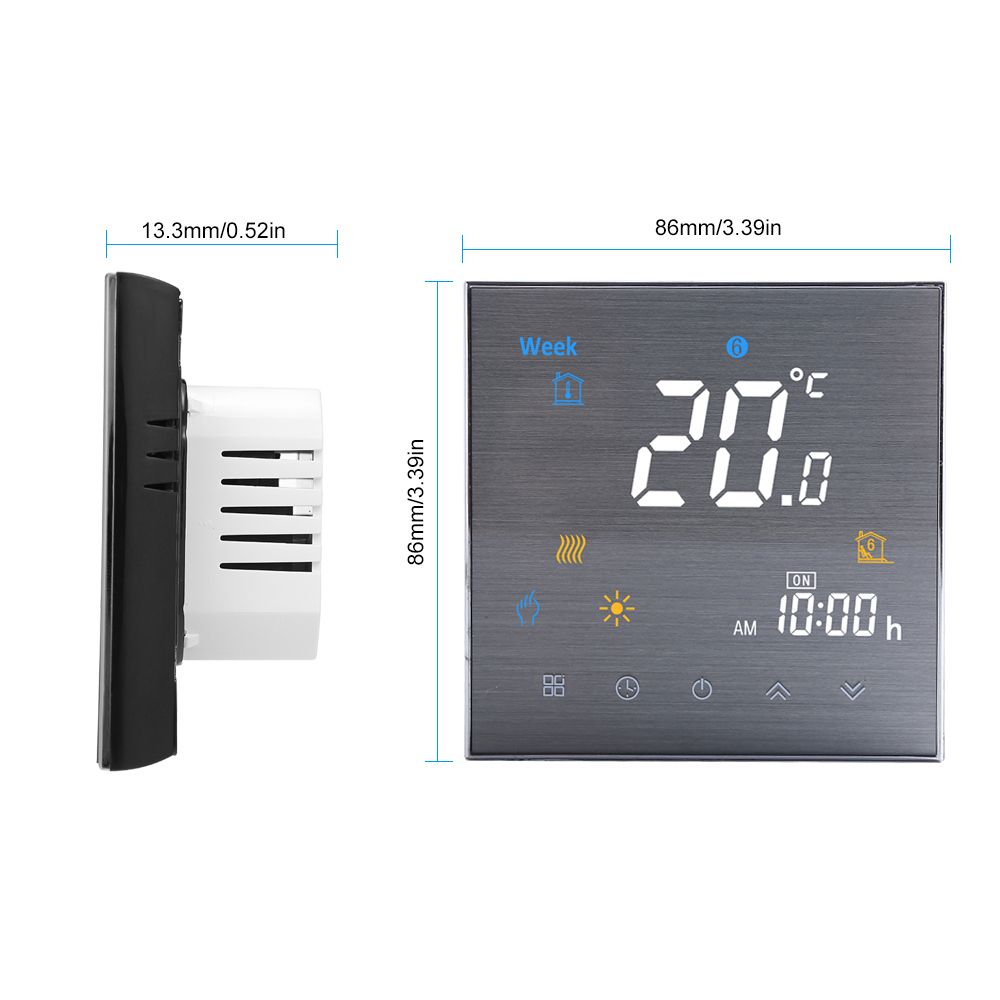

Interlock to connect gives you easy installation. The visiable thickenss above the wall is only 13 mm.
0.5°C Accuracy keeps temperature within the level you set.
5+2 six periods programmable maximize comfort and economy.
Data memory when is off.
A standard 86mm pattress box or european 60mm pattress box is suitable for installation (Box NOT Included).
High-efficiency and energy-saving thermostat to help lower home energy costs.
Made of retardant material, safe and reliable for daily use.
All setting languages synchronize your time zone, address and language.
Note:
1. GA is for water heating, GB is for electric heating, GC is for water/gas boiler.
2. Please read the user manual carefully before installing and operating the thermostat.Specifications:Model: BHT-3000L

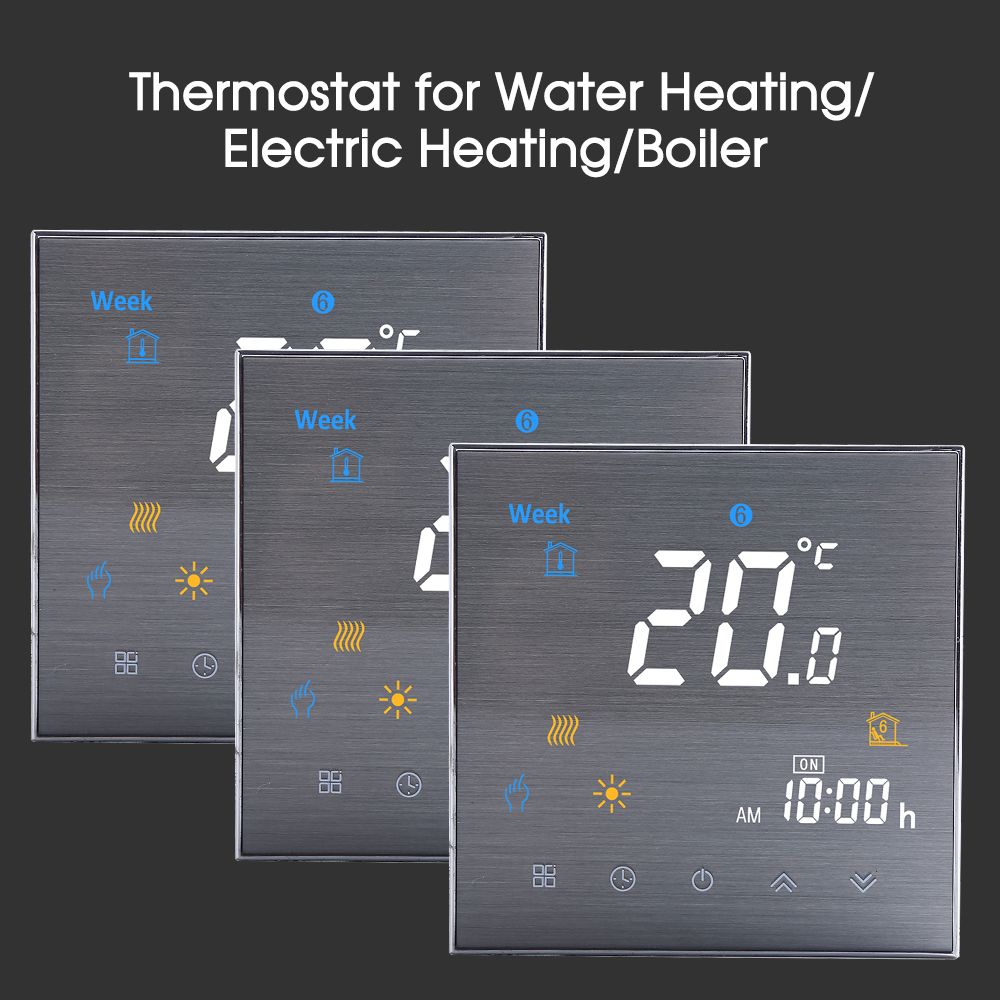

Type: Thermostat for Water Heating/Electric Heating/Boiler (Optional)

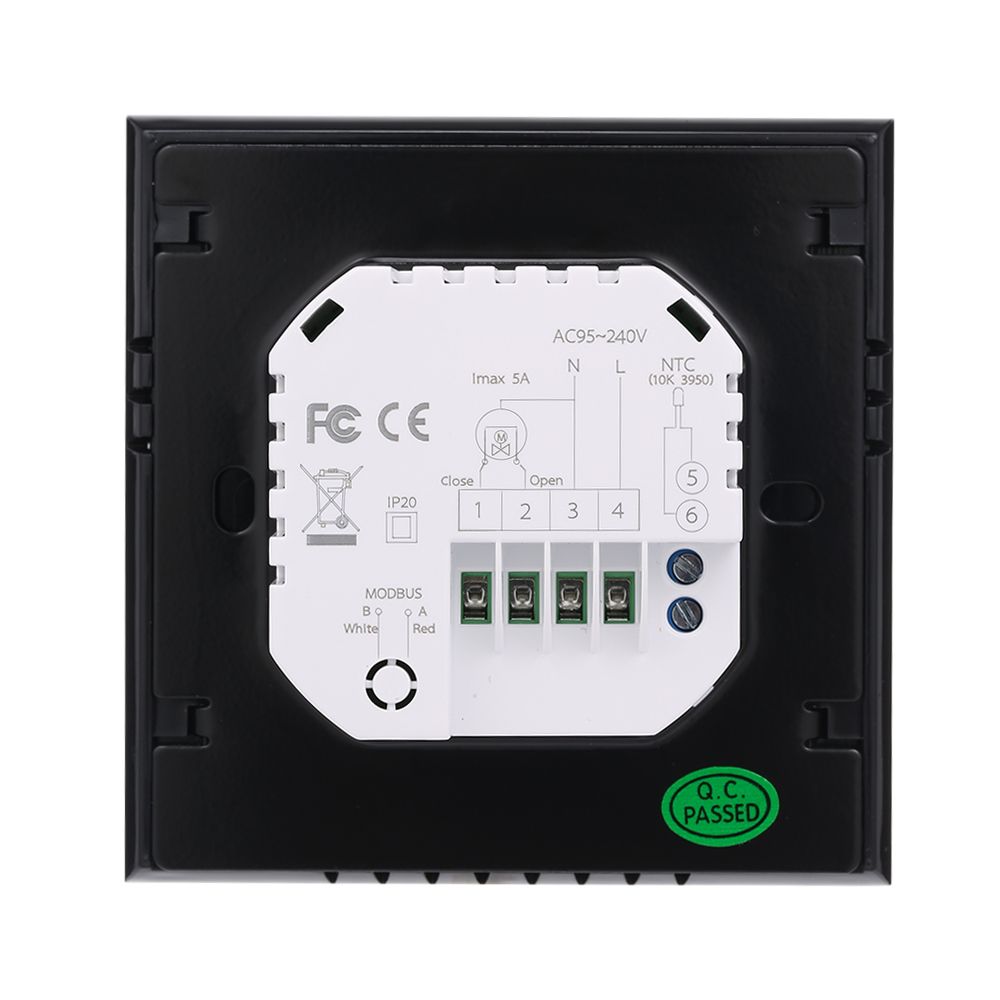

Supply: 95-240V AC, 50/60HZ
Current Load: 5A (water heating, water/gas boiler); 16A (electric heating)
Sensor: NTC3950, 10K
Display: LCD with Backlight
Buttons: Capactive Touch Buttons
Accuracy: ±0.5℃ or ±1℉
Set Temp. Range: 5~35℃
Dispaly Temp. Range: 5~99℃
Ambient Temperature: 0~45 ℃
Ambient Humidity: 5~95 % RH (Non Condensing)
Storage Temperature: -5~45 ℃
Consumption:
Key Features
Designed to control heating system, easy to operate and program.
Large display screen with backlight, easy to read and touch buttons make simple operation.
Interlock to connect gives you easy installation. The visiable thickenss above the wall is only 13 mm.
0.5°C Accuracy keeps temperature within the level you set.
5+2 six periods programmable maximize comfort and economy.
Data memory when is off.
What's In the Box
1 x Thermostat,2 x Screws,1 x User Manual(English)
