Features:

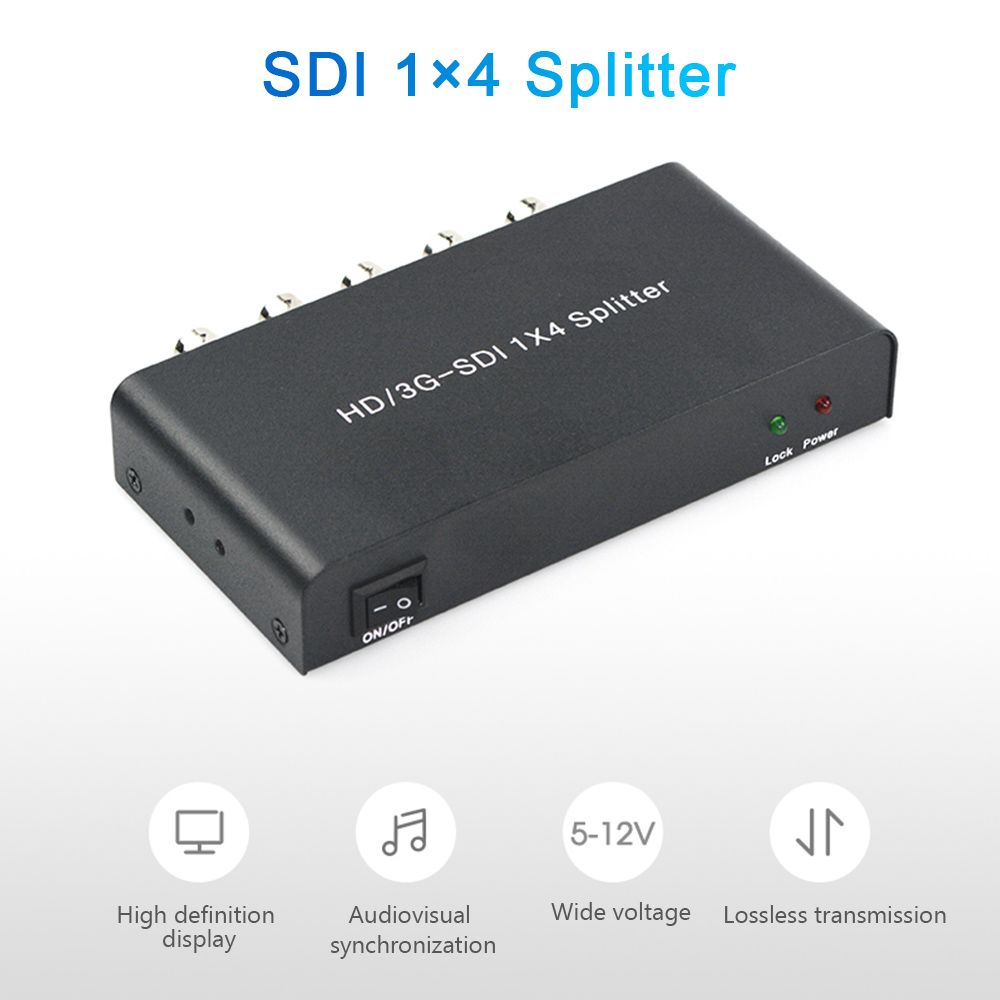

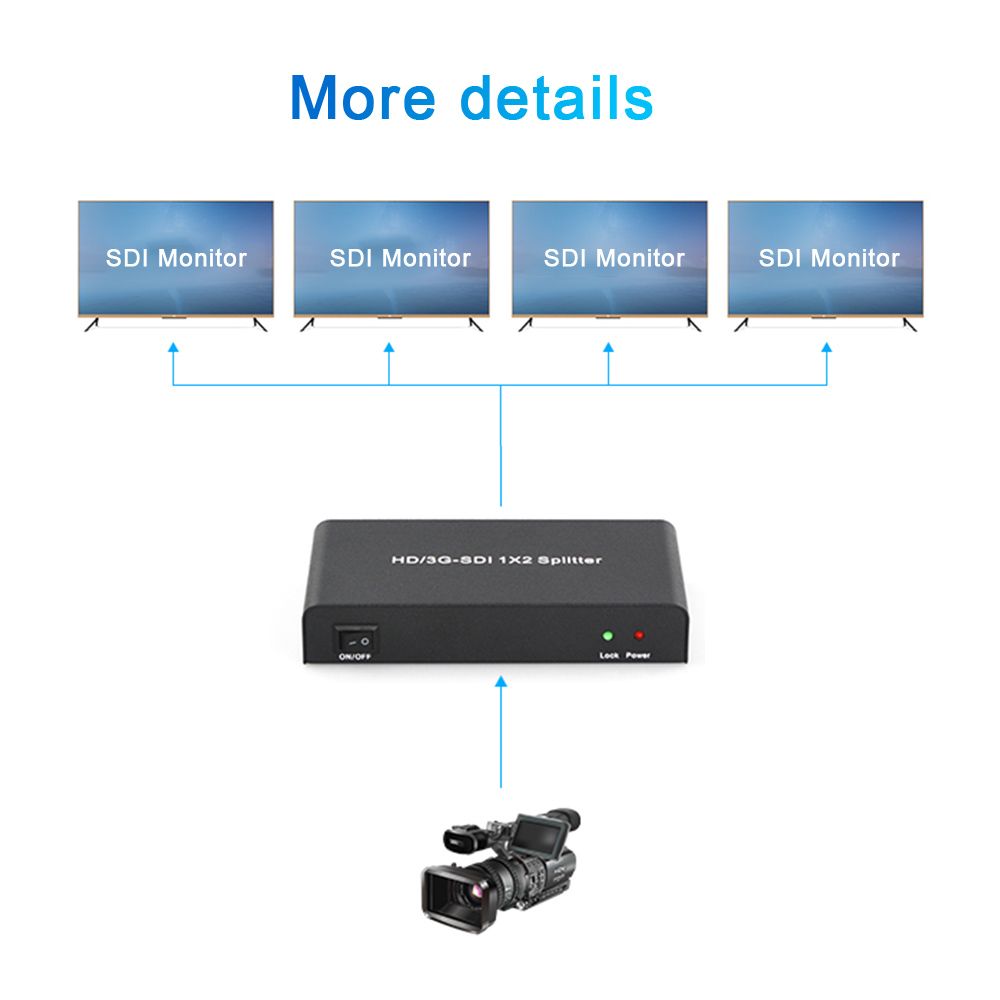

*One-way SDI signal input, assigned as four-way SDI output.
*Support 5V-12V DC wide voltage input.
*Low power consumption and low power adapter requirements.

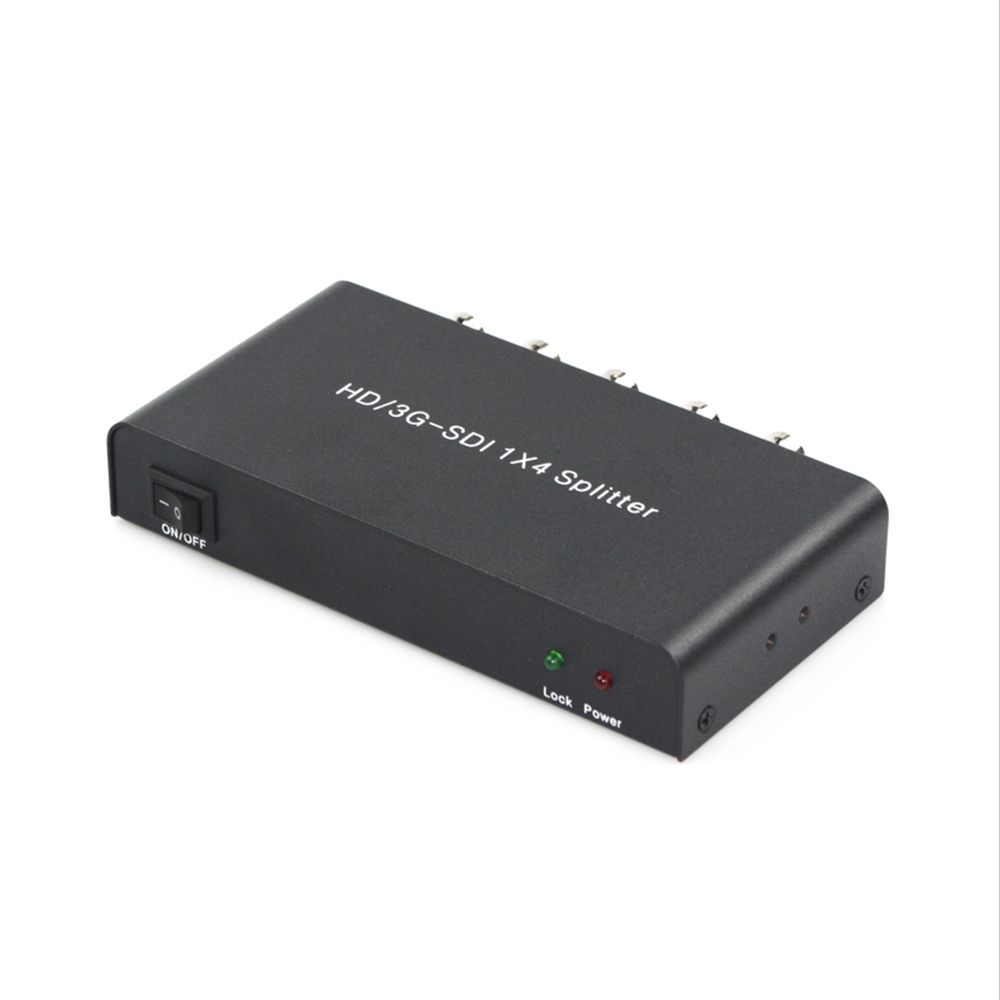

*With input status indicator, clearly indicate the device usage status.
*Multiple distributors can be connected to achieve long-distance, multi-interface expansion.
Specifications:
Model Number: AYS-S14
Color: Black
SMPTE Standard: 425M Level A amp;B, 424M, 292M, 259 MC
SDI Transmission Rate: 270Mb/s (SD), 1.485Gb/s (HD), 2.97Gb/s (3G)
Input/Output Resolution: SD: 480i@60, 576i@50 HD: 720p@50/60, 1080i@50/60 3G: 1080p@24/25/29.97/30/50/59.94/60
SDI Output Resolution: Depends on the input resolution
Audio Sampling Rate: 48KHZ

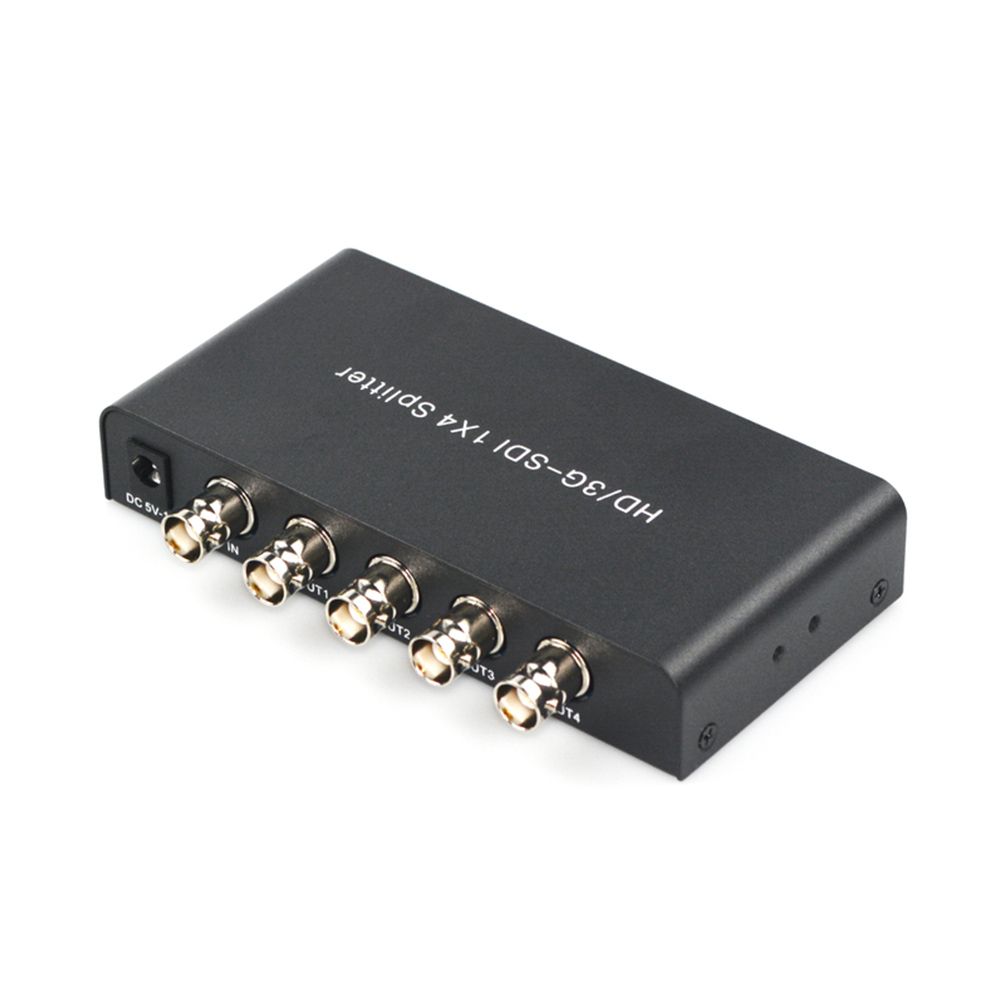

Input Port: 1 times;BNC (SD/HD/3G-SDI)
Output Port: 4 times;BNC (SD/HD/3G-SDI)
SDI Transmission Cable: Input up to 100 meters, output up to 80 meters; Input up to 80 meters output up to 100 meters
Input Voltage: DC5V-12V
Maximum Power Consumption: 1.5W
ESD: plusmn;8kV (Air gap discharge), plusmn;4kV (Contact discharge)
Operating Temperature: -10℃ - 55℃
Storage Temperature: -20℃ - 60℃
Package Size: 17.5 * 12 * 5.7cm / 6.89 * 4.72 * 2.24in
Package Weight: 346g / 12.2oz
Package List:
1 * SDI Splitter
1 * Power Adapter
1 * User Manual (Chinese / English)
