Model |
B11450IVY=S-PC-0183 |
Production Country |
China |
Size (L x W x H cm) |
22 x 15 x 6cm |
Weight (kg) |
0.51 |
Color |
Black |
Main Material |
Multi-Material |

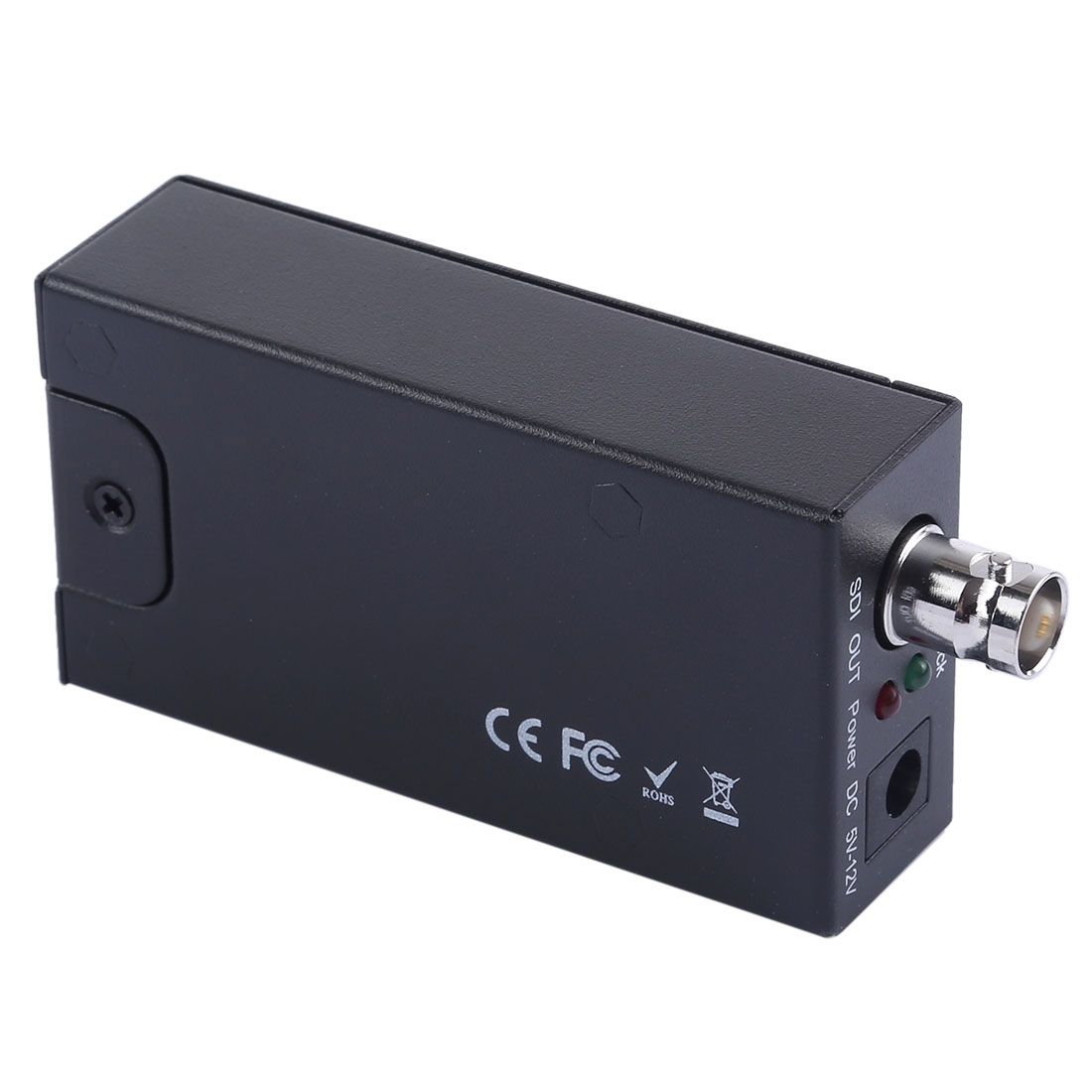

AY31 Mini 3G HDMI to SDI Converter
Introduction:
MINI HDMI to SDI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on the HDMI display, while ensuring a high bit rate of 2.970 Gbit / s, thus providing you with fast signal transmission without any loss . For professionals, this means that with the built-in HDMI converter, it is now easier to distribute and extend 3G SDI signals, while enabling you to display your work on HDMI displays.
Feature:
1. Run at speeds of 2.970Gbit / s, 1.485Gbit / s and 270Mbit / s
2. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Loop output integrated audio de-embedder with equalization and retime, maximum 8 channels, 48 aaKHz audio
4. From SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4: 2: 2 10-bit conversion

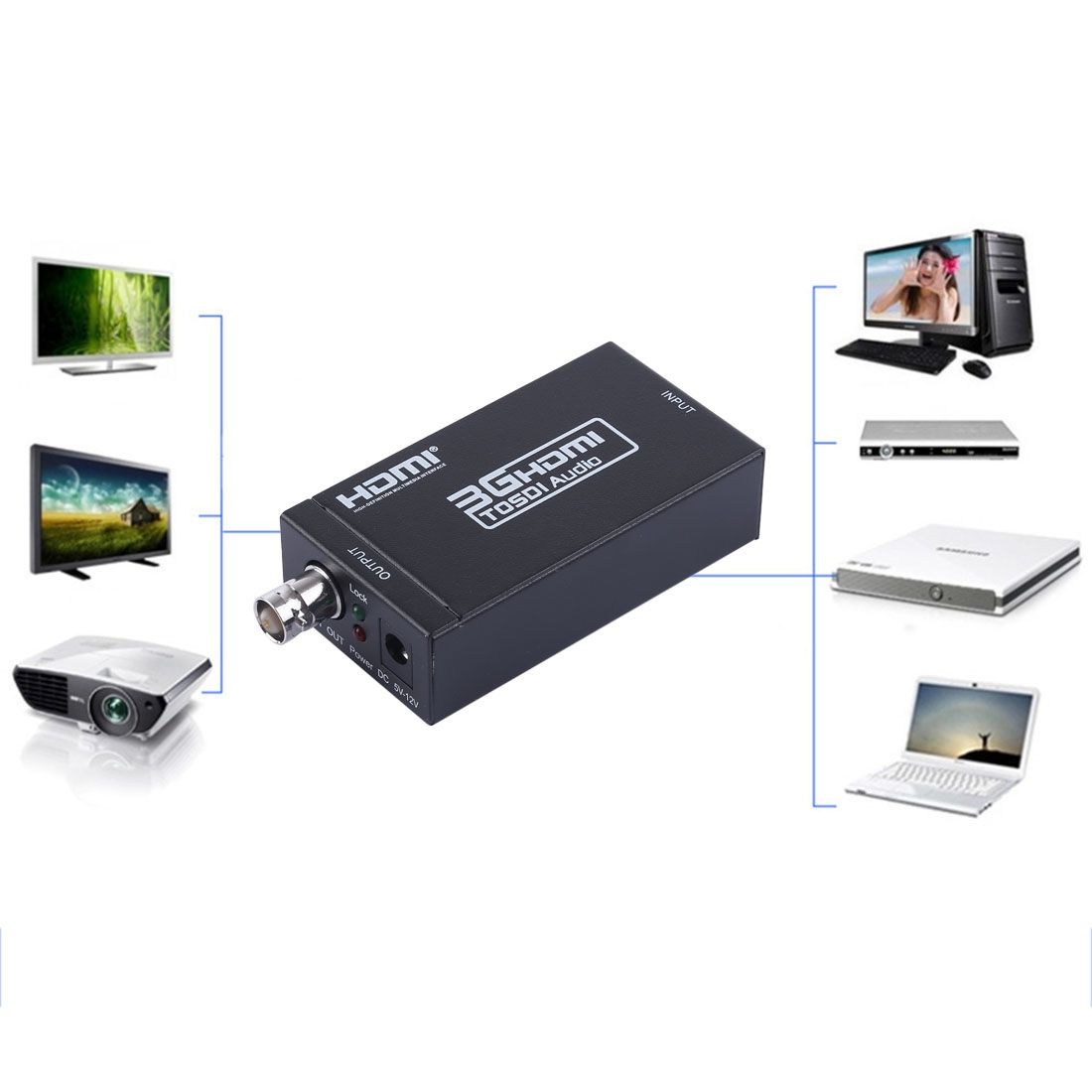

5. Connect with other devices to extend the signal distance
Specification:
1. Input port: 1 x HDMI
2. Output port: 1 x BNC (SDI / HD-SDI / 3G-SDI)
3. SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
4. Input / output resolution: 480i, 576i, 720p @ 50 / 59.94,60, 1080i @ 50 / 59.94 / 60 1080p@23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V -12V
6. ESD protection human body model: ?± 8kV (air gap discharge), ?± 4kV (contact discharge)
7. Dimensions: 80mm x 41mm x 22.5 mm
8. Weight: 105g
9. Working temperature: 0 ?° C-40 ?° C
10. Storage temperature: -20 degrees Celsius -60 degrees Celsius-
11. Power consumption: up to 5W

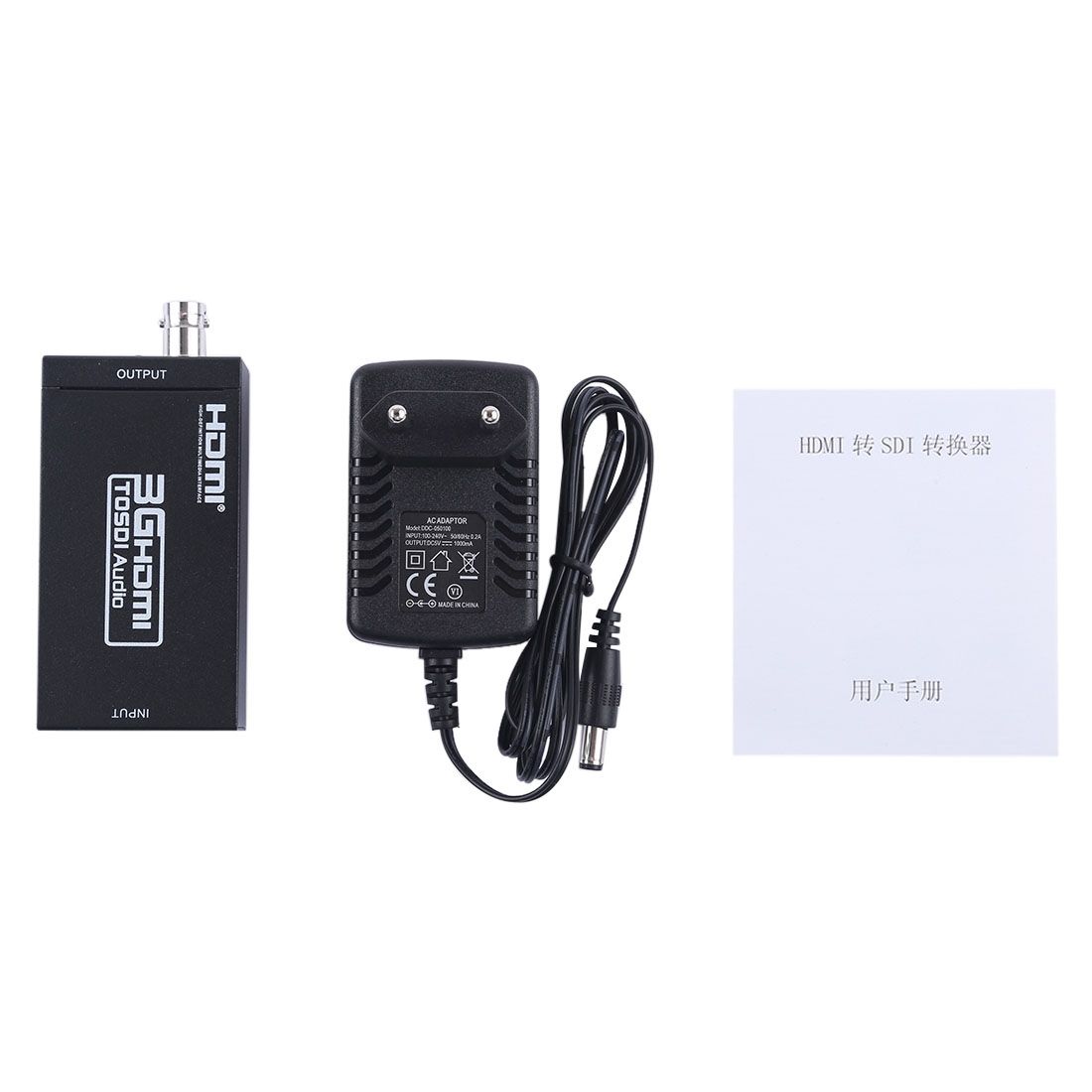

Packing list:
3G HDMI to SDI converter x 1
5V DC power adapter x 1
Operation Manual x 1
Key Features
AY31 Mini 3G HDMI to SDI Converter
AY31 Mini 3G HDMI to SDI Converter
AY31 Mini 3G HDMI to SDI Converter
AY31 Mini 3G HDMI to SDI Converter
AY31 Mini 3G HDMI to SDI Converter
What's In the Box
1 x package
