The AVR has the faclity for droop CT connection,to allow parallel running with other similarly equipped generators.

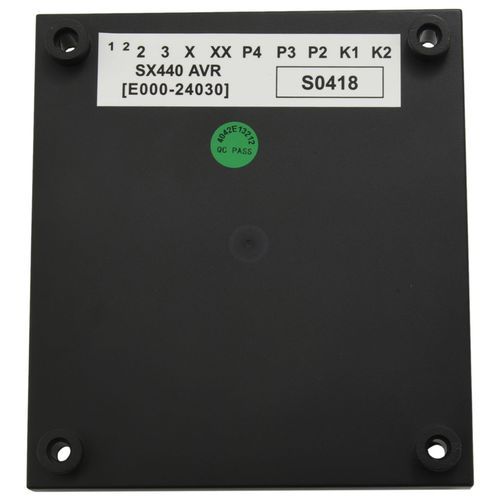

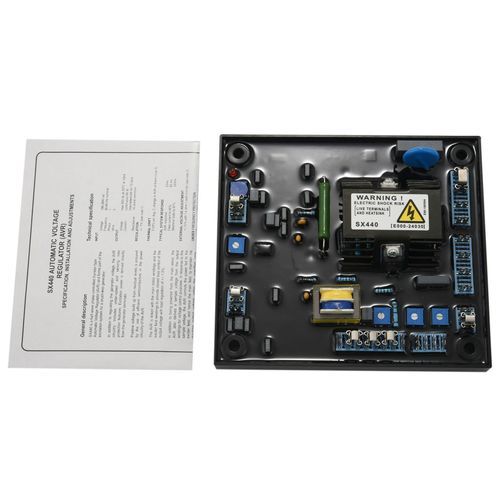

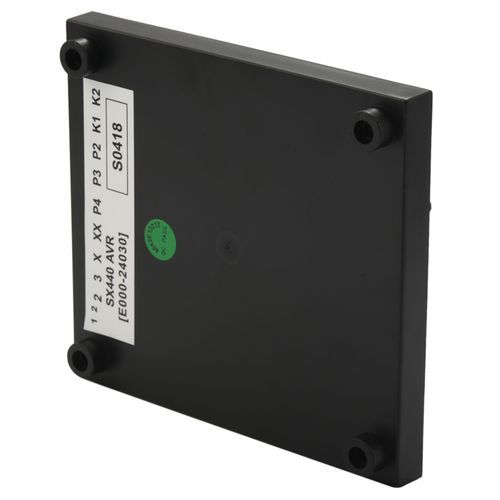

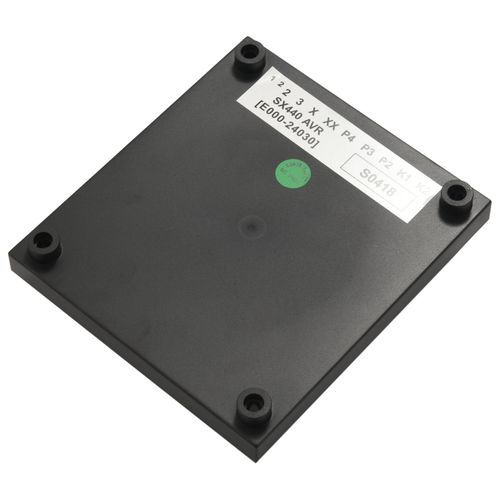

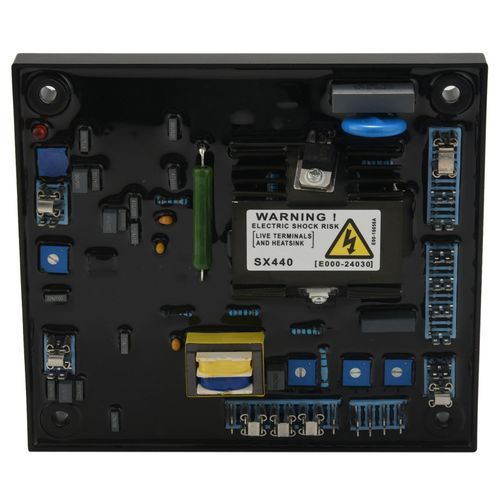

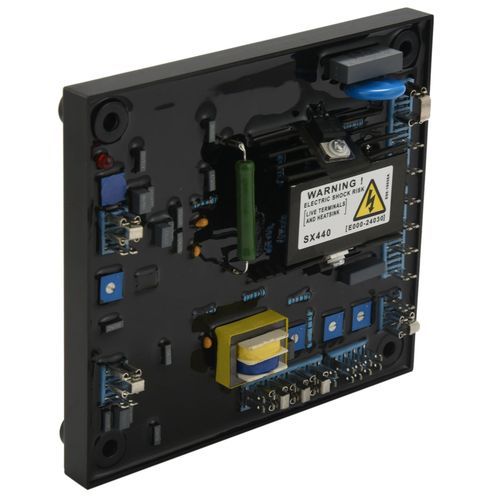

SX440 is a two phase sensed Automatic Voltage Regulator(AVR) and forms part of the exciation system for a brush-less generator.
The AVR senses the voltage in the main generator winding and control the power fed to the exciter stator and hance the main rotor to maintain the generator output voltage within the specified limits, compensating for load sprrd,temperature and power factor of the generator.
Vibration:20 -100HZ (50mm/sec), 100Hz -2kHz
Colour: Black
Material: metal + PC
Sensing Input:
Voltage: 190-264V ac max, 1 phase 2 wire
Frequency: 50-60HZ nominal
Power inpot
Voltage: 140-220 V ac max, 3 phase,3 wire
Current: 3A/phase
Frequency: 100-120HZ nominal
Out put
Voltage: max 120V/DC
Current: continuous 2.7A/DC
Intermittent 6A for 10 secs
Resistance: 15 ohms minimum
Regulation: +/-1%
Thermal drift: 0.03% per deg.C change in AVR ambient
Soft start pamp time: 3 sec
Typical system response
AVR respone: 10ms
Filed current to 90%: 80ms
Machine Volts to 97%: 300ms
External voltage adjustment: +/-10% with 1k ohm 1W trimmer
Under frequency protection
Set point: 95%HZ
Slope: 170% down to 30HZ
Unit power dissipation: 12 watts maximum
Analogue input
Maximum input: +/-5V/DC
Sensitivity 1V for 5% Generator Volts(adjustable)
Input resistance 1k ohm
Quadrature droop input
10 ohms burden
Max.sensitivity:0.07A for 5% droop OPF
Max.input:0.33A
Over excitation protection
Set point:75V/DC
Time relay:10 sec
Environmental
Vibration:20 -100HZ (50mm/sec), 100Hz -2kHz
Operating temperature: -40ºC to +70 ºC
Relative Humidity: 95%
Storage temperature: -55ºC to +80ºC
Package Contents: 1 x Automatic Voltage Regulator
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !
Key Features
The AVR has the faclity for droop CT connection,to allow parallel running with other similarly equipped generators.
SX440 is a two phase sensed Automatic Voltage Regulator(AVR) and forms part of the exciation system for a brush-less generator.
The AVR senses the voltage in the main generator winding and control the power fed to the exciter stator and hance the main rotor to maintain the generator output voltage within the specified limits, compensating for load sprrd,temperature and power factor of the generator.
Vibration:20 -100HZ (50mm/sec), 100Hz -2kHz
Colour: Black
Material: metal + PC
Sensing Input:
Voltage: 190-264V ac max, 1 phase 2 wire
Frequency: 50-60HZ nominal
Power inpot
Voltage: 140-220 V ac max, 3 phase,3 wire
Current: 3A/phase
Frequency: 100-120HZ nominal
Out put
Voltage: max 120V/DC
Current: continuous 2.7A/DC
Intermittent 6A for 10 secs
Resistance: 15 ohms minimum
Regulation: +/-1%
Thermal drift: 0.03% per deg.C change in AVR ambient
Soft start pamp time: 3 sec
Typical system response
AVR respone: 10ms
Filed current to 90%: 80ms
Machine Volts to 97%: 300ms
External voltage adjustment: +/-10% with 1k ohm 1W trimmer
Under frequency protection
Set point: 95%HZ
Slope: 170% down to 30HZ
Unit power dissipation: 12 watts maximum
Analogue input
Maximum input: +/-5V/DC
Sensitivity 1V for 5% Generator Volts(adjustable)
Input resistance 1k ohm
Quadrature droop input
10 ohms burden
Max.sensitivity:0.07A for 5% droop OPF
Max.input:0.33A
Over excitation protection
Set point:75V/DC
Time relay:10 sec
Environmental
Vibration:20 -100HZ (50mm/sec), 100Hz -2kHz
Operating temperature: -40ºC to +70 ºC
Relative Humidity: 95%
Storage temperature: -55ºCto +80ºC
Package Contents: 1 x Automatic Voltage Regulator
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
What's In the Box
1 x Automatic Voltage Regulator
