2220400 VAC Programmable Input
3Rugged Design
4With Under Frequency Protection Soft Voltage Ramping
5EMI Suppression Buit-in High Capacity 8Amp Fuse
Input Voltage 220400VAC 1 phase 2 Wire
POWER INPUT
Voltage180~240V 1 phase 2 Wire
Output Voltage Max 90V dc @240V ac input
Current Continuous 15A
Intermittent 20A for 10 secs
Resistance 10 ohms min 100 ohms Max
Regulation
-05% with 4% engine governing
Voltage -upResidualvolts at AVR teminal 5VAC
SOFT RAMP TIME
3 seconds
EXTERNAL VOLTAGE ADJUSTMENT
-7% with 1 k ohm 1 watt trimmer
UNIT POWER DISSIPATION
8 maximum
Thermal Drift005% per °C chage in AVR
Under Frequency60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz
Operating Temperature-40°C to 65°C
Storage Temperature-40°C to 85°C
Relative Humidity Less than 95%
Materialplastic
colourPhoto Color
Package Contents

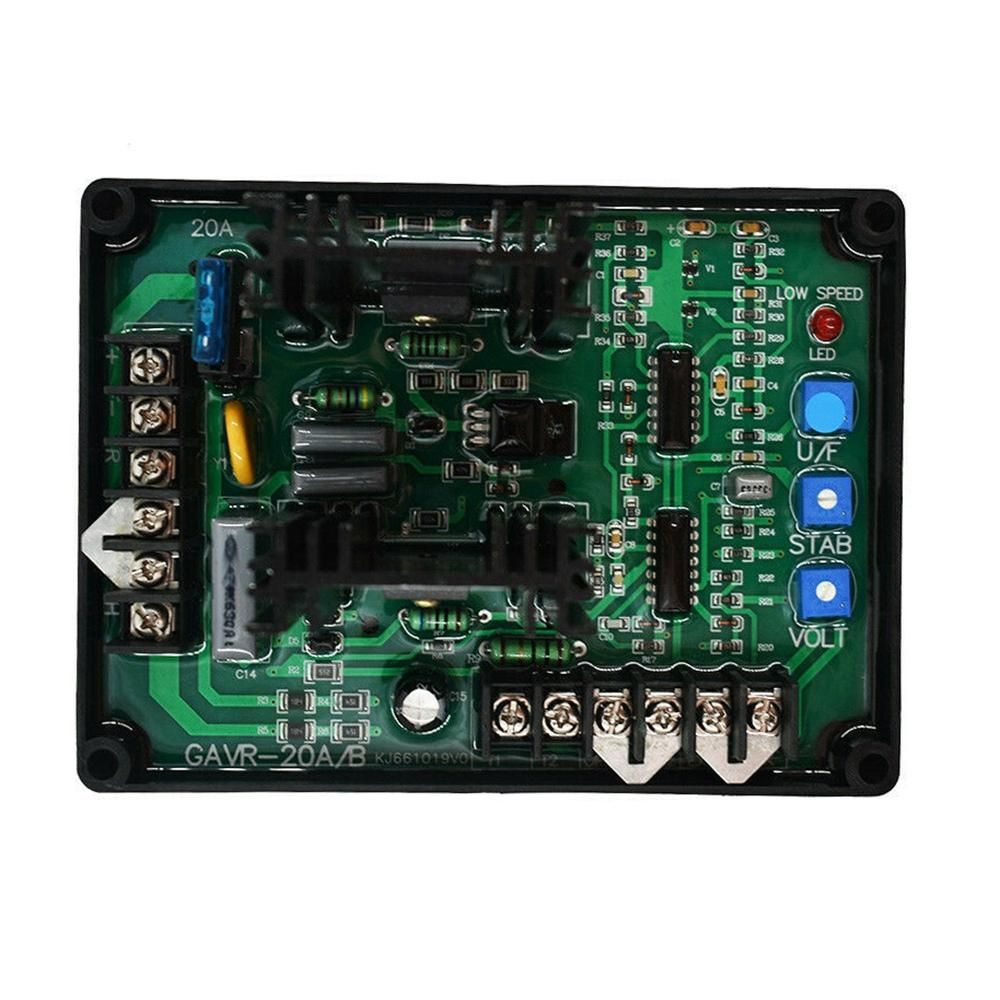

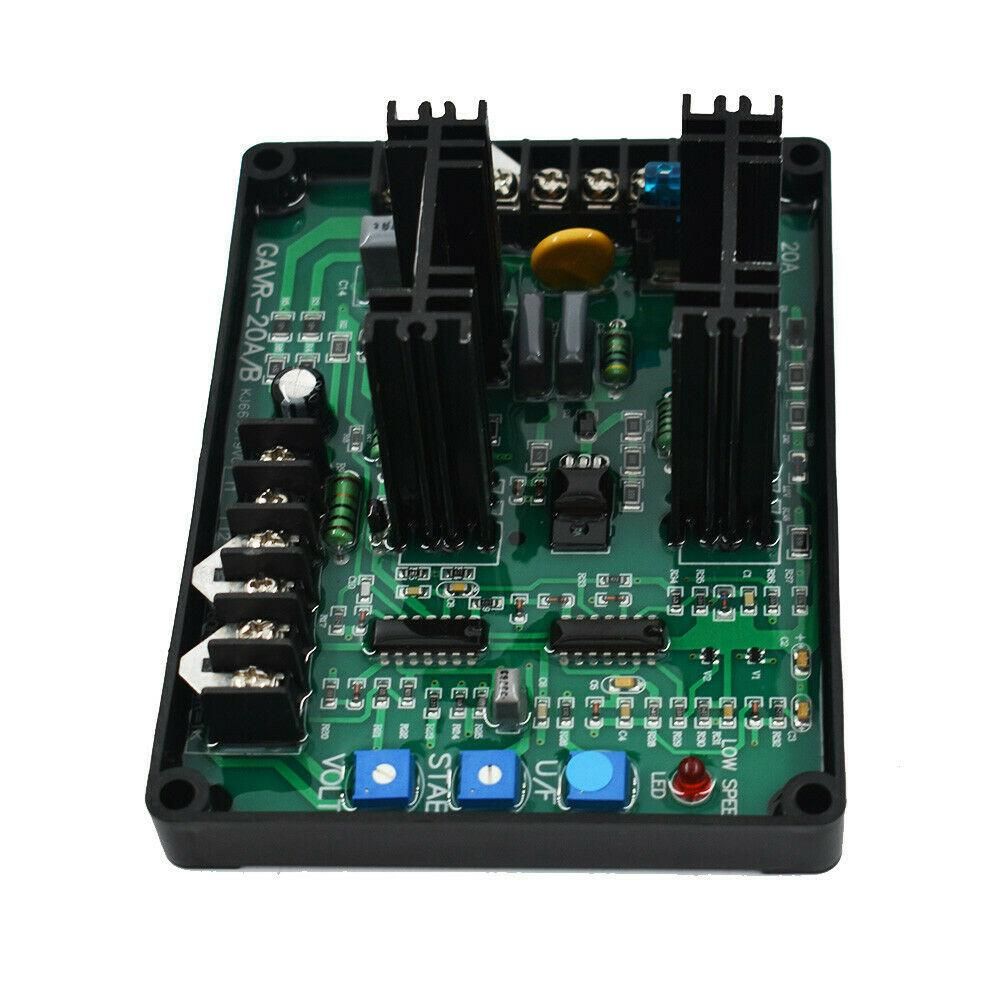

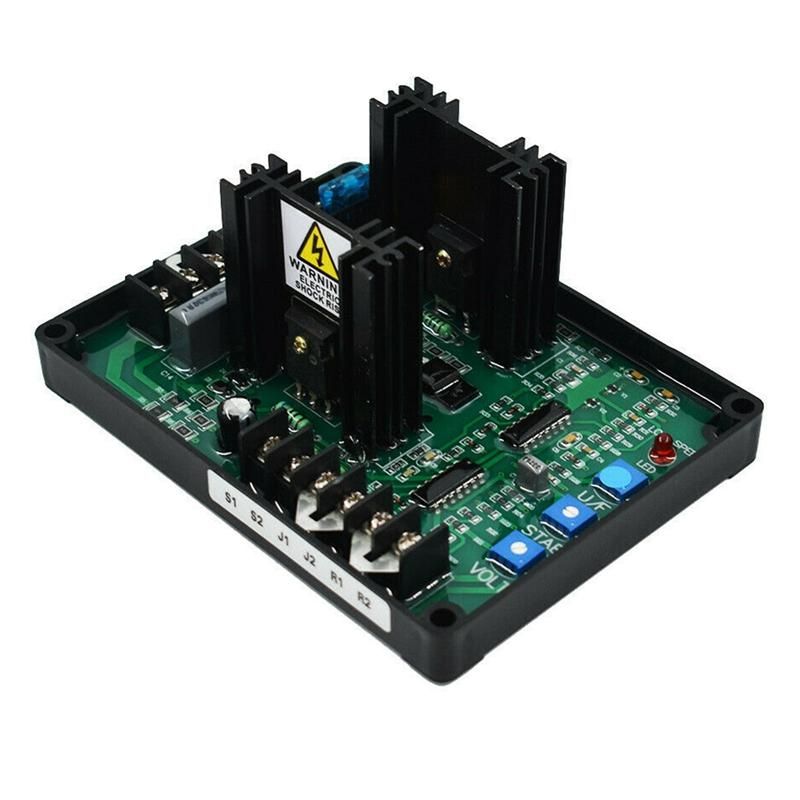

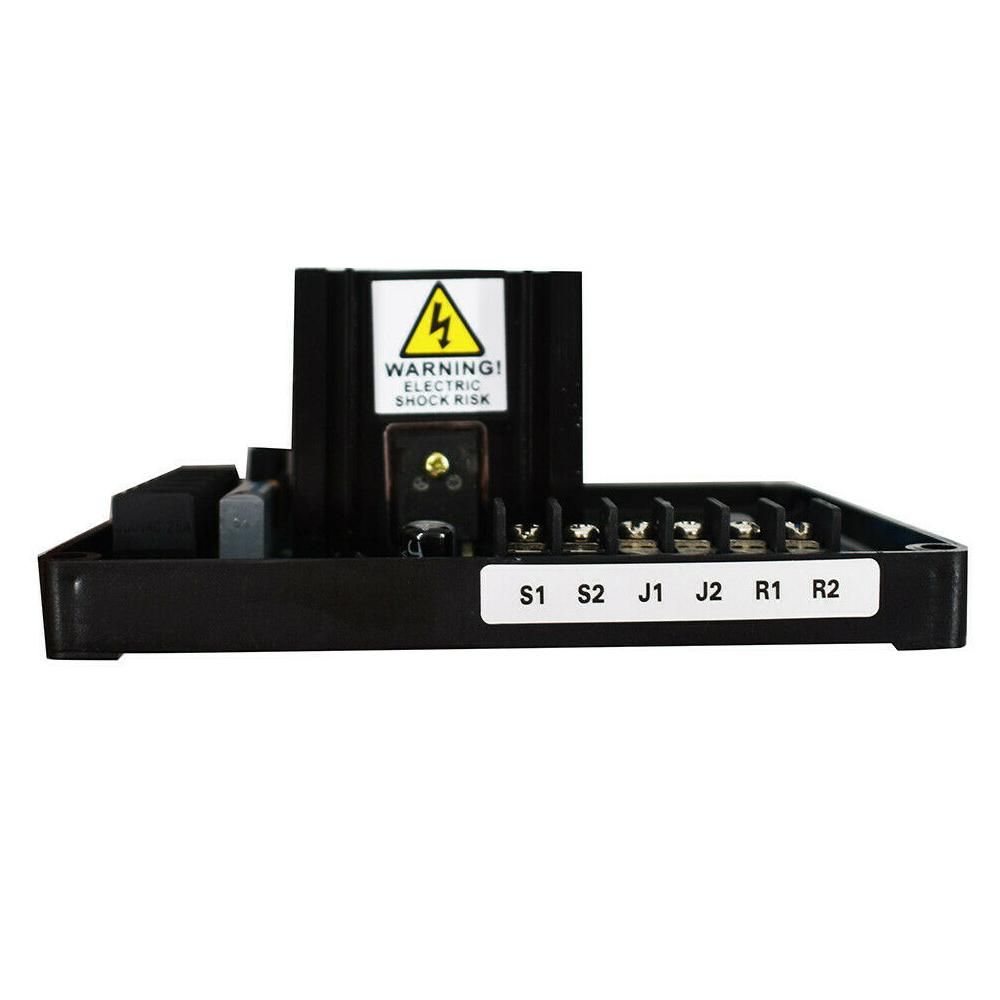

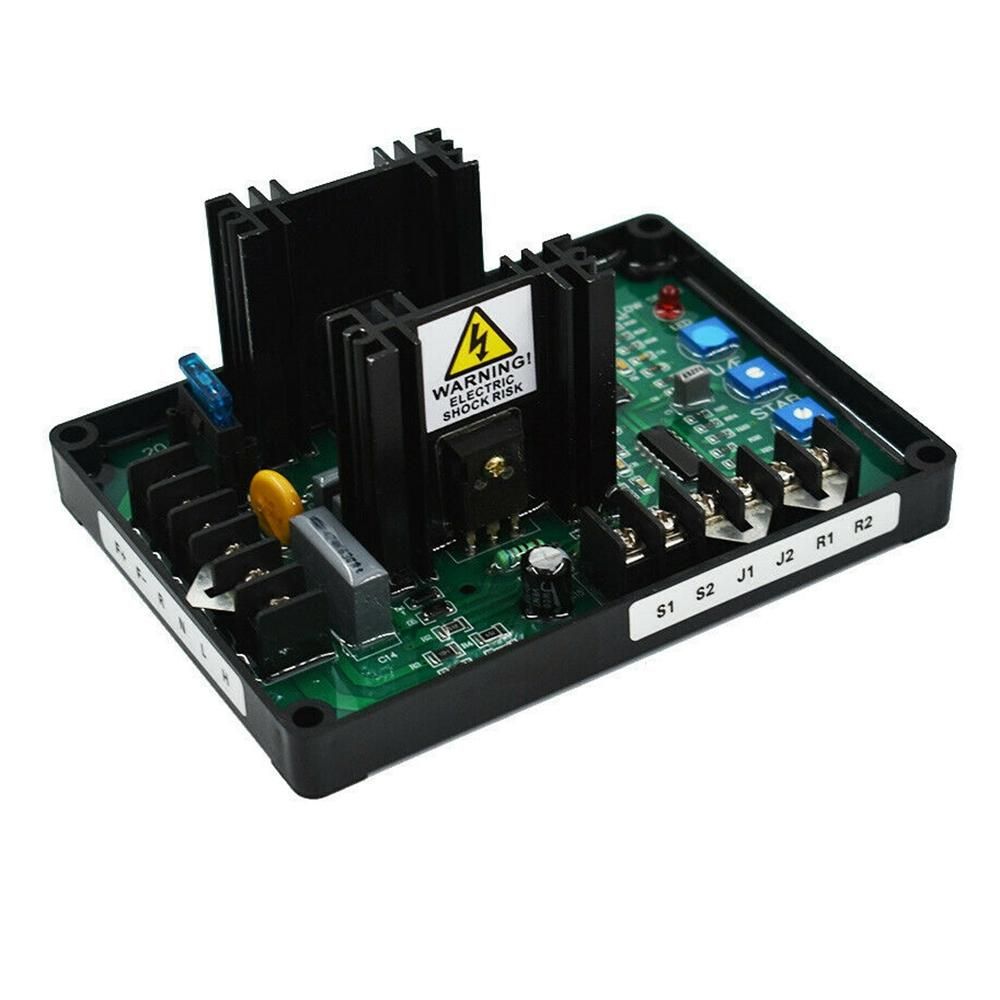

1 * GAVR-20A Automatic Voltage Regulator
1 * English manual
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 * GAVR-20A Automatic Voltage Regulator
1 * English manual
