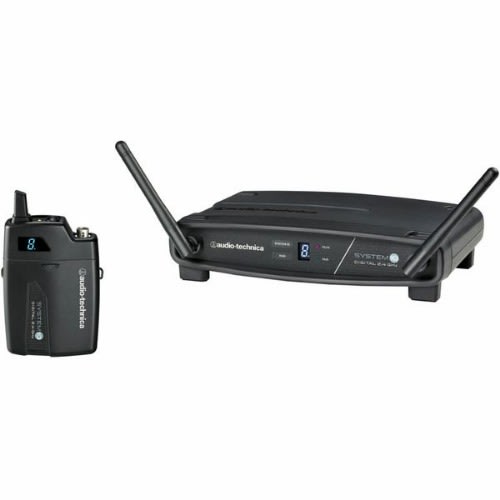

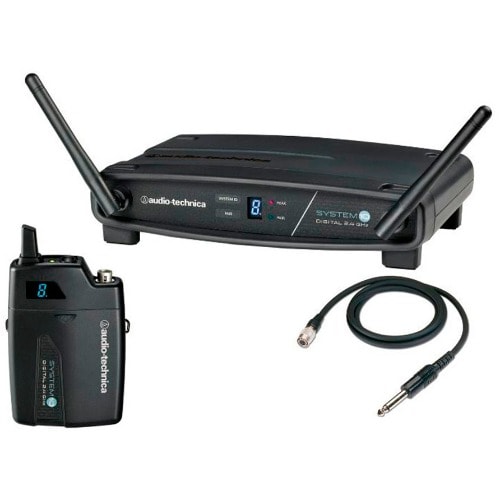

System 10 Stack-mount Digital Wireless System
- ATW-R1100 receiver
- ATW-T1001 UniPak® transmitter
- 2.4 GHz range – completely free from TV interference
- Three levels of diversity assurance: frequency, time, & space
- Automatic frequency selection
- State-of-the-art digital receiver for reliable performance
“2.4 ghz digital system, 24 bits/48 khz”
The System 10 continuously monitors the activity in the 2.4GHz band and automatically adjusts the best signal in case of interference with WLAN routers, Bluetooth devices or other HF microphones. The 2.4 GHz frequency band keeps you away from licensing or frequency coordination issues, or frequencies used by DTV and 4G.
“Automatic frequency selection”
The System 10 automatically changes its frequency. Unlike other systems on the market that attach to 2 or 4 frequency, the System 10 will constantly “monitor” the frequencies and switch if necessary. Thus, there are always a good 2 frequencies in the system, and the user does not need to manually intervene.
“A reliable multiplex system”
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
OVERALL SYSTEM |
Operating Frequencies | 2.4 GHz ISM band |
Frequency Response | 20 Hz to 20 kHz Depending on microphone type |
Operating Range | 30 m (100′) Open range env. with no interfering signals |
Dynamic Range | >109 dB (A-weighted), typical |
Total Harmonic Distortion | <0.05% typical |
Operating Temperature Range | 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures |
Audio Sampling | 24 bit / 48 kHz |
Latency | 3.8 ms |
RECEIVER |
Receiving System | Diversity (frequency/time/space) |
Maximum Output Level | XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV |
Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external |
Dimensions | 190 mm W x 46.2 mm Hx 128.5 mm D |
Weight | 290g |
Accessories Included | Power supply |
BELT PACK |
RF Power Output | 10 mW |
Spurious Emissions | Following federal and national regulations |
Input Connections | Four-pin Locking Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
Battery Type | Two 1.5V AA |
Battery Life | >7 hours (alkaline) Depending on batt. type & use pattern |
Dimensions | 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D |
Net Weight | 100g |
