Buy Ats-11kw Automatic Transfer Switch Lcd Dual Power Transfer

Ats-11kw Automatic Transfer Switch Lcd Dual Power Transfer Inverter - Grid 220ac

₦ 198,000.00 ₦ 200,000.00 -1%

0 No Reviews

Product SKU: RENG490266

Brand: Moer

Quantity

In Stock

Product Highlights

Rated power: 5.5kw (Utility Power 100-120V); 11kw (Utility Power 220-240V)
Input voltage: Auto Selection: AC 100-120V or AC 220-240V
Output voltage: Auto Selection AC 100-120V or AC 220-240V

roduct size: About 190x170x72.5mm/7.48x6.69x2.85in
Packing size: About 260x230x150mm/10.23x9.05x5.9in
Gross weight: 3Kg

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Brand	Moer
Warranty Period	6 Months

Model: ATS-11KW
Rated power: 5.5kw (Utility Power 100-120V); 11kw (Utility Power 220-240V)
Input voltage: Auto Selection: AC 100-120V or AC 220-240V
Output voltage: Auto Selection: AC 100-120V or AC 220-240V
Transmission time: the time for the inverter to transfer to the utility power is ≤10ms; the time for the utility power to be transferred to the inverter is ≤16ms
LCD display: battery voltage; power source: utility; power supply or battery inverter.
System voltage: automatic selection: 12V or 24V or 48V
Low battery voltage transmission set point: default value: 11v/22v/44v, adjustable
Battery recovery setting: default: 13.5v/27v/54v, adjustable

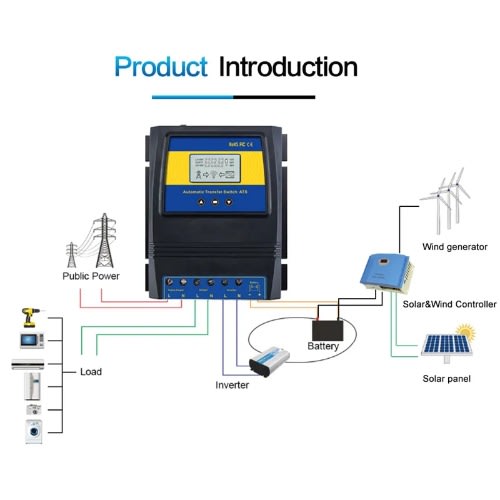

Applications: off-grid solar energy systems; wind turbines; hydroelectric generators

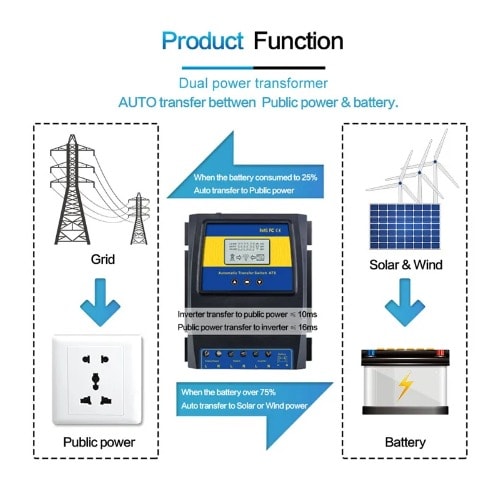

For Solar Wind Systems: ATS-11KW switcher is in cloudy or windless days, when the battery power is low, it will automatically switch to the grid to protect your battery.

Reverse UPS Work: ATS-11KW switcher When the battery voltage is lower than the cut-off point, the ATS controller will switch to the grid power supply, and when the battery voltage is higher than the recovery point, it will switch back to the battery power supply.

Automatic Distinction: DC 12/24/48V, AC 220-240V 50HZ automatic distinction. User can define cutoff voltage and recovery voltage. The recovery voltage must be higher than the cutoff voltage. Battery Type: Suitable for sealed, gel, lead-acid, lithium batteries, etc. As long as your battery voltage is within the following voltage range. 9-17V for 12V system; 18-30V for 24V system; 30-60V for 48V system.
High Power: 5.5kw (110V) or 11KW (220v), fast conversion time: the conversion from the inverter to the public power supply is ≤10ms, and the conversion from the public power supply to the inverter is ≤16ms.
LCD: Automatic ATS dual power transfer switch can display voltage status; working status of public power supply, inverter, battery.
