| Model |
ASX-312BT |
| Weight (kg) |
2.5 |
| Color |
Black, White |
| Main Material |
Plastic |
SPEAKERS
PA WALL SPEAKERS

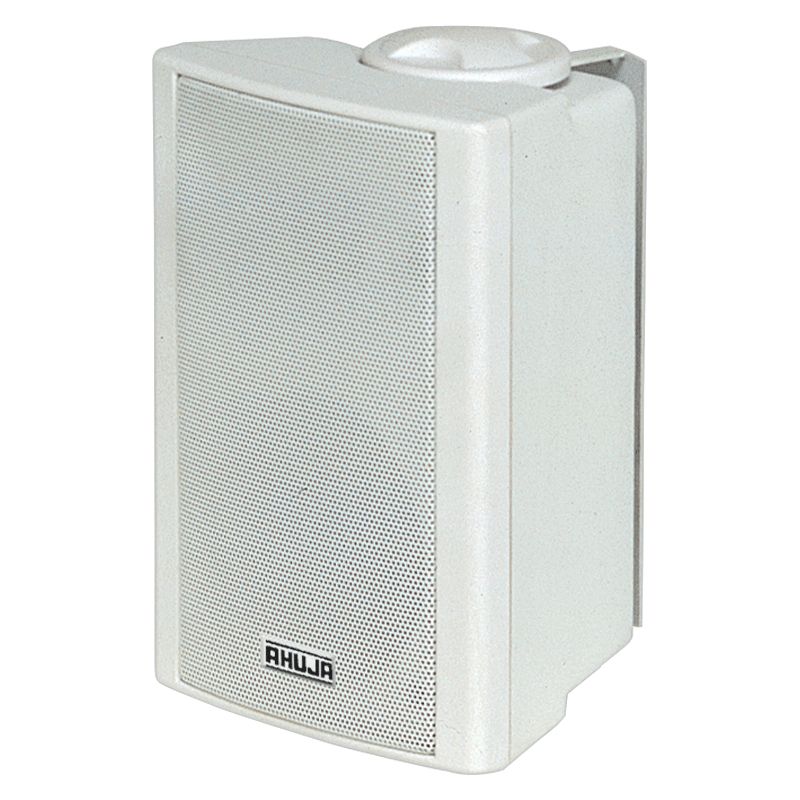

ASX-312B/312BT30 Watts2-Way Compact PA Wall Speakers
High fidelity 2-Way speaker system in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet. Ideal for various indoor and outdoor (under eaves) applications in Airports, Banks, Schools, Hotels, Restaurants, Lounges, Hospitals, Showrooms etc.
- Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
- ASX-312B, ASX-312W are low impedance 8Ω speakers.
- ASX-312BT and ASX-312WT are for use on 100V line with power taps of 30W, 20W, 15W, 10W & 5W.
- Easy power tap selection through a slotted rotary switch knob at the rear.
- ‘U' type bracket for convenient & firm mounting of the wall speaker.
SPECIFICATION:- POWER RATING: 30W RMS/45W Max.
- POWER TAPS: 30W, 30/20/15/10/5W
- IMPEDANCE/VOLTAGE: 8Ω / 100V
- FREQUENCY RESPONSE: 75-20,000Hz
- SPL at 1kHz (1W/1m): 87dB
- SPEAKER: Woofer 100mm (4"), Tweeter 25mm (1")
- DIMENSIONS: W180 × H248 × D140 mm
- WEIGHT: 2.45kg/2.92kg
Key Features
POWER RATING: 30W RMS/45W Max.
POWER TAPS: 30W, 30/20/15/10/5W
IMPEDANCE/VOLTAGE: 8Ω / 100V
FREQUENCY RESPONSE: 75-20,000Hz
SPL at 1kHz (1W/1m): 87dB
SPEAKER: Woofer 100mm (4"), Tweeter 25mm (1")
DIMENSIONS: W180 × H248 × D140 mm
WEIGHT: 2.45kg/2.92kg
