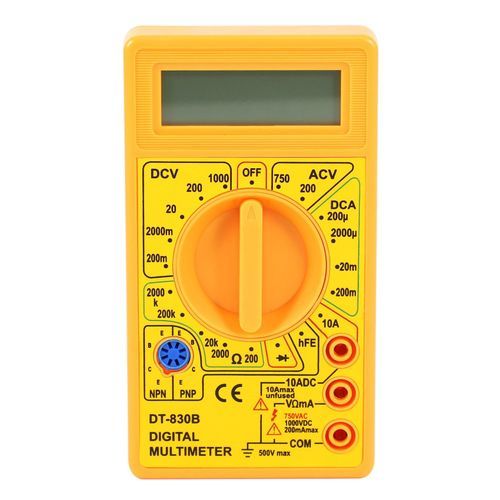

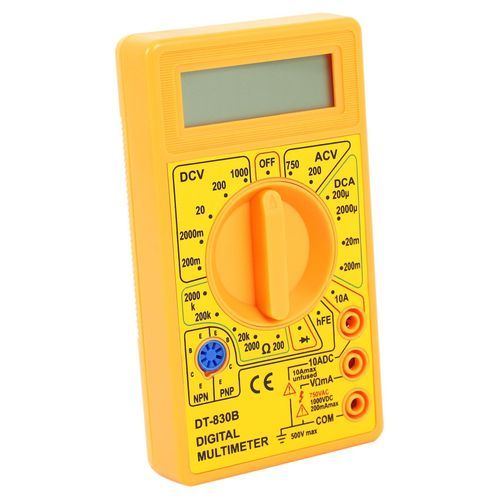

3 1/2 digits, 7segment, 0.5 inch high LCD Display.
Max display: 1999, Auto polarity display.
Small and compact design.
Overload protection on all ranges.
Sampling 2~3 times readings per second.
Diode assembly test / Temperature test/Transistor hFE test.
Color: yellow
Low battery voltage indication.
LCD: 3 1/2digits
Maximum reading: 1999
DC Voltage: 200mV/2000mV/20V/200V/1000V
AC Voltage: 200V/750V
DC Current: 200uA/2000uA/20mA/200mA/10A
Resistance 200Ohm/2kOhm/20kOhm/200kOhm/2000kOhm
Transistor: NPN, PNP
Battery: 9V 6F22 (Battery not included)
Size: (L)12.4cm x (W)6.9cm x (H)2.4cm
Weight: 126g
Material: Metal + Plastic
Package include:
1 x DT-830B multimeter(Battery not included)

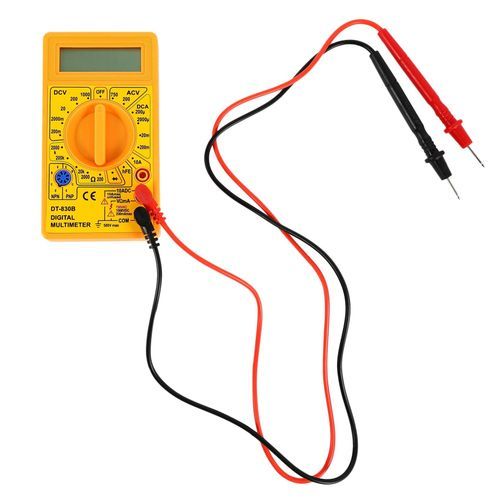

1 x Test lead
1 x User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
