The following is a detailed introduction about our products:

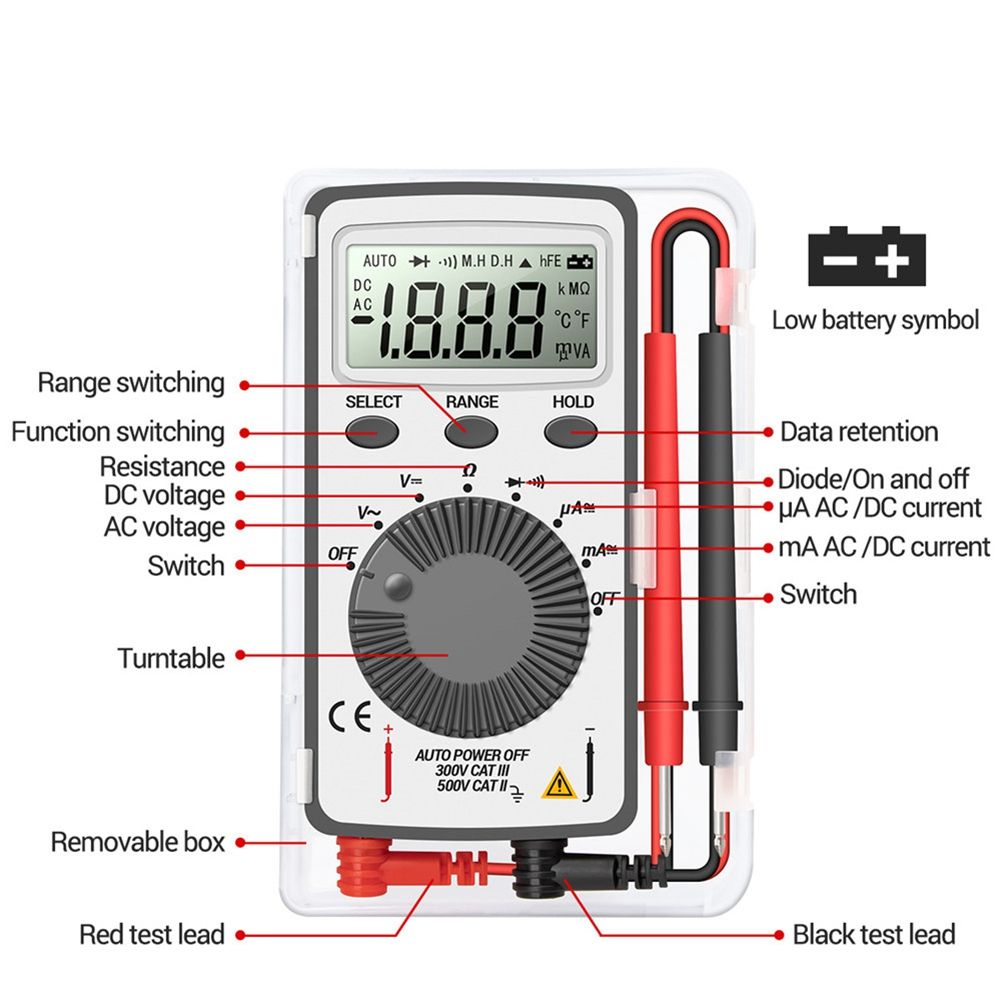

Name:ANENG AN101 Mini Digital Multimeter Multimetro Tester DC/AC Voltage
Polarity indication: automatically display "-"
Over-range indication: display "OL"
Range selection: automatic or manual
Operating temperature: 0 Celsius to 40 Celsius, below 80%RH
Storage temperature: -10 Celsius to 50 Celsius, below 85% RH

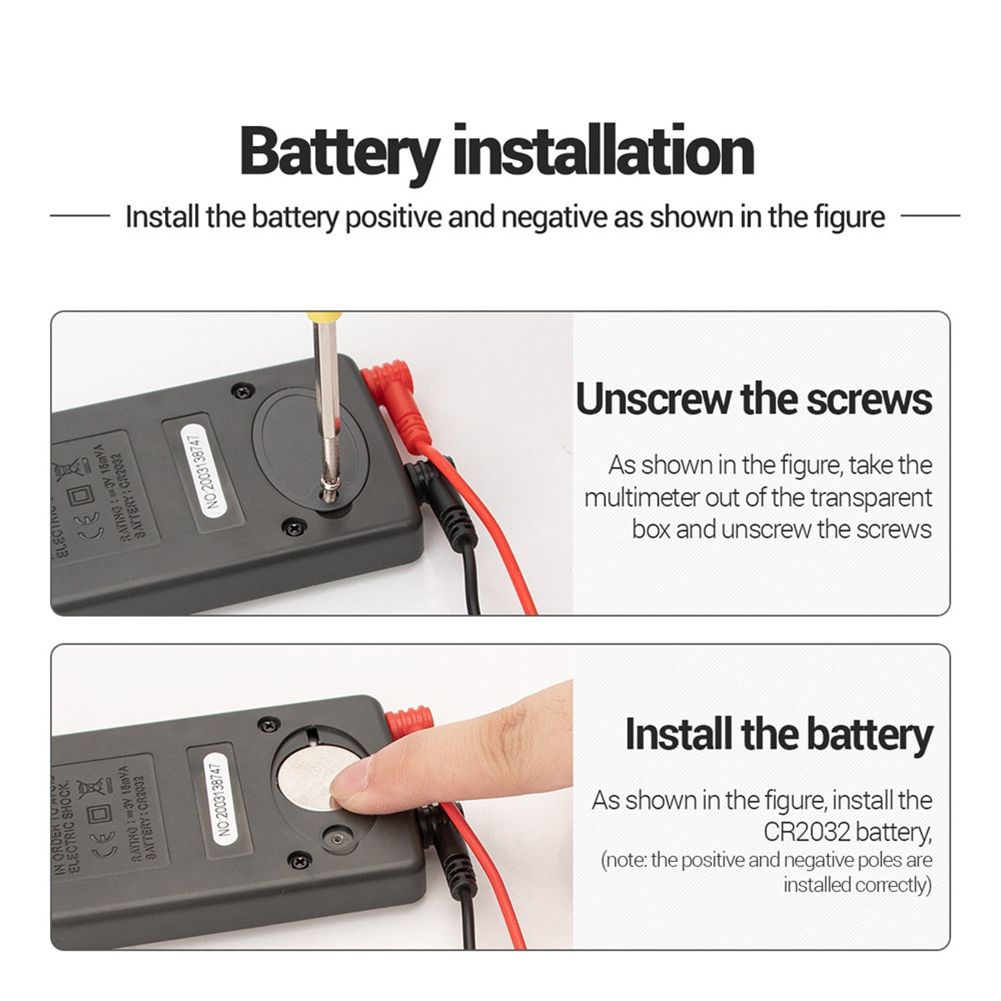

Battery type: 3V x 22032 size (not included)
DC voltage (auto range)
Range resolution accuracy
200mV 0.1mV±(0.8% of reading + 5dgts)
2V 1mV±(0.5% of reading + 2dgts)
20V 10mV
200V 100mV
600V 1V±(1.0% of reading + 5dgts)
Overload protection: 600V DC / AC rms
Maximum input voltage: 600V DC
DC current
Range resolution accuracy
200uA 0.1uA± (0.8% of reading + 5dgts)
2000uA 1uA
20mA 10uA
200mA 100uA
Overload protection: F0.5A / 600V fuse
maximum. Input current: 500mA
Voltage drop: 200uA and 20mA range: 20mV
2000uA and 200mA range: 200mV
AC current
Range resolution accuracy
200uA 0.1uA±(1.0% of reading + 5dgts)
2000uA 1uA
20mA 10uA
200mA 100uA
Overload protection: F0.5A / 600V fuse
Maximum input current: 500mA
Voltage drop: 200uA and 20mA range: 20mV
2000uA and 200mA range: 200mV
Frequency range: 40Hz~400Hz

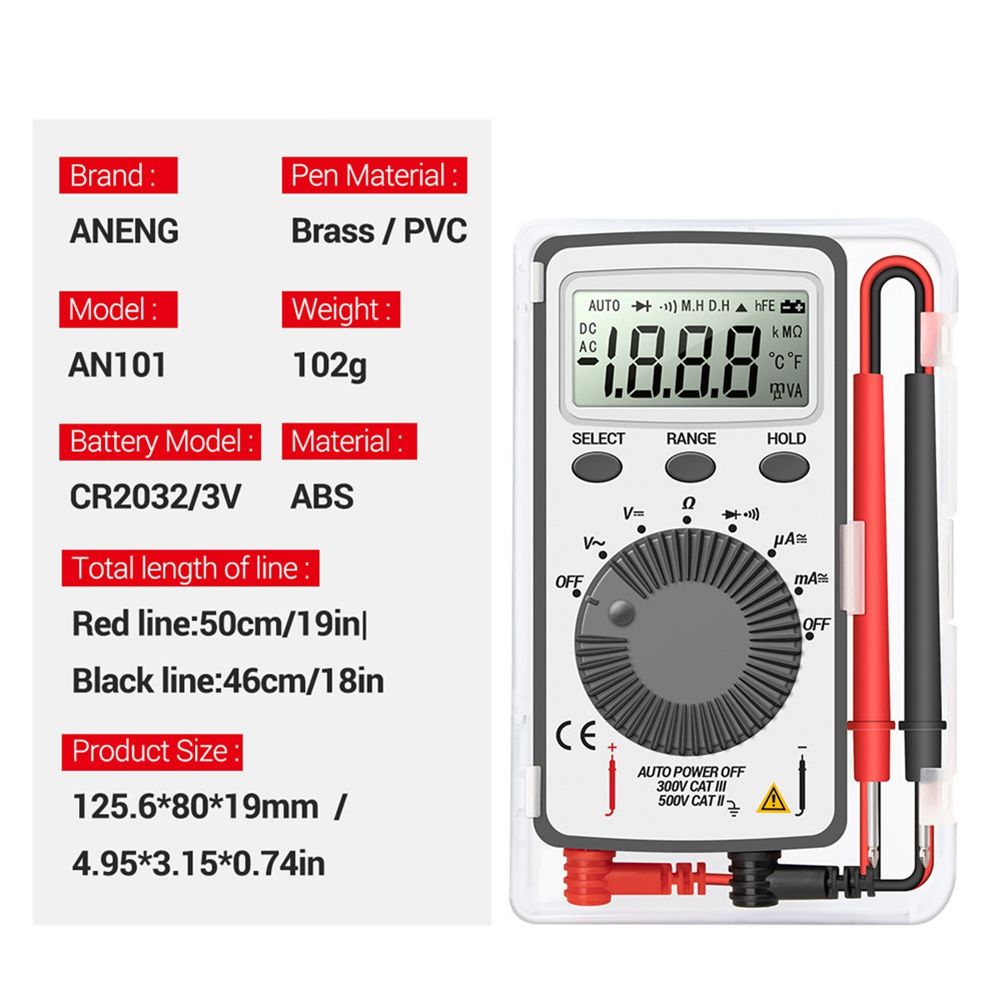

Colour:Black+white
Material:plastic

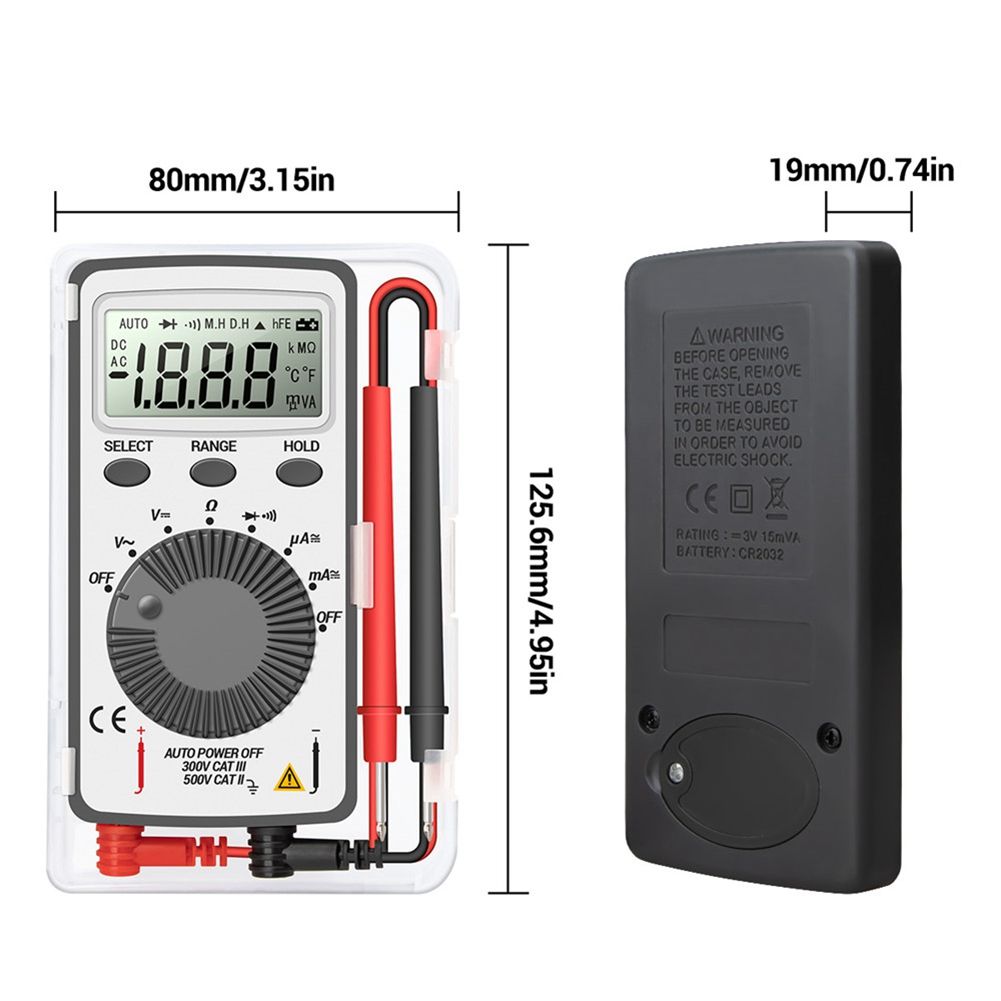

Size:110 x 55 x 10mm
Package Contents:
1 * Digital Multimeter
2 * Test Lines
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
11859. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! !
Key Features
Polarity indication: automatically display "-"
Over-range indication: display "OL"
Range selection: automatic or manual
Operating temperature: 0 Celsius to 40 Celsius, below 80%RH
Storage temperature: -10 Celsius to 50 Celsius, below 85% RH
Battery type: 3V x 22032 size (not included)
DC voltage (auto range)
Range resolution accuracy
200mV 0.1mV±(0.8% of reading + 5dgts)
2V 1mV±(0.5% of reading + 2dgts)
20V 10mV
200V 100mV
600V 1V±(1.0% of reading + 5dgts)
Overload protection: 600V DC / AC rms
Maximum input voltage: 600V DC
DC current
Range resolution accuracy
200uA 0.1uA± (0.8% of reading + 5dgts)
2000uA 1uA
20mA 10uA
200mA 100uA
Overload protection: F0.5A / 600V fuse
maximum. Input current: 500mA
Voltage drop: 200uA and 20mA range: 20mV
2000uA and 200mA range: 200mV
AC current
Range resolution accuracy
200uA 0.1uA±(1.0% of reading + 5dgts)
2000uA 1uA
20mA 10uA
200mA 100uA
Overload protection: F0.5A / 600V fuse
Maximum input current: 500mA
Voltage drop: 200uA and 20mA range: 20mV
2000uA and 200mA range: 200mV
Frequency range: 40Hz~400Hz
Colour:Black+white
Material:plastic
Size:110 x 55 x 10mm
Package Contents:
1 * Digital Multimeter
2 * Test Lines
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
What's In the Box
1 * Digital Multimeter
2 * Test Lines
