Buy Ancel S300 Car Smoke Leak Detector in Nigeria

Ancel S300 Car Smoke Leak Detector

₦ 278,380.00 ₦ 898,000.00 -69%

0 No Reviews

Product SKU: RENG477638

Quantity

In Stock

Product Highlights

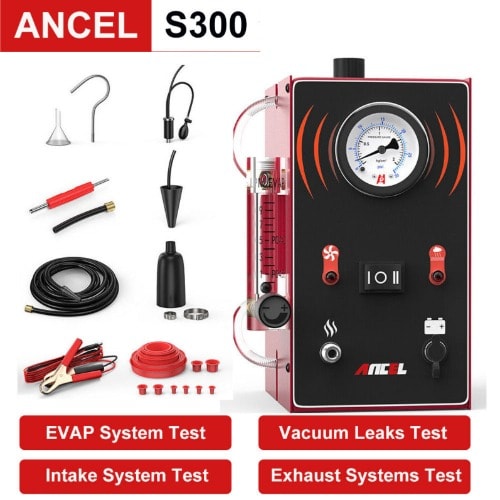

ANCEL S300 smoke leak detector supports
EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo And Various Pipe Fittings Test

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Warranty Period	3 Months

ANCEL S300 Car EVAP Smoke Leak Detector Machine Oil Fuel Pipe Leaks Analyzer Tester Leakage Generator Auto EVAP System

Have you encountered these problems?

More fuel consuming.
Faster idling speed.
Water Leaks.
Hard to find the leaks.

How to work with ancel s300 smoke leak detector?

Step1: Fill in 10ml-20ml test oil (baby oil) to the detector

Step2: Disconnect the pipe that needs to be connect with the detector

Step3: Connect detector with DC12V battery, device starts to work

Step4: The pipe will be filled with smoke, check the leak points

How to judge leakage- through the pressure gauge?

NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage
in the system.

Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.

Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in
the system.

2 kinds of modes: AIR model and Smoke mode

Air mode: First use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE: After the air mode determines that there is a leak, use the smoke mode to find the leak.

Adjustable Smoke Output Help To Pinpoint Leaks Quick

Overheat & Anti-frost Protection

Overheat Protection
When the temperature of the device exceeds 75, power protection will be intelligently activated to turn it off.

Anti-frost Protection
The device can also work normally at -20.

Note:

1. When you use this Ancel 300 Car Smoke Leak Detector for the first time, fill with 10-20ml baby oil. Please be careful NOT to beyond this range.

2. Fresh oil can be filled with only when the smoke gets thin, and it can't be filled over 20ml each time.

3 . Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

4. During the process of leak detection, please keep away from smoke-sensitive parts.

5. Do NOT run the detector over 8 minutes continuously. It needs interval rest.

6. The detector has an intelligent protector, if it exceeds the working limit, such as over 75, it will automatically turn off the power. In this case, please operate it later.

7. The round part of this detector has temperature, please be careful to avoid burns.

8. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber
stopple.

How to do leakage test?

1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF

2. Dismantle the air filter and the throttle connections.

3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening

4. Connect the Power Cord to 12V vehicle battery.

5. Now the Power LED would be ON, if else check the power supply.

6. Introduce the smoke nozzle into the system via the Adapter Cone

7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter

8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle

9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist

10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air

11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

Smoke Oil Choose
The equipment is compatible with mineral oil based baby oil like Johnson & Johnson Pink bottle. Pure white oil is the best choice if available.
