Overview The PX offers high accuracy and repeatability for essential weighing applications in laboratory, industrial and education settings at an economical price point. Featuring a cast metal lower housing, sub-pan and stainless steel weighing pan, the PX is durably constructed for versatile, long-term use. The PX features a second line display for additional information or guidance, a static removal bar for convenient grounding, and USB and RS232 connectivity for easy communication.
Applications: Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Construction: Metal base, plastic top housing, removable stainless steel pan, glass draft shield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover. Design Feature: User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user-definable project and user IDs, software overload/under load indicator, stability indicator, four operating languages.
Communication: RS232 and USB device (included); GLP/GMP data output with real-time clock
| Maximum Capacity | 120 g |
| Readability | 0.0001 mg |
|
|
| Pan Size | 3.5 in (90 mm) |
| Internal Calibration | Semi Automatic |
| Draftshield | Included |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | RS232 (Included);USB (Included);Ethernet (Available as an Accessory) |
| Dimensions (HxLxW) | 309 mm x 321 mm x 209 mm |
| Display | 2-Line LCD with Backlight |
| In-use cover | Included |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.0002 g |
| Minimum Weight (USP, 0.1%, typical) | 200 mg |
| Net Weight | 10 lb (4.5 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability (typical) |
|
| Stabilization Time | 4 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Carat;Custom;Grain;Gram;Hong Kong Tael;Kilogram;Mesghal;Milligram;Momme;Newton;Ounce;Ounce Troy;Pennyweight;Pound;Singapore Tael;Taiwan Tael;Tical;Tola |
| Working Environment | 50°F - 86°F, 80%RH, non-condensing (10°C - 30°C, 80%RH, non-condensing) |

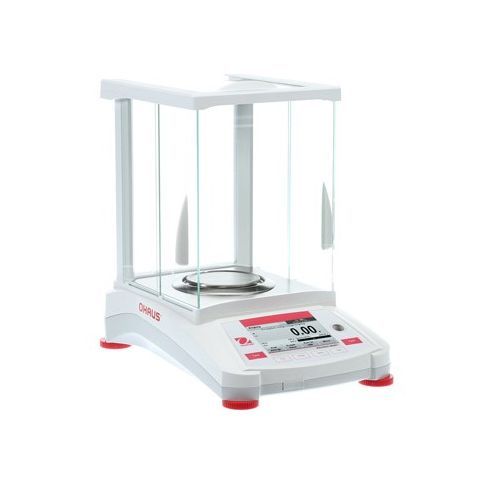

Ohaus Adventurer Analytical Balance Standard Features Include:
Applications Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold
Display 4.3″ (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation AC adapter (included)
Communication RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
