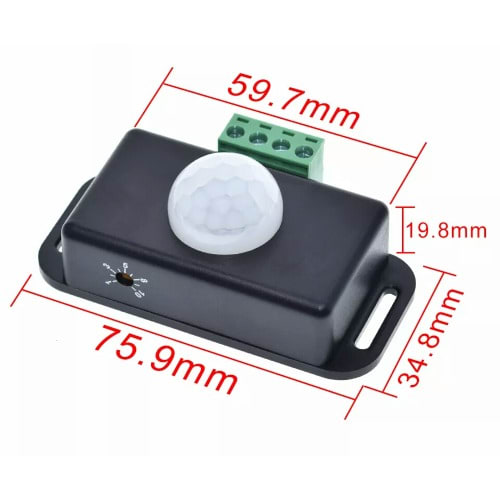

12V-24V 8A Adjustable Infrared PIR Motion Sensor Switch adopts infrared detection way to control load switch.
You can install the human body sensors in the appropriate environment according to actual needs. LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function which is Adjustable to meet your desired demand.
The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased. PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet. The field of view of the PIR Dome Lens is 60 degrees nominal. The switch operates on 12 or 24 volts DC and can switch up to a 8 amp load
Specification:
- 12V-24V 8A Adjustable Infrared PIR Motion Sensor Switch
- Input Power supply voltage: 12-24V
- Output voltage: 12-24V
- Max load current: 8A
- Induction Angle: 120 degrees
- Induction range: 5 - 8M
- Output Power: 12V: <96W, 24V: <192W
- Static power consumption: <1W
- Delay Time: 60 - 120 ms, Adjustable
