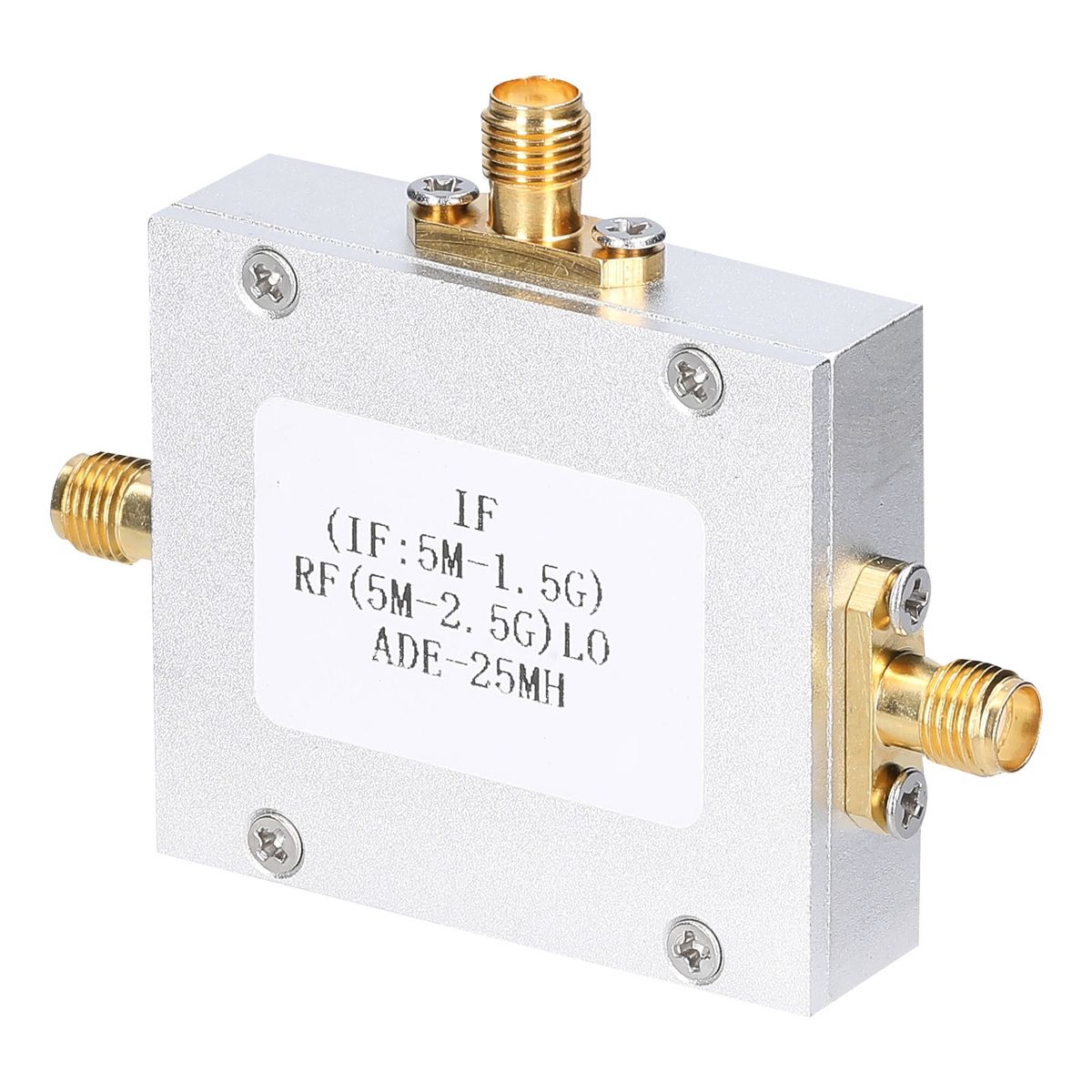

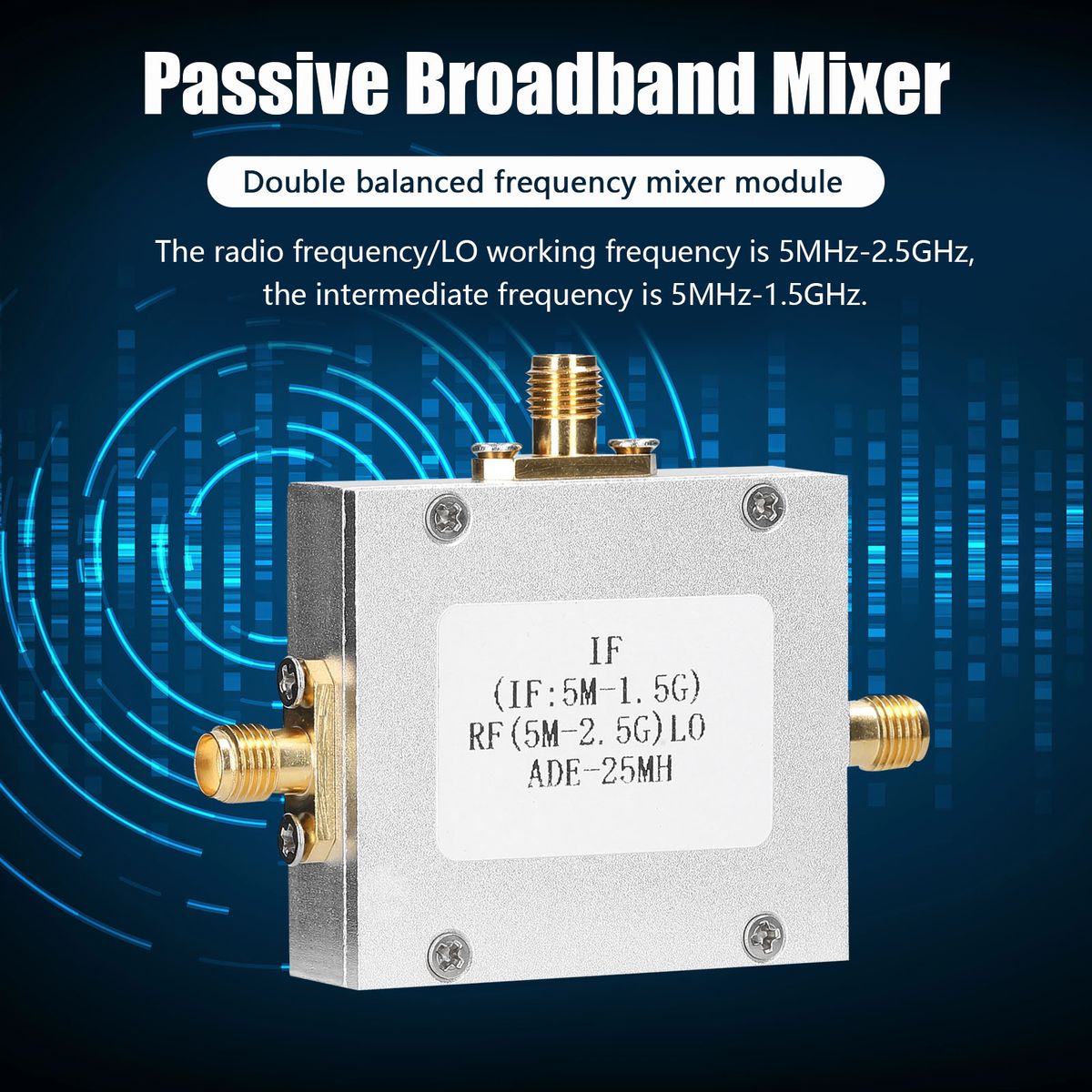

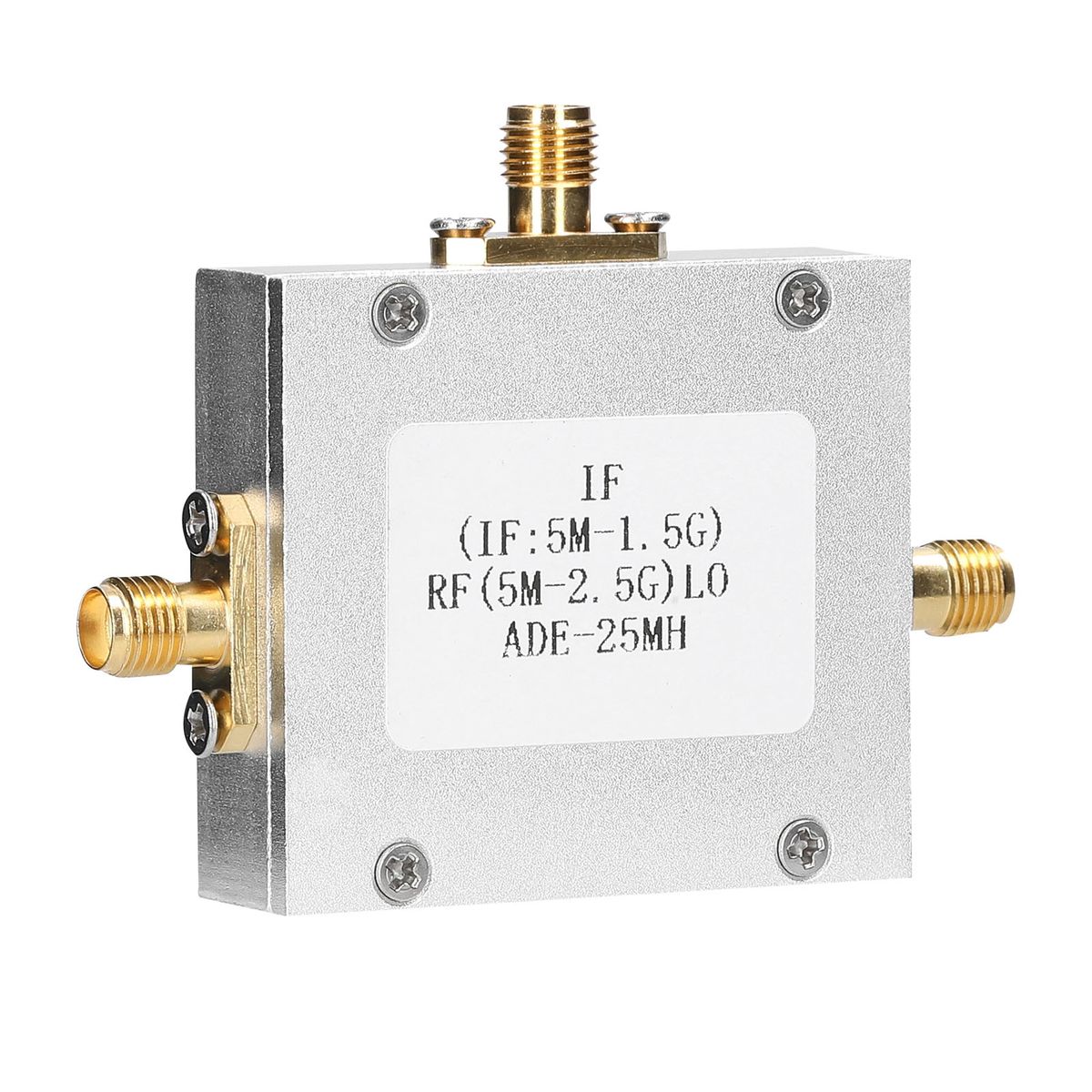

ADE-25MH is a passive broadband double balanced frequency mixer module, the radio frequency/LO working frequency is 5MHz-2.5GHz, the intermediate frequency is 5MHz-1.5GHz. And the insertion loss of frequency mixing is 7dB. The LO input is 13dBm. The characteristic impedance is 50 ohms. SMA female input and output interface, easy to connect.
Features:
It is a passive broadband double balanced frequency mixer module, the radio frequency/LO working frequency is 5MHz-2.5GHz, the intermediate frequency is 5MHz-1.5GHz.
The radio frequency input and output standing waves is superior than 1.2.
And the insertion loss of frequency mixing is 7dB.
The LO input is 13dBm.
L-R isolation is 34dB, L-I isolation is 32dB.
The characteristic impedance is 50 ohms.
SMA female input and output interface, easy to connect.
Application: suitable for up-conversion and down-conversion.

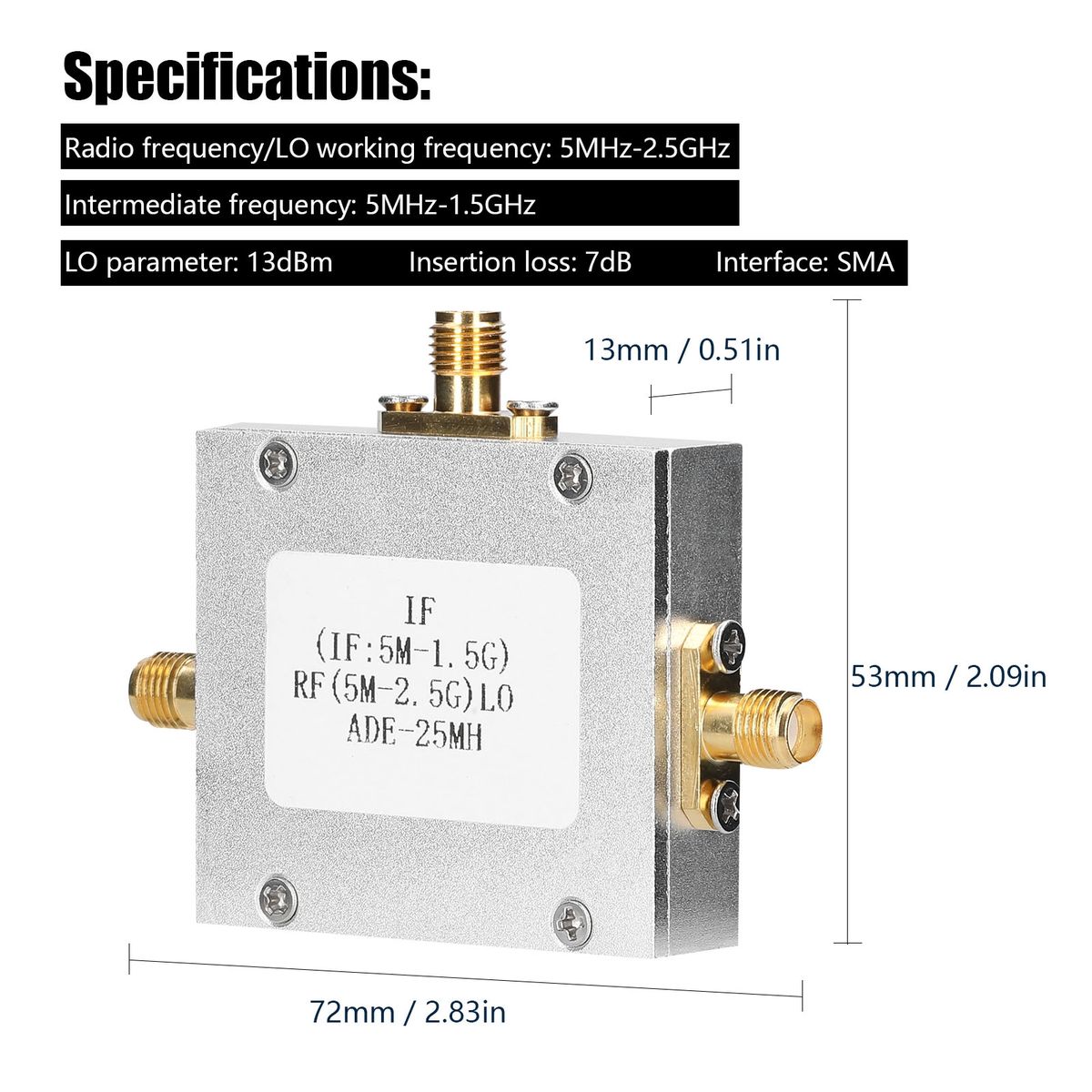

Specifications:
Name: Passive Broadband Mixer
Model: ADE-25
Material: metal+printed circuit board
Radio frequency/LO working frequency: 5MHz-2.5GHz
Intermediate frequency: 5MHz-1.5GHz
LO parameter: 13dBm
Insertion loss: 7dB
Interface: SMA
size: 72 * 53 * 13mm / 2.83 * 2.09 * 0.51in
weight: 45g / 1.59ounce
Package size: 120 * 78 * 20mm / 4.72 * 3.07 * 0.79in
Package weight: 47g / 1.66ounce
Packing List:
1 * Passive Broadband Mixer
