Model |
Instrumentation Amplifier |
Production Country |
China |
Size (L x W x H cm) |
6x6x3 |
Weight (kg) |
0.0335 |
Color |
multicolor |
Module power supply 5V-24V can be used it depends on the voltage output of the baby if the customer requests to output 5V voltage then the AD62X series chip is powered by about ±38V and the voltage regulator chip itself has a voltage difference so it is recommended to be higher than 12V Single power supply is better
Module bandwidth AD620623 is lower than 50KHz at high gain and 1MHz at low gain
The maximum magnification of the module more than 2000 actual measurement due to the gain in the waveform band it is recommended to use multi-stage amplification for high gain
Module saturation output amplitude AC value is 10Vpp ±5Vpp
Fixed output voltage 5V-10V default delivery 5V

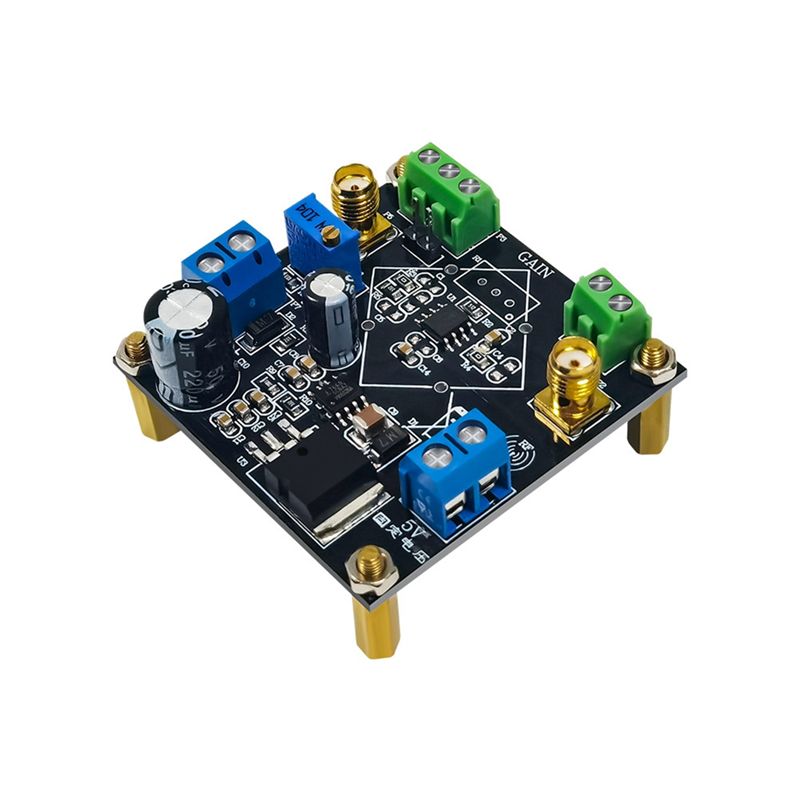

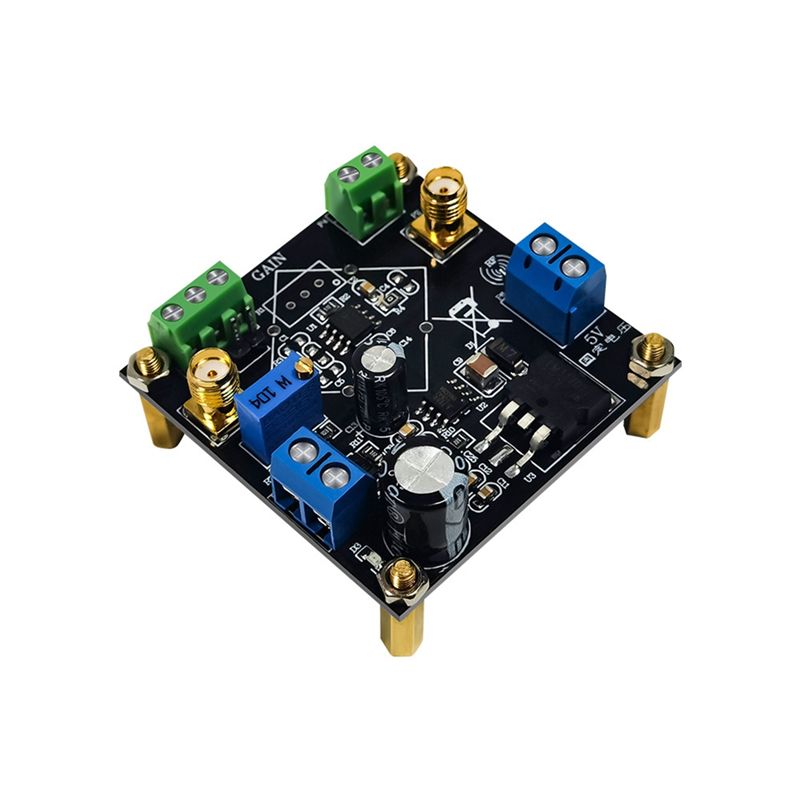

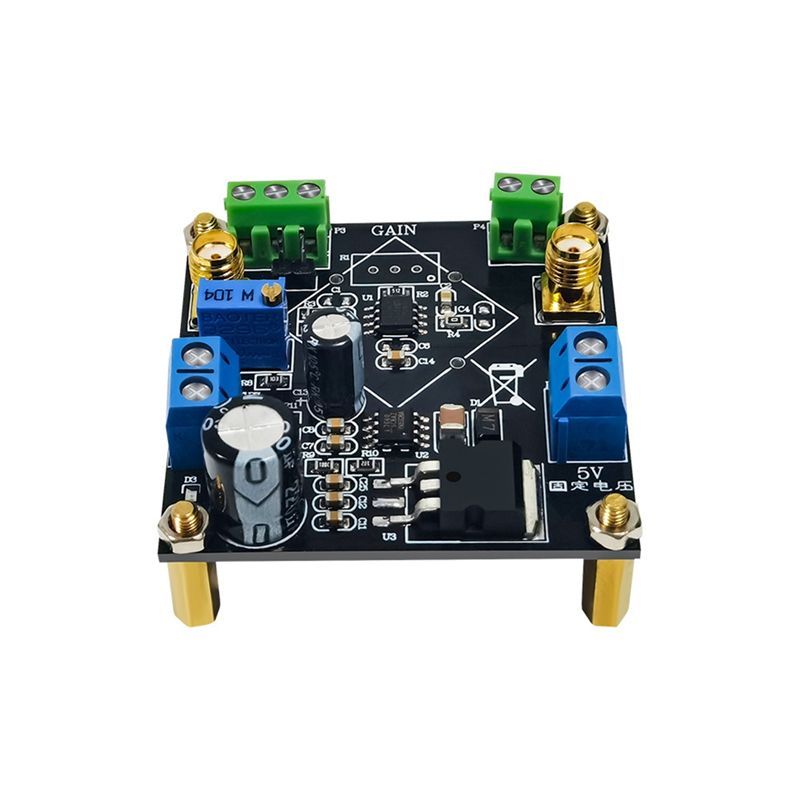

Module Name AD620623 Instrumentation Programmable Amplifier
Module input signal type single-ended signal or differential signal

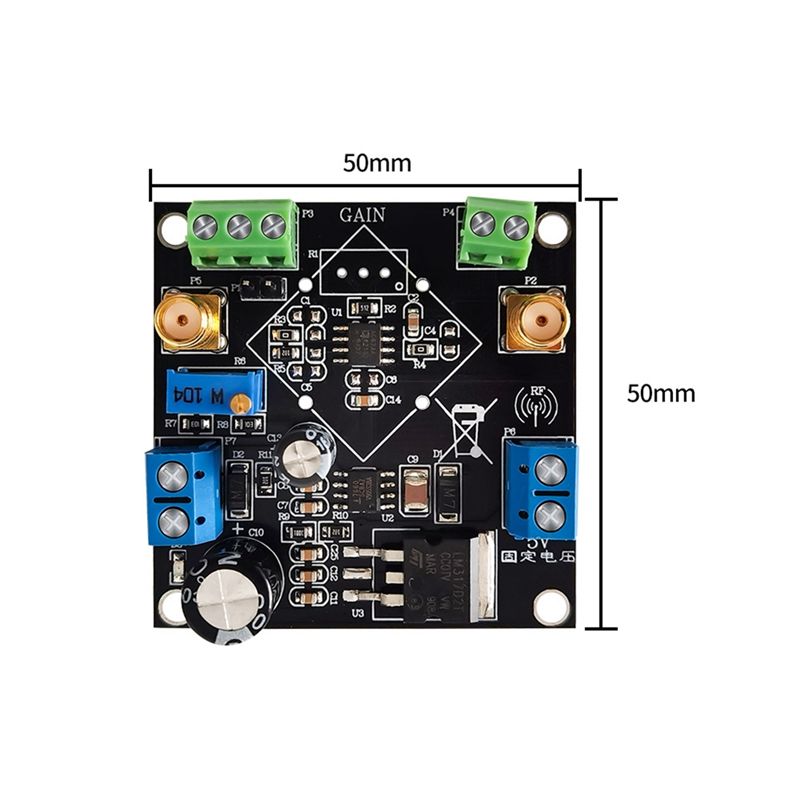

Module size 50mm X 50mm
Colourblack
MaterialPCB
Package Contents
1 x Instrumentation Amplifier
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Instrumentation Amplifier
