This s-ingle infrared beam alarm can be installed on barrier gate, automatic doors, sliding doors or switch-sensitive doors, and can also be installed at home for anti-theft, has a wide applications. Come on and have a try, it will not let you down.
Features:

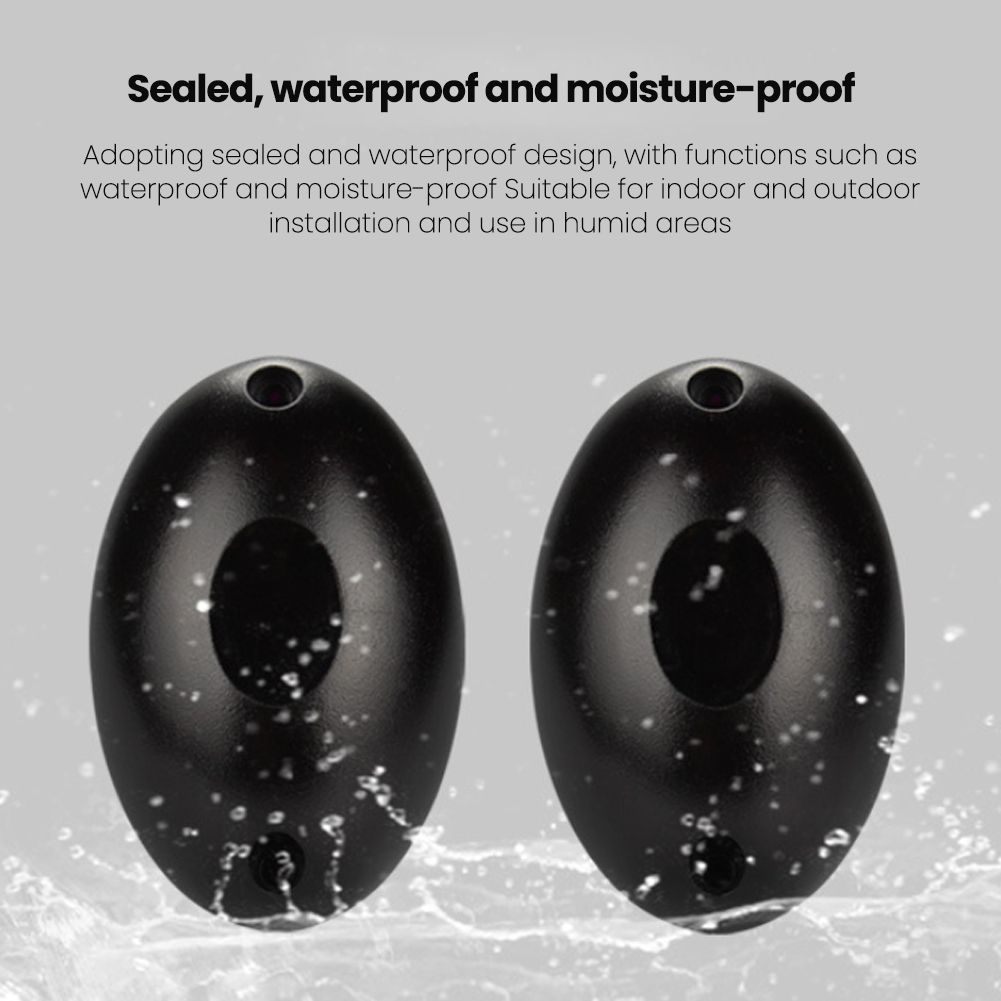

IP55 waterproof level, it can also be used outdoors or in wet areas, rain will not affect normal use.

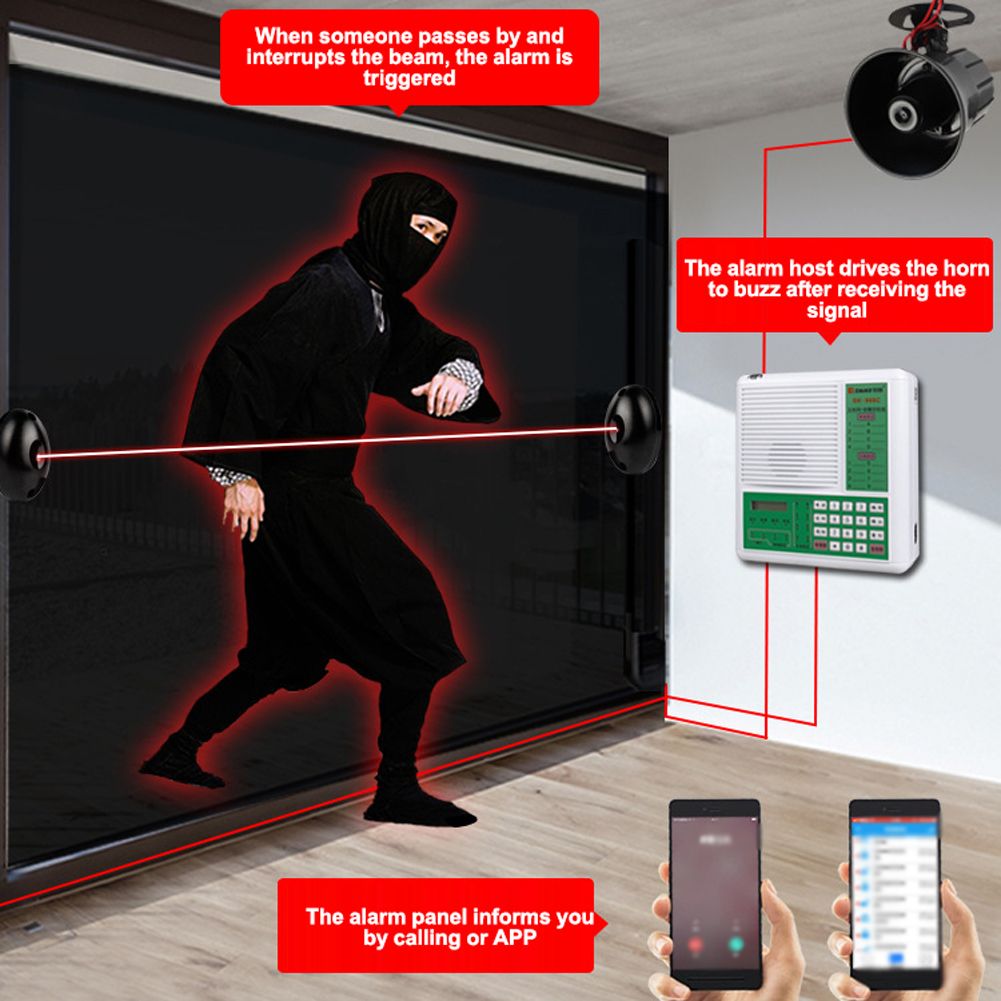

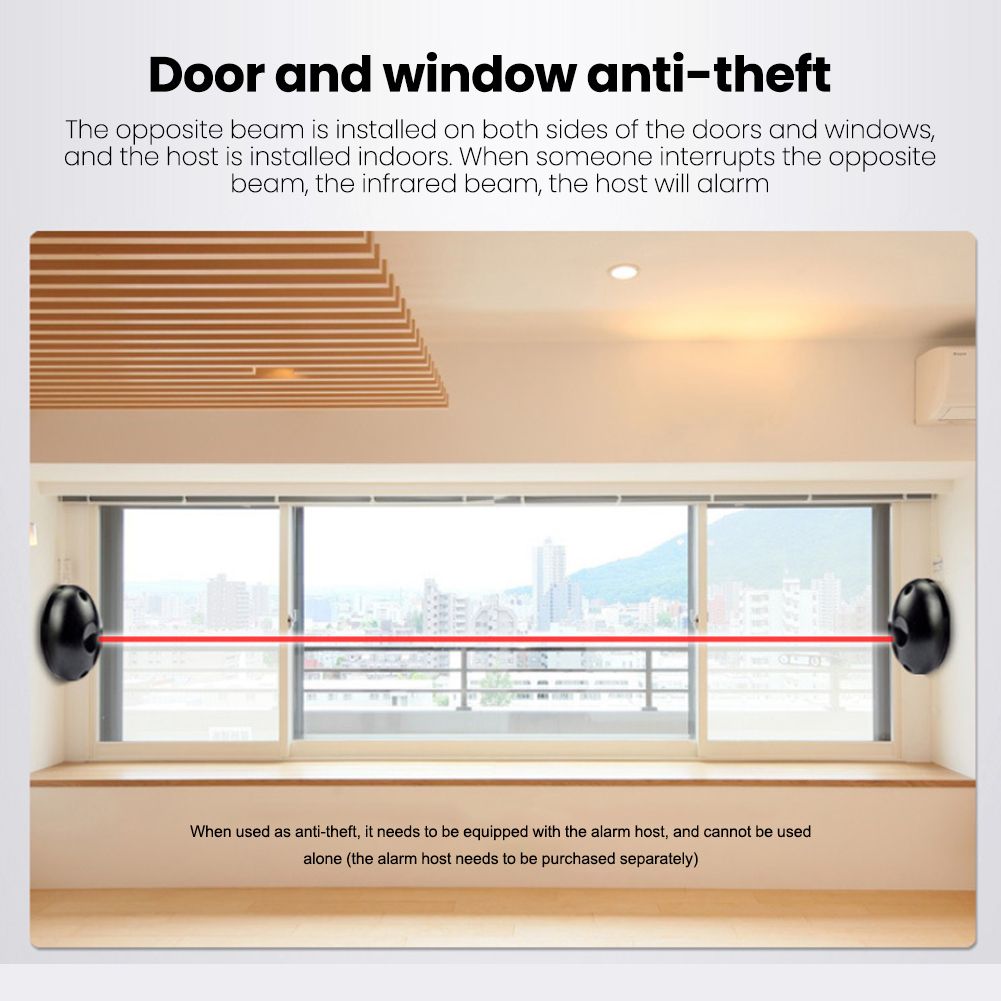

Installed then on both sides of doors and windows, and the host is installed indoors. When someone shuts off the infrared beam, the host will alarm. （Note: The host is NOT included, you need buy a host by yourself.)
The detection distance is up to 20m, and the detection distance is long, which can meet the use of most automatic door or translation doors and window to use.

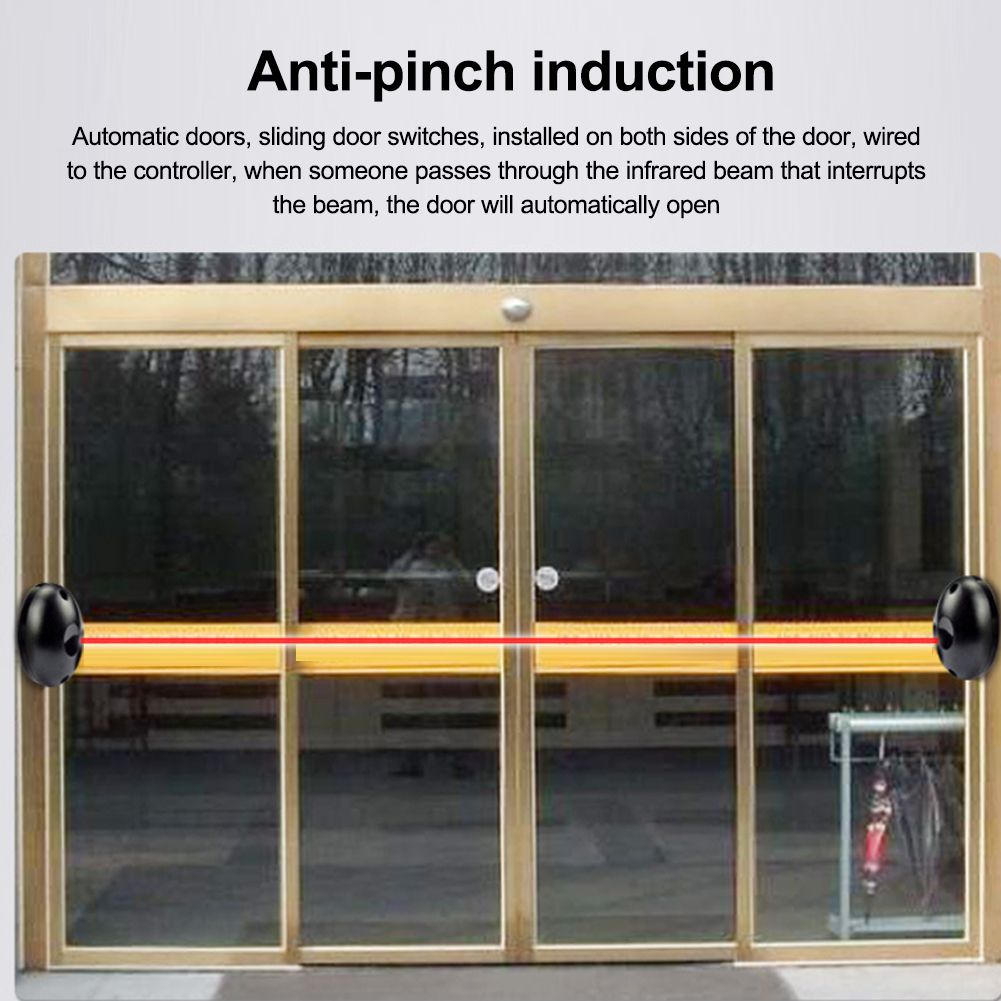

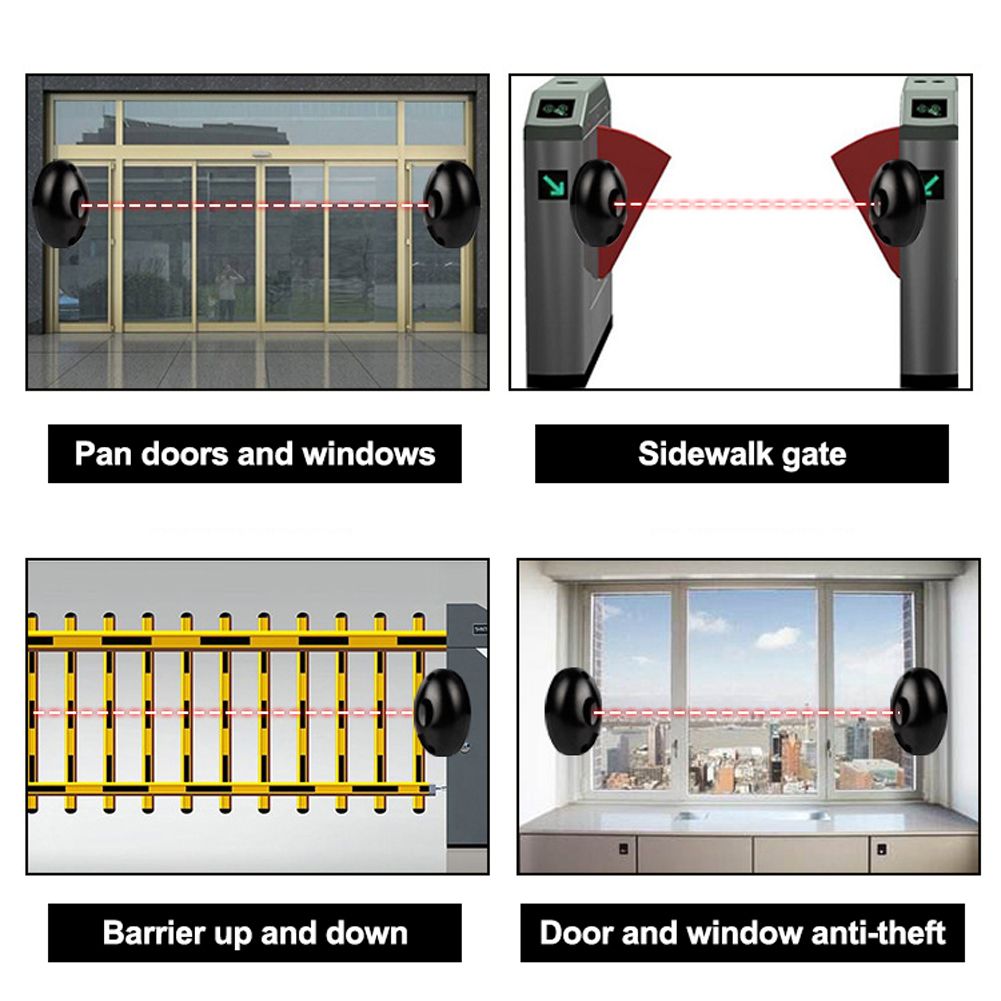

Wide applications: This tool can be installed on barrier gate system, automatic doors, sliding doors or switch-sensitive doors, also can be installed at home for anti-theft.
Small in size and easy for installation, no need too much professional skills.
Specifications:
Material: ABS
Color: black
Power supplys: direct current 12~24V
Detecting distance: le;20m
Input current:
Transmitter: 30mA
Receiving end: 15mA
Wavelength: 940 nm
Frequency: 1.92KHz
Max.load: A1 36V

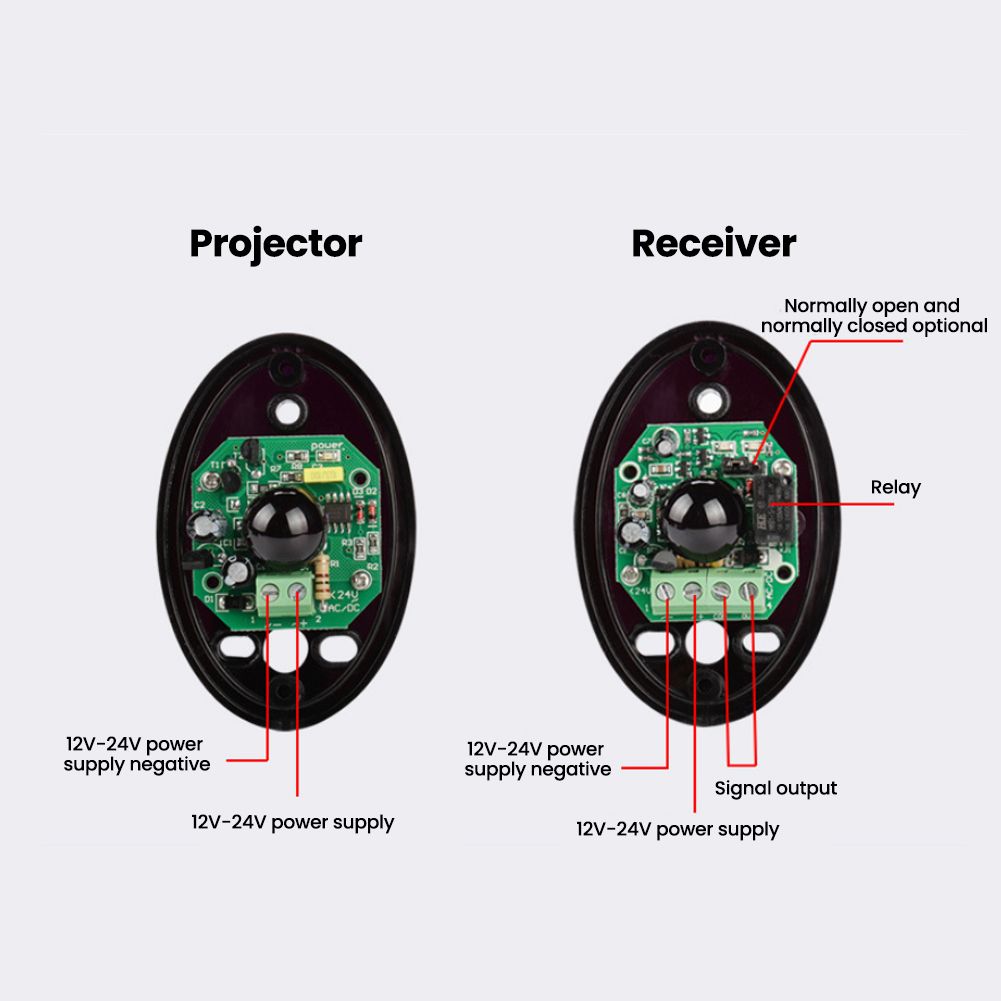

Relay output: NC/NO switch adjustable

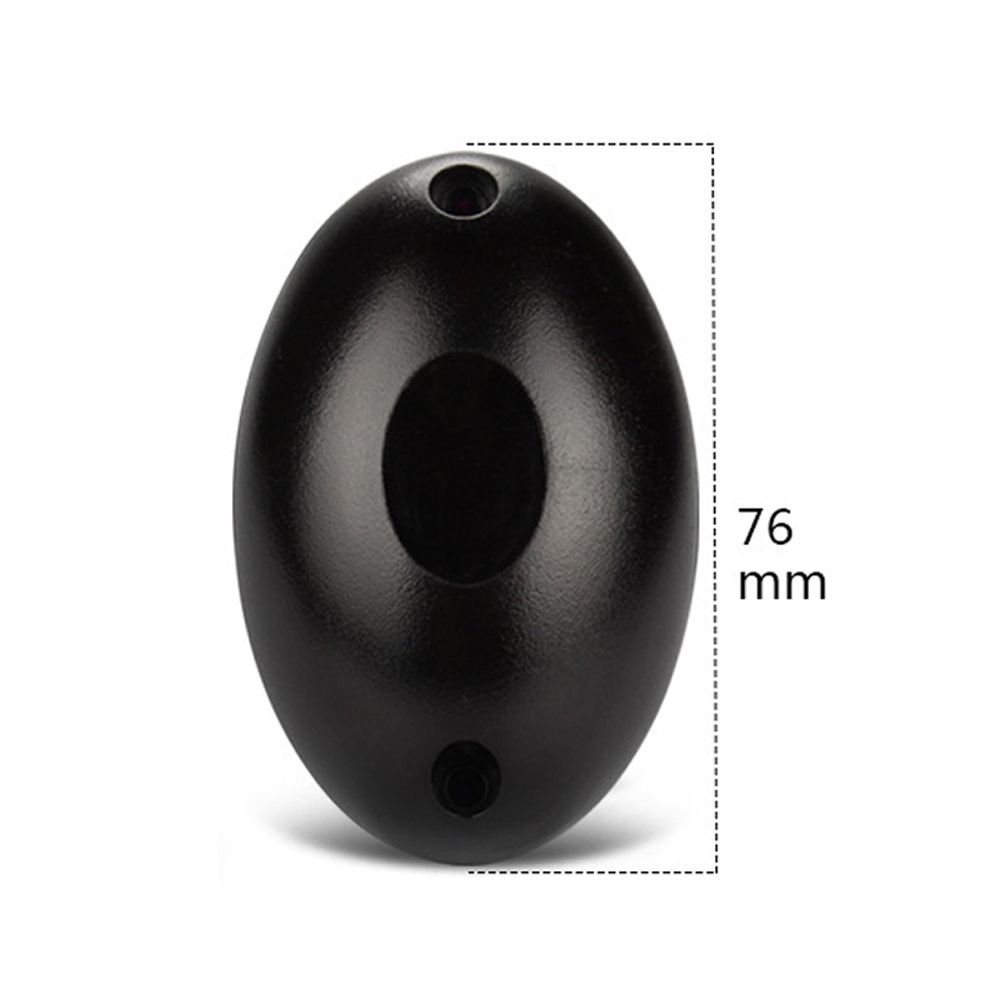

size: 76 * 49.2 * 21.6mm / 3.0 * 1.9 * 0.9in
Package size: 79.3 * 45.2 * 29.6mm / 3.1 * 1.8 * 1.2in
Package weight: 112g / 4.0lb
Packing list:
1 * S-ingle Infrared Beam Snesors
