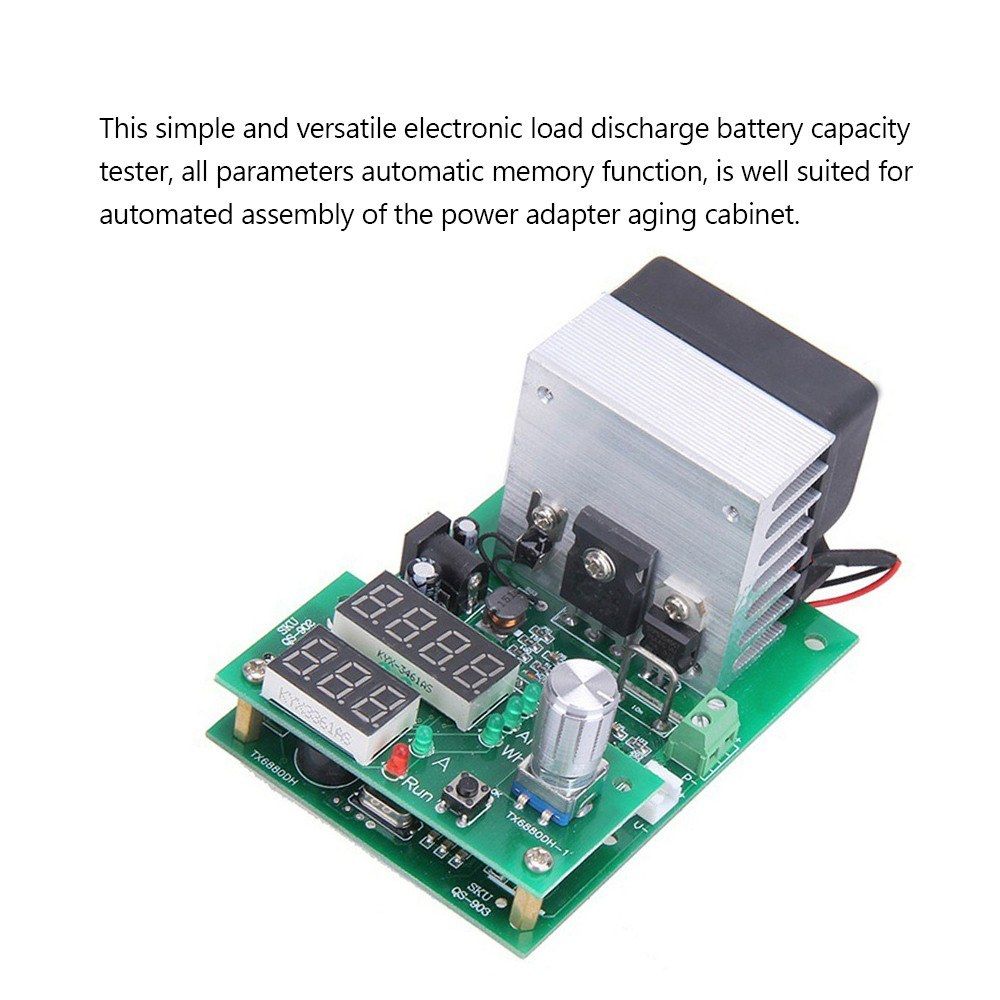

This simple and versatile electronic load discharge battery capacity tester, all parameters automatic memory function, is well suited for automated assembly of the power adapter aging cabinet. Origin IR power tube, dual NMB ball bearing high speed fan, with temperature control stepless variable speed function, with industrial large tooth radiator, can ensure long-term operation stability. You can have a try.
Features:
Simple and versatile electronic load discharge battery capacity tester, all parameters automatic memory function.

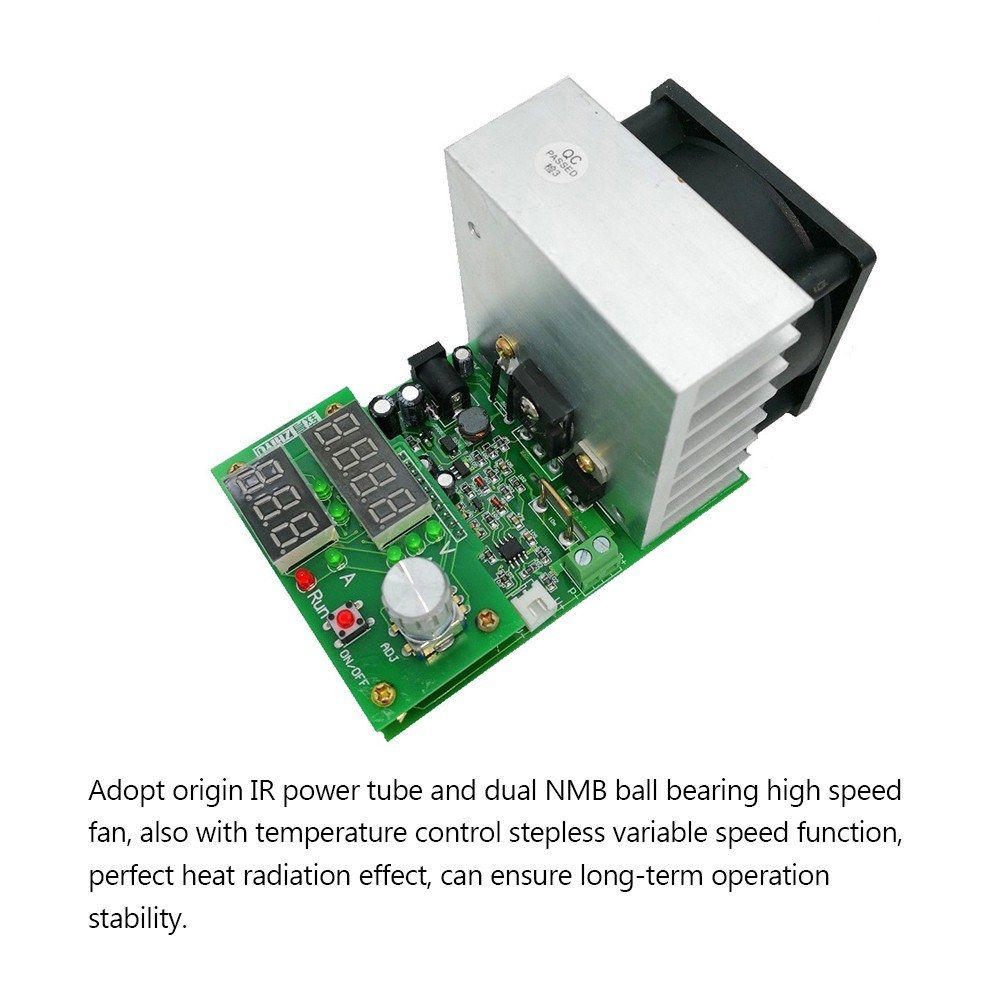

Adopt origin IR power tube and dual NMB ball bearing high speed fan, also with temperature control stepless variable speed function, perfect heat radiation effect, can ensure long-term operation stability.

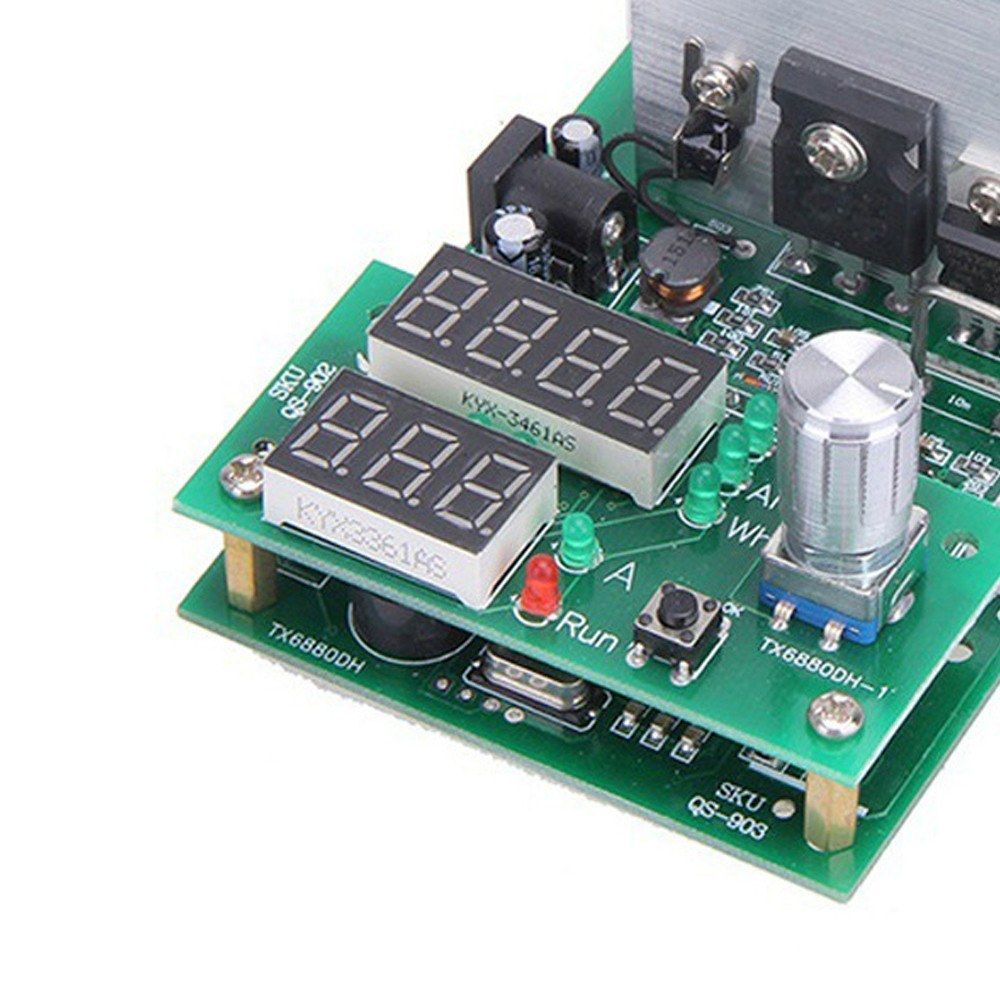

Classic digital tube display, intuitive and with fine durability, more resistant to high temperature than LCD.
Rotary encoder setting, simple operation and diverse functions.
Buzzer sound prompt, high operating experience.
Suitable for assembling power adapter automatic aging cabinet.
Specifications:
Name: Battery Capacity Tester
Material: electrical components

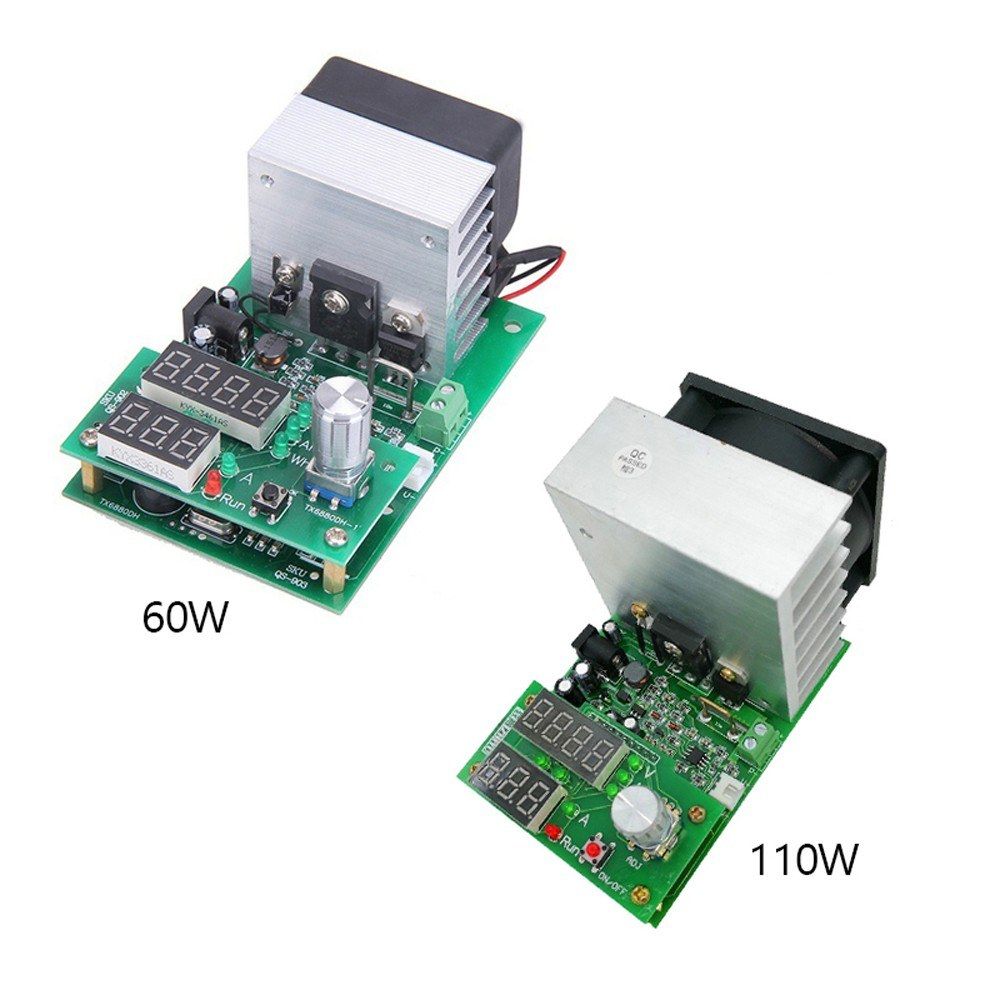

Power: 60W, 110W (optional)
Powersupply requirement : DC12V voltage ( actual voltage 11-14V) current is not less than 0.5A of power, the power will be displayed inappropriate Err6
Operating modes: single mode constant current (CC)
Discharge current: 0.20-9.99A stepper 0.1A or 0.01A
Discharge current maximum error: 0.7% -0.01A
The maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Offline (termination) voltagerange: 1.0-25.0V stepping 1V or 0.1V
Discharge voltage: 1.00-30.00V
The maximum voltage measurement error: 1% + - 0.02V
it can open 9.99A 6 V and 20V maximum at the only open 3.00A)
Highest battery test statistic: 999.9Ah or 9999Wh, achieve value stop testing (first value to those who stop condition)
Fan control: intelligent fan control ( according to the radiator fan can be infinitely variable automatic temperature )
Protections: Overheat protections quot;otP quot;, transient overpower protections quot;oPP quot;, overpressure protections quot;ouP quot;, reverse polarity
protections, powersupply voltage abnormal protections.
Positioning hole locations: 60mm * 88mm diameter 3.2mm 5mm pedestal already installed
Board size: 100mm * 70mm * 57mm / 3.94 * 2.76 * 2.24in ( fan prominent board about 12mm)
Package size: 200 * 200 * 200mm / 7.87 * 7.87 * 7.87in
Package weight: 500g / 1.10lb
Packing List:
1 * Battery Capacity Tester
