99 Gears Of Adjustable Mini Spots Welding Machine Control

₦ 47,278.35 ₦ 49,766.68 -5%

0 No Reviews

Product SKU: RENG264880

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	without housing
Production Country	China
Size (L x W x H cm)	12.00×12.00×2.00
Weight (kg)	0.18
Color	Multicolor
Main Material	printed circuit board

This control board of spots welding machine is high output design, 99 gears of output adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet. It supports welding 0.1-0.3mm nickel sheets with solid and beautiful welding spots. This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 etc.

Features:

The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling.

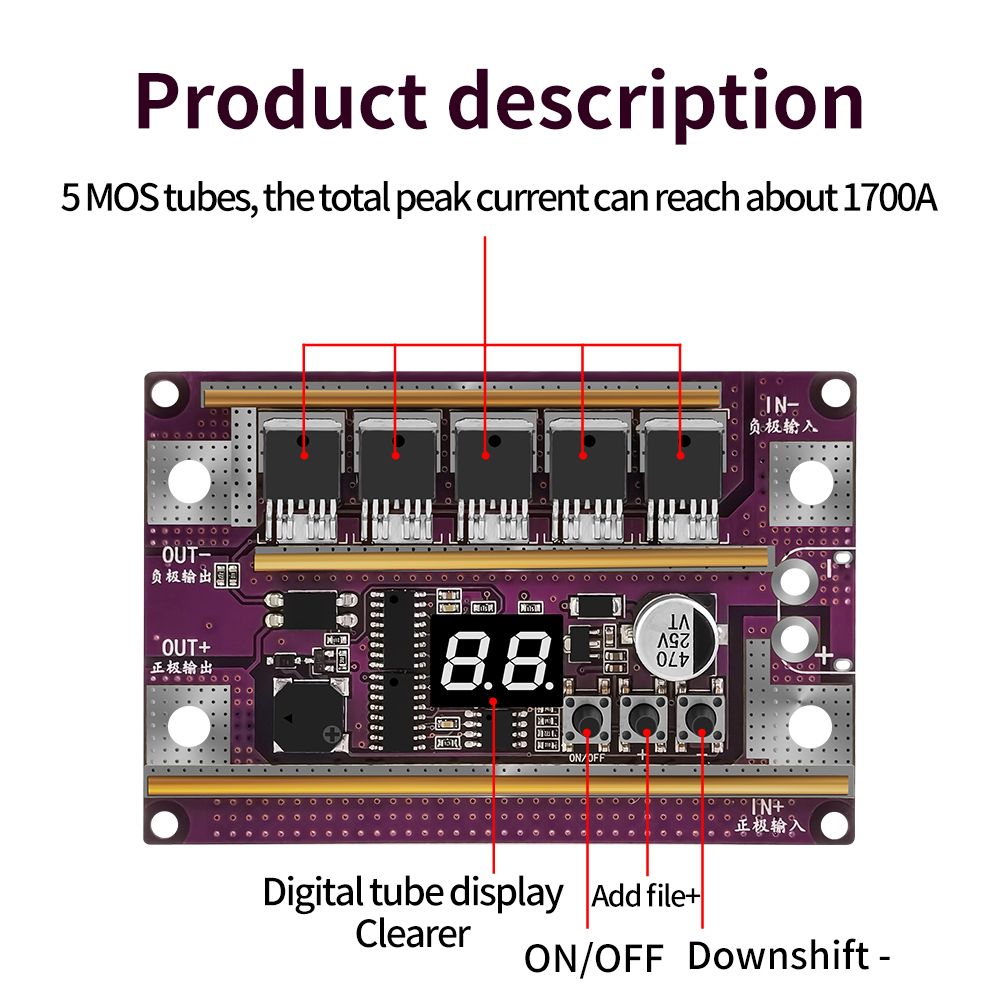

Adopt 5pcs MOS tubes, and the maximum current is up to 1700A; there are 5 MOS tube locations reserved on the back of the printed circuit board for DIY players to increase their own MOS tubes.

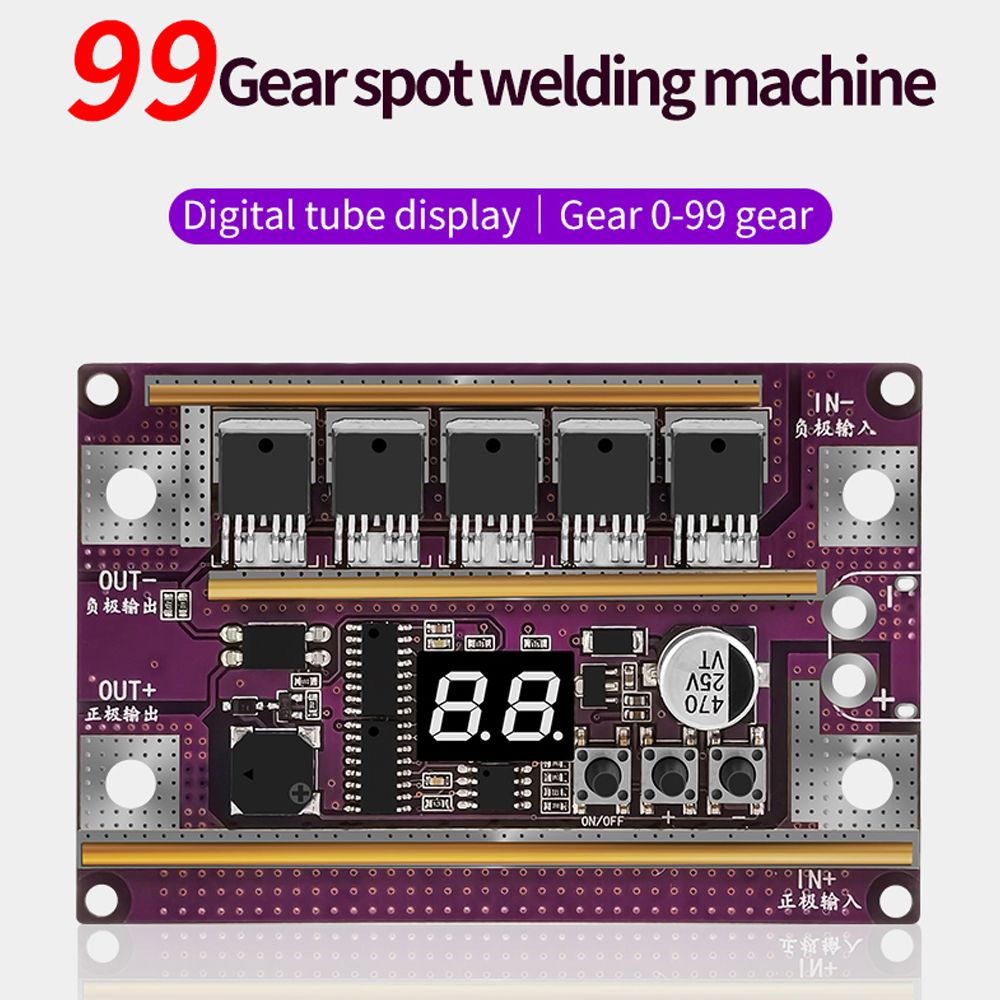

High output design, 99 gears of output adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet.

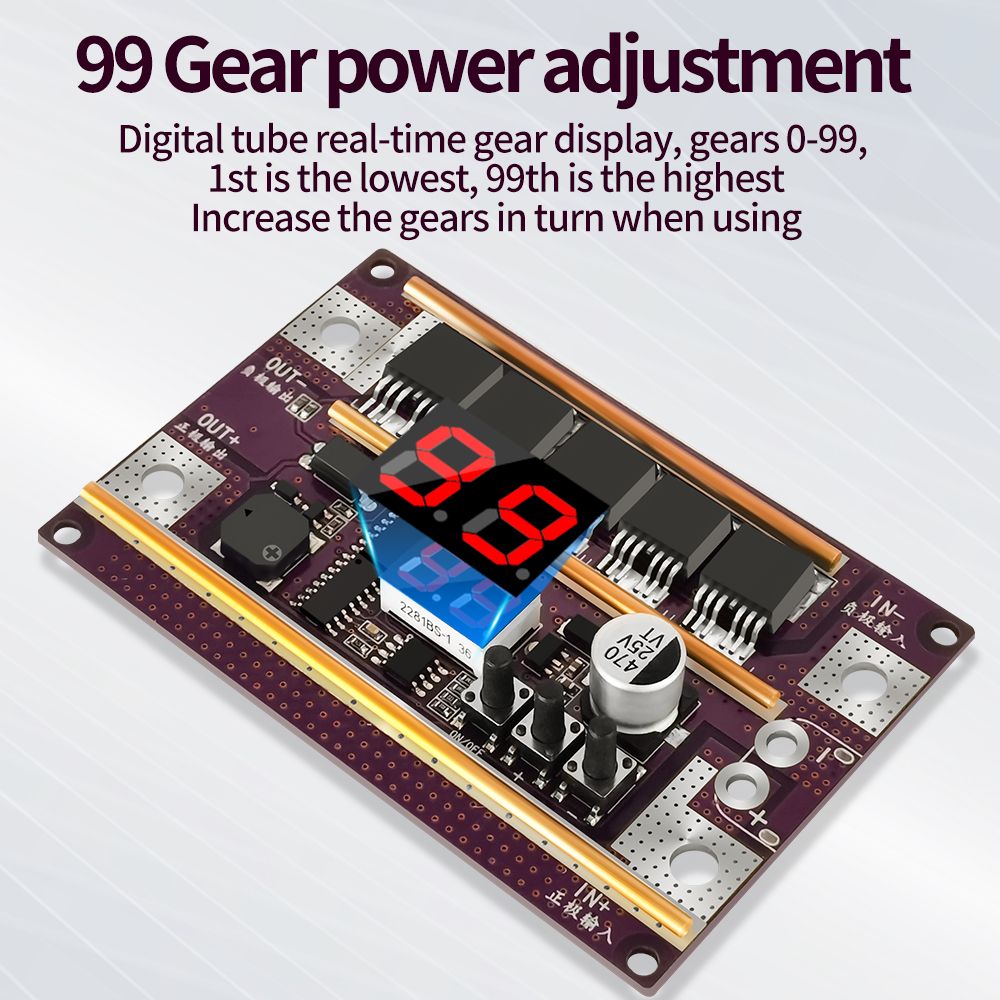

With the digital tube real-time gear display function, 0-99 gears, 1-gear is the lowest, 99-gear is the highest, and the gears are gradually increasing.

It supports 0.1-0.3mm nickel welding sheets with solid and beautiful welding spots.

This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 etc.

8 square welding pen, 10AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation.

Thickened pure copper welding pen design, with alumina copper spots welding needles to ensure high current passing capacity and durability.

The cold pressing process can make large contact areas with pure copper joints to reduce internal resistance.

Optional Housing:

Transparent protective housing, beautiful and safer, prevents short-circuiting damage to the control board due to leaks from exposed component.

Note:

The switching supplies, transformers, chargers, water batteries, and rechargeable batteries are not allowed to be used as supplies!

Specifications:

Name: Spots Welding Machine Set

Material: printed circuit board

Type: with housing, without housing (optional)

Working voltage: 6.5-16V

Working current: ＜20ma

Standby consumption: ＜0.5ma

Recommended working temperature: -10℃ to 60℃

Voltage: 12.0V

Welding current: 1700A Max

Welding thickness: 0.1-0.3mm

Capacity: 20AH-80AH (new battery not more than 45AH, more than 45AH please consulting our customer service for current limiting method) or: 4-5 strings of super-Farah capacitors

Item size: 90 * 60mm / 3.54 * 2.36in

Package size: 120 * 120 * 20mm / 4.72 * 4.72 * 0.79in

Package weight: 180g / 6.35ounce

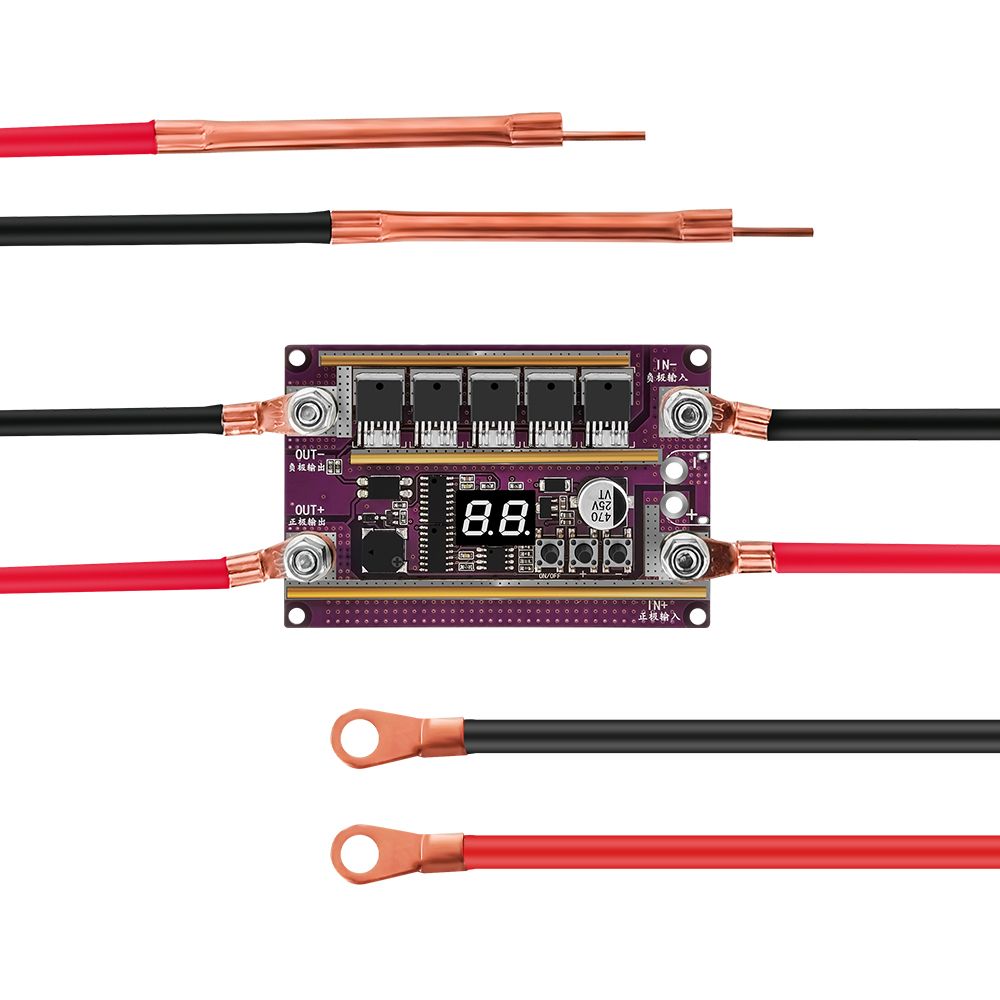

Packing List (without housing):

1 * Control Board

2 * Input Cable

1 * Pair of Welding Pen

2 * Heat Shrink Tubing

6 * Screw

1 * Nickel Sheet

1 * Guideline

OR

Packing List (with housing):

1 * Control Board

2 * Input Cable

1 * Pair of Welding Pen

2 * Heat Shrink Tubing

6 * Screw

1 * Nickel Sheet

1 * Housing Kit

1 * Guideline

Key Features

The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling.
Adopt 5pcs MOS tubes, and the maximum current is up to 1700A; there are 5 MOS tube locations reserved on the back of the printed circuit board for DIY players to increase their own MOS tubes.
High output design, 99 gears of output adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet.
With the digital tube real-time gear display function, 0-99 gears, 1-gear is the lowest, 99-gear is the highest, and the gears are gradually increasing.
It supports 0.1-0.3mm nickel welding sheets with solid and beautiful welding spots.
This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 etc.

What's In the Box

(without housing):,1 x Control Board,2 x Input Cable,1 x Pair of Welding Pen,2 x Heat Shrink Tubing,6 x Screw,1 x Nickel Sheet,1 x Guideline,
