Product information "CVW Crystal Video Swift800"
HDMI wireless transmitter set for distances up to 800 feet.
Transmission speed: 70 ms.
HDMI connections.
Eye Contact Range: 820.2 ft.
Frequency range: 5150 - 5250 MHz / 5725 - 5825 MHz
Bandwidth: 20 MHz.
Full HD 1080 / 60p video (compressed, 4: 2: 2 - 8 bits)
Audio format: PCM.
Frequency selection: manual with buttons (control via the LED display).
Mounting options: internal thread on the bottom (shoe adapter included).
Battery mounting: NPF battery plate.
Power consumption: 6 W (Tx), 5.2 W (Rx).
Weight: 5.75 oz (Tx / Rx)

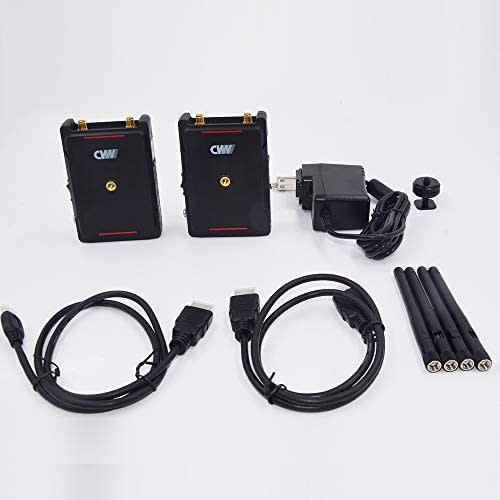

Set includes:
1 transmitter (with NP-F battery holder).
1 receiver (with NP-F battery holder).
4 antennas.
1 power supply.
2 HDMI cables (31.5 '' each).
1 shoe adapter.
Video formats:
1080p (60p / 59.94 * / 50/30 / 29.97 / 25 * / 24p / 23.98 * fps)
1080i (60 / 59.94 ** / 50 fps)
720p (60p / 59.94p *** / 50p)
* 59.94p will be output as 60p; 25 / 23.98p will be output as 24p
** 59.94i will be output as 60p
*** 59.94p will be output as 60p
Input receiver:
HDMI output.
Micro-USB.
DC In 7-36V NP-F - Drum Holder
3.5mm Jack for Analog Audio
2 antennas.
Input transmitter:
HDMI output.
Micro-USB.
DC at 7-36V.
NP-F - Battery Holder
3.5mm jack for analog audio
2 antennas.
