The 1x8 HDMI Splitter that supports Full HD 3D uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES:
1. One HDMI input signal split to eight HDMI sink devices
2. Support Full HD, Full 3D
3. Support 1080P resolution
4. Support CEC
5. Support deep color 30bit, 36bit, 48bit
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)
8. Support signal retiming
9. Support input up to 15meters AWG26 HDMI standard cable length, output up to 20meters AWG26 cable length
10. No loss of quality
11. Installs in minutes
12. Need DC 5V/2A power supply
SPECIFICATIONS: HDSP0108N
HDMI version…………………………………………….………………………………….. HDMI 1.3v
HDCP version…………………………………………….………………………………….. HDCP 1.2
HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit
Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………………………………….………………………….340MHz
Max baud rate…………………….………………….………………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………...………….≤15m HDMI AWG26
Output cable distance…………………………….……….…...≤20m AWG26 HDMI standard cable
Max working current………………………………..……………………………………………..... 2A
Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: 5V/2A
Operating Temperature range……..…………….……………………………….…… (-15 to +55℃)
Operating Humidity range………………………….….…………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………….. 280X158X25 (mm)
Weight…..………………………………………………………..…….…………………..………1030g
Key Features
Great Value For Money
Superior Quality
Effective & Reliable

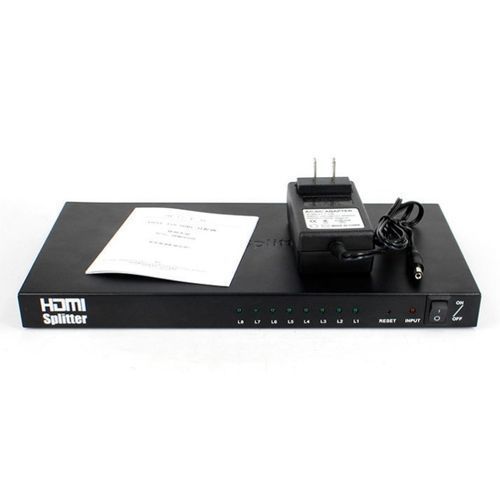

What's In the Box
1. 8-Way Spliter2. power adapter
