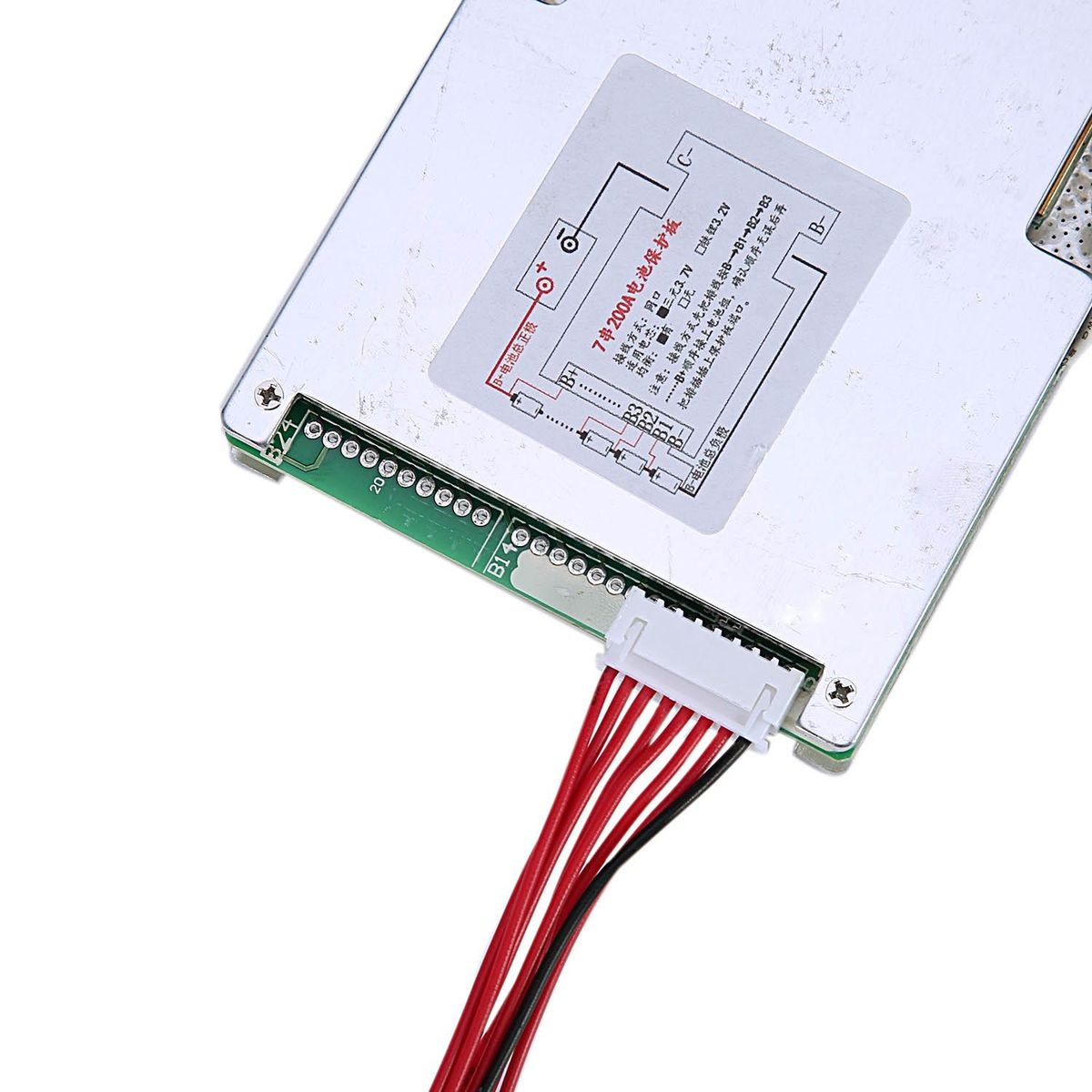

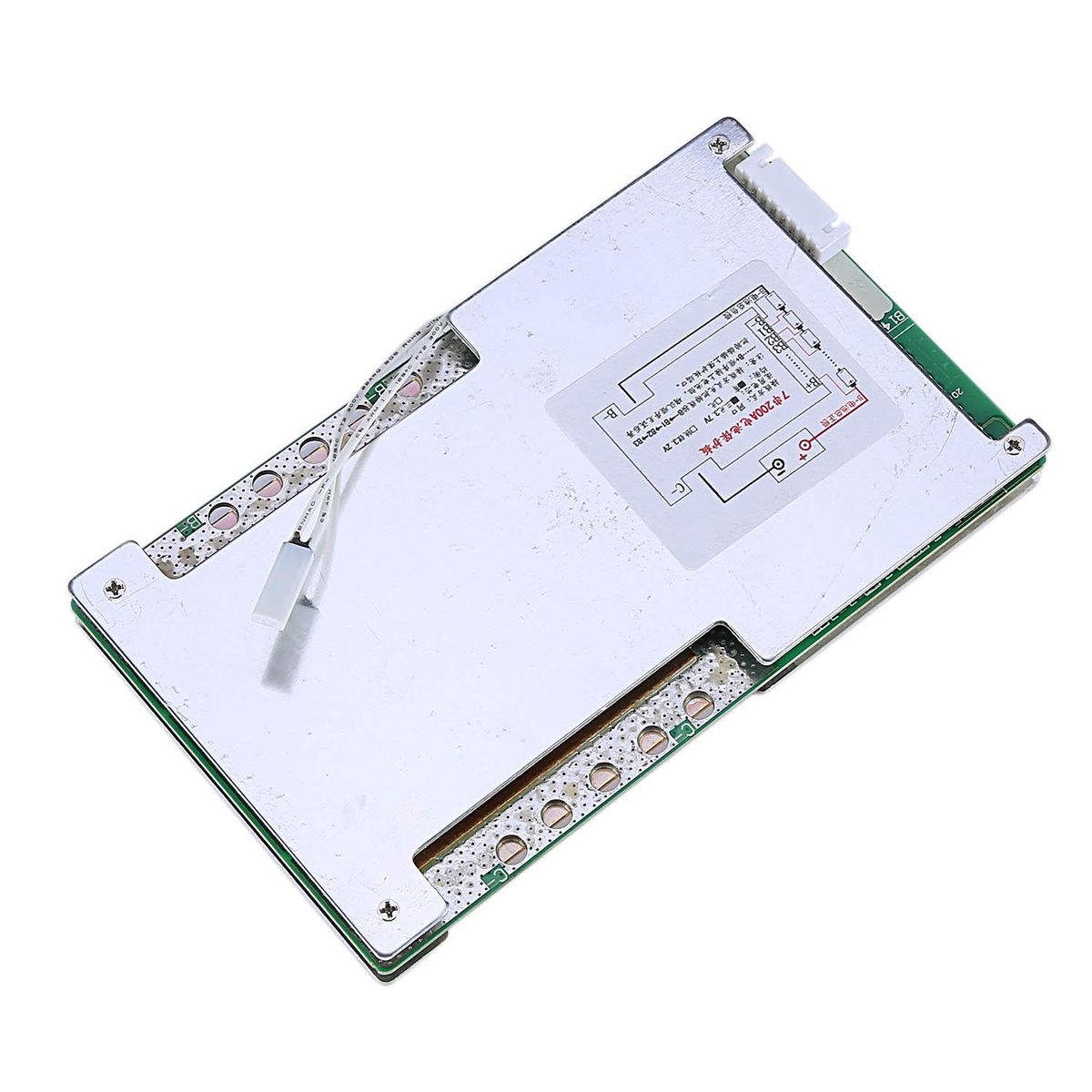

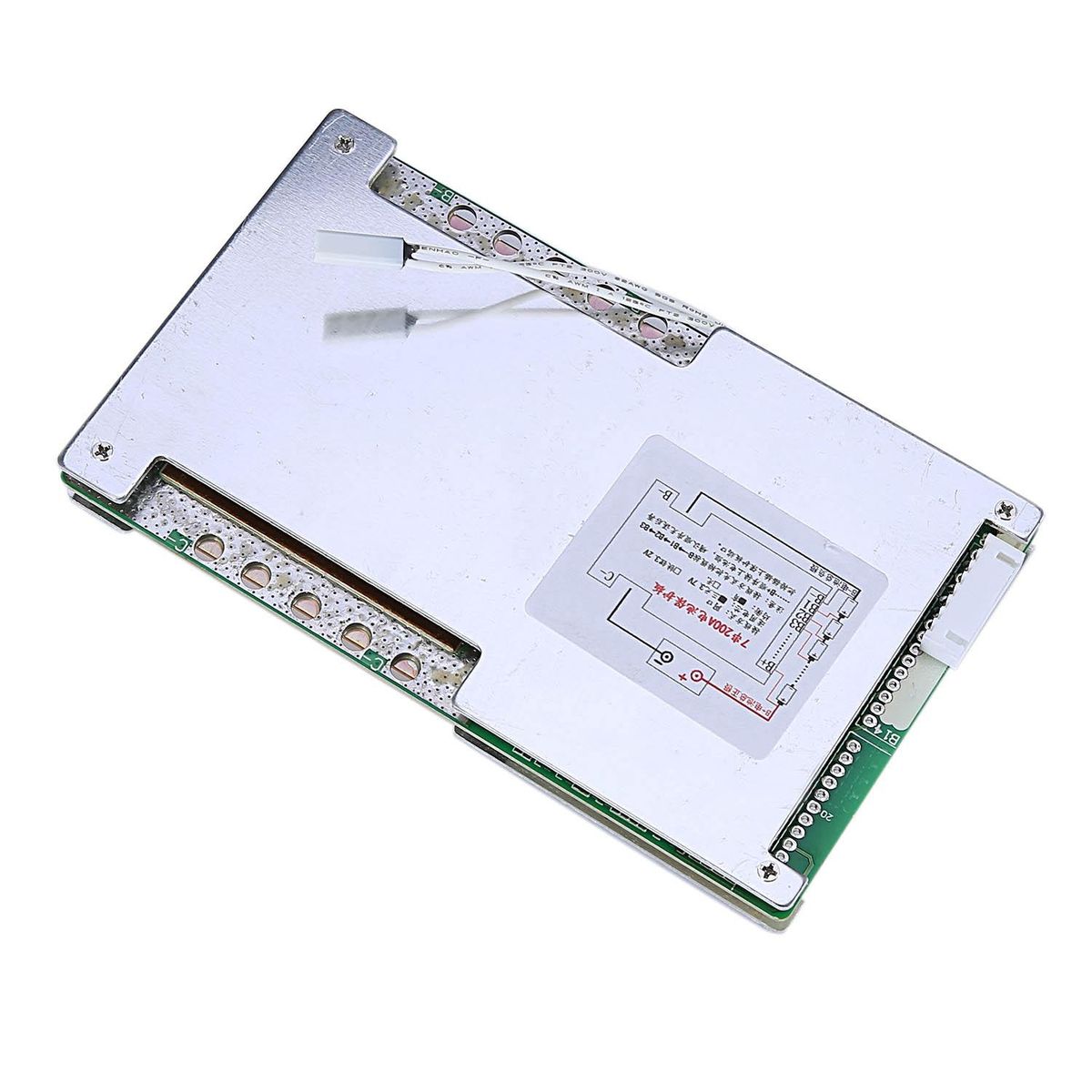

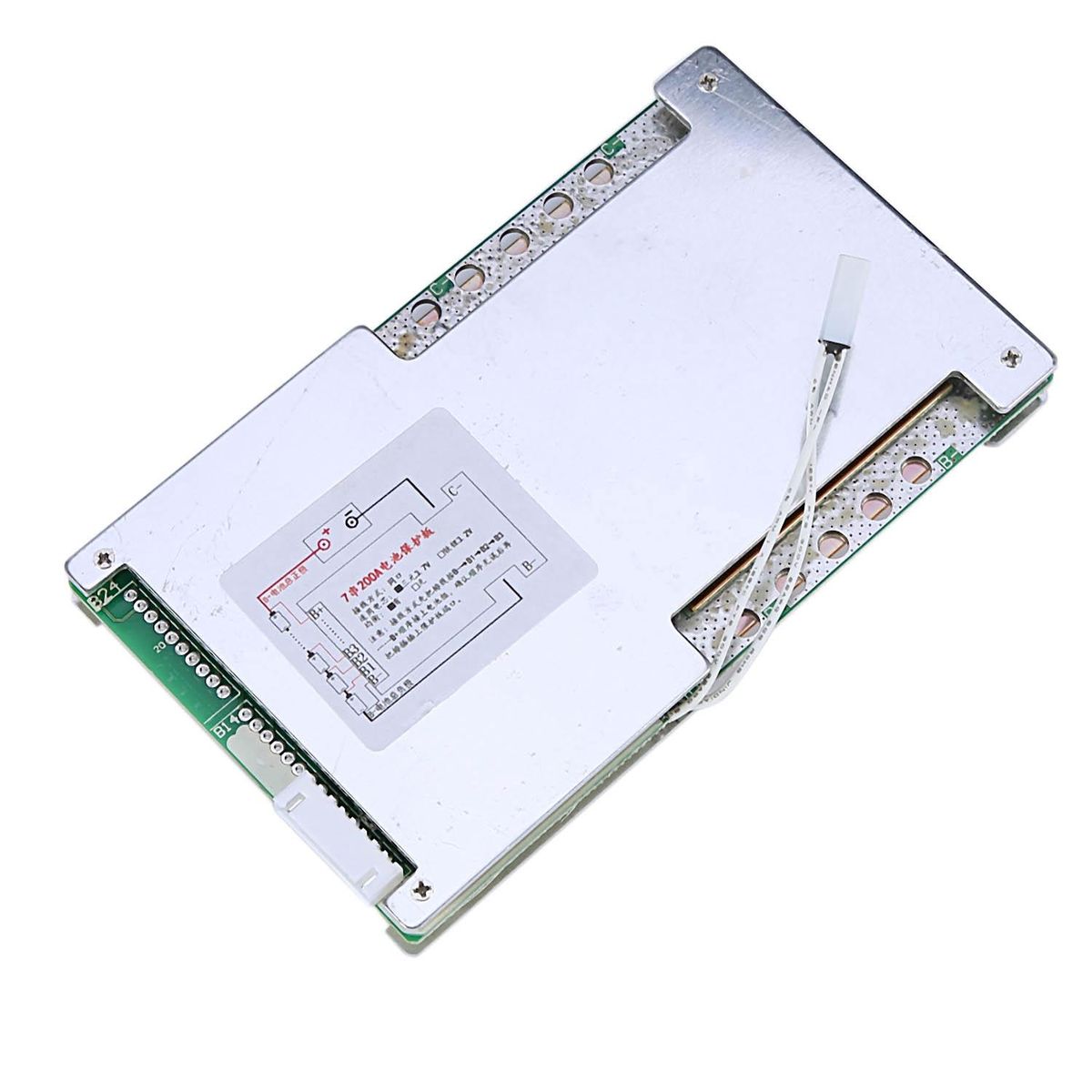

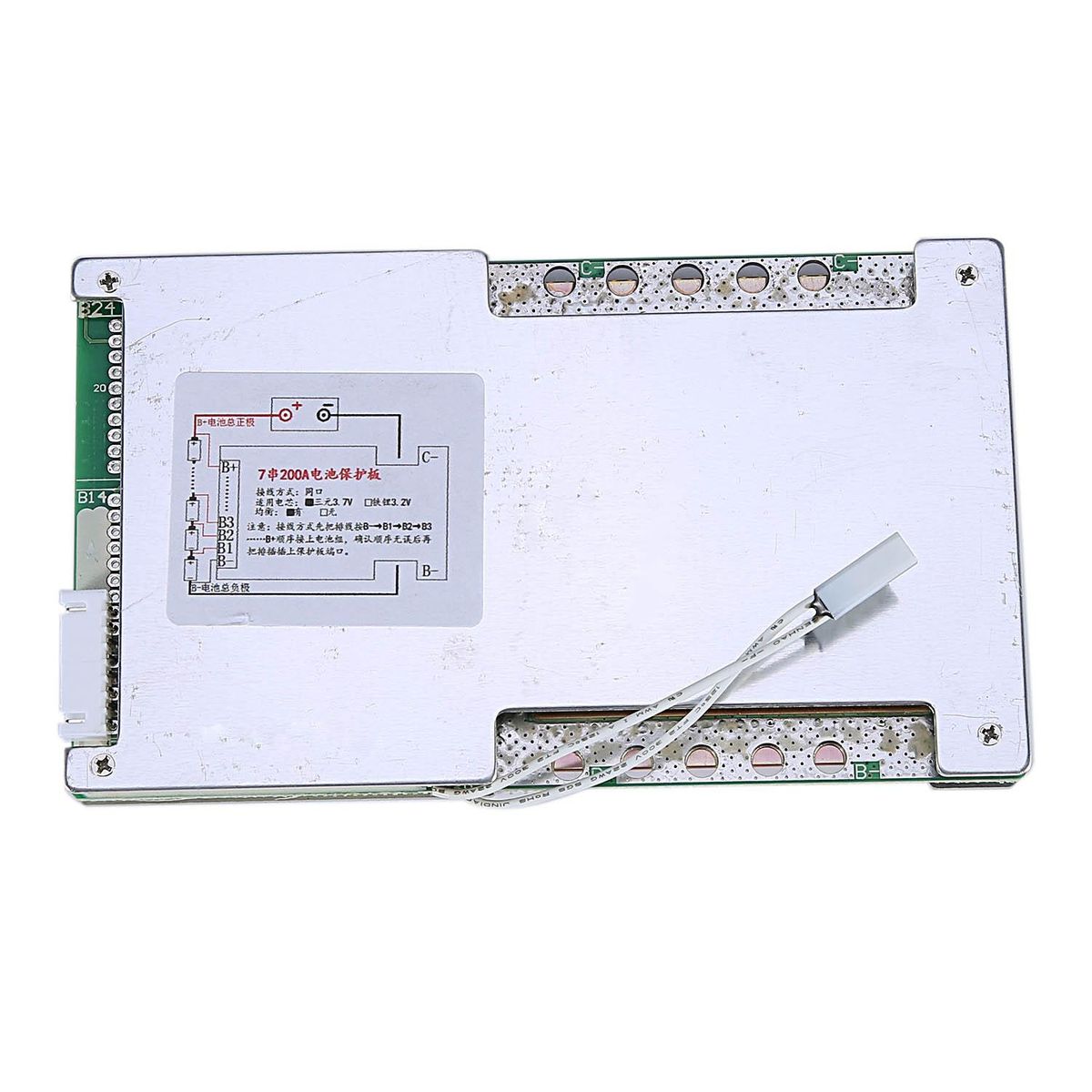

7S 24V 200A Li-Ion Lithium Battery Protection BoardSpecification:
Maximum discharge current: 200A
Instantaneous discharge current:500A
Charging voltage: 29.4V
Maximum charging current: 200A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.1±0.05V
Battery balance detection voltage: 4.2±0.025V
Battery balance release voltage: 4.2±0.05V
Battery balance current: 42±5 mA
Overdischarge detection voltage: 2.8 ± 0.08V
Overdischarge detection delay: 100ms
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 10ms
Overcurrent protection current: 500±30A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 30uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature protection: 65 °C
Temperature range: -20/+80°C
Size: 145 * 84 * 20mm
Color: Silver + Green
Material: metal + PCB

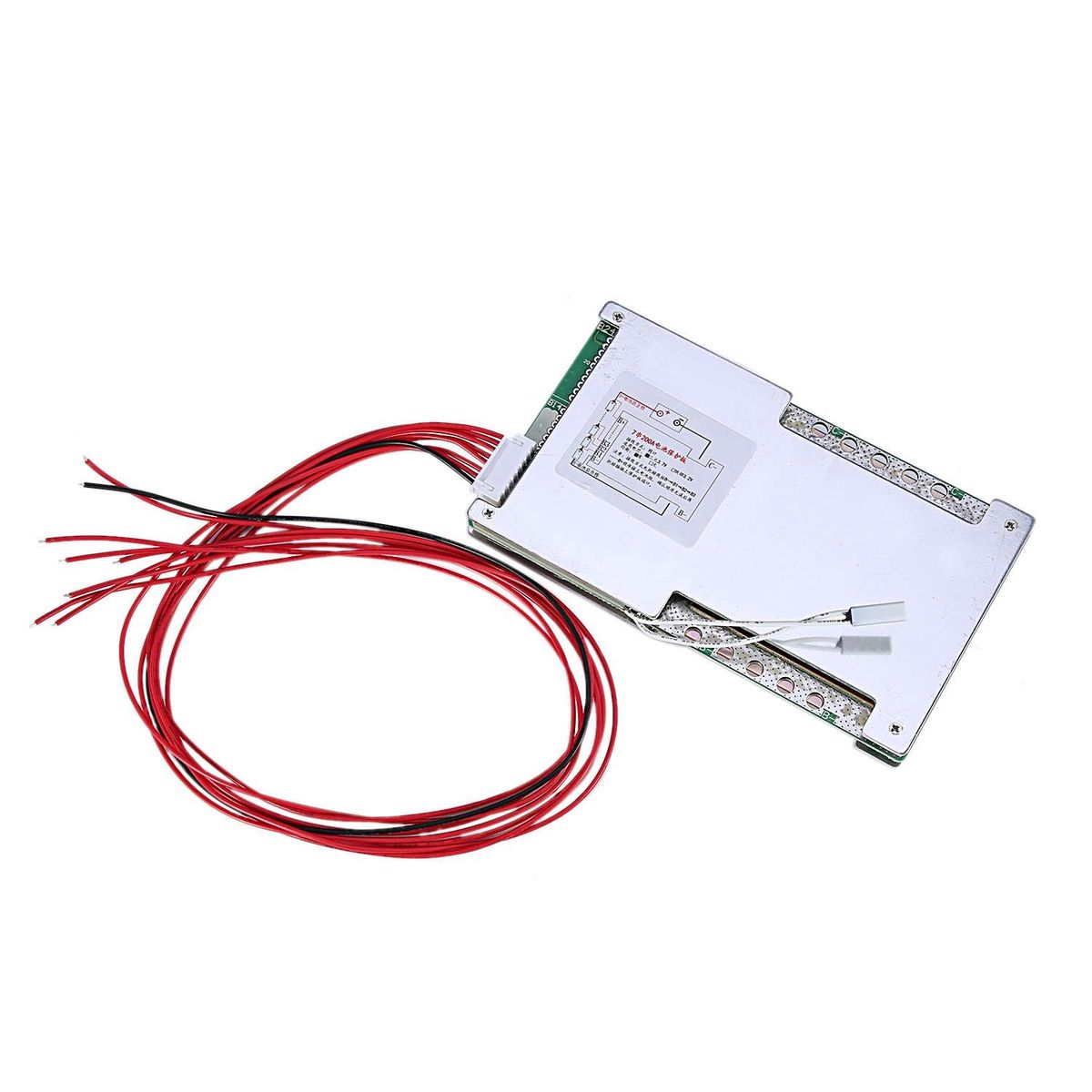

Package Contents:
1 * Li-ion Battery Protection Board

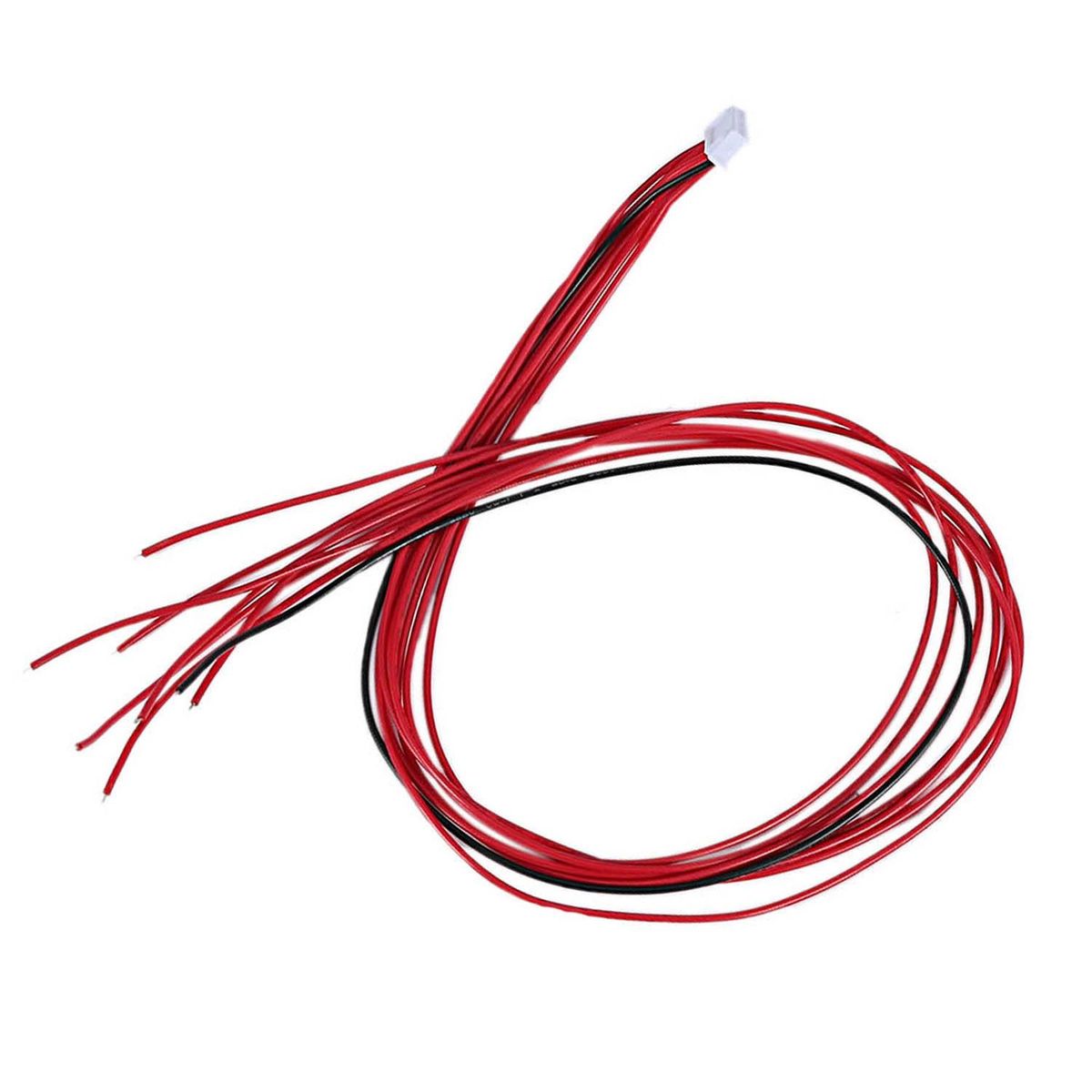

1 * Cabel wire
Only the above package content, other products are not included.
