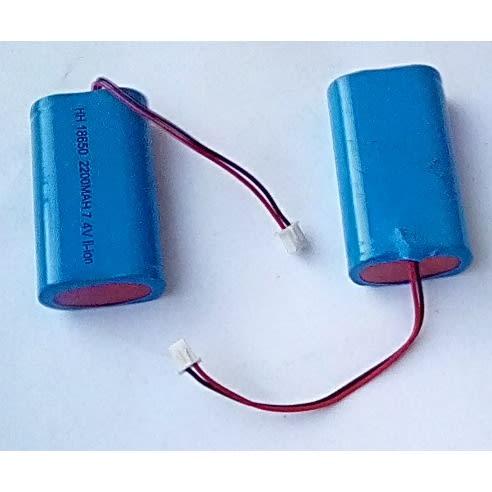

1. Model: 7.4V 2200mAh 18650 Lithium ion Battery pack (2S1P of FLC-18650-2200).
2. UN, RoHS, CE approved Li-ion Battery pack.
3. Li-ionBattery pack OEM orders are welcomed.
4. Li-on Battery pack is widely used to Notebook, Power Bank, Information Devices, Power tools, Medical Device, Lighting, LED, Portable device, etc.
5. Battery packs are available.
6. Bulk pack, blister card are available.
7. For Li-ion 18650 cell, other capacity are available from 1500mAh to 2600mAh.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.
Cell: |
Li-ion |
Model: |
2S1P of FLC-18650-2200 |
Nominal Voltage: |
7.4V |
Nominal Capacity: |
2200mAh |
Minimal Capacity: |
2100mAh |
Charging Method: |
CC/CV(Constant Current/Constant Voltage) |
Charge Current: |
Standard charge : 0.2C(440mA) |
Rapid charge : 0.5C(1100mA) |
Charging Time: |
Standard charge : 8.0 hours (Ref.) |
Rapid charge : 4.5 hours (Ref.) |
Continuous Discharge Current: |
1.0C (2200mA) |
Cut-off Discharge Voltage: |
3V±0.05V |
Overcharge Voltage |
4.28±0.025V per cell |
Over Discharge Cut Off Voltage |
2.4±0.05V per cell |
Short Circuit Protection |
Recover after removing the short circuit load or recharge |
Dimensions(T*W*H): |
18.2mm *37mm* 67.2mm |
Weight: |
Approx. 95g |
Operating Temperature: |
Charge : 0 ~ 45 ºC |
Discharge: -10 ~ 60 ºC |
Storage Temperature: |
at -5 ~ 35 ºC Recommend(25±5 ºC) |
Note |
Storage capacity should be 40%~50% full charge capacity. |
