Model |
Rpi 7" Touchscreen Display |
Production Country |
United Kingdom |
Size (L x W x H cm) |
19.4 x 11 x 2 |
Weight (kg) |
0.075 |
Color |
Black |
From the Manufacturer |
This 7″ touchscreen display for Raspberry Pi lets you create interactive projects such as<br />tablets, entertainment systems, and information dashboards.<br />Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an<br />on-screen keyboard, giving you full functionality without the need to connect a keyboard<br />or mouse. |
Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

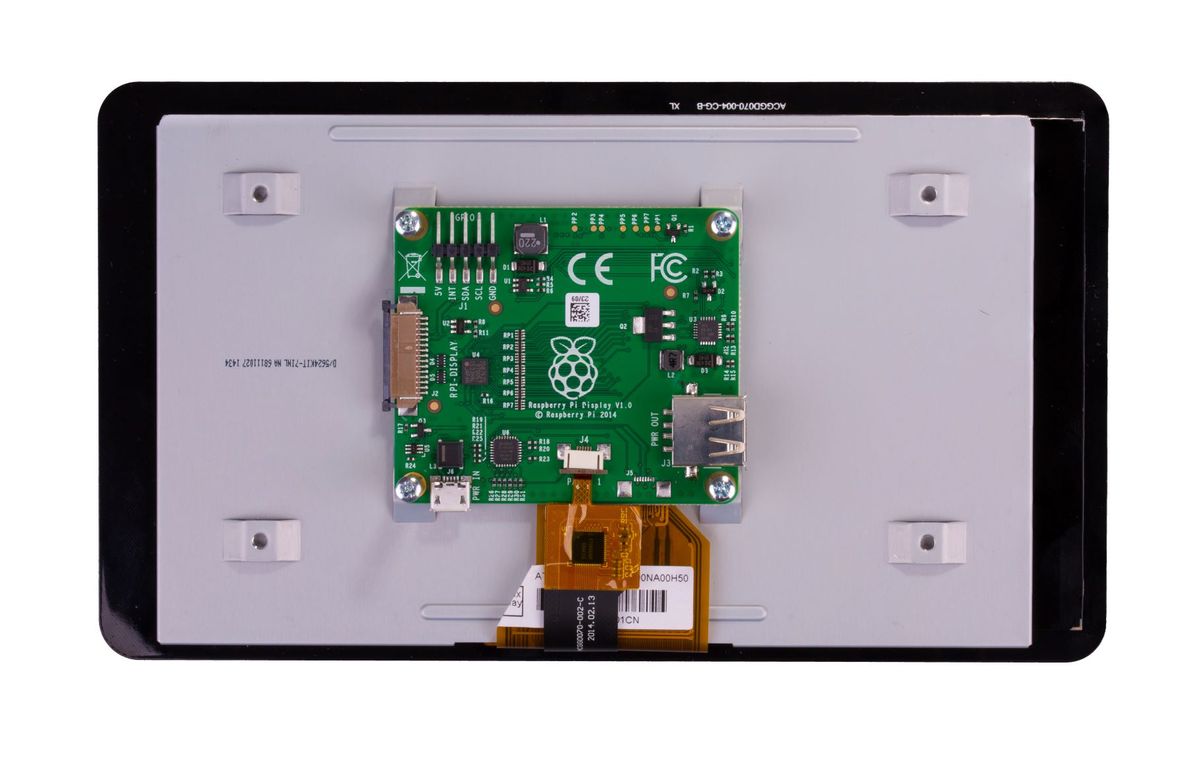

The 800 x 480 display connects to Raspberry Pi via an adapter board that handles power and signal conversion. Only two connections to your Raspberry Pi are required: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.
- Display size (diagonal): 7 inches
- Display format: 800 (RGB) × 480 pixels
- Active area: 154.08mm × 85.92mm
- Touch panel: True multi-touch capacitive touch panel with up to 10 points of absolute
- Surface treatment: Anti-glare
- Colour configuration: RGB-stripe
- Backlight type: LED B/L
Key Features
Display size (diagonal): 7 inches
Display format: 800 (RGB) × 480 pixels
Active area: 154.08mm × 85.92mm
Touch panel: True multi-touch capacitive touch panel with up to 10 points of absolute
Surface treatment: Anti-glare
Colour configuration: RGB-stripe
Backlight type: LED B/L

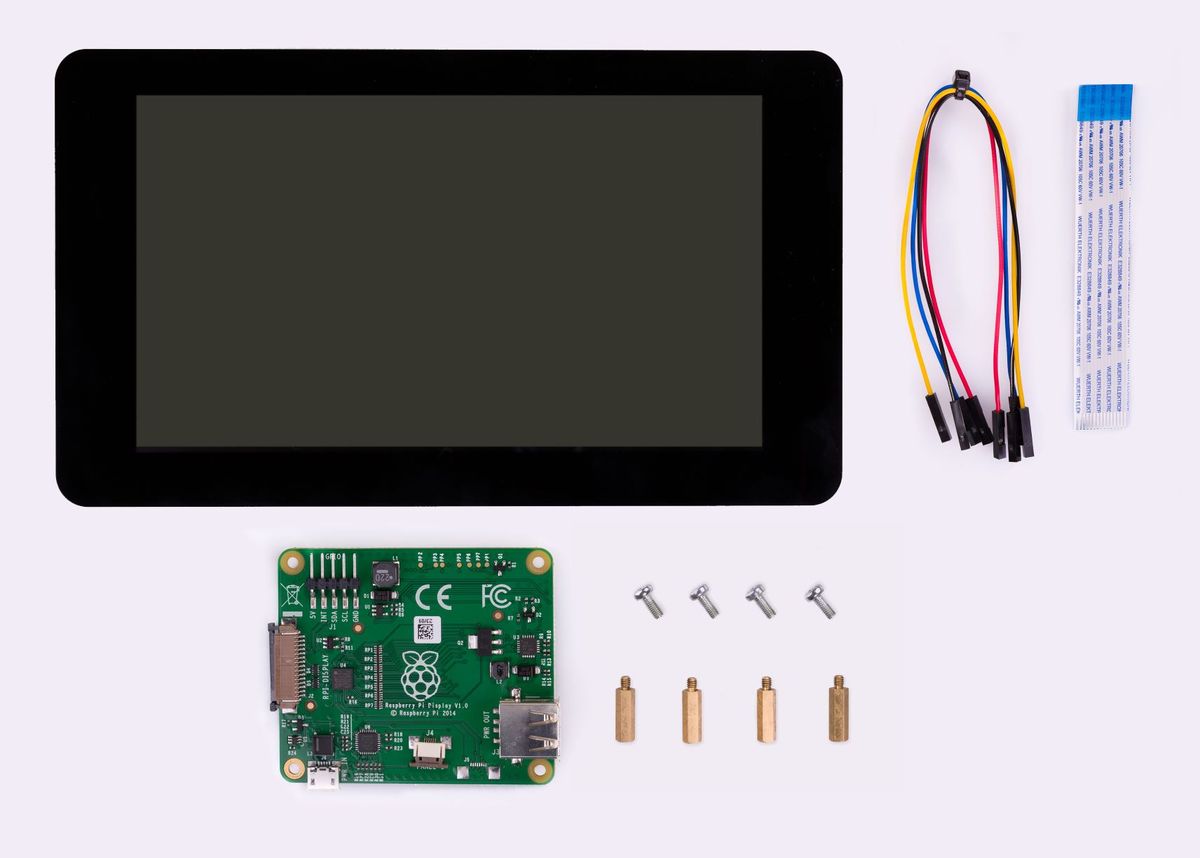

What's In the Box
- The 7" touchscreen screen
- Display ribbon
- Display board
