Features:
Original IR Power Tube: industrial grade design, can ensure long-term operation stability.
Dual NMB Ball Bearing High Speed Fan: intelligent fan control that can automatically change speed according to radiator temperature, not afraid of dust.

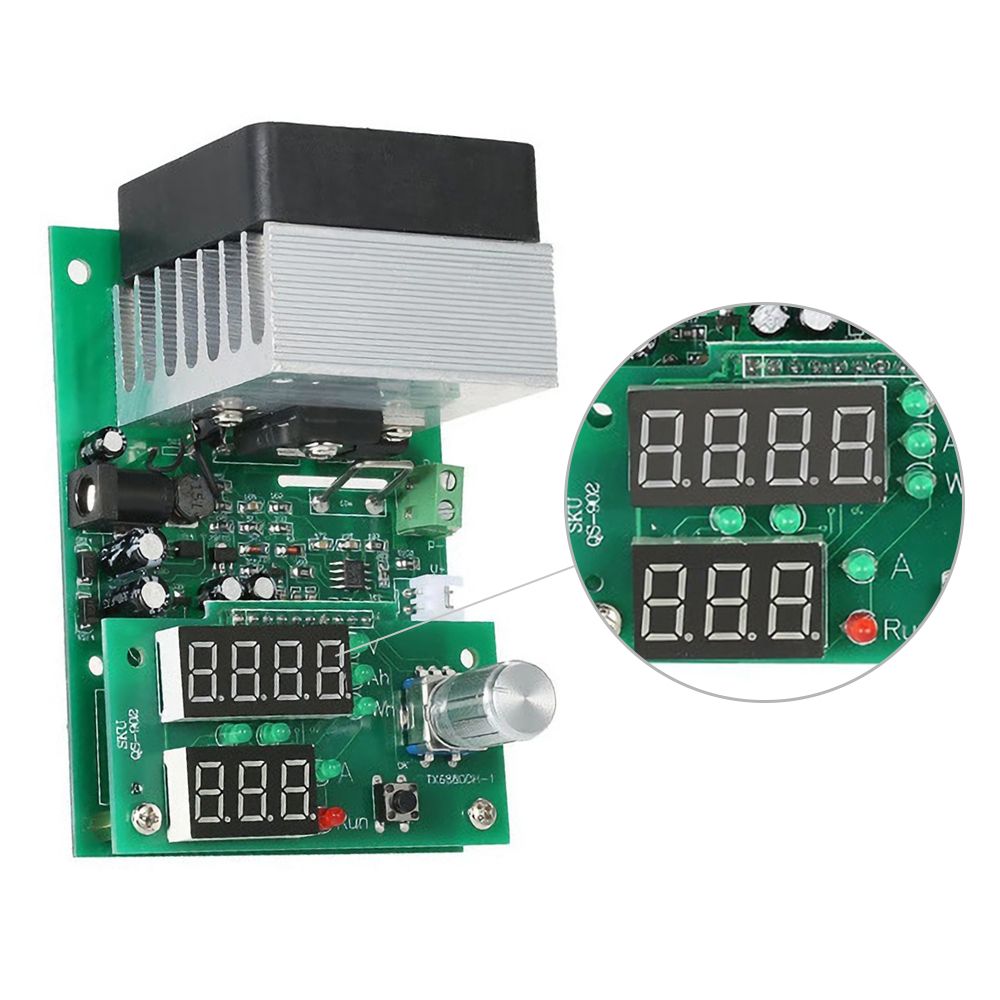

Classic Digital Display: intuitive, durable, and more resistant to high temperatures than liquid crystals.
Rotary Encoder Setting: electronic load with simple operation and various functions for discharge battery easily and safely.
Multiple Protection Functions: overheat protection(OTP), instantaneous overpower protection(OPP), overvoltage protection(OUP), reverse connection protection, abnormal power supply voltage protection.
Specifications:
Material: PCB

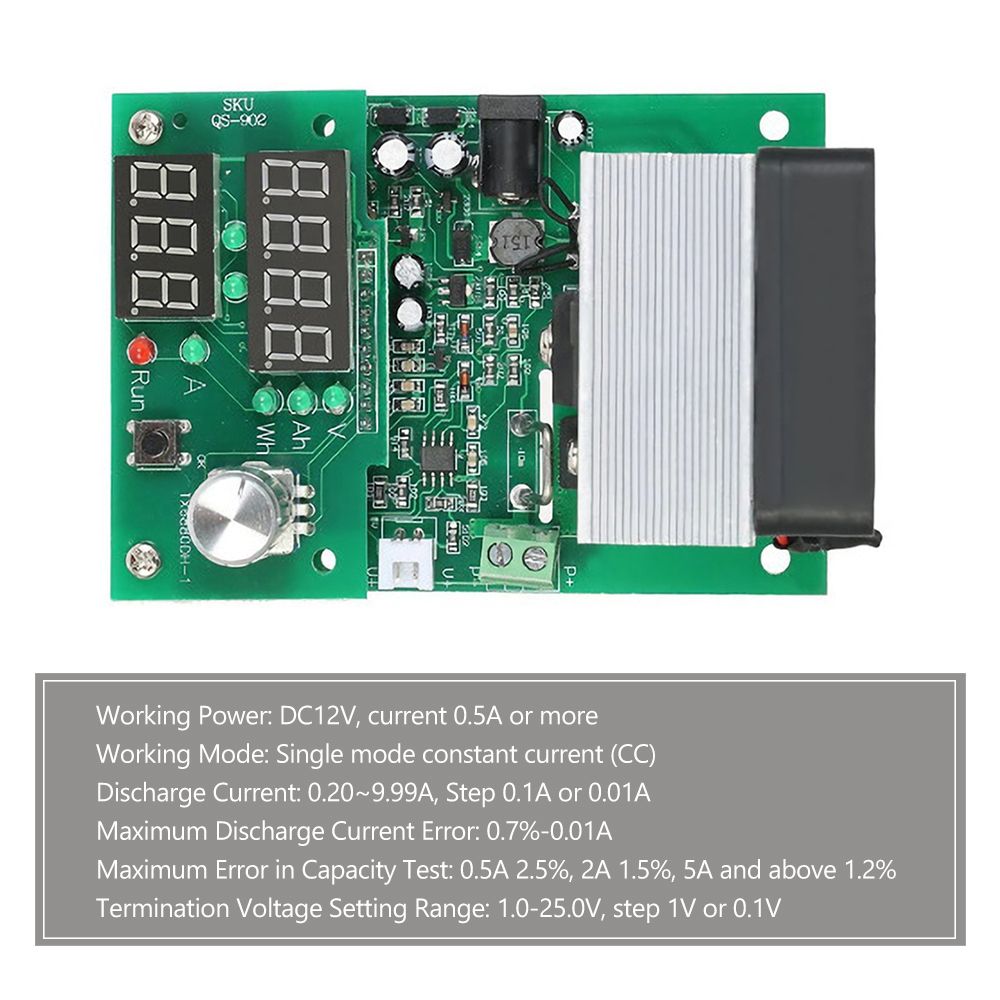

Working Power: DC12V, current 0.5A or more
Working Mode: Single mode constant current (CC)
Discharge Current: 0.20~9.99A, Step 0.1A or 0.01A
Maximum Discharge Current Error: 0.7%-0.01A
Maximum Error in Capacity Test: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Termination Voltage Setting Range: 1.0-25.0V, step 1V or 0.1V
Discharge Voltage: 1.00-30.00V (subject to MOS internal resistance and other losses, the measured input 1V can support 6-7A current, 9.99A requires the measured voltage is greater than 1.3V)
Maximum Error in Voltage Measurement: 0.8% plusmn;0.02V
Maximum Power: 60W, exceed power automatically limits the maximum current (for maximum 60W, it can open 9.99A at 6V and at most 3.00A at 20V)
Highest Statistical Value of Battery Test: 999.9Ah or 9999Wh, reach the value to stop the test
Positioning Hole Position: 60 * 88mm / 2.36 * 3.46in
Hole Diameter: 3.2mm / 0.13in

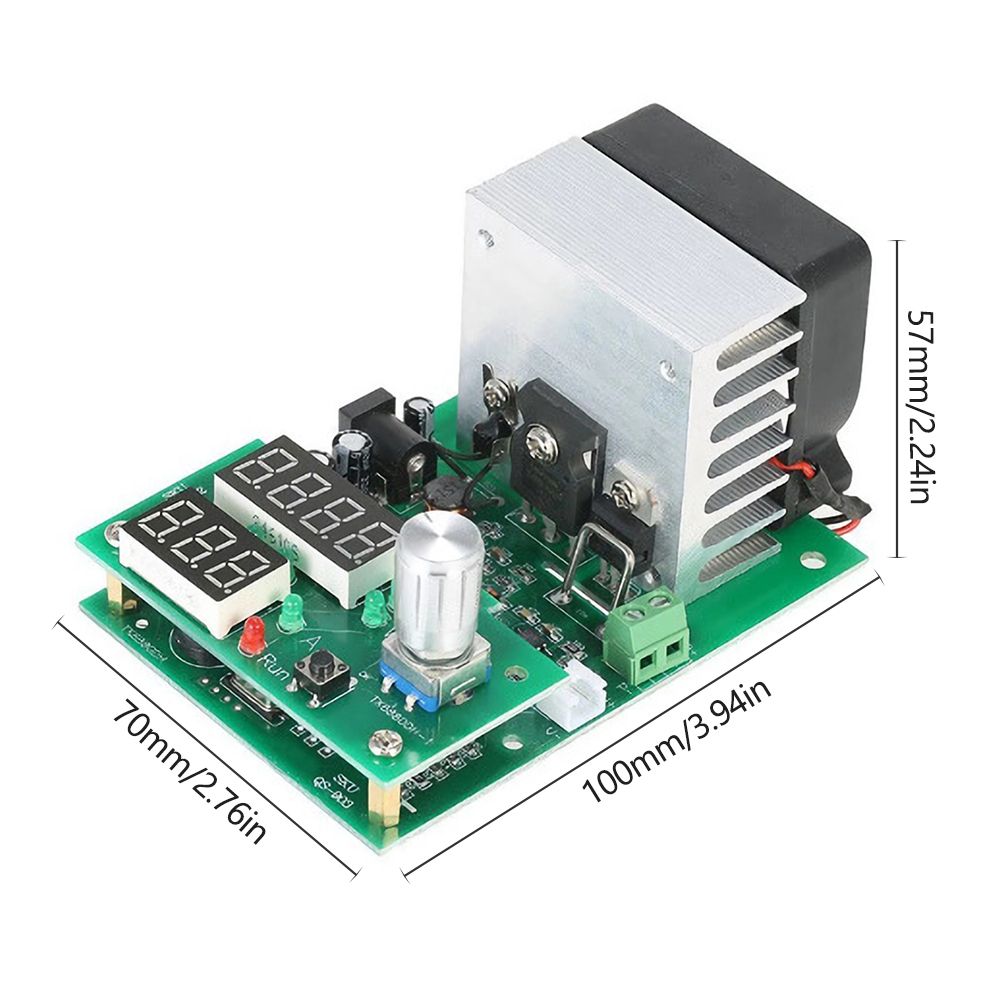

Size: 100 * 70 * 57mm / 3.94 * 2.76 * 2.24in
Weight: 170g / 5.99oz
Package Weight: 180g / 6.35oz
Packing List:
1 * Module
