Specifications:This battery charging controller has the function of parameters adjustable, power failure memory function. When the battery is under voltage, disconnect the load and connect the charger. When the battery is over voltage, disconnect the charger and connect the load.
Features:When the battery is under voltage, disconnect the load and connect the charger. When the battery is over voltage, disconnect the charger and connect the load.
This battery charging controller has the function of parameters adjustable, power failure memory function.
The control voltage is 10V-60V, and with high accuracy of 0.1V.
This battery charging controller is suitable for storage battery, lithium battery, etc.
This charging controller protects battery undervoltage, protects battery overcharge, protects load control.

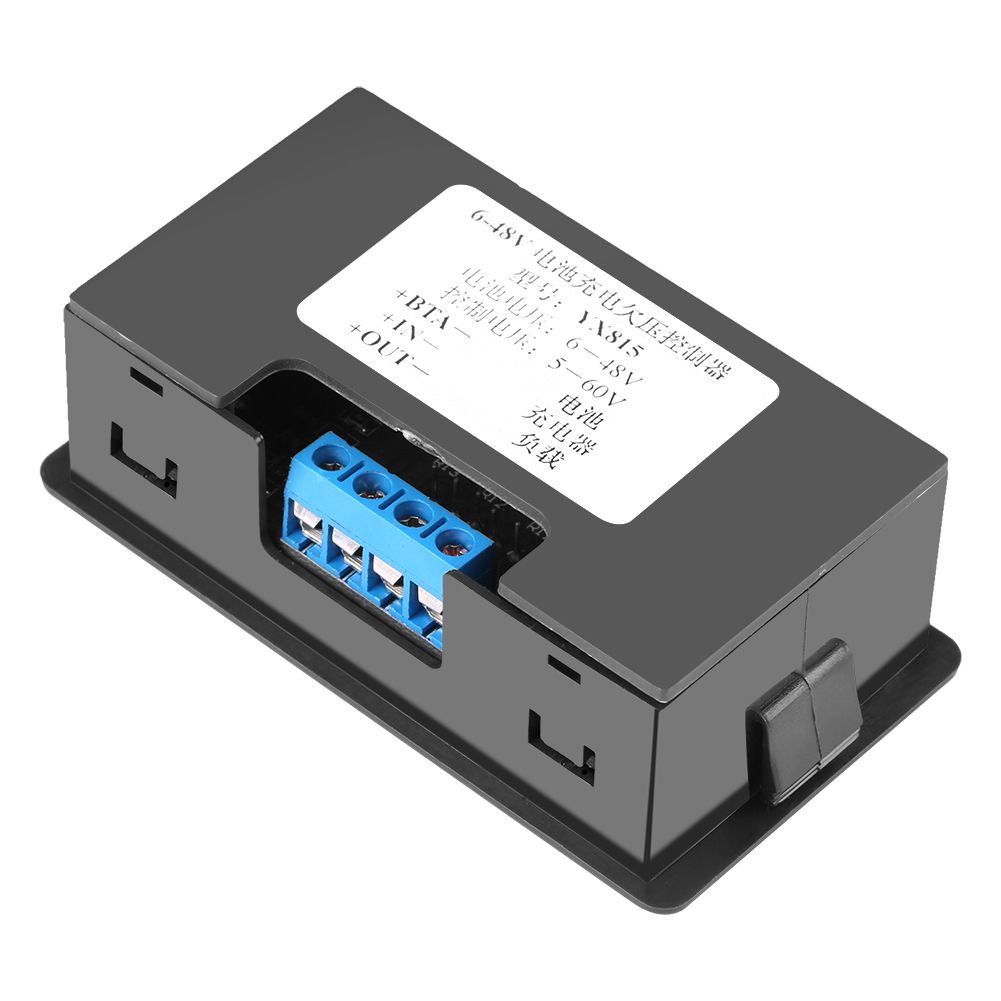

Specifications:Model: YX815
Control voltage: 10V-60V
Control current: 20A
Control accuracy: 0.1V
Voltage error: ±0.1V
Scope: storage battery, lithium battery, etc
Packing: antistatic bag
Size: 7.9 x 4.3 x 2.8cm/3.11 x 1.69 x 1.10inch
Installation size: 76 x 39.5mm/2.99 x 1.56inch
Weight: 44g

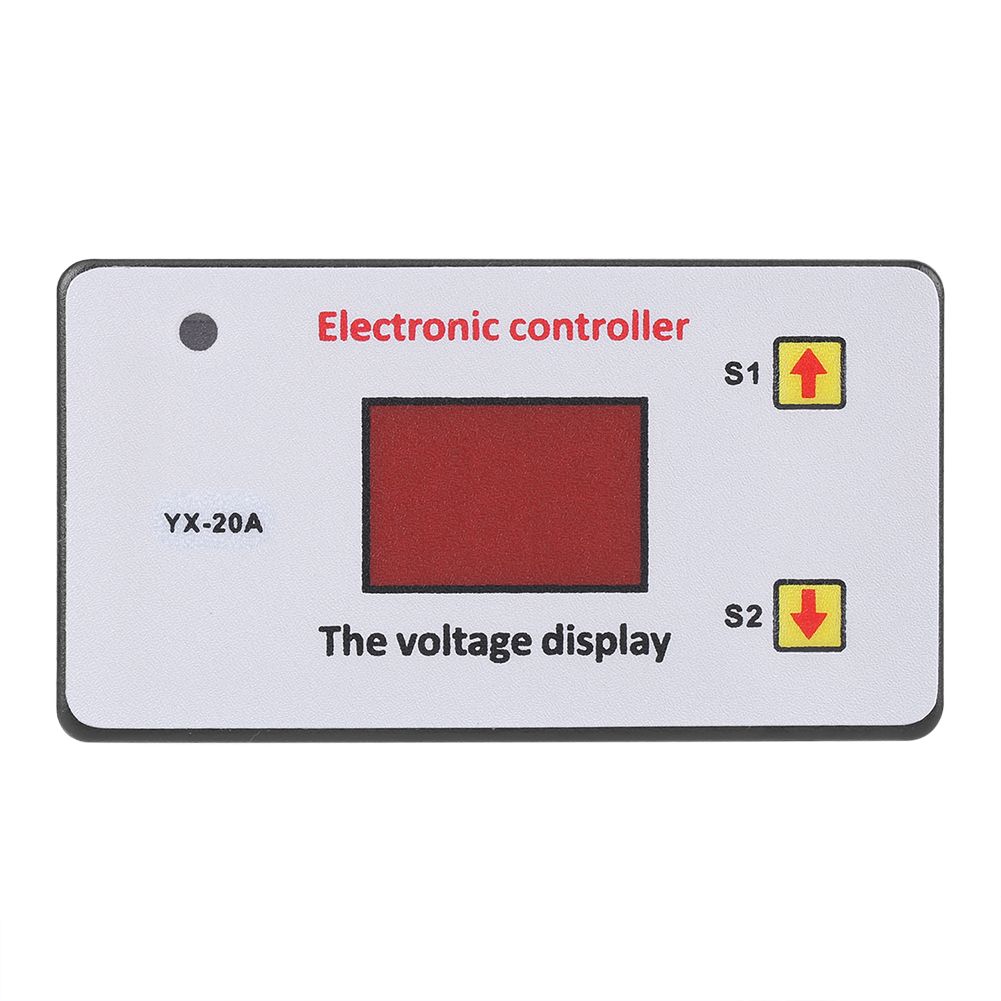

Voltage setting method:In setting state(digital tube flashes)
S1: up-regulated voltage
S2: down-regulated voltage
S1 undervoltage setting on (charging startup, load stop):
1.Under normal display voltage, press the S1 on to display the charging start(load stop )voltage value.
2.Long press the s1 on digital lamp tube flashing, and set charging startup voltage（load stop） value through s1 and s2 ons.
S2overvoltage setting on (charging stop, load start):
1.Under normal display voltage, press the S2 on to display the charging stop （load start up）voltage value.
2.Long press s2 on digital lamp tube flashing, through s1 and s2 ons to set charging stop （load start up）voltage value.
Restore factory Settings:
Under the state of electricity, press the ons of s1 and s2 at the same time, and the digital tube displays 888, that is to restore the factory setting success.
(Note: when s1 cannot up regulate the voltage, set s2 first, and s2 cannot down regulate the voltage, set s1 first)
Package Included:1 x Battery Charging Controller
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Key Features
When the battery is under voltage, disconnect the load and connect the charger. When the battery is over voltage, disconnect the charger and connect the load
This battery charging controller has the function of parameters adjustable, power failure memory function
The control voltage is 10V‑60V, and with high accuracy of 0.1V
This battery charging controller is suitable for storage battery, lithium battery, etc
This charging controller protects battery undervoltage, protects battery overcharge, protects load control
What's In the Box
1 x Battery Charging Controller
