Features:
Latest Malahit SDR v4
Immersion Gold Motherboard
Material: Aluminum shell
The shuttle operation feels good
Type-c charging port
Dual speakers dual channel
3.5 inch capacitive touch screen
Dimensions: 122 x 103 x 29.5mm/4.8 x 4.1 x 1.2\\\'
Product Parameters:
1. Based on the SDR architecture, the msi001 radio frequency front-end 12bit quantization sampling is adopted, and the processor adopts STM32H743, the main frequency is up to 480 MHz;
2. The receiving frequency is 50kHz to 49.999MHz, 50.001MHz to 249.999MHz, 400MHz to 2GHz;
3. Demodulation type: AM, SSB, NFM, WFM, CW;
4. Sensitivity is better than 0.2-0.3 mu;V;
5. Anti-blocking is better than 85 dB;
6. Real-time sampling bandwidth is 160 kHz;
7. Function: variable filter, adaptive noise reduction, threshold noise reduction, noise suppressor, AGC, equalizer, etc.;
8. Display screen is IPS 3.5 inches, capacitive touch screen with backlight adjustment;
9. The battery capacity is 3000mAh, USB-TYPEC interface;
10. The working current does not exceed 300mA;
11. Optional front-end attenuation filter components, attenuation up to 30dB;
12. Connect to the computer via USB, which can realize CAT, IQ and audio communication;
13. The size of the whole machine is 122 x 103 x 29.5mm.
14. Built-in Speaker Expansion Module
Design Details:
This is the latest version. All circuit parts are independently shielded, ultra-low noise LNA is upgraded, front full-frequency cavity speaker, improved stable encoder, attenuation and medium wave options are available.
The stability of the screen fixation, the position of knobs, and selected materials. Built-in retractable antenna. To have a better listening effect, this unit reserves an external antenna SAM female connector, and you can connect a better antenna. A power- off button is added deliberately. Using high-quality speakers, 80 is the maximum designed volume, please not exceed 80. The sound effects are carefully designed, not harsh when listening to short waves, and the sound quality will be more pleasant when listening to radio shows, with a dust-proof net speaker outlet. All parts are well-designed, including the position of the lanyard, and many adjustments have been made of aesthetics and convenience.
Package included:
1 x Malahit SDR V4
1 x Antenna

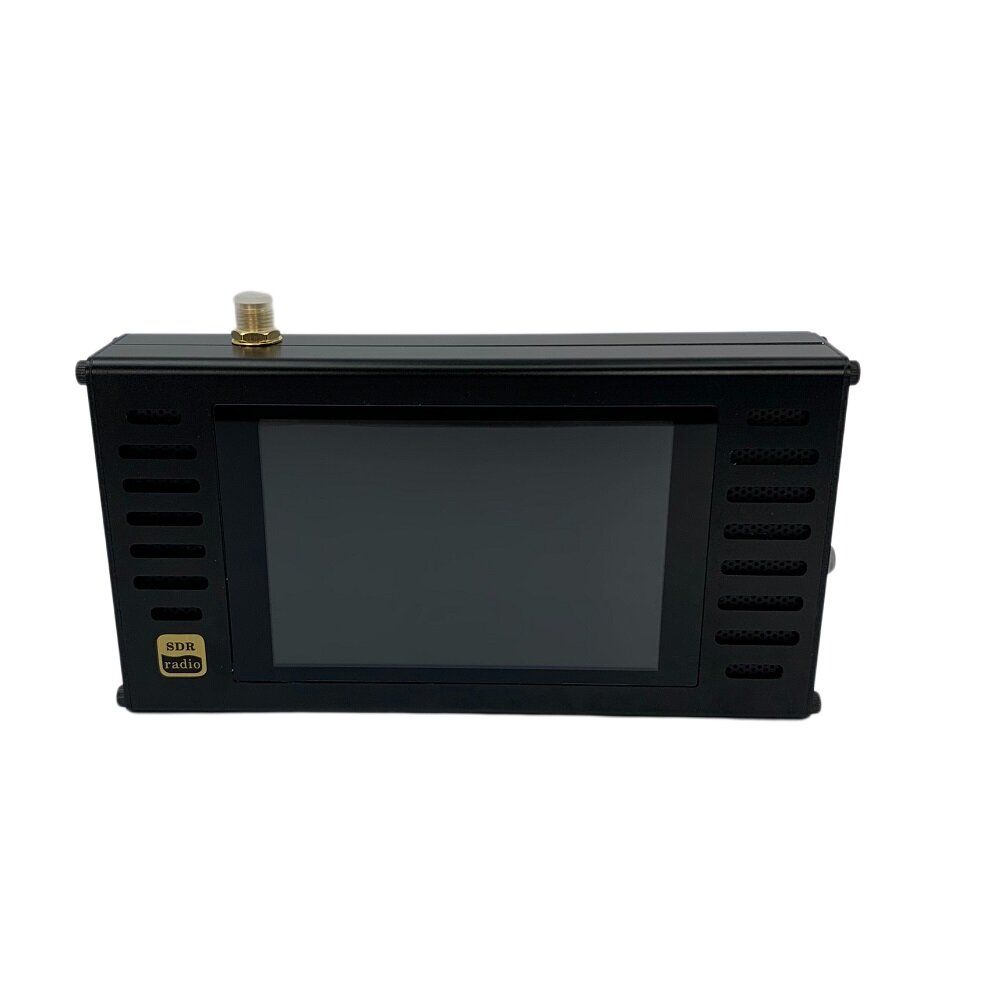

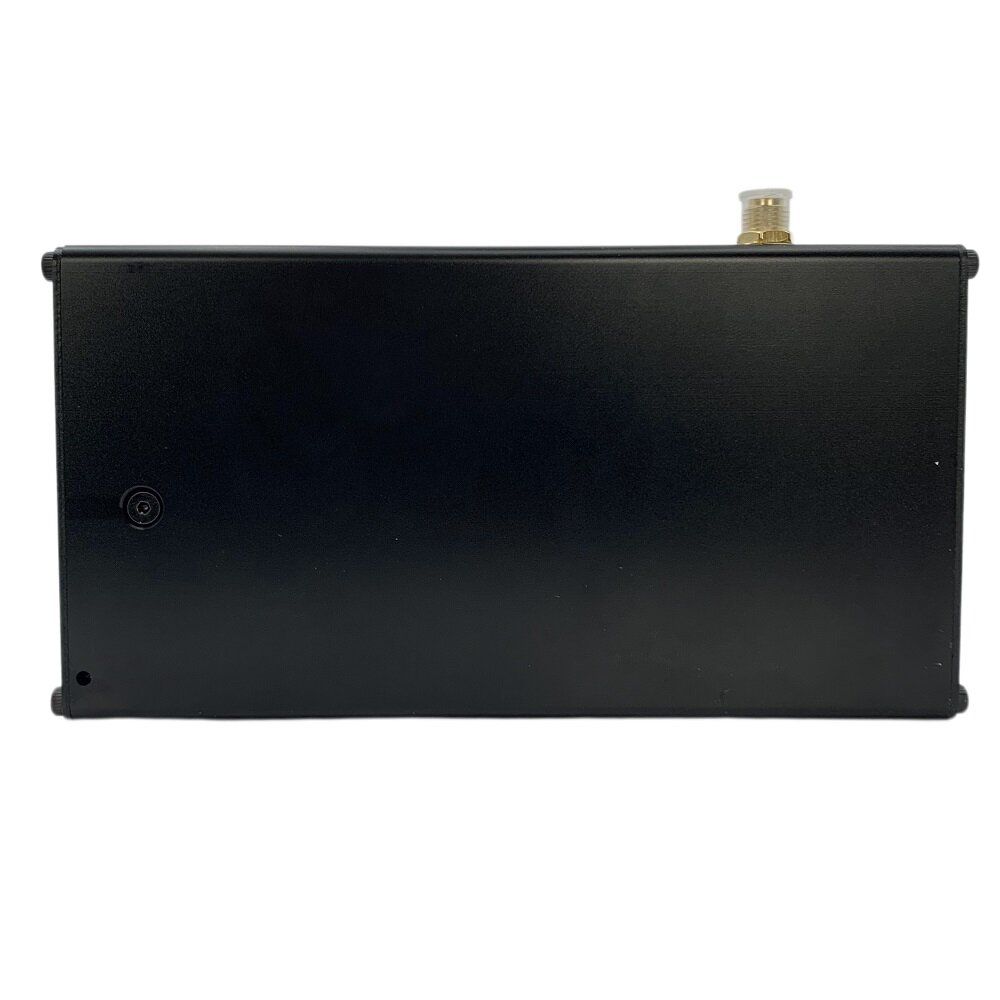

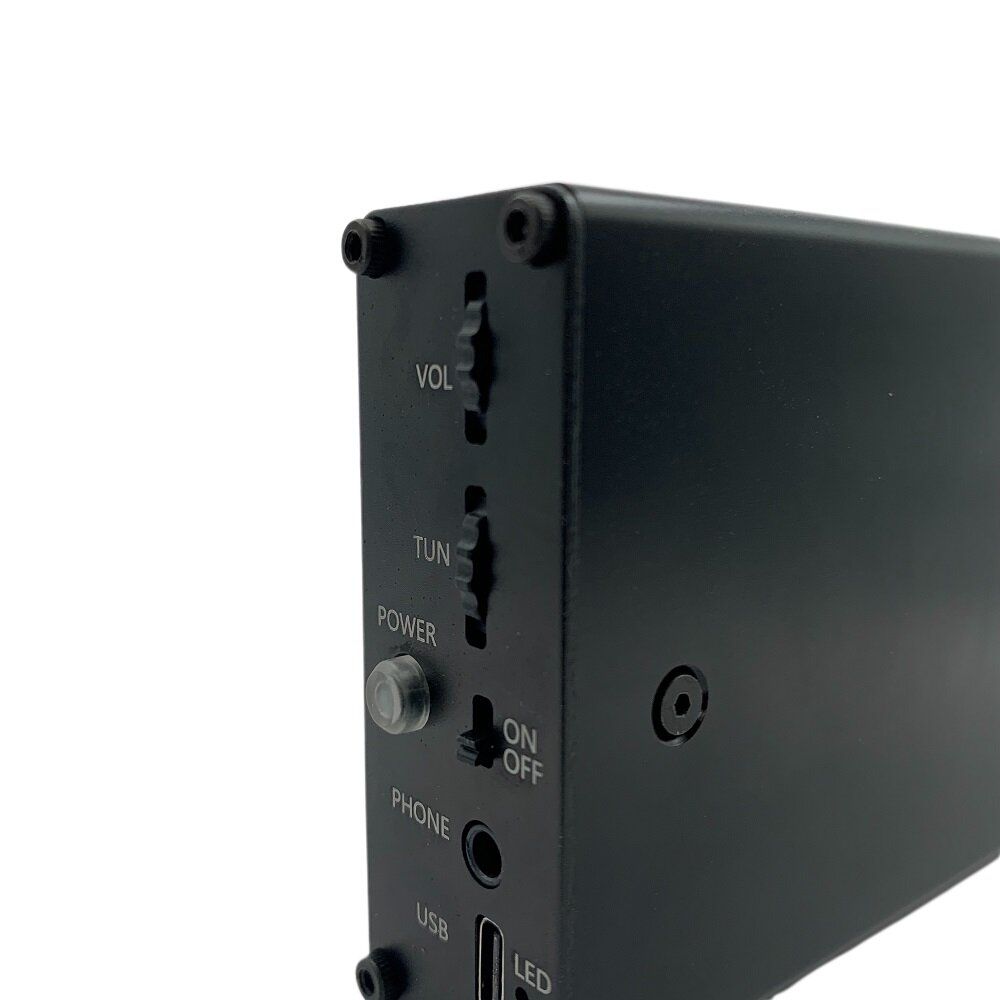

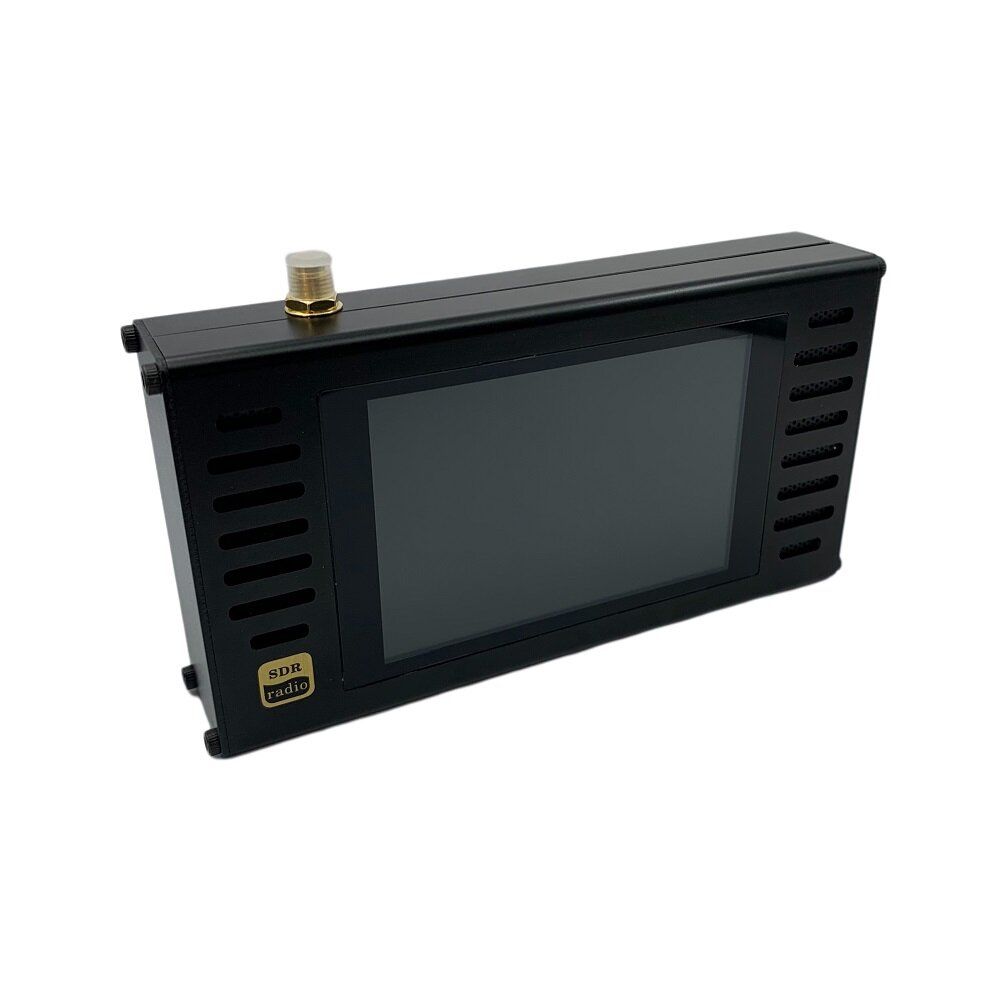

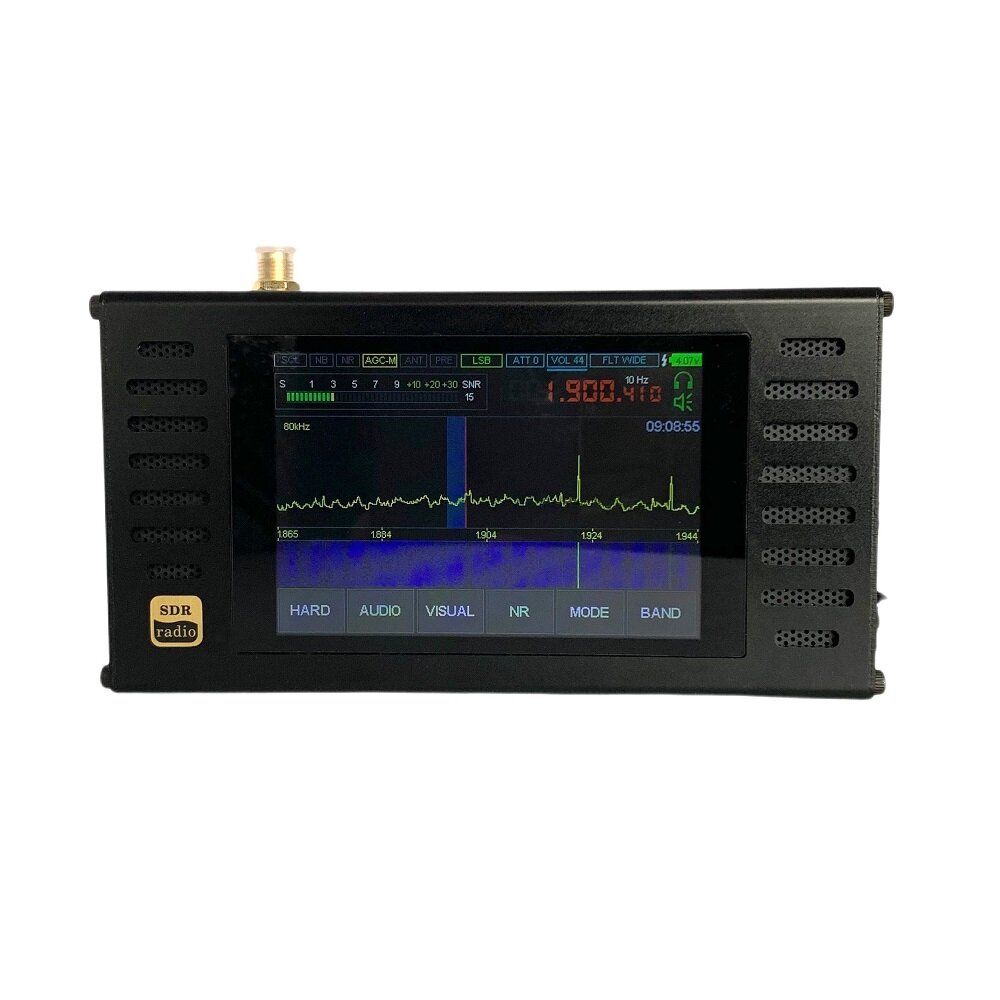

Details Pictures:
