Model |
JMVANLIN485280 |
Production Country |
China |
Size (L x W x H cm) |
19 x 18 x 6 |
Weight (kg) |
0.4 |
Certifications |
Organic |
Color |
Multicolor |
Main Material |
Patent Leather |
From the Manufacturer |
1 |
Care Label |
1 |
Model:485280
Material:Metal
External Dimension: 123mm*78mm*27mm.
: Black
Can be applied to plant lights, light box advertising, the stage, home decoration, etc.
Product description

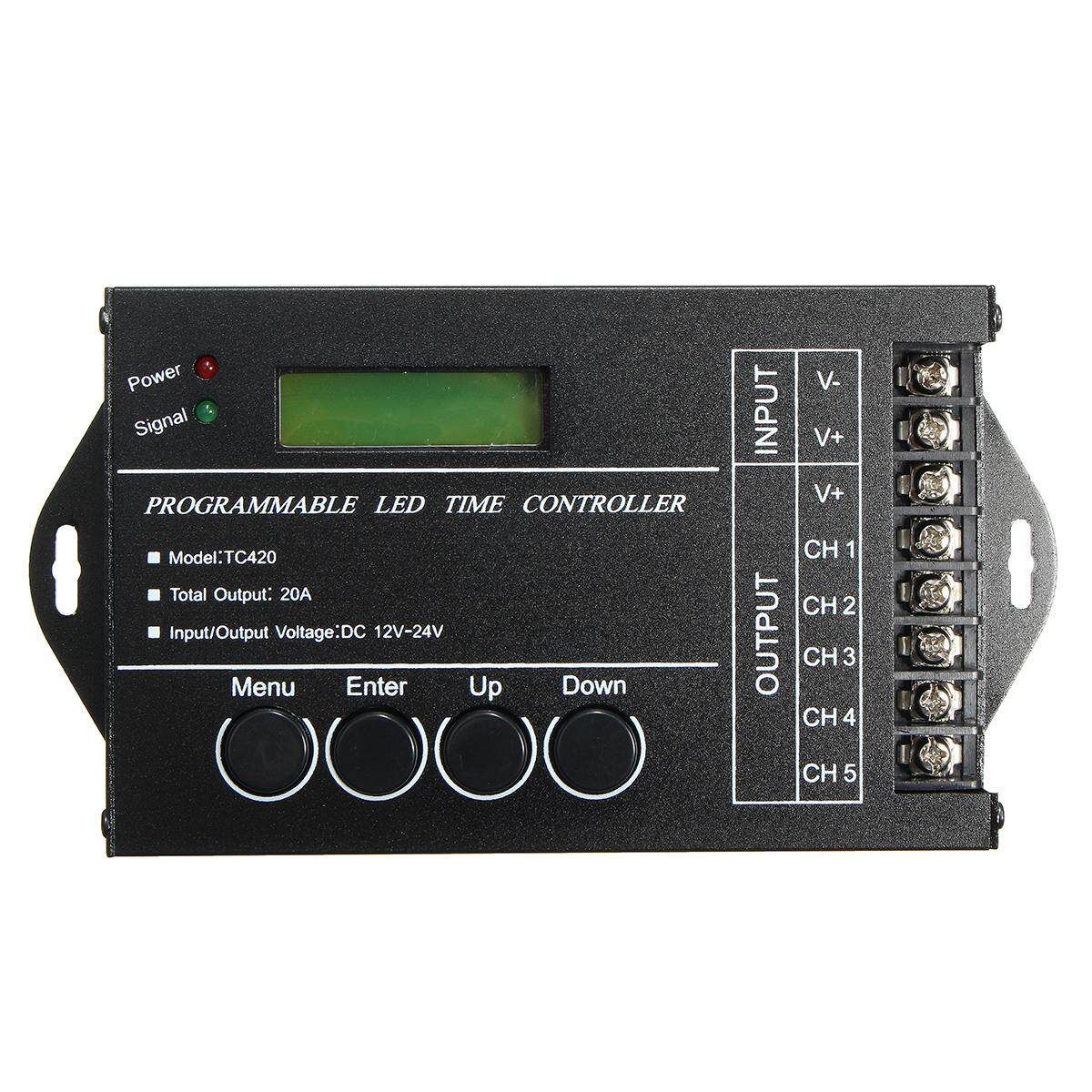

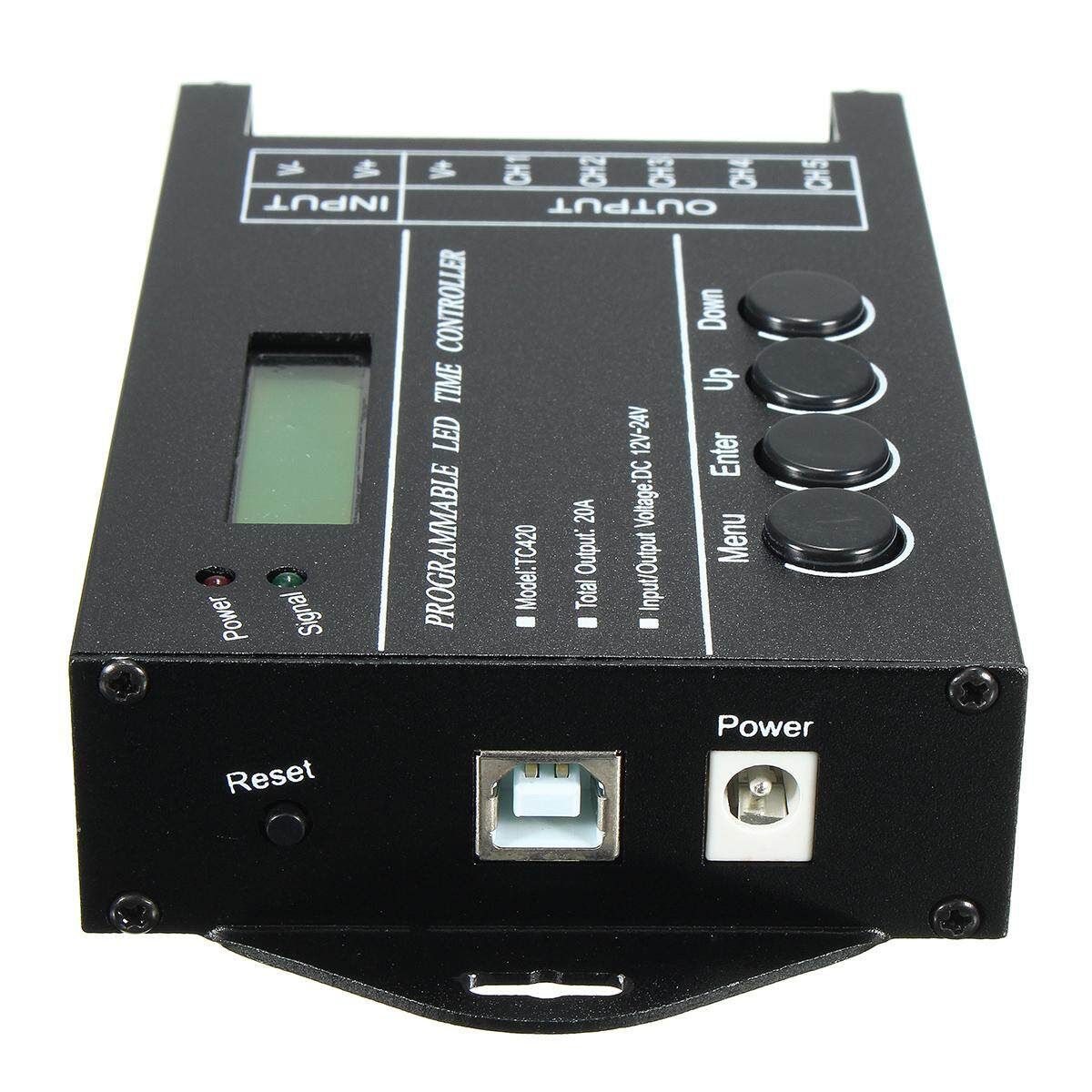

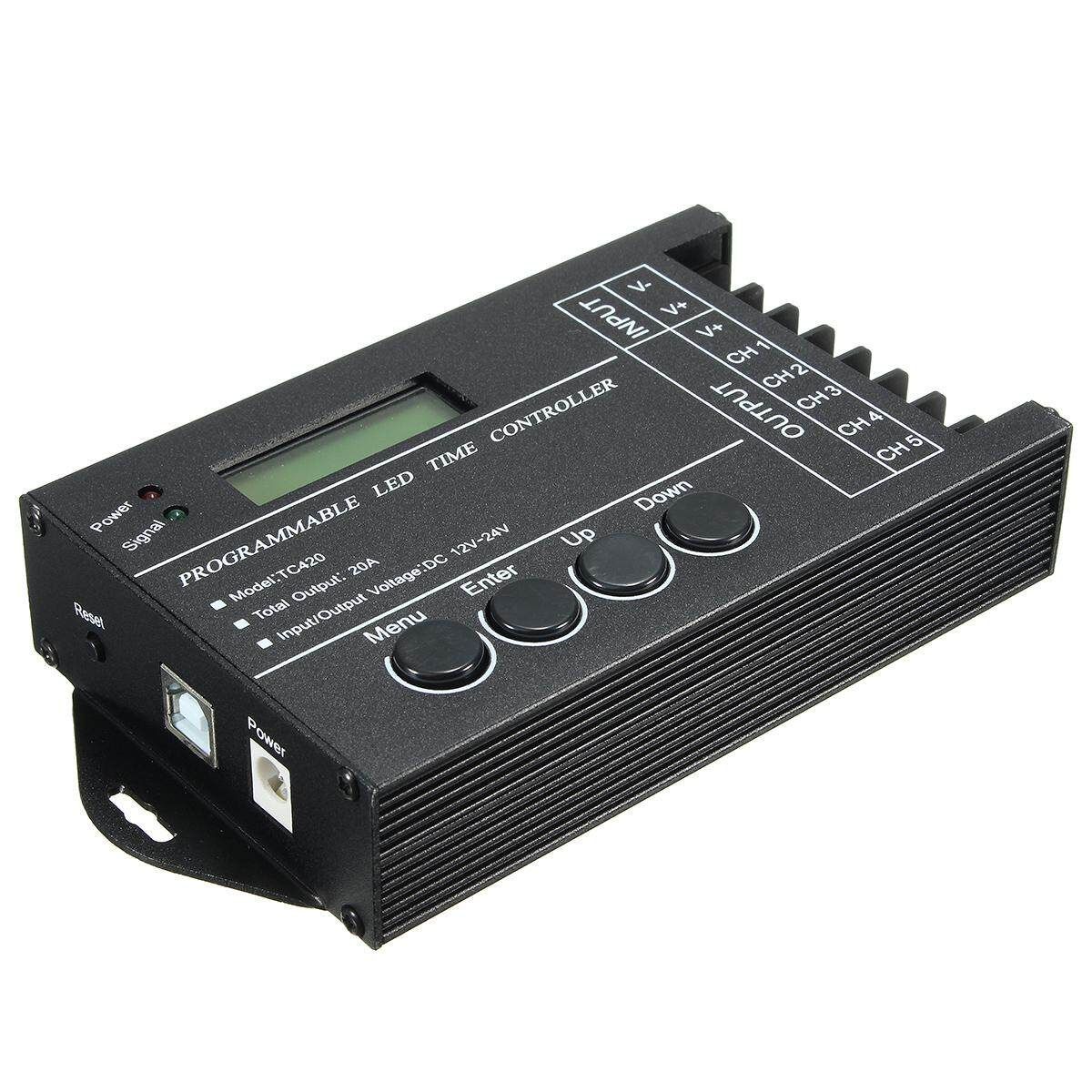

There is an upper computer in the programmable time controller to make the load output change over time,the customer may customize schedule mode they want through the upper PC.Then through the USB port to download required schedule to the controller. The upper PC in addition to the function of editing schedule mode,it also can be setup time for the controller because of synchronous clock function of upper host.
If user want to see the schedule mode effect after editing,they can use fast sowing function of upper.Because there is no delete function of upper host,so the mode name display space will come into blank as long as you execute delete.This controller can control load of lead changing effect no more than five channels.
Main Features
* Working Temperature: -20-60°.
* Supply voltage: DC12-24V.
* Output: 5 channels.
* Output: Five COMS drain-open output.
* Load Current: 4A each .
* Connection Mode: Common anode.
* Features: LED Time Dimmer
* . Load : 480
* Wattage: 240W
* Maximum output current: 20A
* Static consumption: 0.5W
Package included:
1 x LED Time Controller ,USB-cable()
1 x User Manual
1 x CD-ROM
a a a a a
Key Features
Material:Metal
External Dimension: 123mm*78mm*27mm.
: Black
Working Temperature: -20-60°
Output: 5 channels
Supply voltage: DC12-24V
Load Current: 4A each
Connection Mode: Common anode
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x LED Time Controller ,USB-cable() 1 x User Manual 1 x CD-ROM
