Features:
Machined aluminum front housing with fan-style cooling holes that pump air through the motor while it runs.
Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
High quality stator plates are epoxy coated on the inner surface to prevent winding shorts.
High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .
Specification:
Parameters:

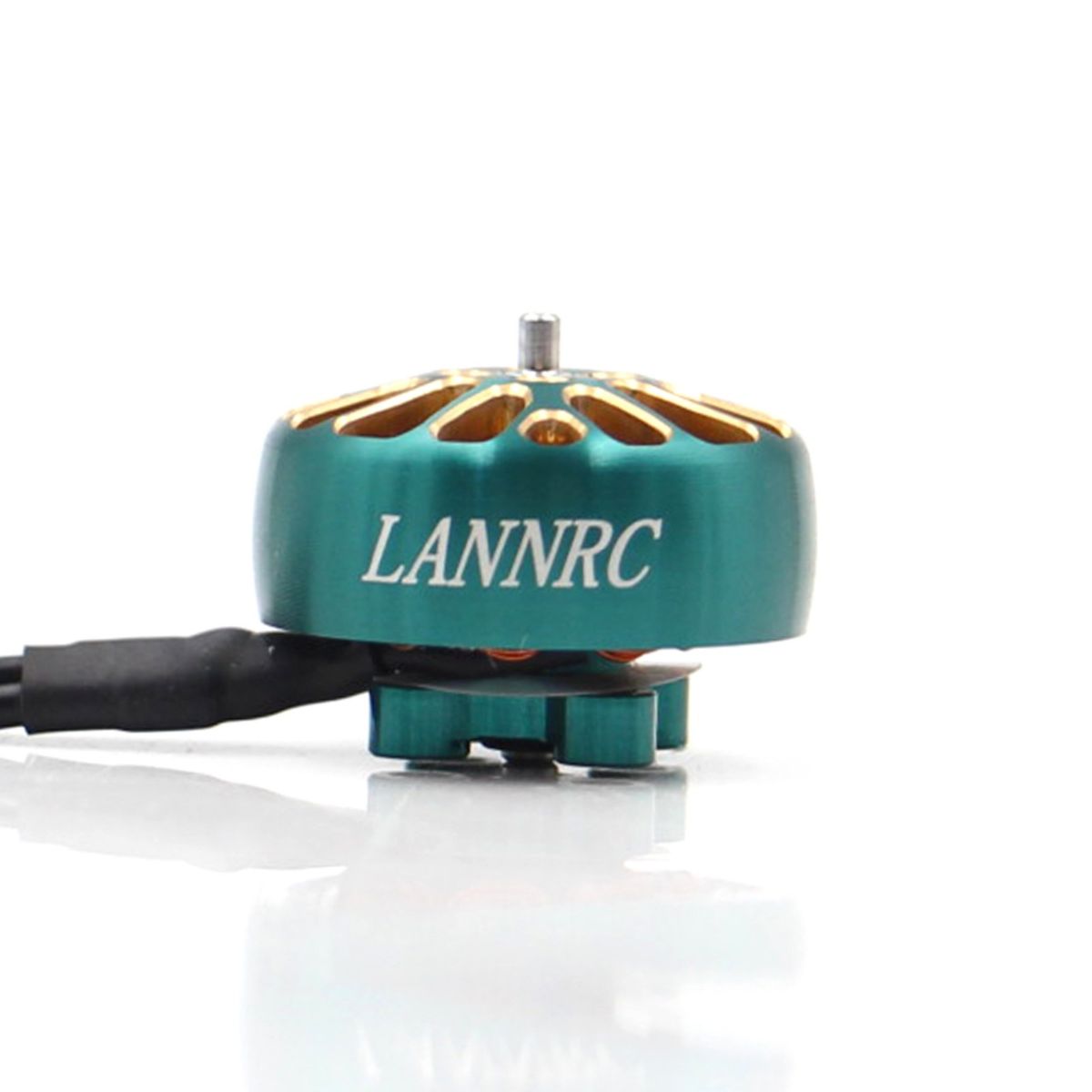

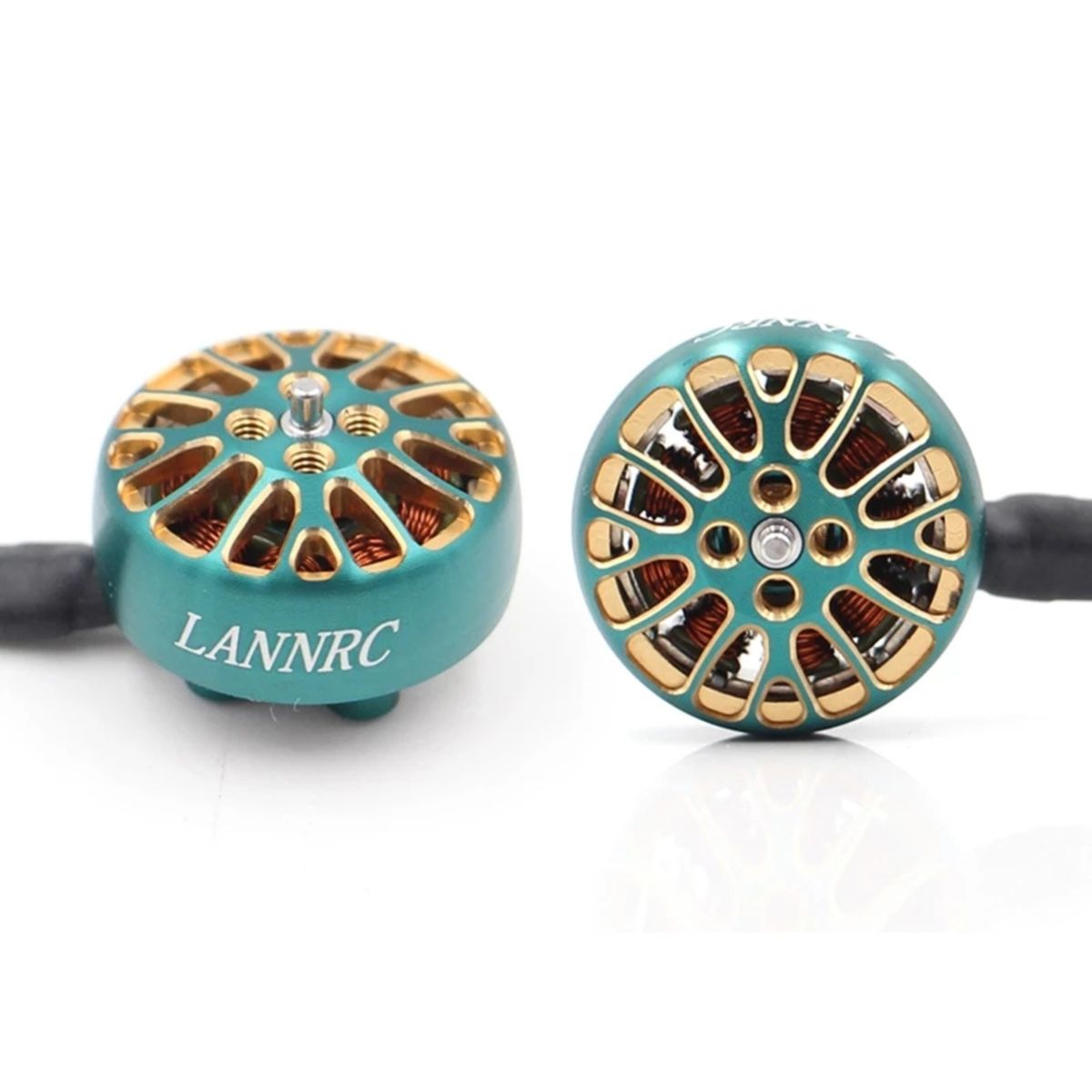

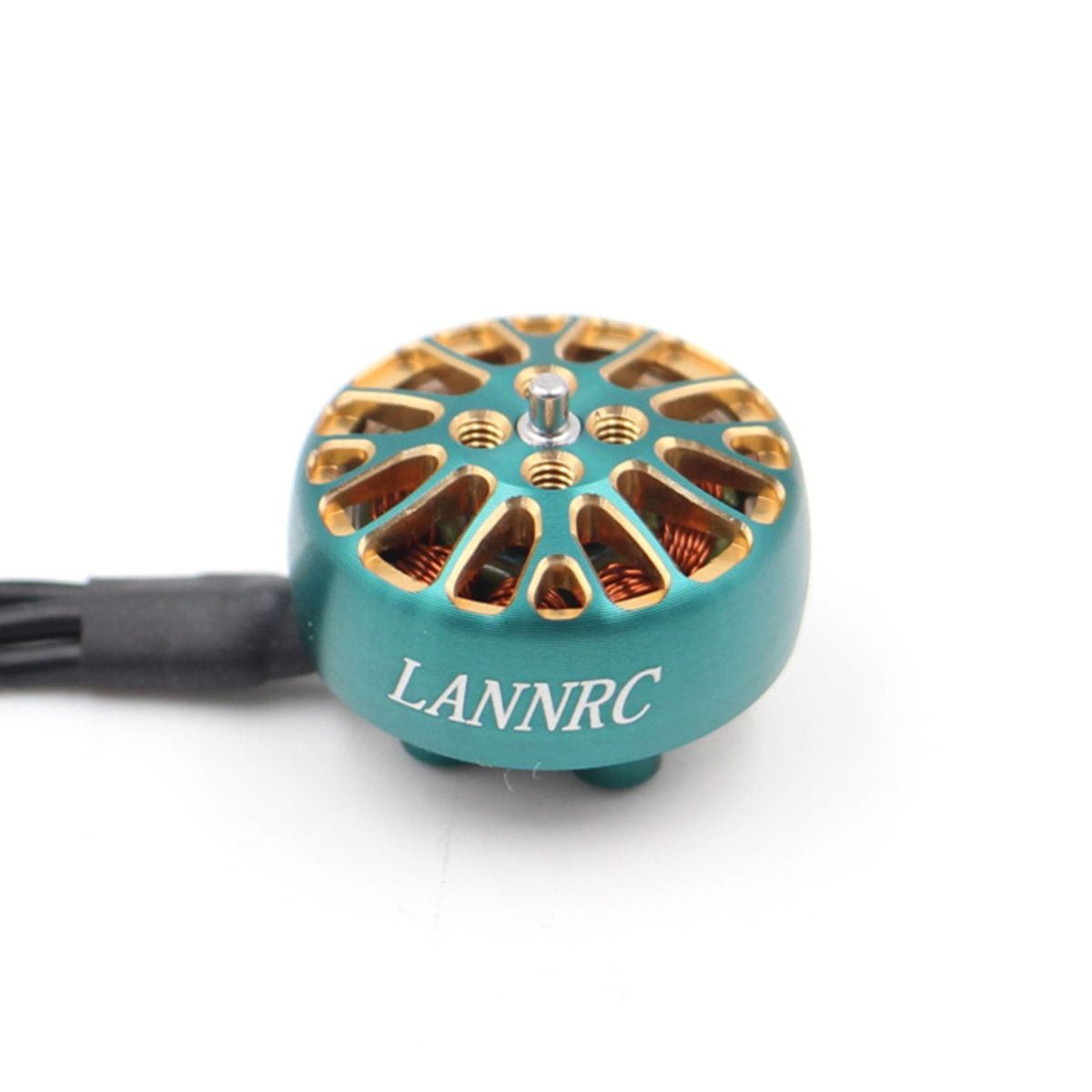

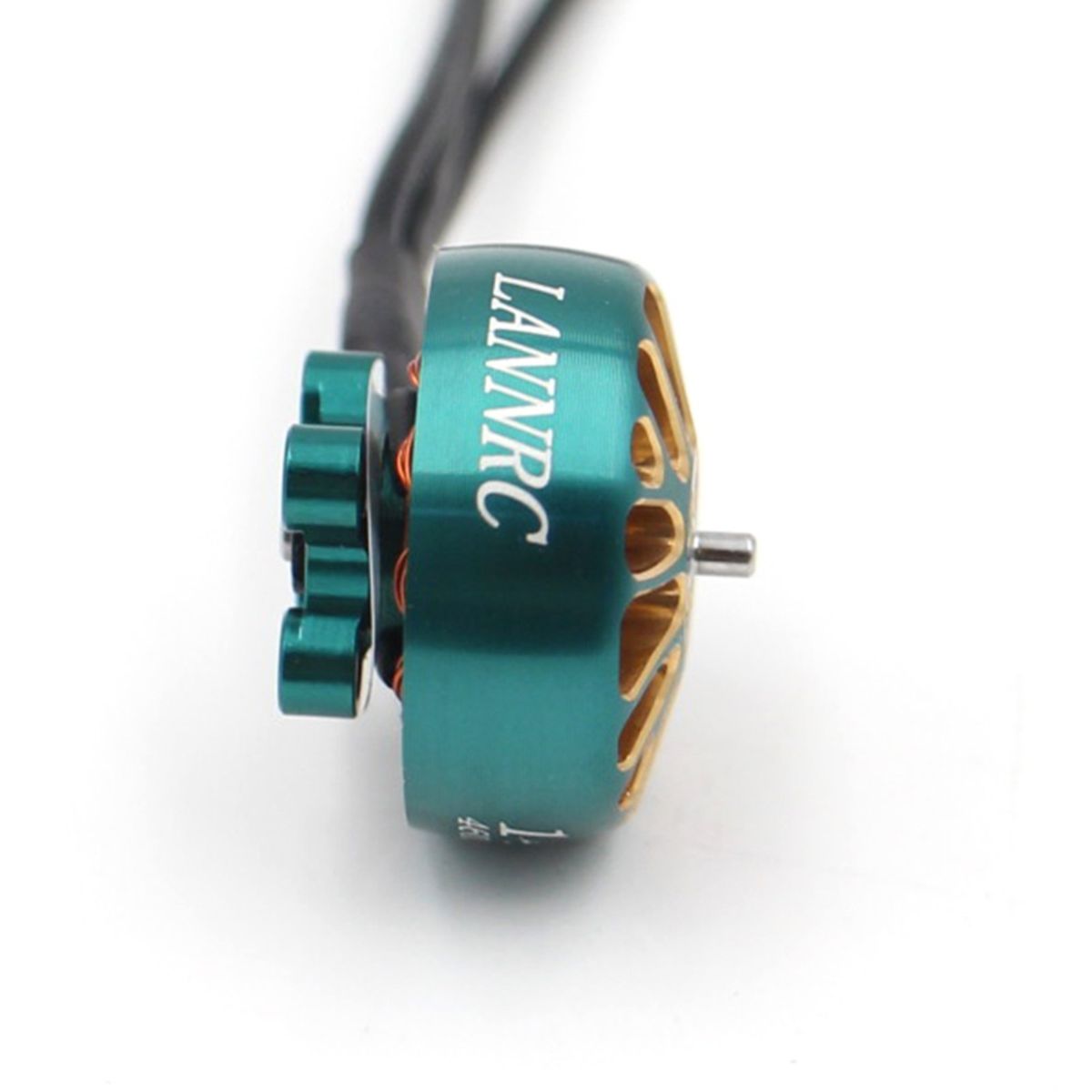

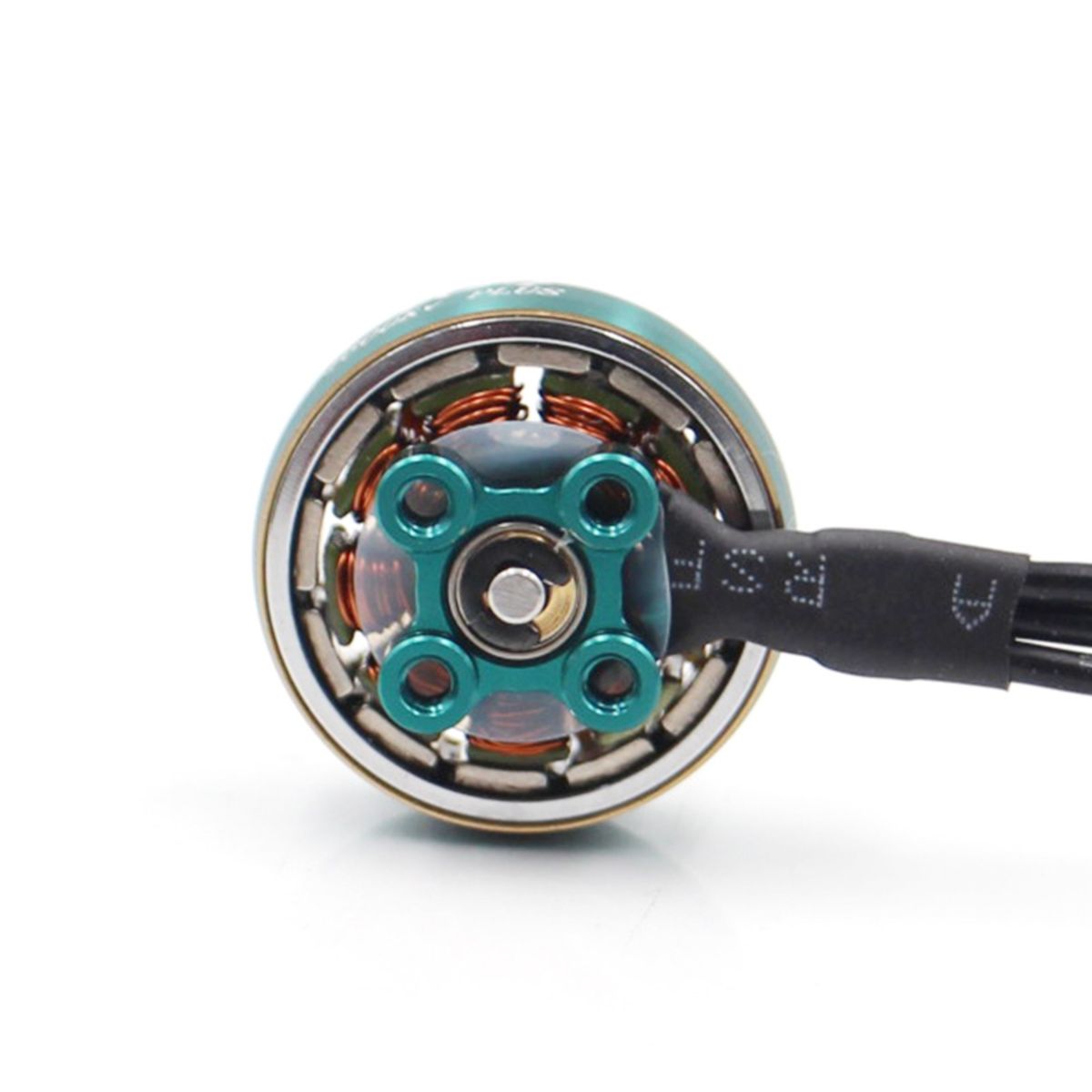

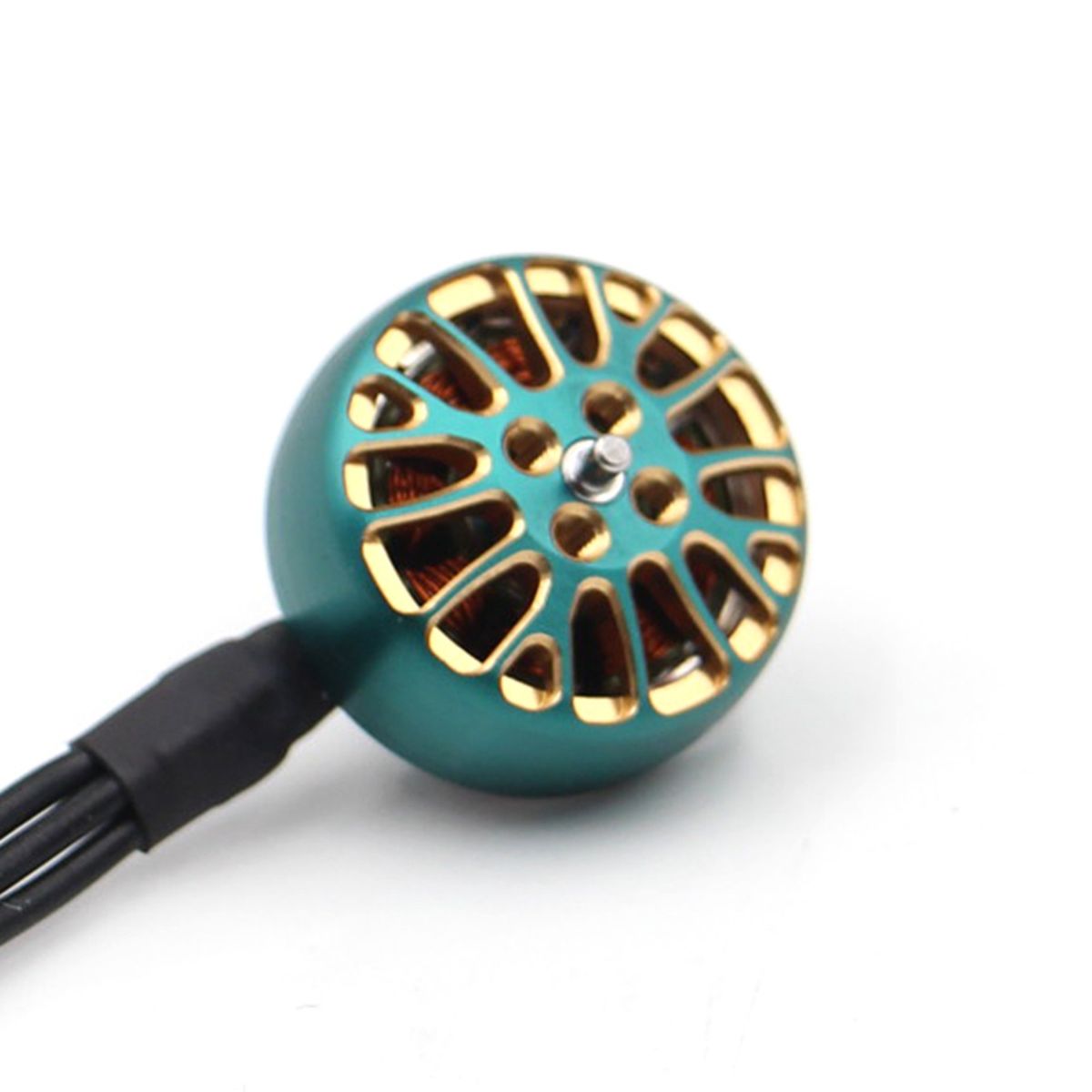

Model: 1404 PLUS
KV:4600
Configu-ration: 9N12P
Stator diameter: 14mm
Stator Length:4mm
Staft Diameter:2mm
Size: Phi;19.3*14.8mm
Weight:10.3g
Idle current (10) @10V: le;0.72A
No. of cells (Lipo): 3~4S
Max continuous power (W) 60S: 287.8W
Internal Resistance: 159m Omega;
Max current(60S): 17.99A
Cable: 22AWG # 150mm Cable
Package Information:
Package Size: 5*5*2cm
Package Weight: 80g
Plastic Package
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Machined aluminum front housing with fan-style cooling holes that pump air through the motor while it runs.
Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
High quality stator plates are epoxy coated on the inner surface to prevent winding shorts.
High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .
