Features:
Machined aluminum front housing with fan-style cooling holes that pump air through the motor while it runs.
Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
High quality stator plates are epoxy coated on the inner surface to prevent winding shorts.
High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .
Specifications:

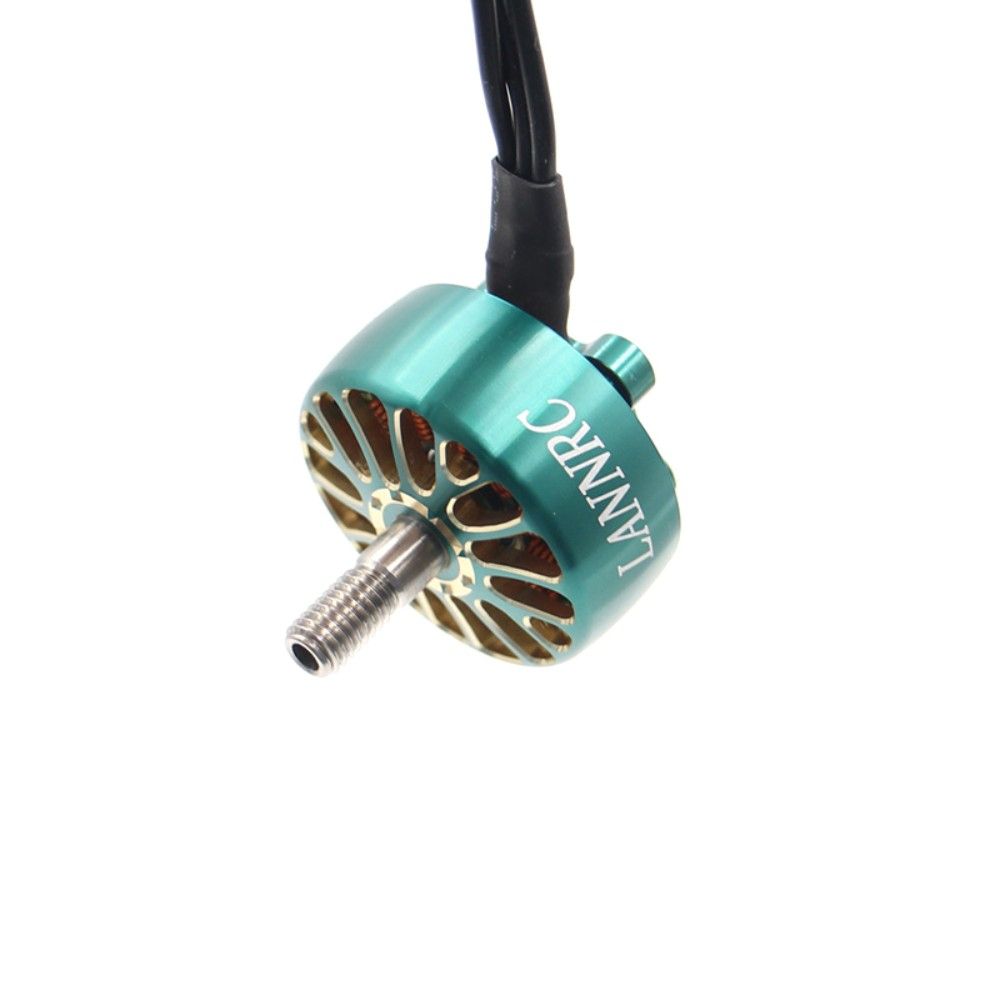

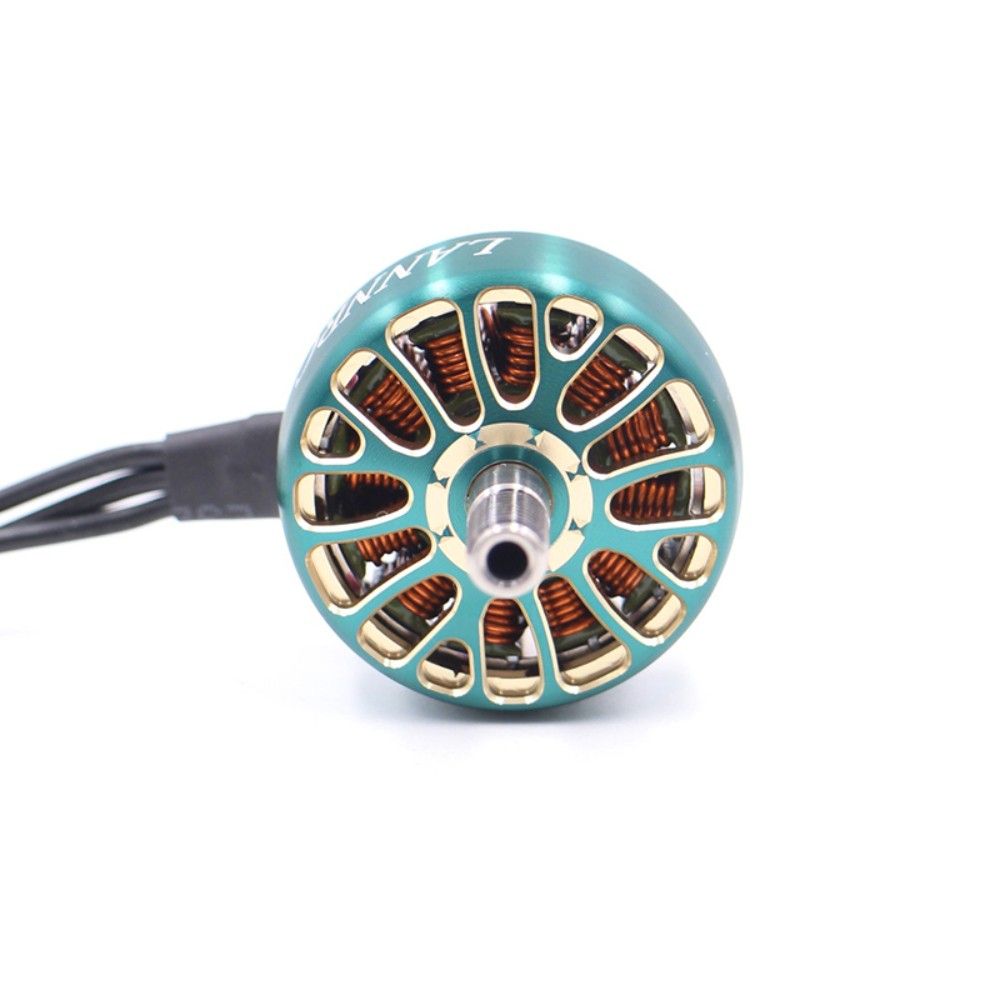

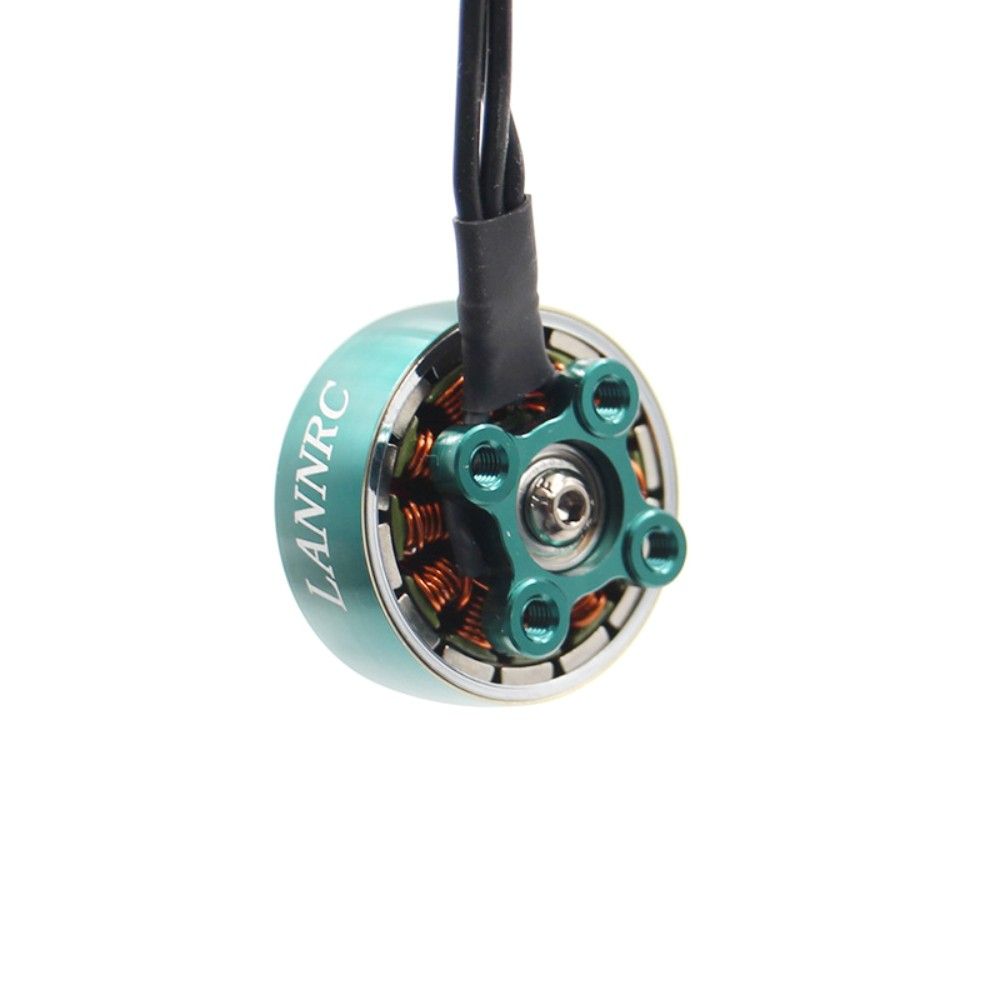

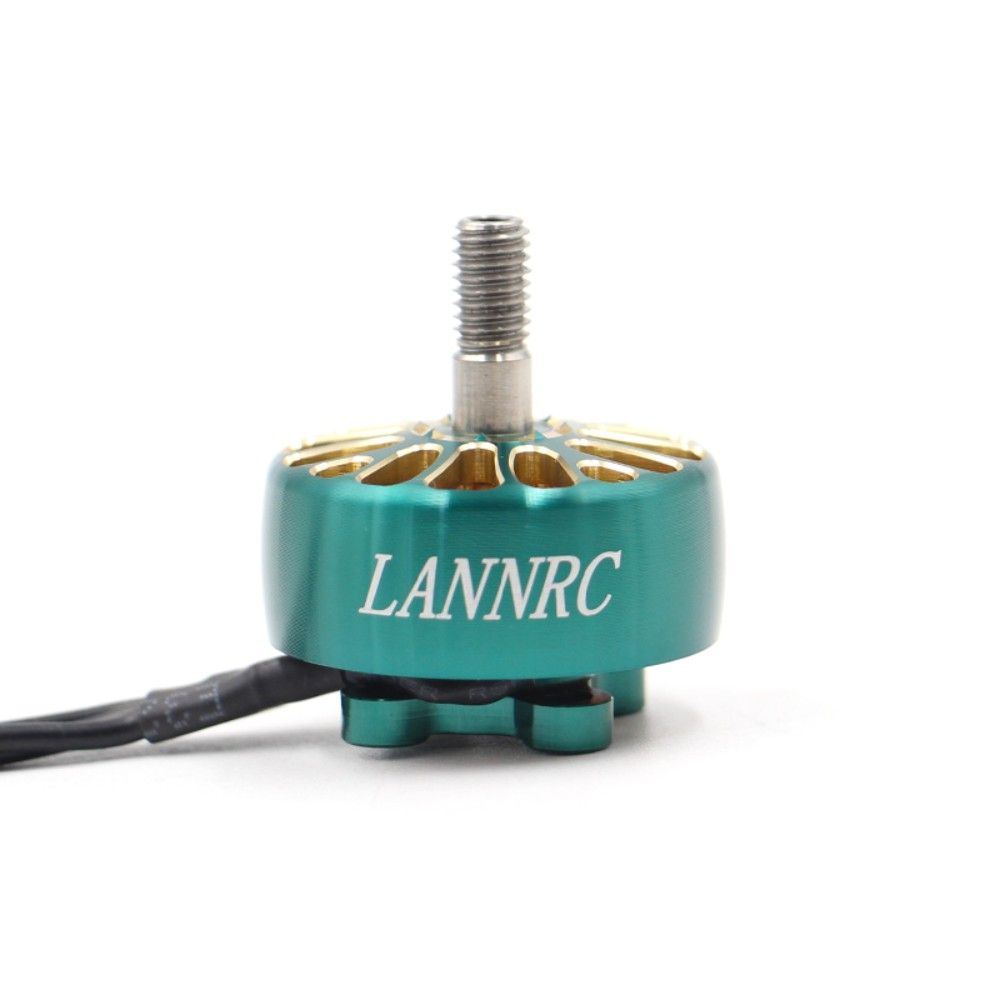

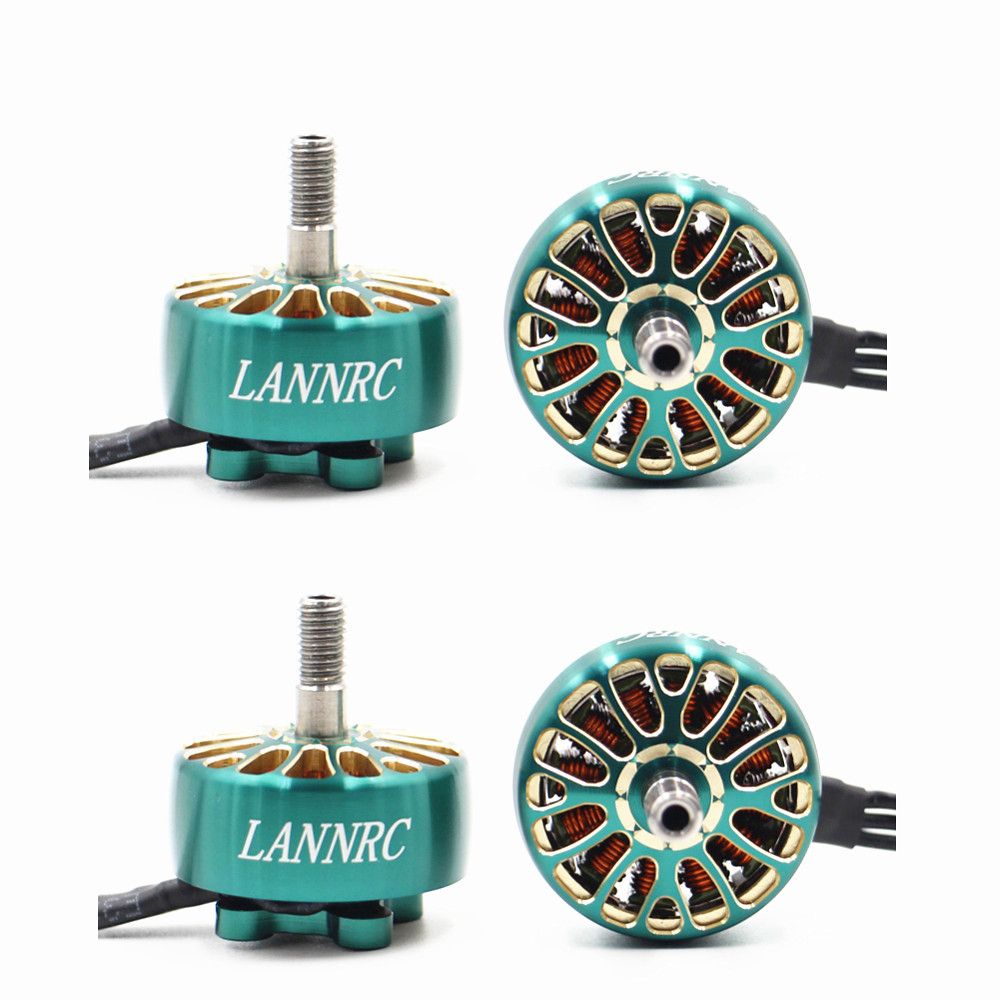

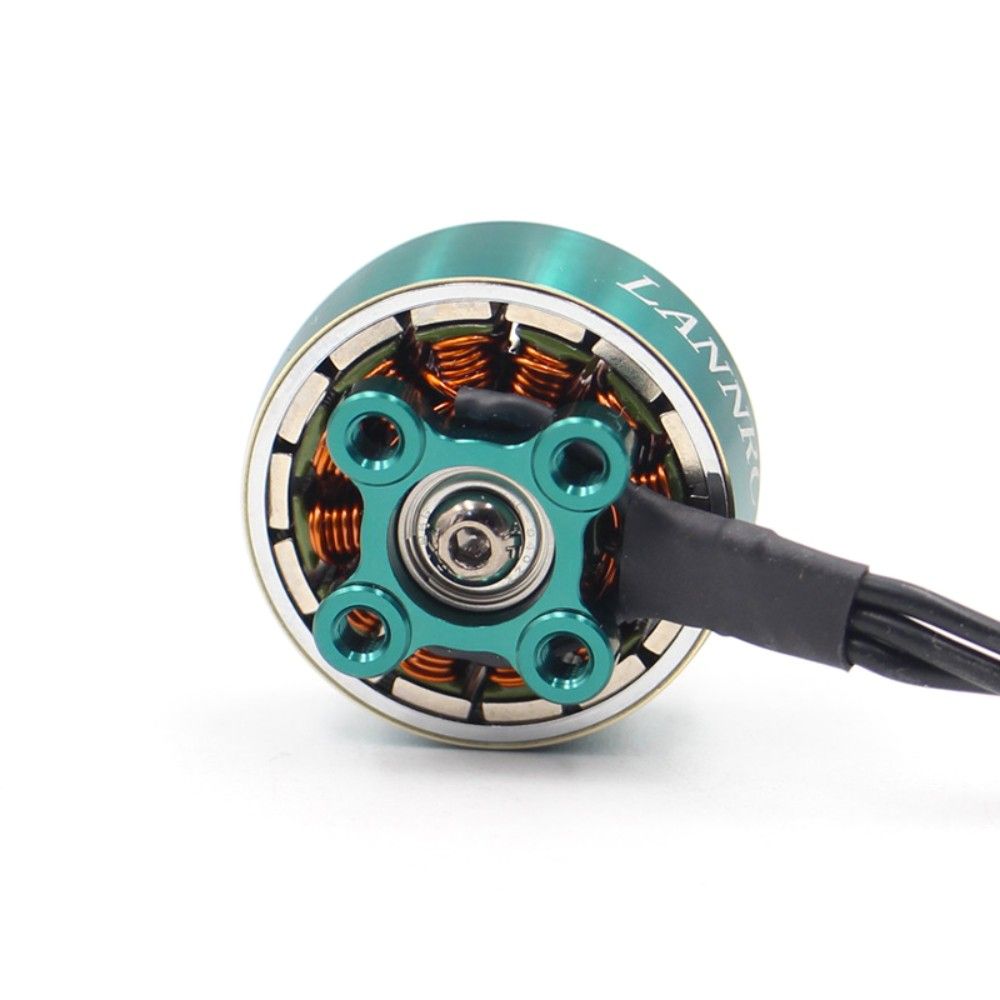

: LANNRC 2207.5 1800kv 1950kv 2550kv Brushless Motor
Parameters:
KV:2550
Confign Ration:12N14P
Stator Diameter:22mm
Stator Length:7.5mm
Staft Diameter:5mm
Size: Phi;28.3*19.5mm
Weight:36.4g
Idle Current(10)@10V: le;1.9A
NO.of Cells(LIPO):3-4S
Max Contimous Power(W)60S:750W
Internal Resistance:39m Omega;
Max Current(60S):46A
Cable: 20AWG x 150mm Cable
Package Information:
Package Size: 8*5*3cm
Package Weight: 120g
General Box Package
