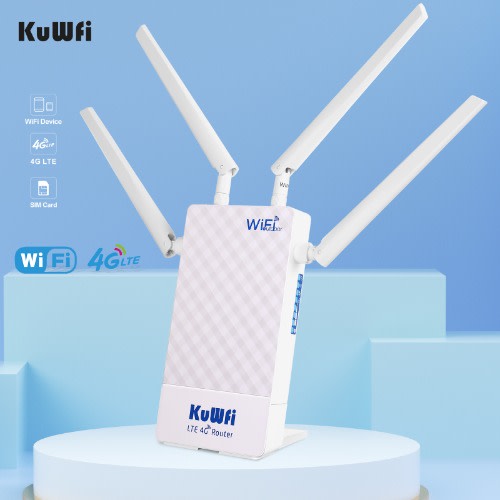

KuWFi 4G WIFI Router Outdoor 150Mbps LTE
Router 4G Sim Card Support Port Filtering MAC
IP Settings Waterproof Booster Extender
4G LTE FDD:B1/B3/B8(2100/1800/900MHZ)
4G LTE TDD:B38/B39/B40/B41
(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Work in EU, Asia, most of Africa
Features
4G wifi router:
4G WiFi Up to 150 Mbps, 2.4GHz WiFi speed up
to 300 Mbps.
Support SIM card insertion and broadband
connection to use the network
easy to carry, suitable for use at home,
travel, etc.
5DBi antenna
stronger signal. 2 4G antennas, 2 WiFi
antennas (support replacement of other
antennas)
Wider frequency band coverage
3 different versions of frequency bands
support users in all regions of the world.
Support multiple users to access the
Internet at the same time
the maximum number of network users can reach
10.
Support outdoor use
with waterproof, electric, dust and other
functions, can work at -20° to 75°C and 3km
altitude.
Update function
support port filtering MAC/IP/port filtering
settings port mapping DMZ settings,Can connect
an external antenna
- HW_VER:CPF905-CF5-RU POE version
- MTK Chipset:MT6735WM
- Wi-Fi Chipset:MT6625L
- RAM/ROM:4GByte EMMC+512MByte DDR2
- Wi-Fi:IEEE 802.11b/g/n
- Wi-Fi Transfer rate:UP to 150Mbps
- Encryption:Wi-Fi Protected Access
(WPA/WPA2)2
- Soft SIM:esim or softsim
- Customization:Smart system,high-
level;Customization possibility
- LED:LED indicator
SIM SlotMicro SIM (also include with a SIM
adapter which could turn Nano SIM to a Micro
SIM)
- HW_VER:CPF905-CF5 POE version
- MTK Chipset:MT6735WM
- Wi-Fi Chipset:MT6625L
- RAM/ROM:4GByte EMMC+512MByte DDR2
- Wi-Fi:IEEE 802.11b/g/n
- Wi-Fi Transfer rate:UP to 150Mbps
- Encryption:Wi-Fi Protected Access
(WPA/WPA2)2
- Soft SIM:esim or softsim
- Customization:Smart system,high-
level;Customization possibility
- LED:LED indicator
4G LTE Category Up to 150 Mbps Download / 50
Mbps Upload
2.4GHz WiFi Speed Up to 300 Mbps on 2.4GHz
Antennas 2 x 4G LTE Antennas,2 x WiFi
Antennas(The two antennas in the middle are
detachable, and the two antennas on the
outside are not detachable)
SIM Slot Micro SIM (also include with a SIM
adapter which could turn Nano SIM to a Micro
SIM)
Port.
- SIM:3FF SIM(SIM card is NOT including)
- USB:USB TYPE A (5V 1A IN)
- Power:12V 1A IN/48V POE Adapter(We only send
48V POE Adapter)
- RJ45:1* WAN/LAN
Internet
- Wi-Fi:Wi-Fi AP Max 10 users
- SSID:4G-CPE-XXXX(last 4 digits of IMEI)
- WiFi password by default:1234567890
Operating Environment
- Working temperature: -20° to 75°C
- Working height:Current tested max height
3000m (10,000 inches)
Operation system
- PC Users: A PC with Windows XP (SP3),
Windows Vista (SP1), Windows 7,or Windows 8
- MAC Users: A Mac with OS X v10.5.7,OS X Lion
v10.7.3 or later
- IPAD Uers: An iPhone, iPad, or iPod touch
with iOS 5 or later
- Android Uers: An mobile Phone or Tablet PC
with Android 2.3 or later
If your indoor signal is strong enough, you
can put the 4g router indoors. After inserting
the sim card, the router can directly provide
wifi for computers and mobile phones.
If you have no signal indoors, you can install
the router outdoors one and then install a
wifi amplifier indoors. The wifi amplifier can
enhance the wifi signal; even if you put the
4g router outdoors, you can also use the wifi
indoors through the wifi amplifier
If your settings are correct and the device
still cannot connect to the network, please
consider whether it is caused by the following
problems:
1.Account got suspended for too much data
usage.
2.Is the SIM card an IoT card?
3.the sim card have limited service ,not work
with router or hotspot .
4.not support roaming service.
5.some place did not cover the network
Frequency band.
HOW To Use
Please insert SIM card then power on the
router, Even if your SIM card is compatible
with the product, it is not necessarily plug
and play, you may need to disable the PIN code
of the SIM card and modify the APN .Enter the
router IP address: 192.168.199.1 and Click
Network—APN—Enable. Modify APN. You can find
the APN of the SIM card from the carrier's
official website or mobile phone. Make sure
the SIM card is activate, Not support roaming
service and Virtual SIM Card and IoT SIM Card
POE powered
Using standard 48VPoE power supply, no
external power supply is required, and each AP
only needs one network cable, which is
convenient for construction.
Note: It needs to be used with PoE power
supply equipment such as PoE switch and 48V
PoE injector.
