Description:

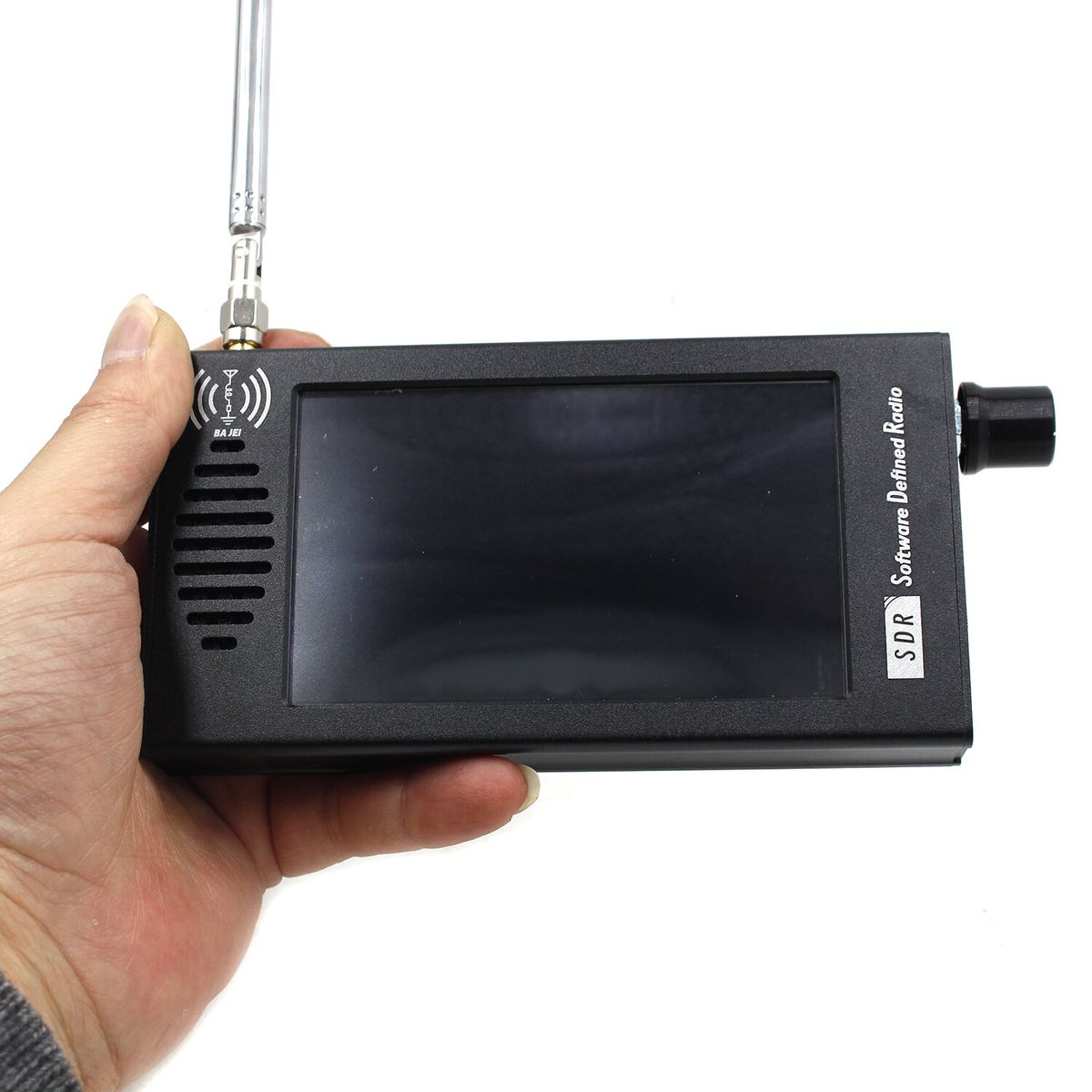

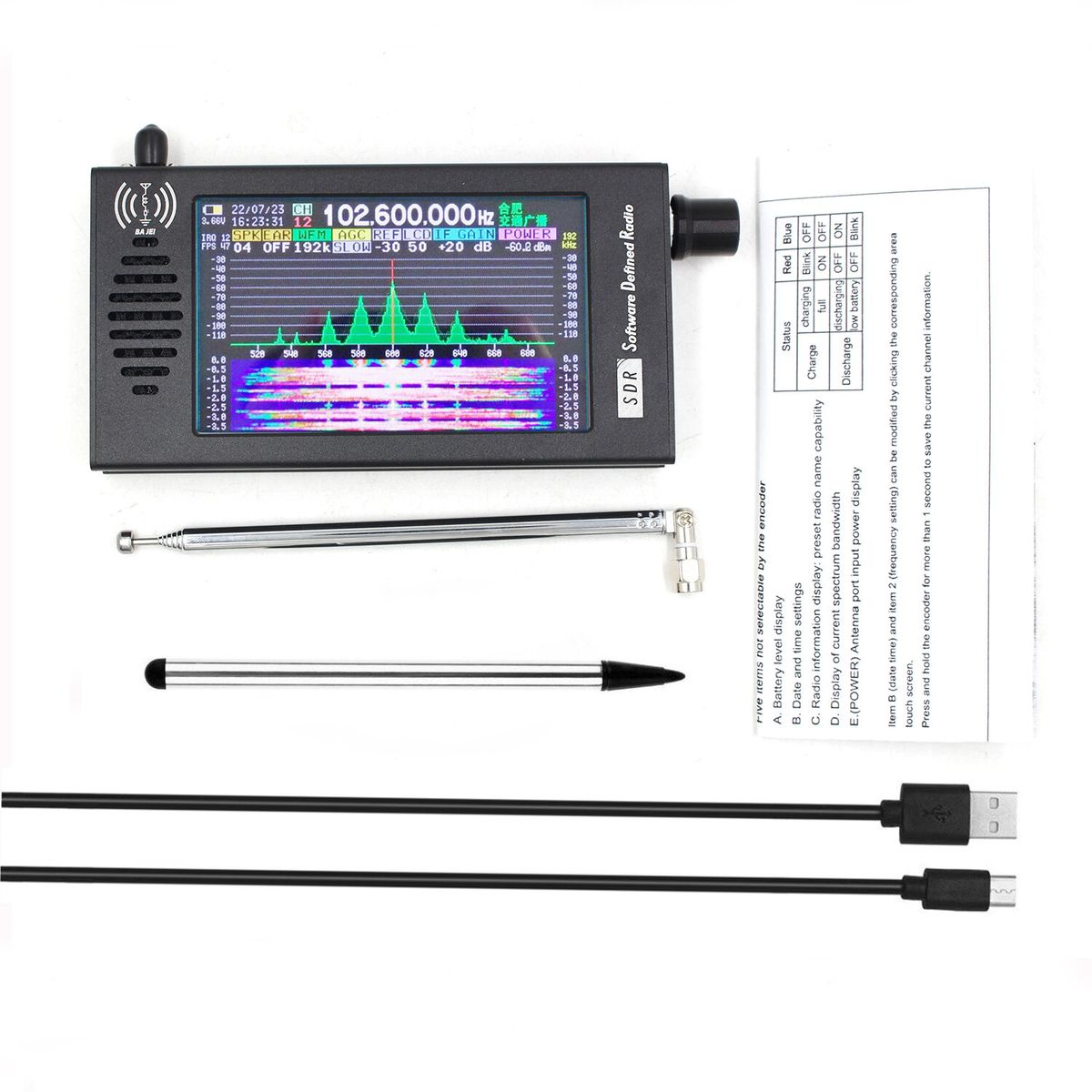

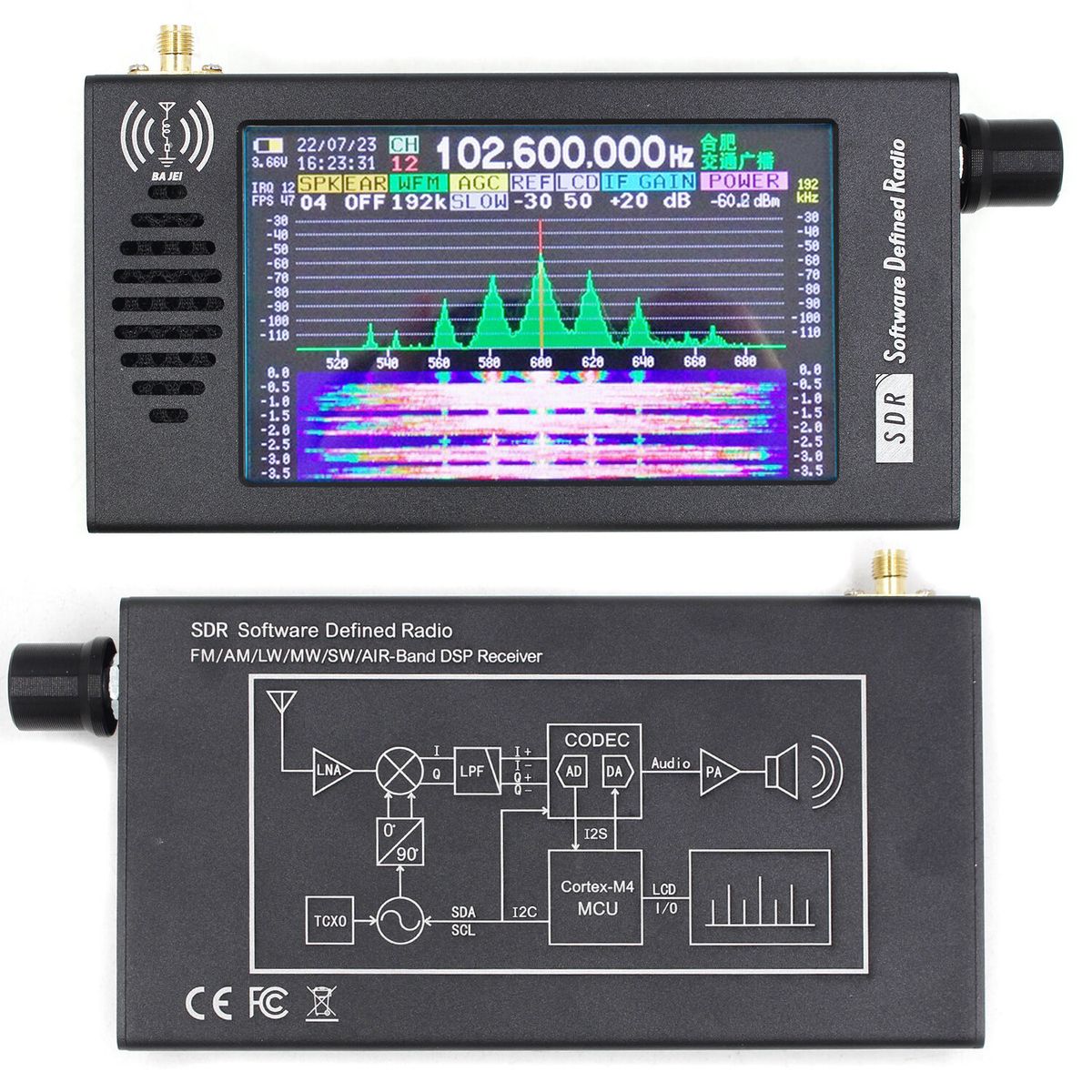

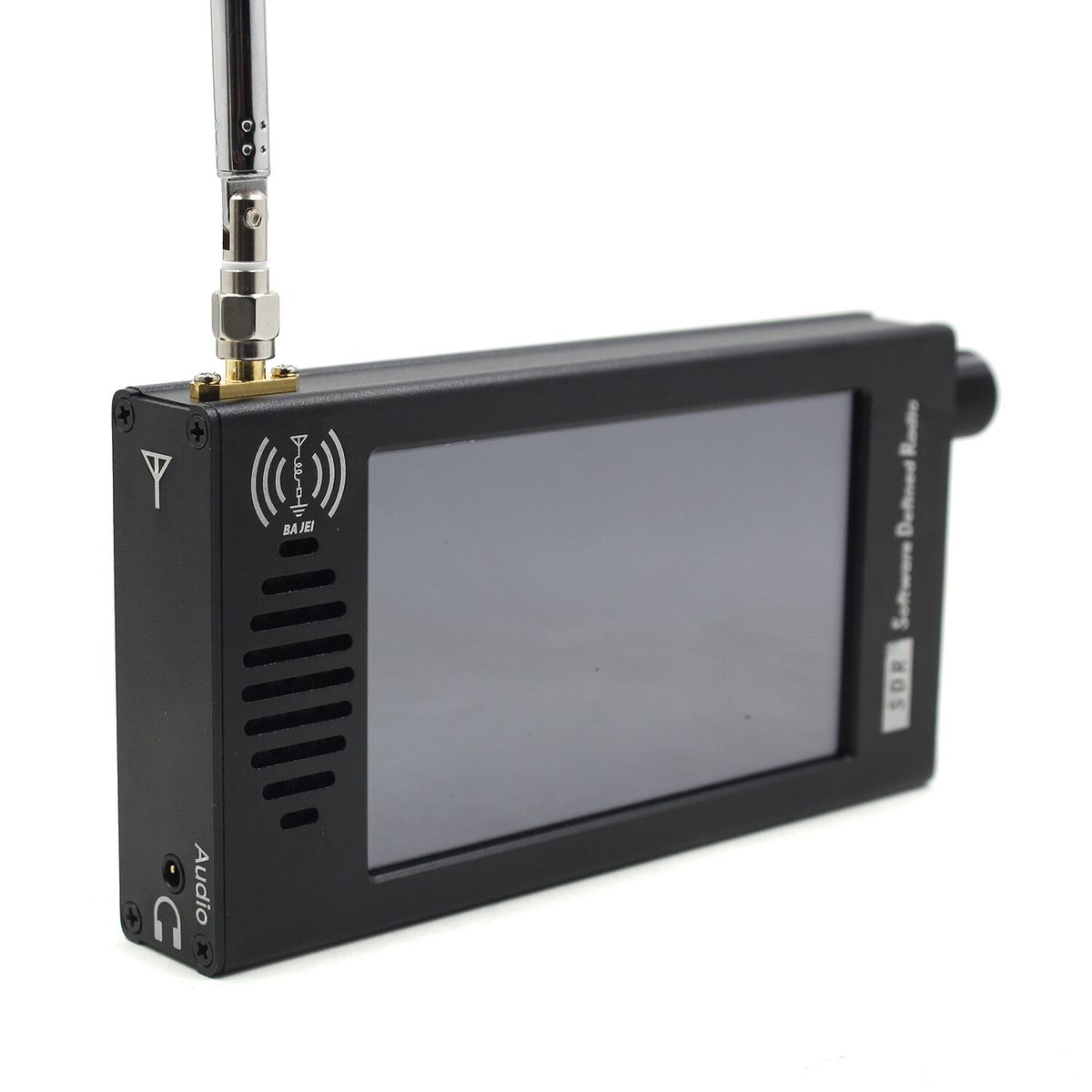

SDR 101 is a DSP digital demodulation radio based on SDR software-defined radio architecture. It has a 192kHz width spectrogram and waterfall display capabilities, and cooperates with 16bit sampling to realize a high dynamic receiver with CW, AM, SSB, FM demodulation functions. The whole machine adopts an all-aluminum alloy CNC shell, with a 4.3-inch 800x480 resolution high-brightness IPS LCD display, while maintaining a compact and compact body.
Immediately take it to the outdoors, enjoy the natural scenery and the fun of listening anytime, anywhere!
gt; gt;Please click here to download the SDR 101 product manual lt; lt;
Basic parameters:
Display technology:： 4.3-inch IPS 800x480 resolution DC dimming bright LCD
Control method： resistive touch screen + rotary encoder
Frequency range： 100k ndash; 149MHz
Working mode： CW, AM, SSB single sideband (LSB/USB), WFM, FM broadcast stereo (requires earphones)
Step frequency： 1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Spectral bandwidth： 192kHz, 128kHz, 64kHz, FFT real-time spectrum display

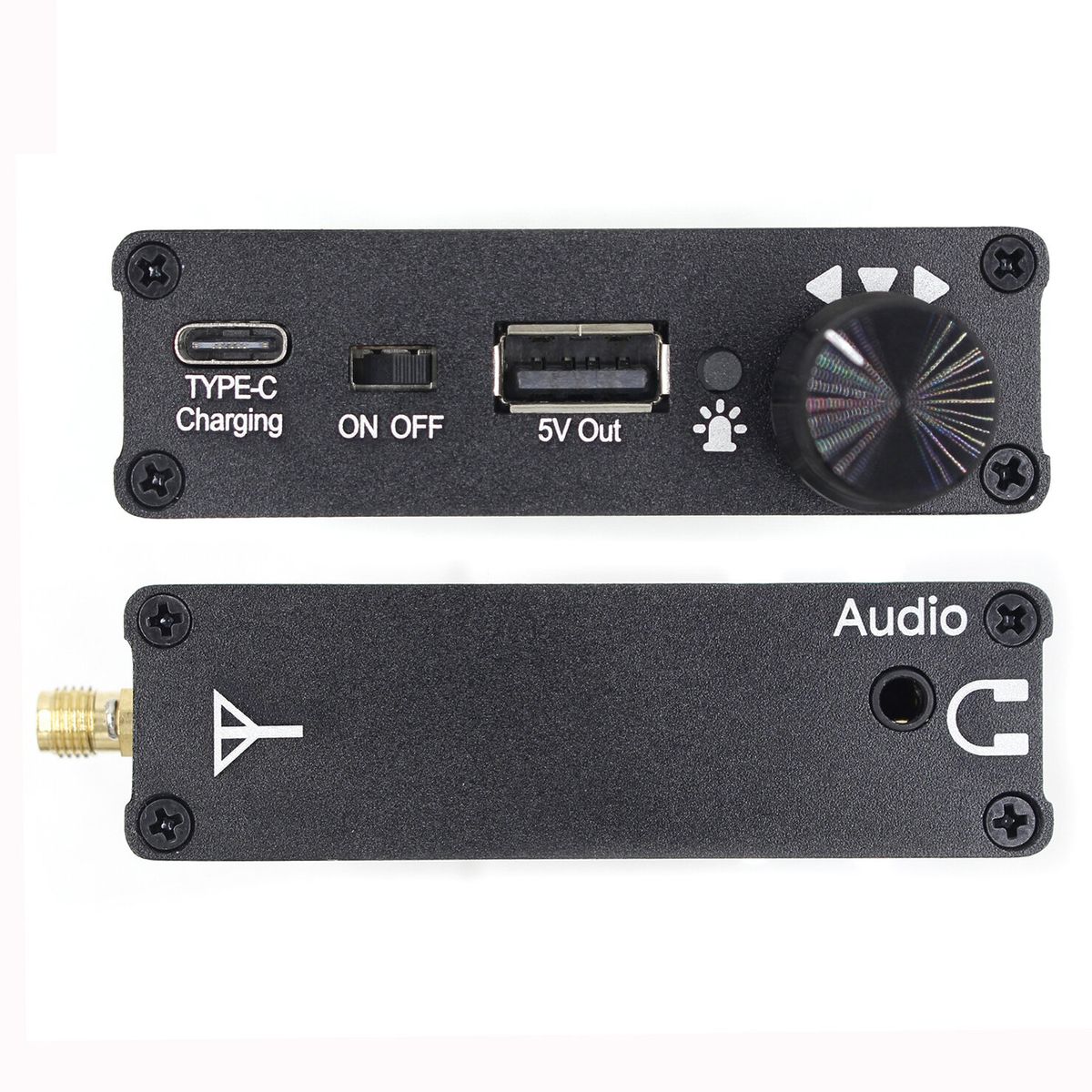

Antenna interface： BNC male, impedance 50 Omega;, maximum input power -20dBm
Reference crystal： TCXO 26MHz plusmn;0.5ppm
Audio interface： support ordinary 3.5mm earphone or CTIA (American Standard) interface earphone
Speaker power： maximum 3W, 4 Omega; multimedia speaker speaker

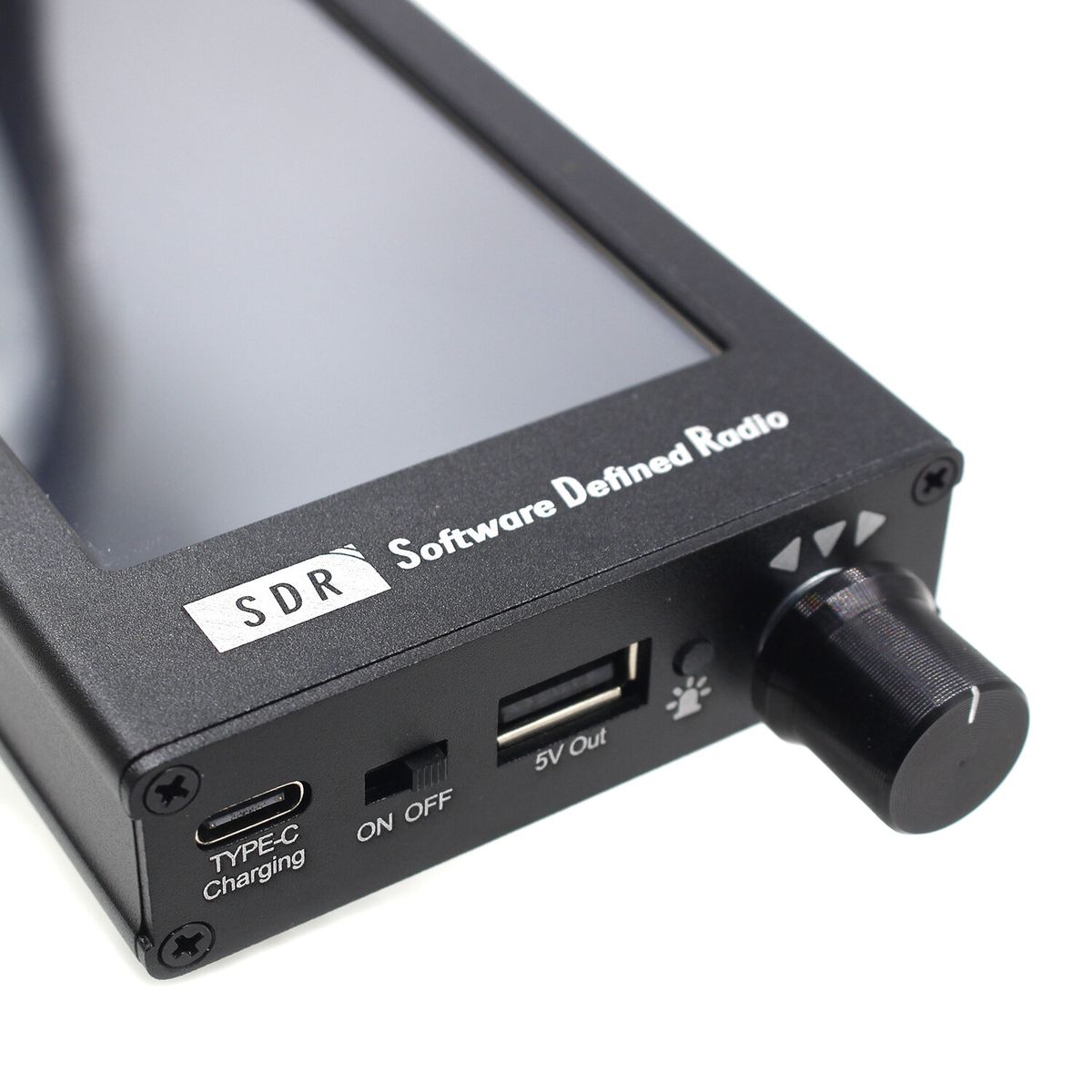

Charging port： USB Type-C, 5.0V/2A
Current consumption： about 250mA @ 5V
Battery capacity： 5000mAh/3.7V, 18.5Wh
Use time： About 10-12 hours, depending on the volume and brightness settings of the machine
Channel saving： 99 channels can be preset, preset radio station name, station frequency and demodulation mode
Body size
