Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.
Features:

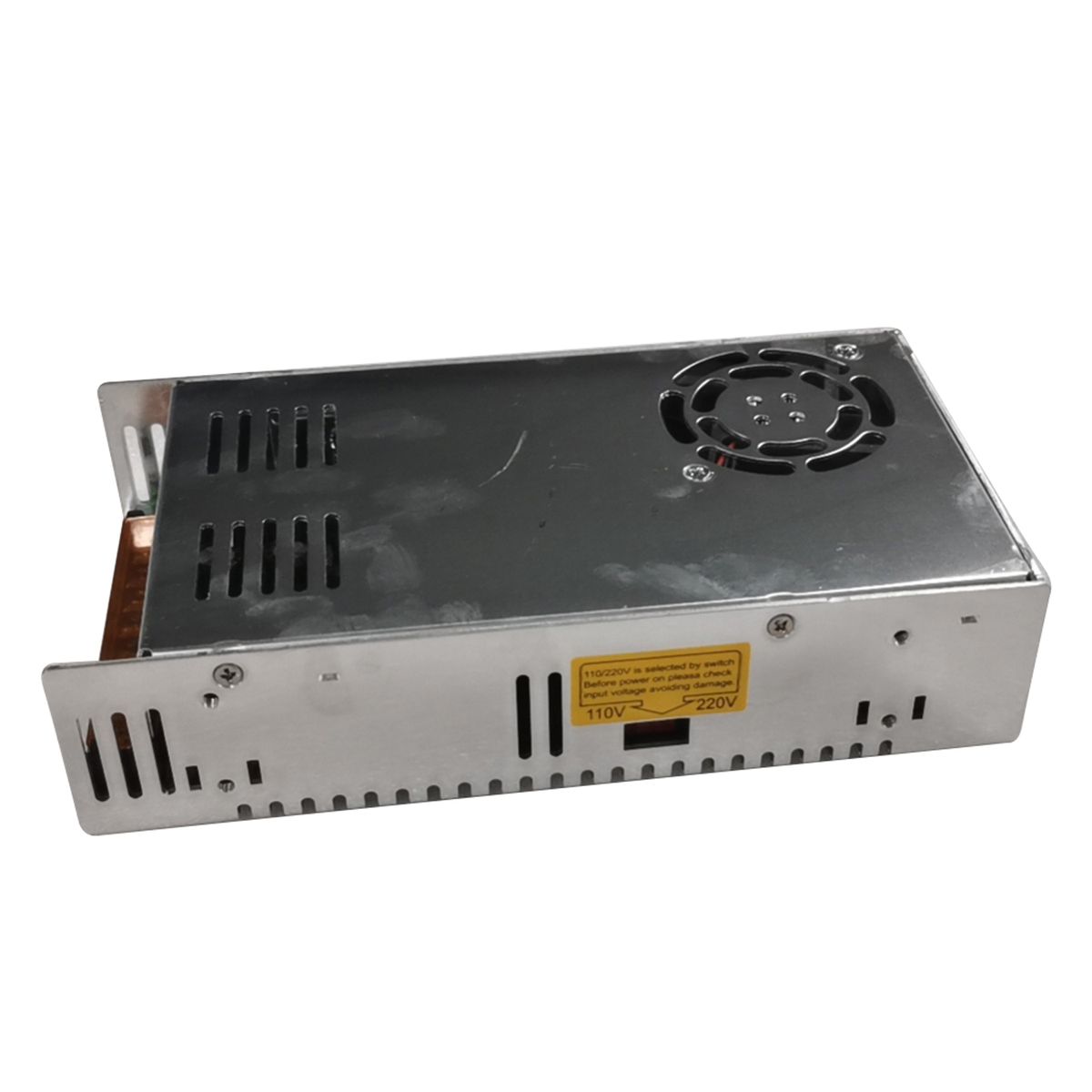

Convert AC input selected by switch.
With over voltage, over current, high temperature, short circuit protection.
Built-in DC fan forced air cooling.
PWM control.
Automatic cooling fan control.
100% full load burn-in test.
Low cost, high reliability, has a long service life.

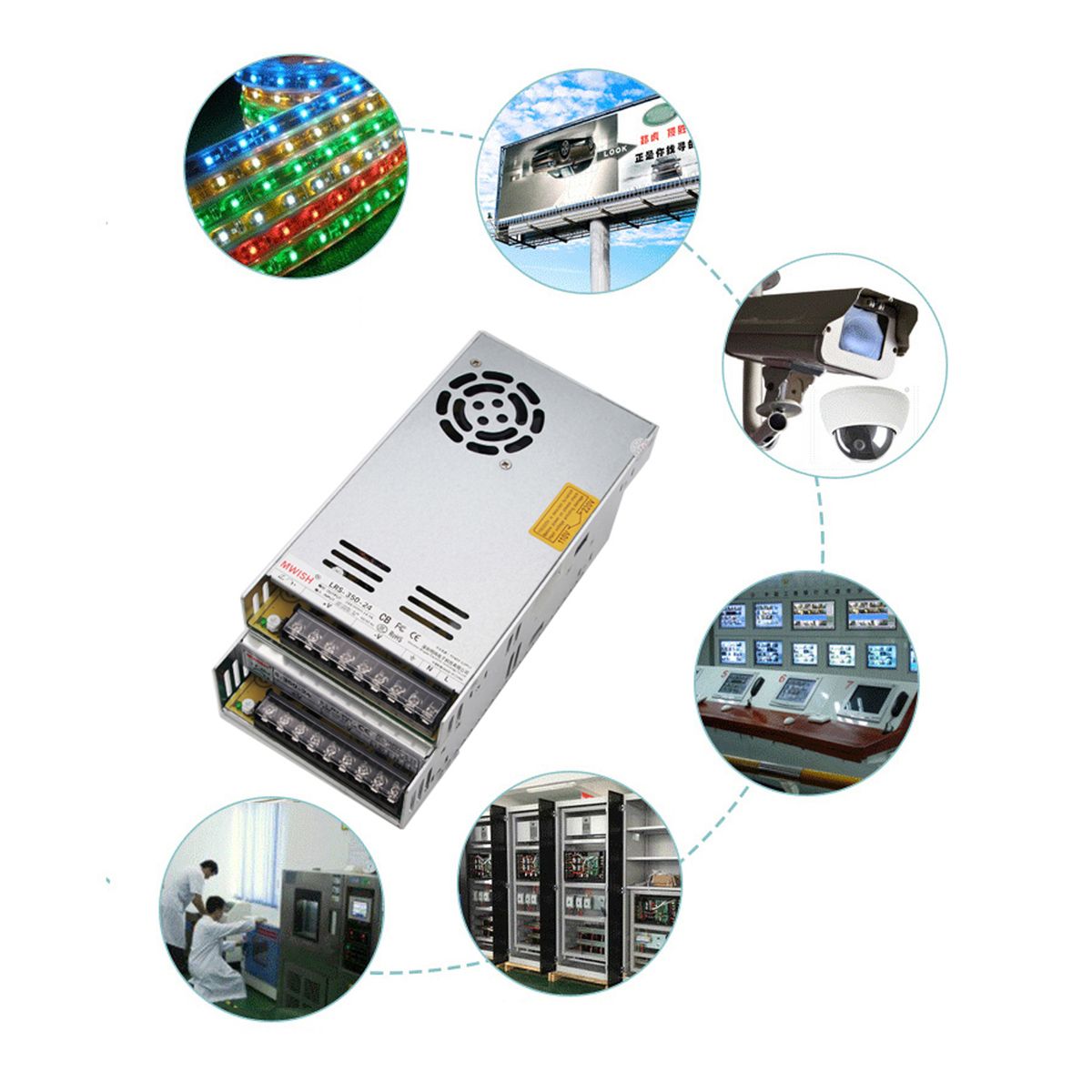

Can be used in industrial control equipment, automation control, LED display, LED lighting, billboard light boxes, water and electricity installation, electronic communications, instrumentation and other industries.
Specifications:
Material: metal
Color: silver

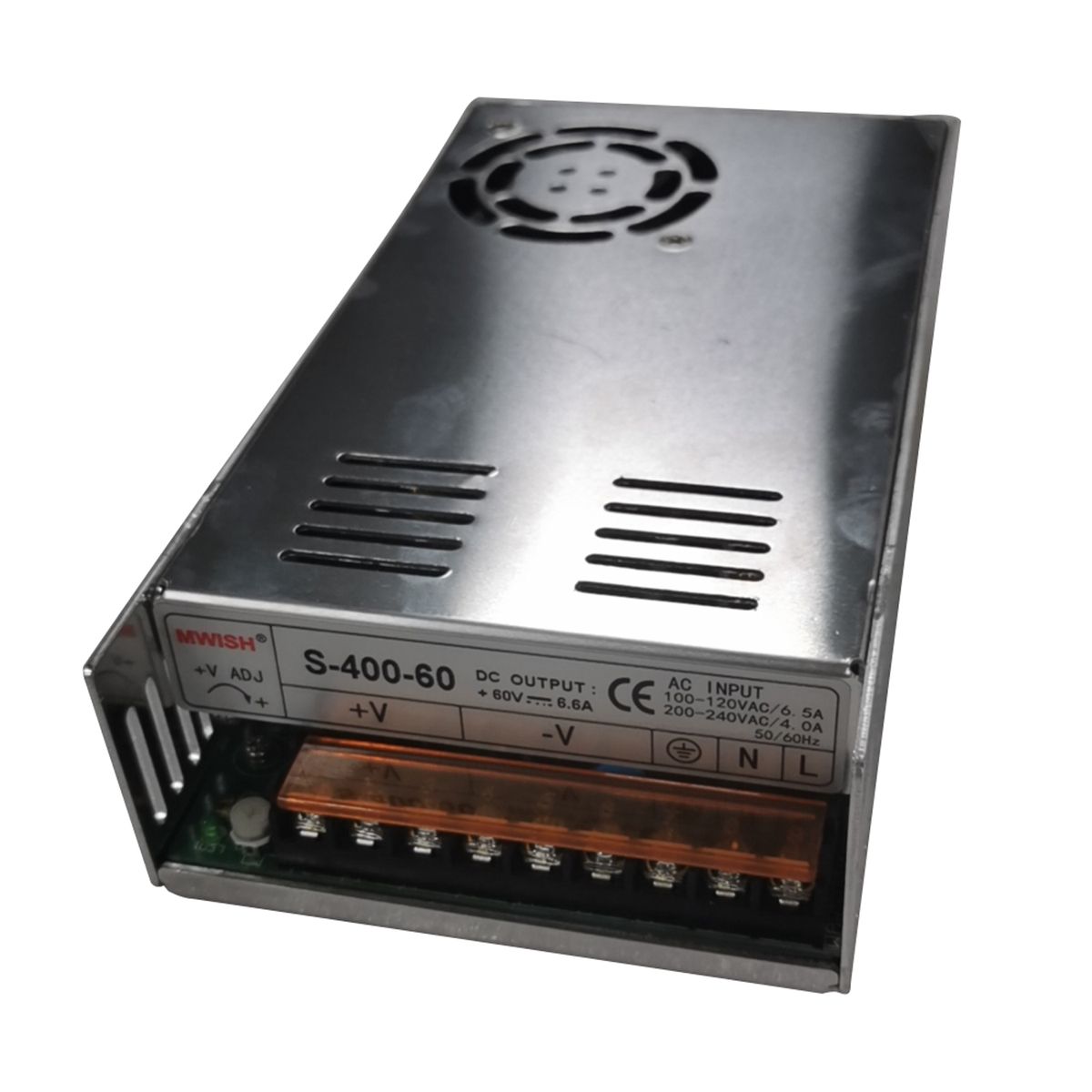

Model: S-400-60
DC output voltage: 60V
Output voltage tolerance: plusmn;1%
Rated output current: 6.6A
Output current range: 0~6.6A
Wave and noise: 150mVp-p
Inlet stability: plusmn;0.5%
Load stability: plusmn;0.5%
DC output power: 396W
Efficiency: 86%
Adjustable range for DC voltage: plusmn;10%
AC input voltage range: 90~132V AC / 180~264V AC selected by switch 47~63Hz; 254~370V DC
Input current: 7A / 115V, 4.5A / 230V
AC inrush current: 25A / 115V, 50A / 230V
Leakage current: 3.5mA / 240V AC
Overload protection: 105%~135% shut off current, automatically restore
Over voltage protection: 115%~135% of the output voltage
High temperature protection: RTH3 ge;65℃ fan on, RTH3 le;55℃ fan off, RTH3 ge;80℃ off the output
Temperature coefficient: plusmn;0.03% / ℃ (0~50℃)
Setup, rise, hold up time: 200ms, 100ms, 30ms
Vibration: 10~500Hz, 2G 10 minutes / cycle, 60 minutes each for X, Y, and Z
Withstand voltage: input and output internal: 1.5KVAC, input and enclosure: 1.5KVAC, output and enclosure: 0.5KVAC
Isolation resistance: input and output internal, input and enclosure, output and enclosure: 500VDC / 100M Omega;
Working temperature and humidity: -10℃~+60℃, 20%~90%RH
Storage temperature and humidity: -20℃~+85℃, 10%~95%RH
size: 215 * 115 * 50mm / 8.5 * 4.5 * 2.0in
Package size: 220 * 120 * 60mm / 8.7 * 4.7 * 2.4in
Package weight: 900g / 2.0lb
Packing List:
1 * 400W 60V / 6.6A Switching Power Supply
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.
Convert AC input selected by switch.
With over voltage, over current, high temperature, short circuit protection.
Built-in DC fan forced air cooling.
Automatic cooling fan control.
