1. Sensor (Clamp-in/Snap-in,315MHz/433MHz) is the programmable universal sensor specially built for efficient sensor replacement. It perform like old sensors,in terms of signal interval,durability,and functionality. Featuring a convenient design that allows for quick installation and removal of the sensor,it is truly the ultimate TPMS solution.

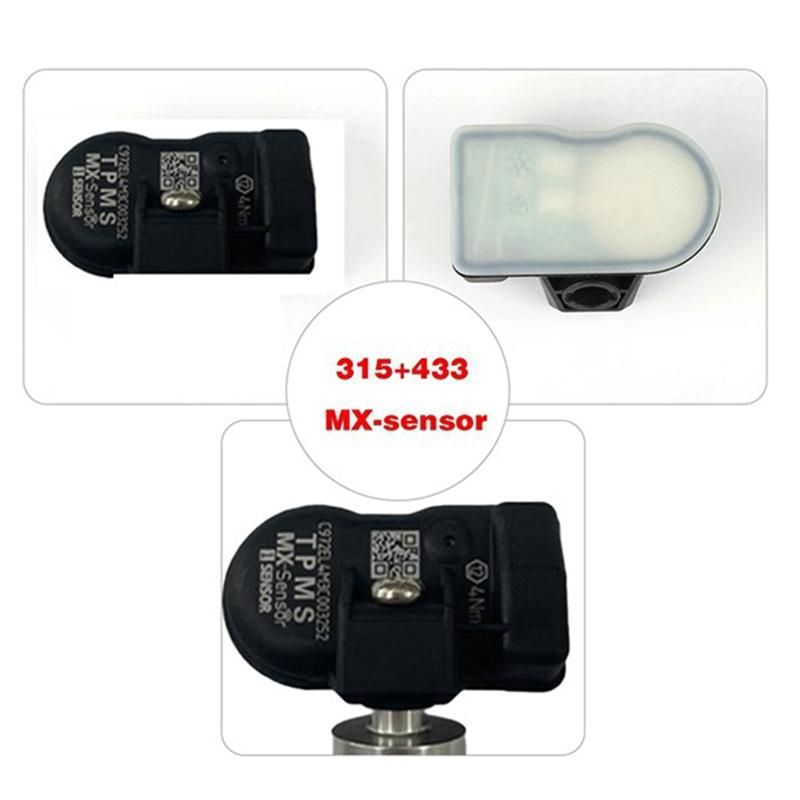

2. Sensor(SW2IN1) is a programmable universal sensor specially built to combine both. 315MHz and 433MHz applications in ONE sensor for efficient replacement.
3. Featuring the exclusive press release valve design to allow rubber and metal stems to interchange by hand,without a sensor head fitting tool. Performs like sensor signal interval,durability,and functionality.

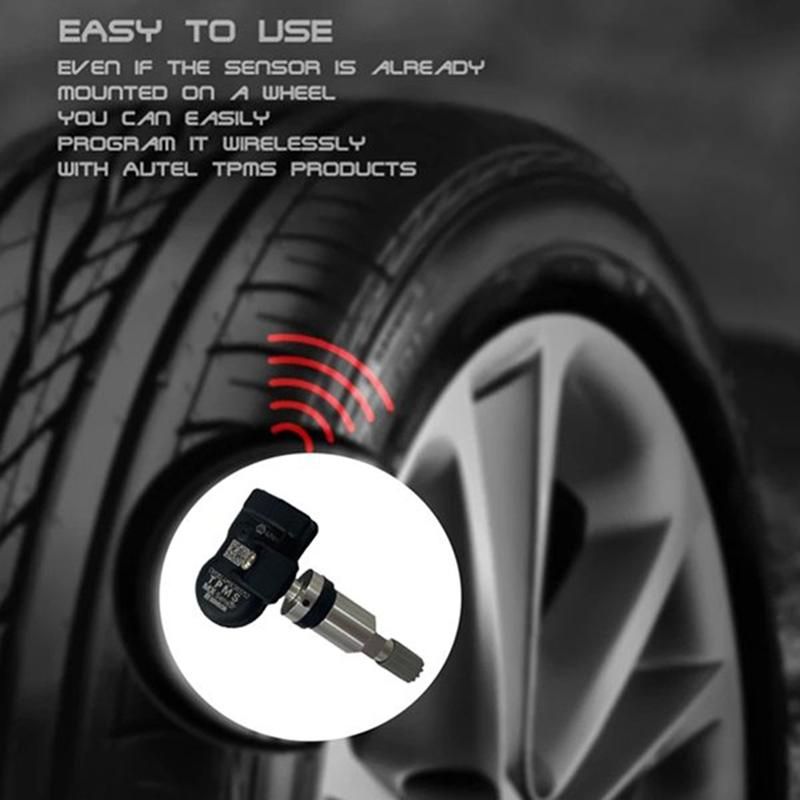

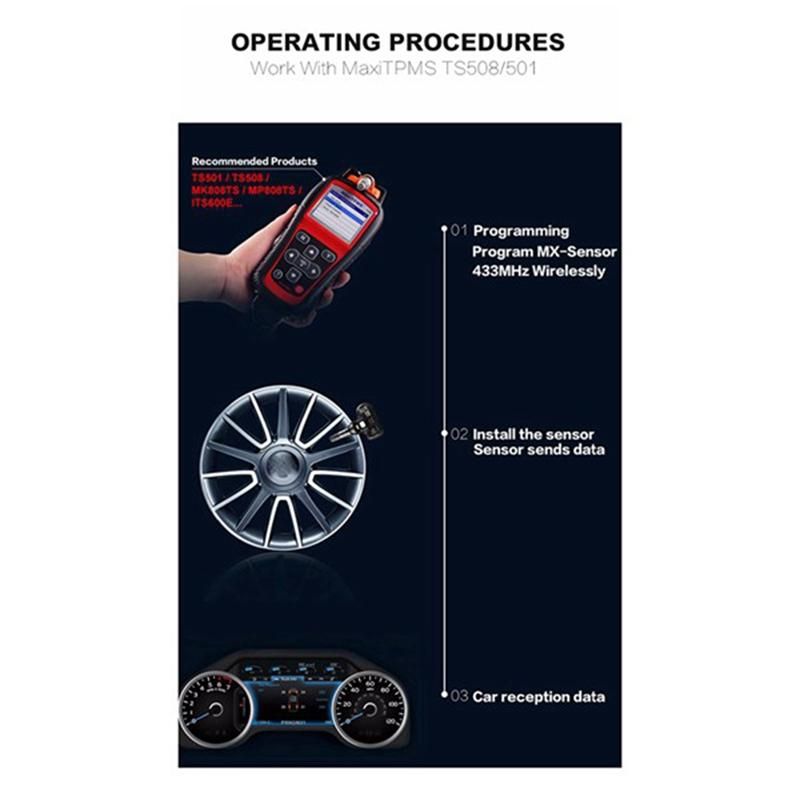

4. Sensor(SW2IN1) can replace direct TPMS sensors fitted on wheels, including old equipment and programmable universal sensors. Our Sensors can be programmed to replaced 98% sensors on vehicles today. Sensor(SW2IN1) can be programmed by Autel diagnostic scanner (eg. TS508 TS601 MK808TS MP808TS) to replace to cover over 98% of all sensors on the market.
Battery: CR2032
Battery Life: greater than equal 3 years
Battery voltage: 3.0 V
Low Frequency
Inductance/125KHZ PREMO/TDK
7.2MH/5.89MH
Crystal Oscillator/3225 NKD 26MHz
Chip USA-NXP-Freescale-FXTH87E
Valve Chuangxin
Operating Temperature: -45 - 125℃
Pressure rating: Max support 900Kpa
Transmission Power: less than equal 8dBm (5-8dBm)
Transmit frequency: 433MHz or 315 MHz
Temperature Reading
Accuracy: ±3°C
Pressure Reading Accuracy: ±3 kPa
G Sensor Reading Accuracy: ±15%
Storage temperature: -40°C to 150°C
Colour:black
Material:plastic metal
Package Contents:
4 x Tire Pressure Sensor
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
Key Features
Type:Intake Air Pressure Sensor
Origin:Mainland China
