Heat powered Fan for stove do not use batteries or electricity to increase the heating efficiency of your stove. This allows the warm air to flow through your room faster.
Features:
Suitable for wood stoves.
Can help you add extra warmth and comfort to your family in winter.
Works on the heat generated from your wood stove to help warm up the room faster and more efficiently.
No b-attery or plugs needed, powered by the heat from your stove/fireplace.
Low start up temperature of only 40 deg;C (104 deg;F).
Featured fan blade design, safe and efficient, moving more air in a wider range of furnace temperature.
Specifications:
type: Stove Fan
Blade color: Black, golden(optional)
Power supply equipment: Heat powered
Airflow: Aluminum
Airflow: 203CFM
Start temperature: 40℃

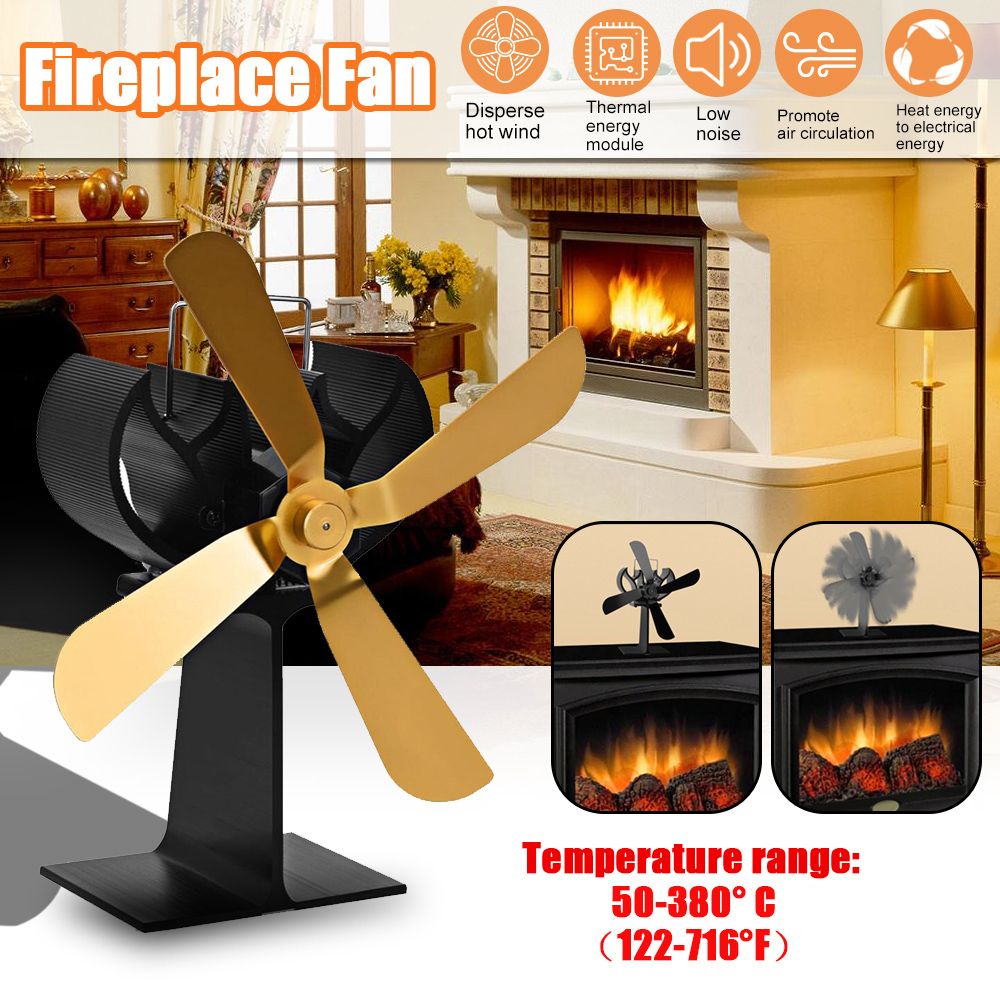

Working temperature: 50-370℃
Noise level: 0.15-0.18db
Recommended distance: 0.1-0.15m

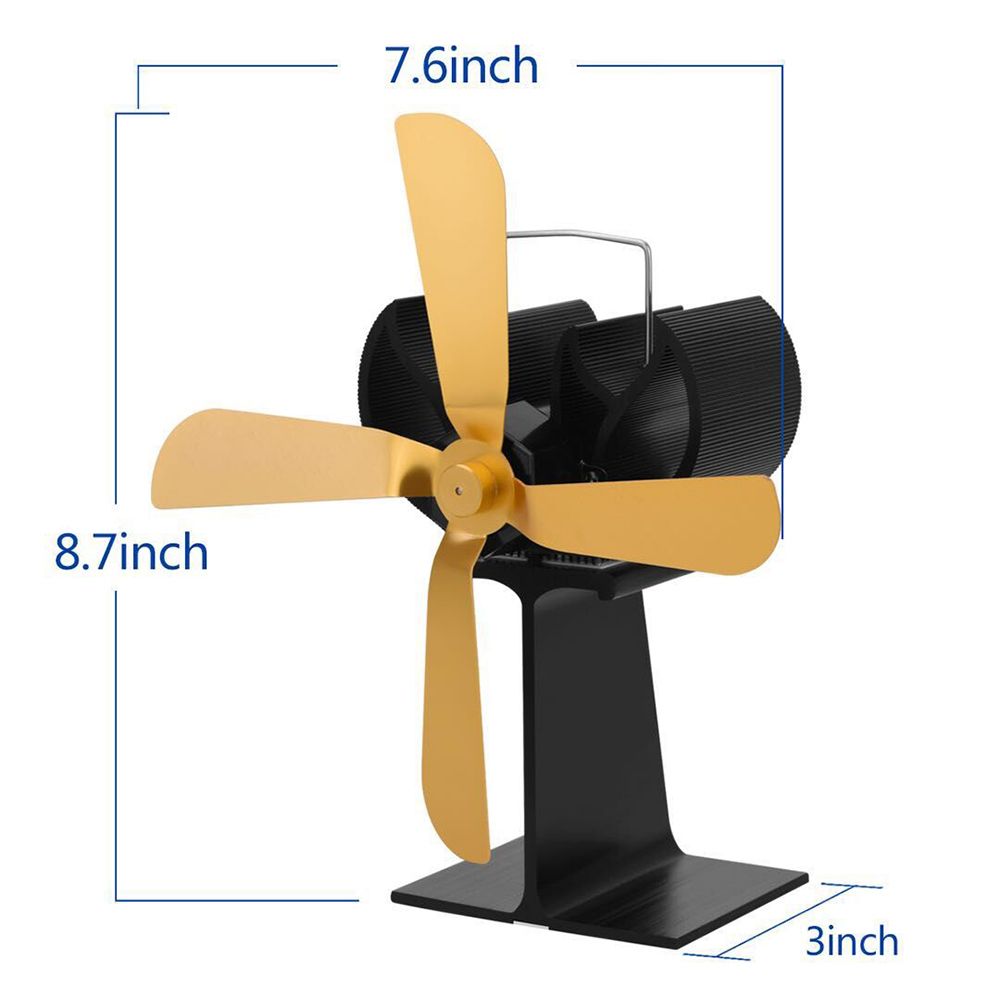

Overall height: 217mm
Overall width: 188mm
The base dimensions: 92 * 75.8mm
Package weight: 820g / 1.8pounds
Package size: 230 * 200 * 130mm / 9.05 * 7.87 * 5.11inch
Attention:The heat powered stove fans does not bring direct temperature increase but only a tool to accelerate the heat transfer of the chimney.
Package list:
1 * Stove Fan
Thermoelectric test
Temperature difference of 20℃ : open circuit voltage 0.98V, power generation current 230MA
Difference in temperature of 40 ℃; Open circuit voltage 1.9V; The generating current is 372MA
Open circuit voltage 2.4V; Generating current 473MA
Open circuit voltage 3.7V; The generating current is 564MA
Temperature difference greater than 100 ℃;Open circuit voltage 4.8v;Generating current: 675MA
(The current is the short circuit test value)
Temperature protector: 50*10*0.6mm(Thermosensitive bimetallic sheet)
Rotate speed: Approx. 1000RPM(Max)
Wind speed: Approx. 2.1m/s(Max)
Noise: Approx.＜15dB

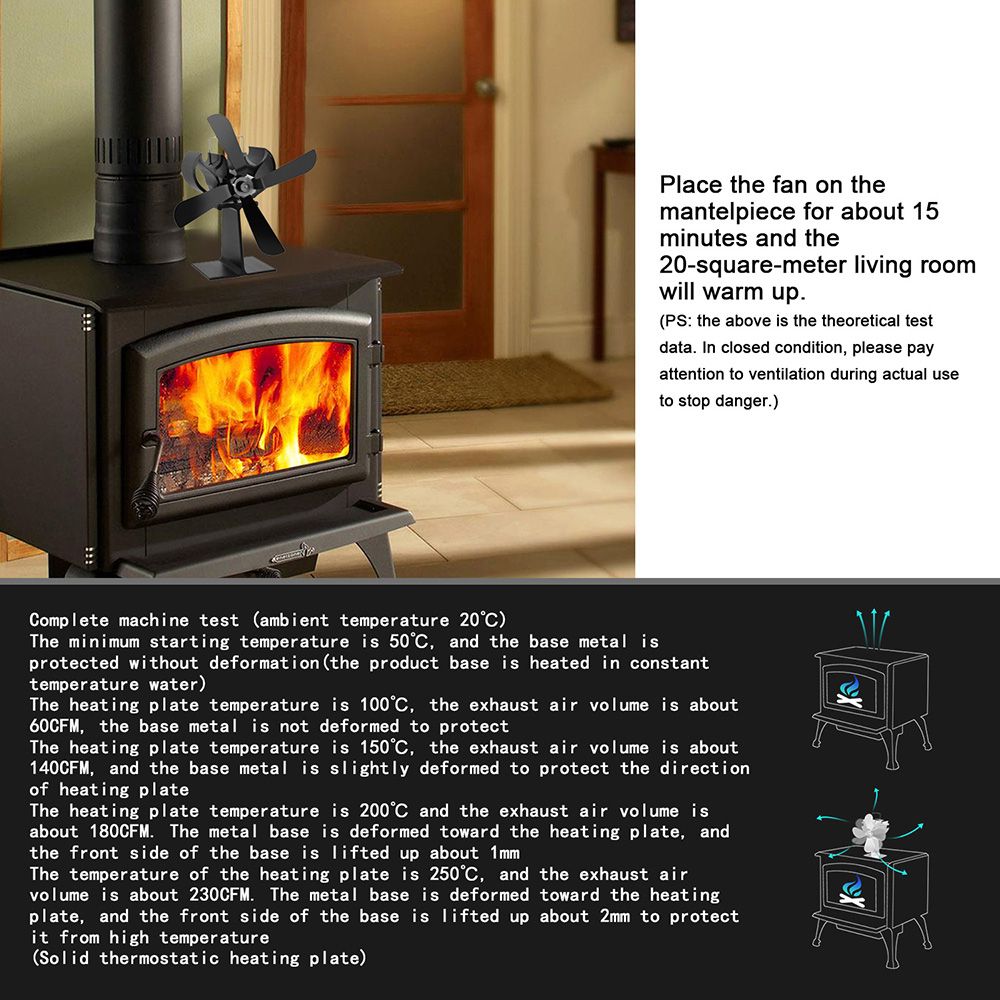

Complete machine test (ambient temperature 20℃)
The minimum starting temperature is 50℃, and the base metal is protected without deformation(the product base is heated in constant temperature water)
The heating plate temperature is 100℃, the exhaust air volume is about 60CFM, the base metal is not deformed to protect
The heating plate temperature is 150℃, the exhaust air volume is about 140CFM, and the base metal is slightly deformed to protect the direction of heating plate
The heating plate temperature is 200℃ and the exhaust air volume is about 180CFM. The metal base is deformed toward the heating plate, and the front side of the base is lifted up about 1mm
The temperature of the heating plate is 250℃, and the exhaust air volume is about 230CFM. The metal base is deformed toward the heating plate, and the front side of the base is lifted up about 2mm to protect it from high temperature
(Solid thermostatic heating plate)

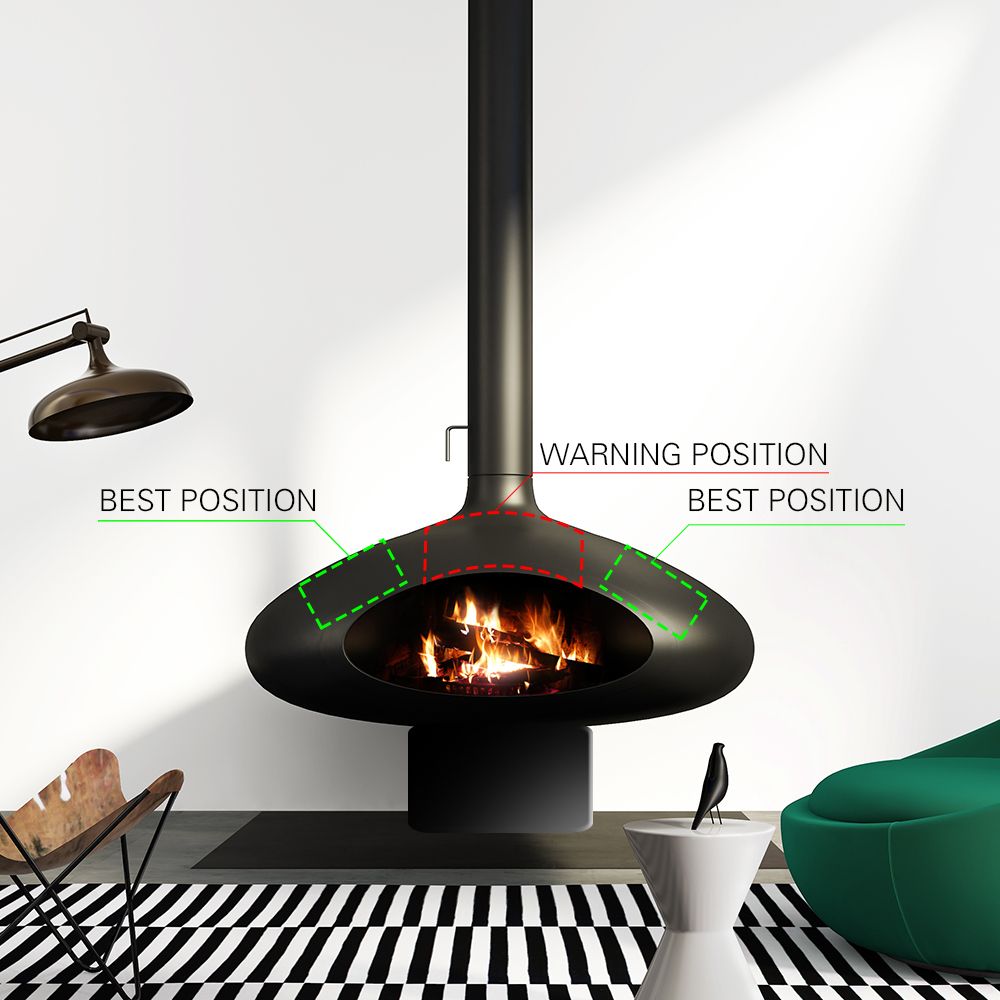

Place the fan on the mantelpiece for about 15 minutes and the 20-square-meter living room will warm up.
(PS: the above is the theoretical test data. In closed condition, please pay attention to ventilation during actual use to stop danger.)
